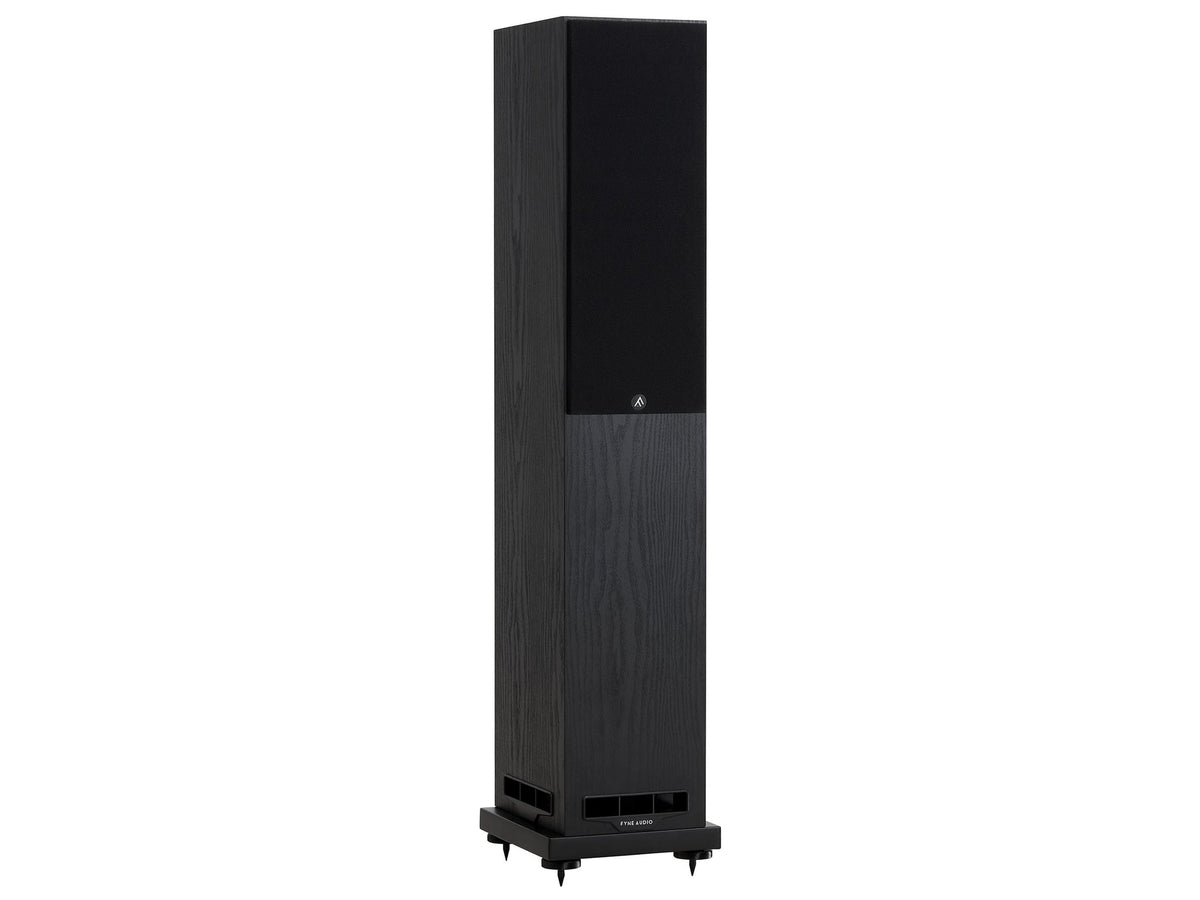

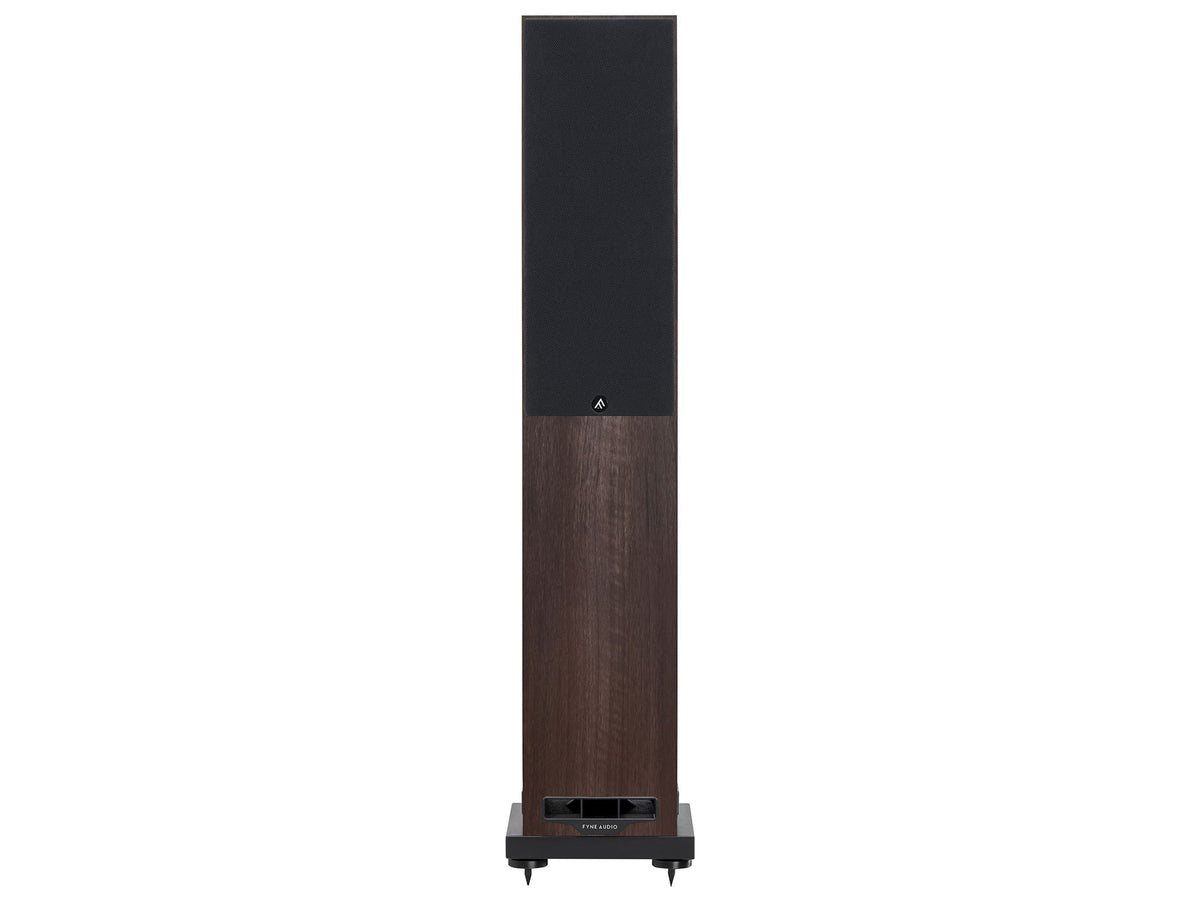

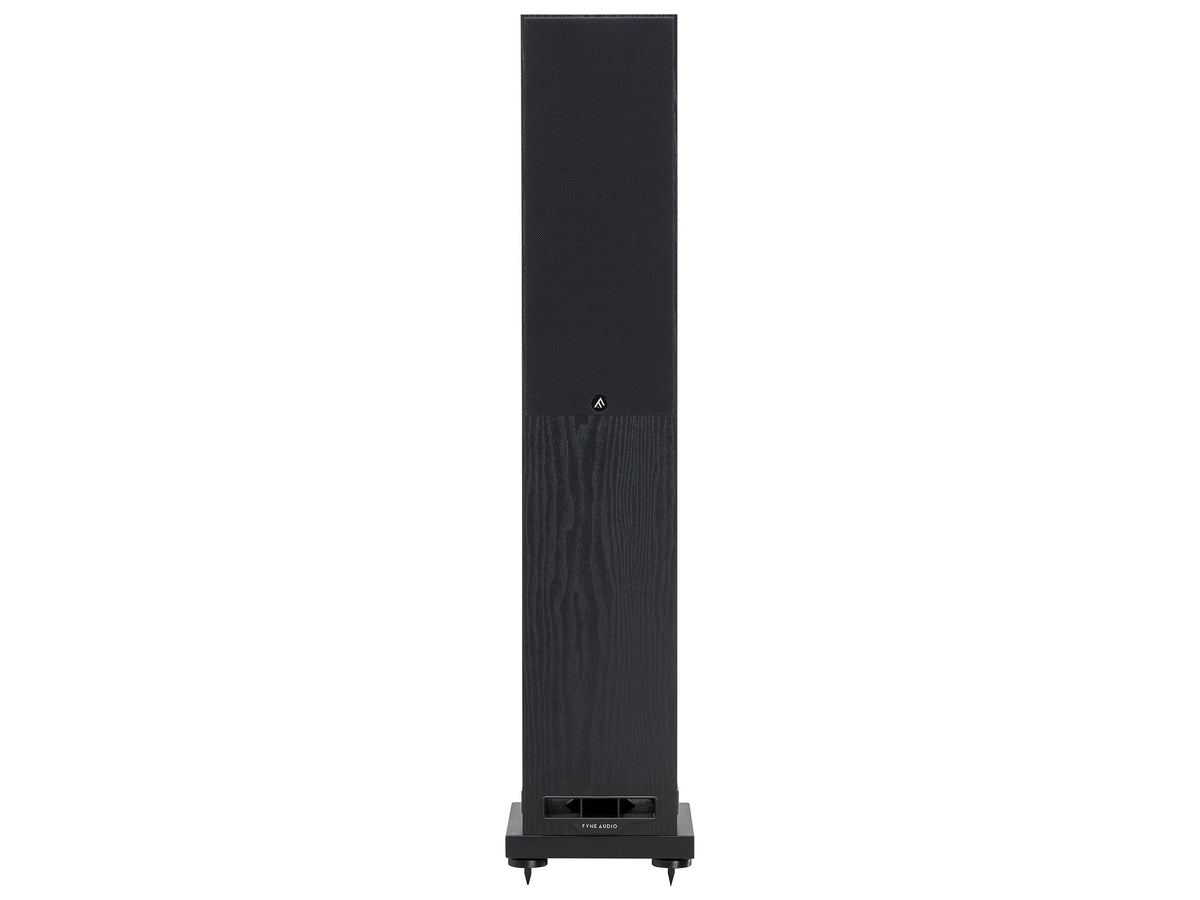

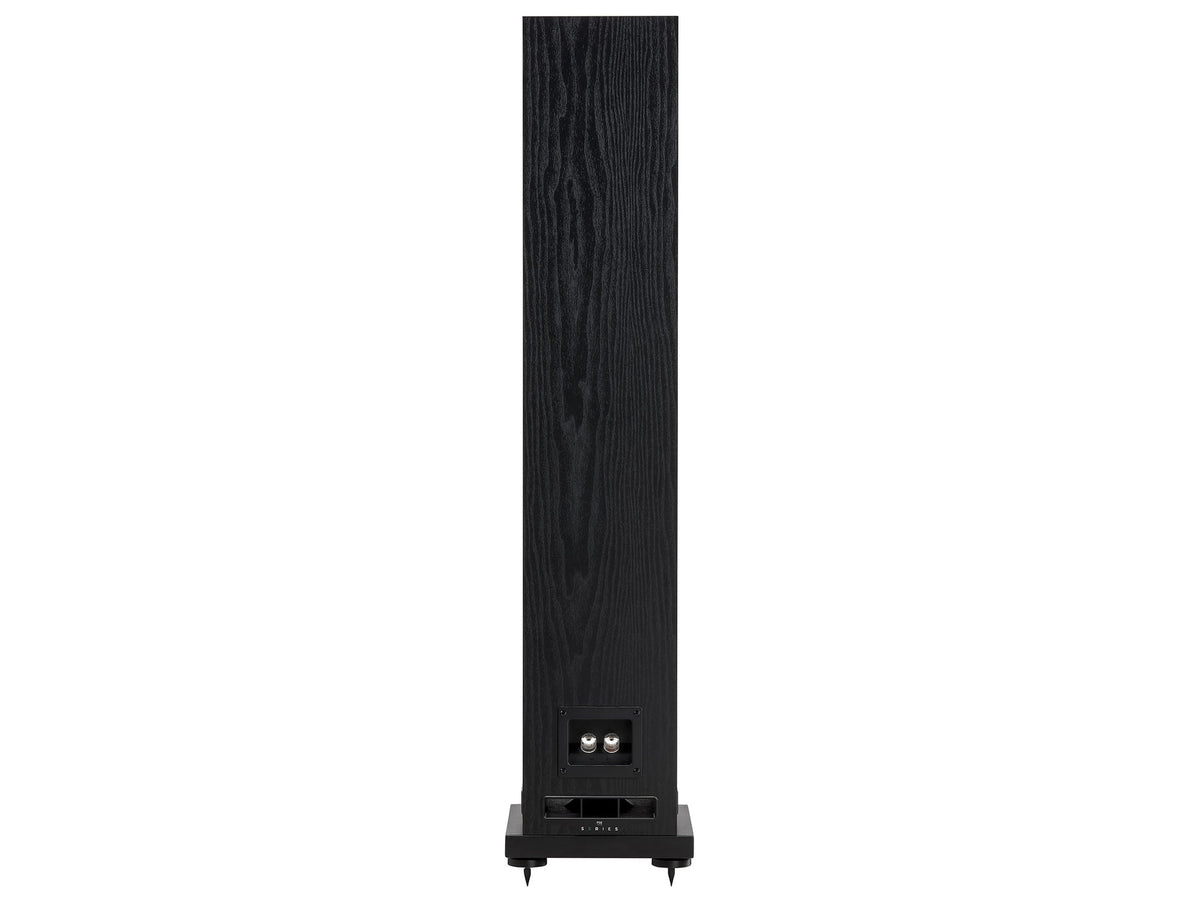

Fyne Audio F55E: 2.5-way floorstanding speakers with a 125 mm IsoFlare driver
The F55E is a 2.5-way floorstander with a small footprint, which Fyne Audio suggests for small rooms and for listening to both music and films. Sold as a pair.

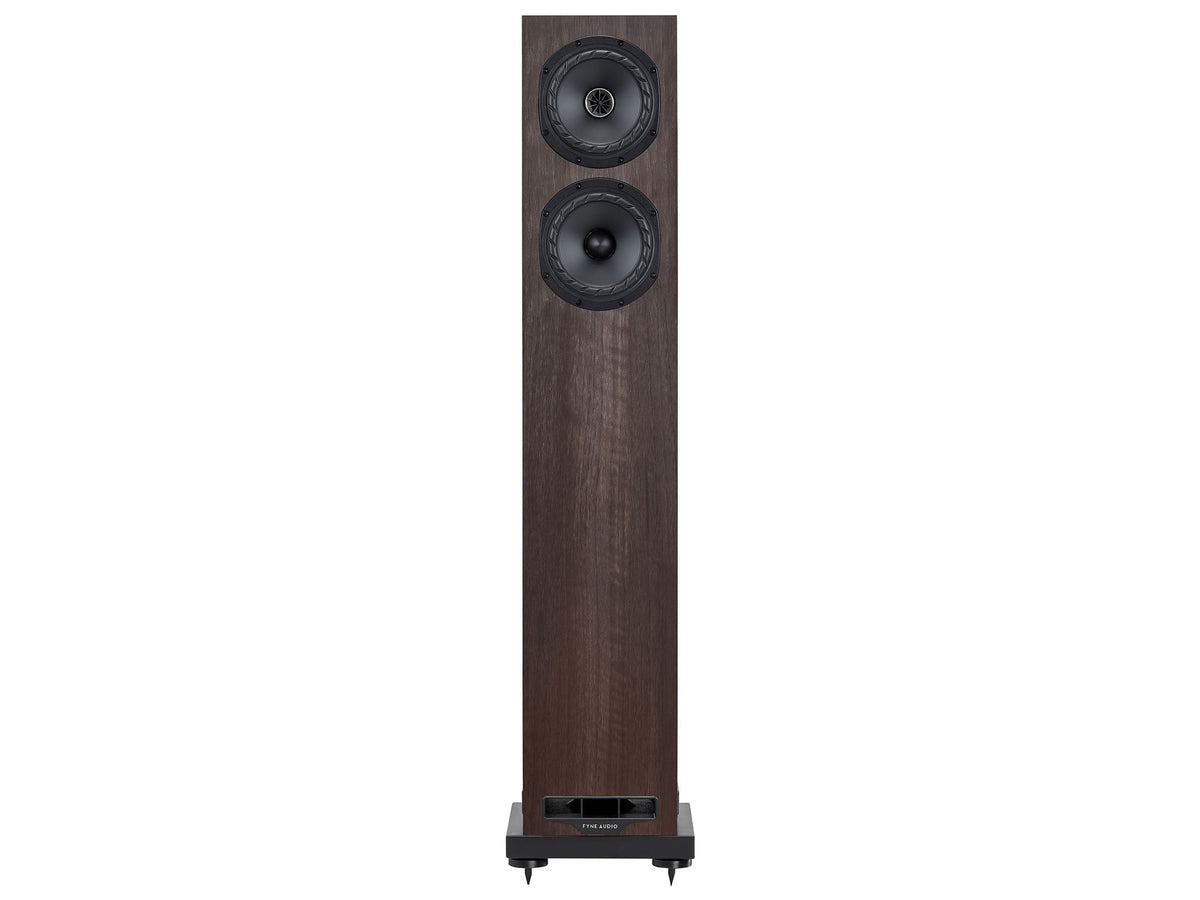

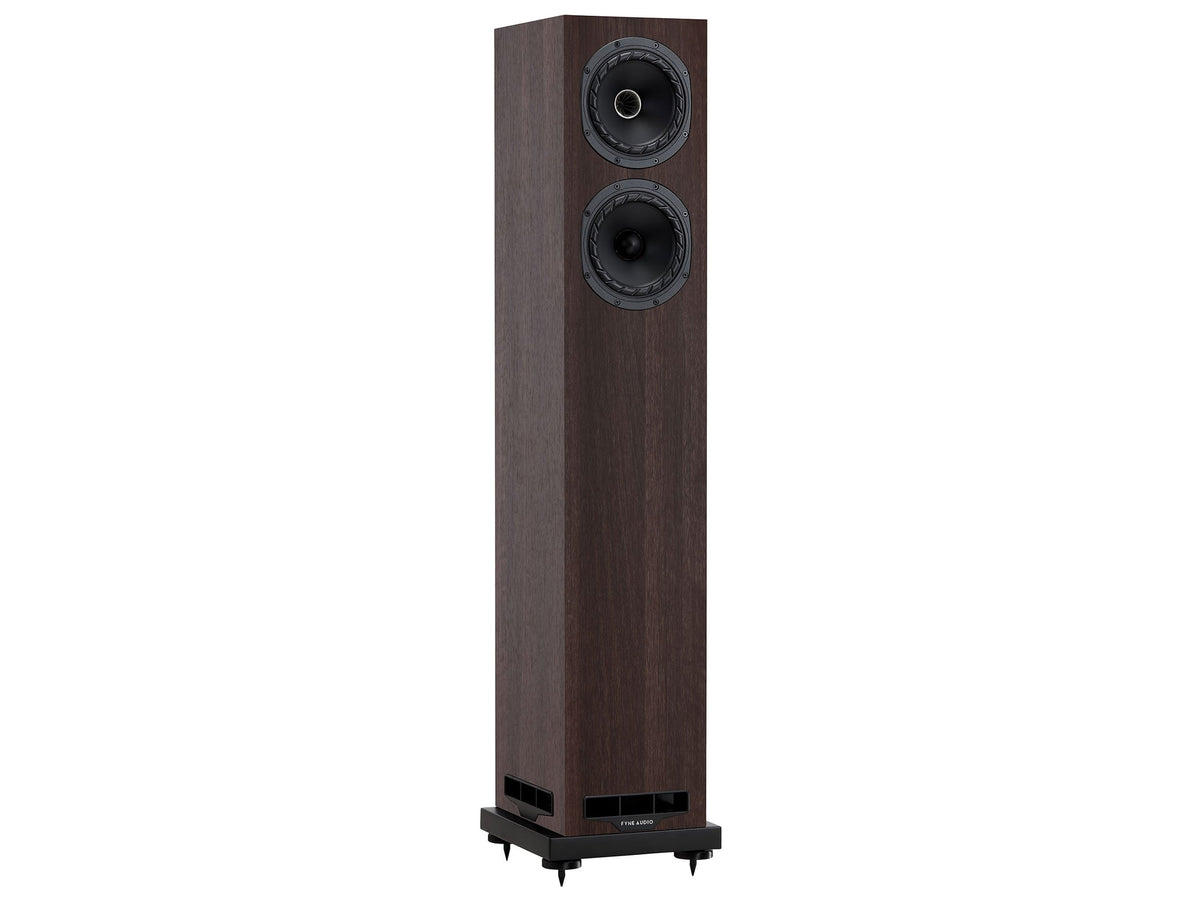

The 125 mm IsoFlare point source unit matches a multi-fibre cone for bass and midrange to a compression tweeter whose titanium dome measures 19 mm; a second 125 mm multi-fibre drive unit assigned to the bass works beside it. The port faces the floor and works with the BassTrax system. The cabinet is made of MDF.
Key features
- 2.5-way system with a port firing downwards and BassTrax
- 125 mm IsoFlare unit with multi-fibre cone for bass and midrange
- Compression tweeter using a 19 mm titanium dome
- 125 mm drive unit for the bass, with multi-fibre cone
- Frequency response 42 Hz - 38 kHz (-6 dB, typical in-room figure)
- Sensitivity 88 dB (2.83 V at 1 m), nominal impedance 8 ohm
Technical data
Suggested amplifier power runs from 30 to 120 W RMS; the speaker takes 60 W RMS continuously. The crossover points sit at 350 Hz and 1.8 kHz, using a second-order low-pass filter and a first-order high-pass filter. Each cabinet measures 925 x 210 x 236 mm (height x width x depth) and weighs 11.9 kg: both figures refer to a single speaker.
Installation
BassTrax technology spreads sound evenly around the room, which is why the position of the speakers is less critical.
