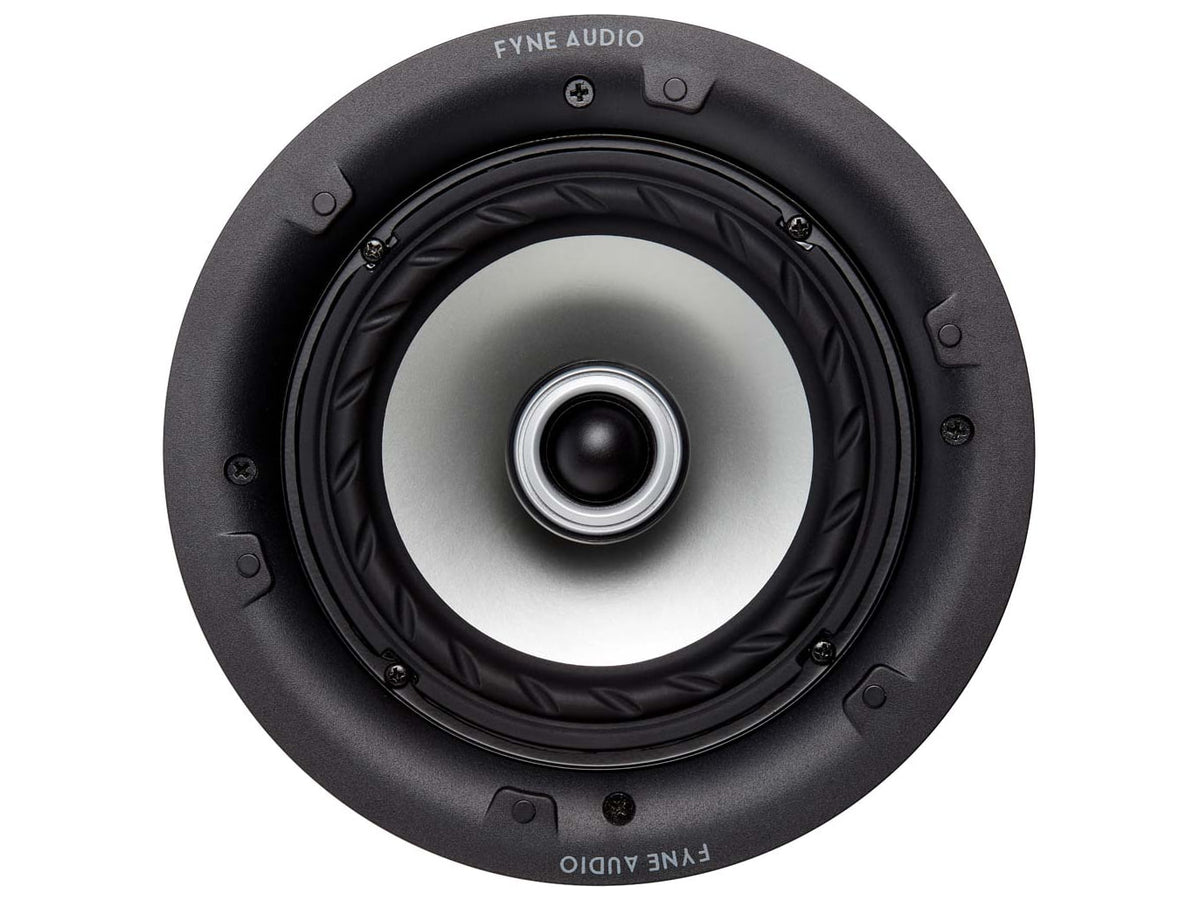

Fyne Audio FA301iC: 2-way coaxial speaker for flush mounting in ceilings or walls
The Fyne Audio FA301iC is a small full-range speaker intended for concealed installation in the home, either in a ceiling or in a wall. It is sold singly.

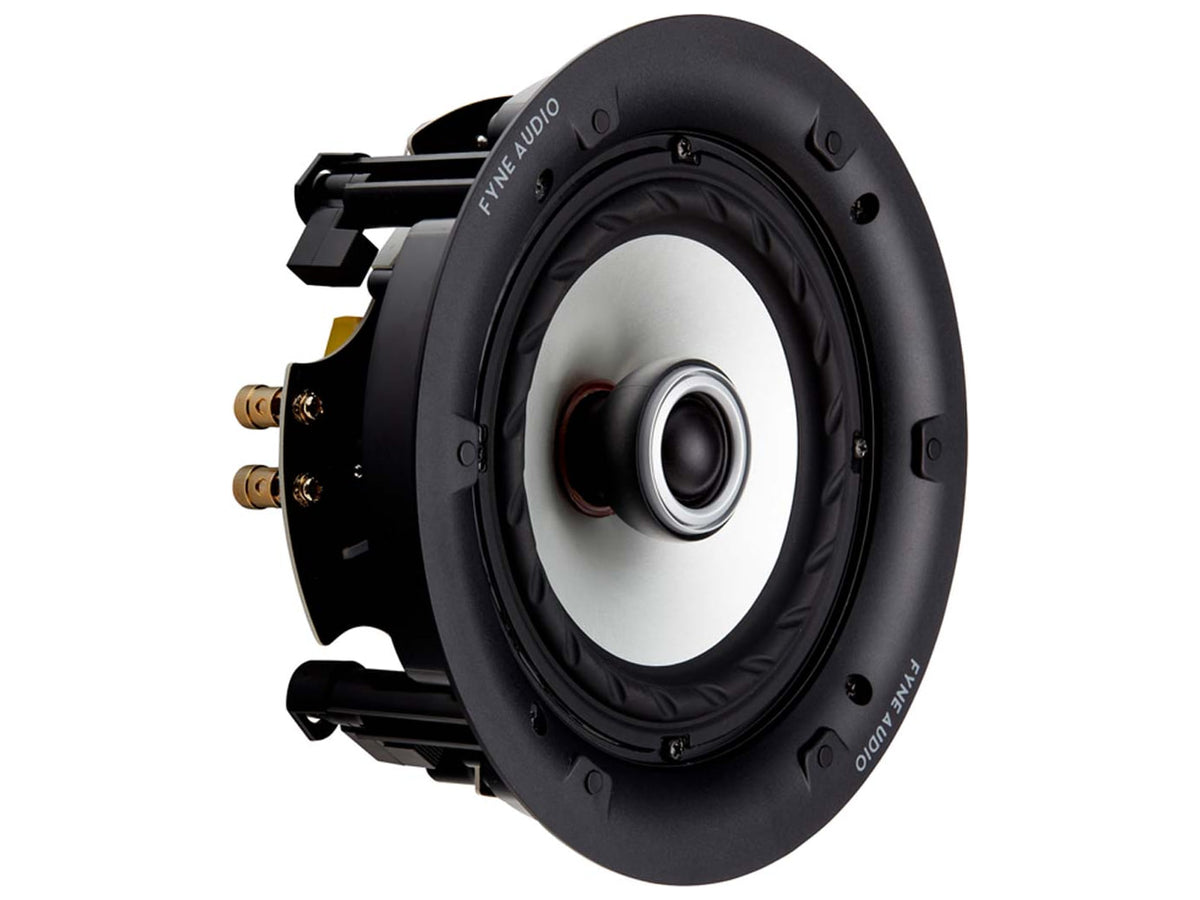

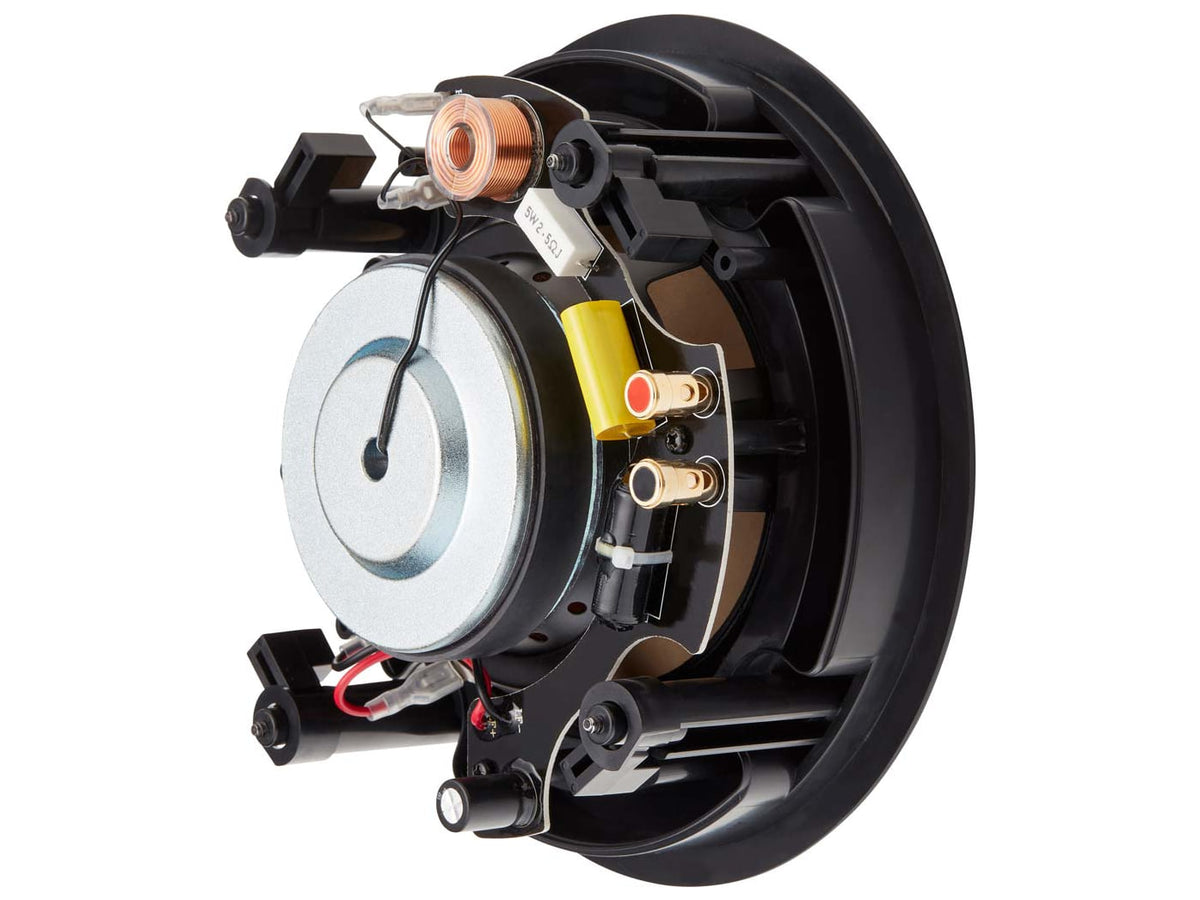

It takes its drive units from the F300 Series speakers: a 150 mm multi-fibre cone for bass and midrange, held by a FyneFlute surround, and a 25 mm polyester-dome tweeter placed coaxially. The tweeter sits in a pod that can be swivelled, so the high frequencies can be aimed at the listening seat. The crossover is voiced for built-in use; quick-fit clamps hold the speaker in place and the round grille has a low profile.
Key features
- 2-way coaxial system with a steerable tweeter
- 150 mm cone in multi-fibre, FyneFlute surround
- 25 mm coaxial tweeter with polyester dome
- Frequency response 44 Hz - 28 kHz (-6 dB, typical in-room figure)
- Sensitivity 89 dB (2.83 V at 1 m), nominal impedance 8 ohm
- Suggested amplifier output from 25 to 100 W RMS
Technical data
The passive crossover point is 3.2 kHz, using a second-order low-pass section and a first-order high-pass section. Power handling is 50 W RMS continuous and 200 W peak. The speaker measures 224 mm in diameter by 95 mm in depth and has a net weight of 2 kg.
Installation

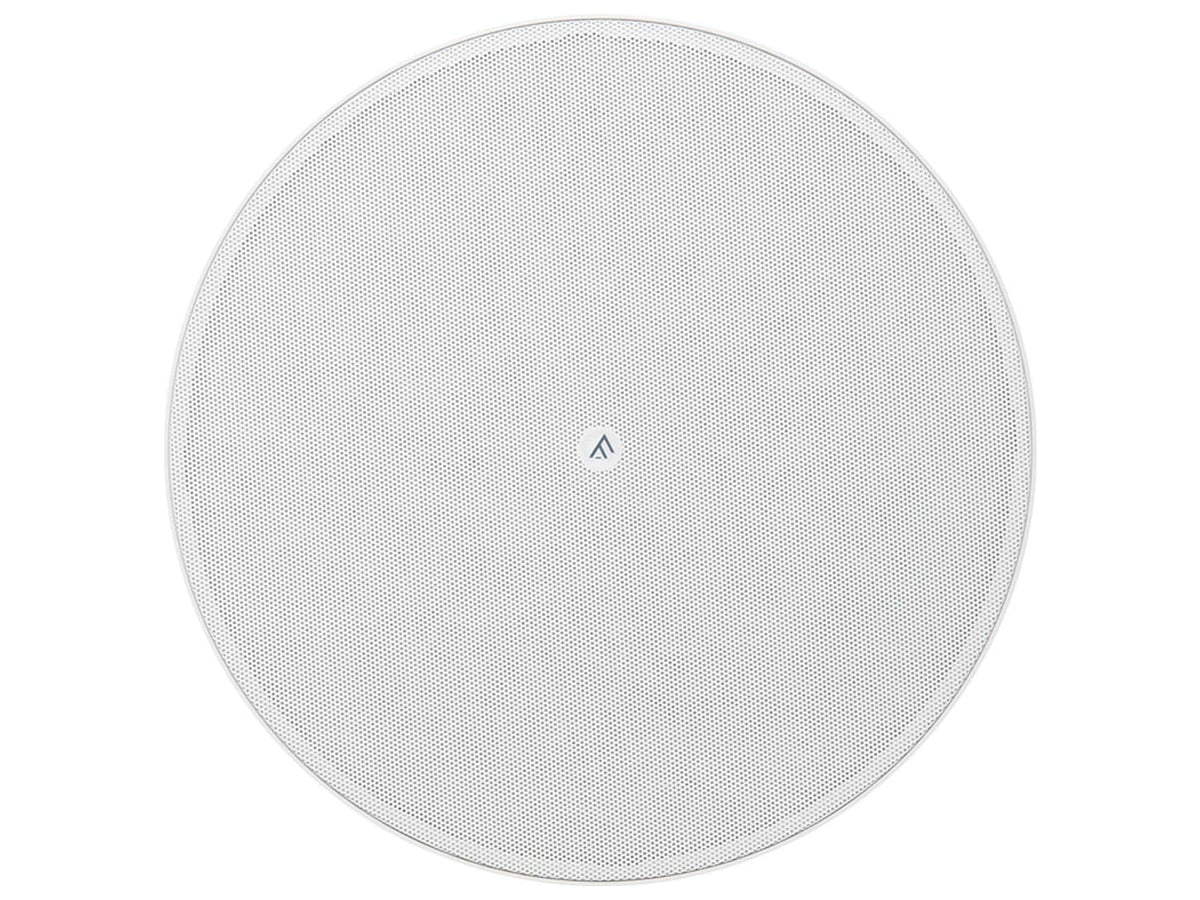

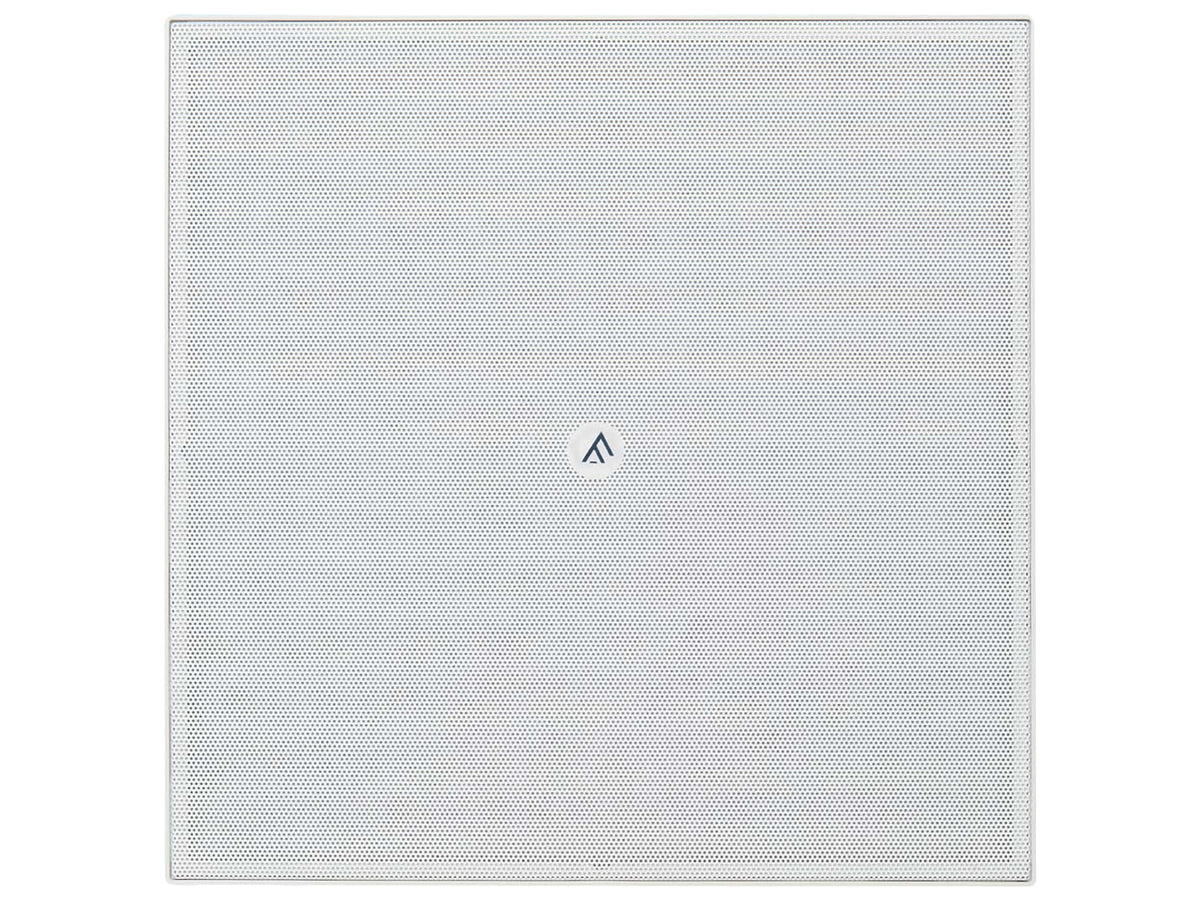

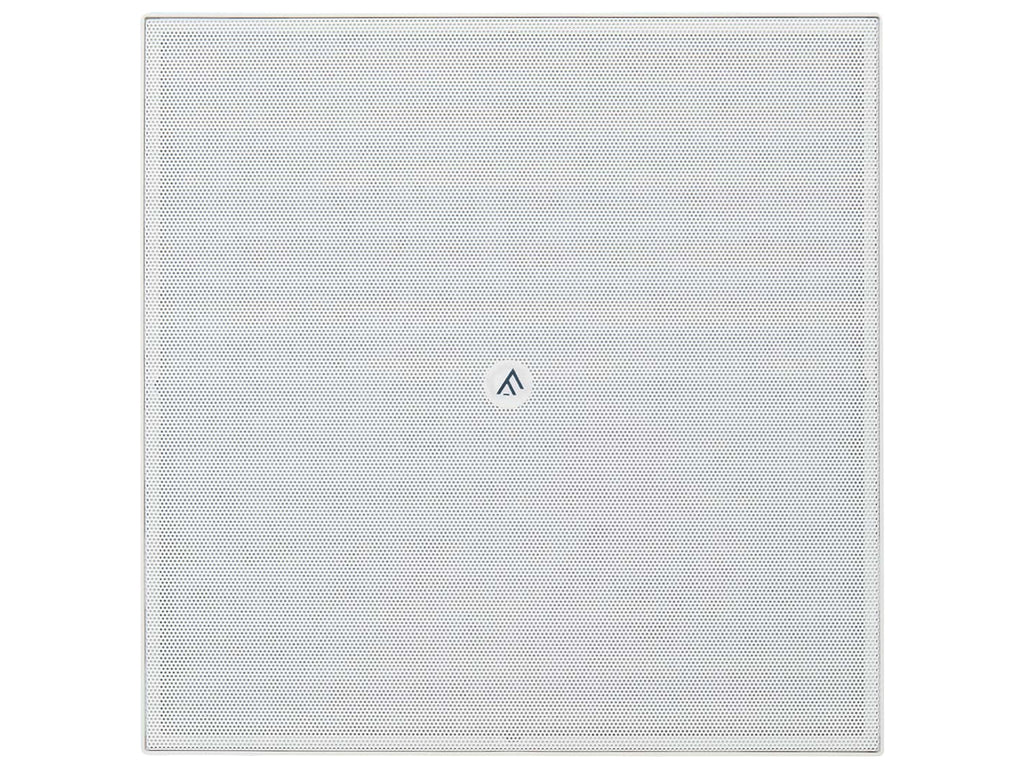

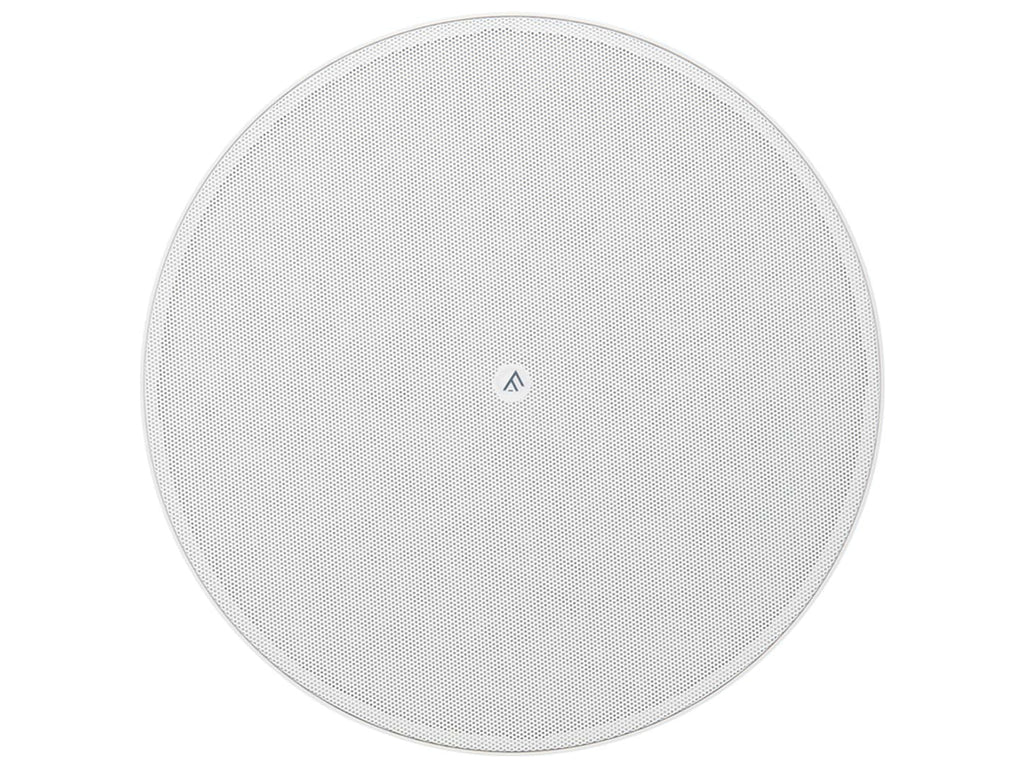

The cut-out is 208 mm in diameter and the speaker takes up 92 mm of depth behind the mounting surface. The clamps travel from 5 to 50 mm and the suggested minimum volume behind the speaker is 10 litres. The round grille is 232 mm across; the square grille, 233 x 233 mm, is an optional accessory.
