Fyne Audio FA302iC: 2-way coaxial speaker for flush mounting in ceilings or walls
The Fyne Audio FA302iC is a speaker for concealed installation in the home, either in a ceiling or in a wall, with a 200 mm drive unit and bass that reaches under 40 Hz. It is sold singly.

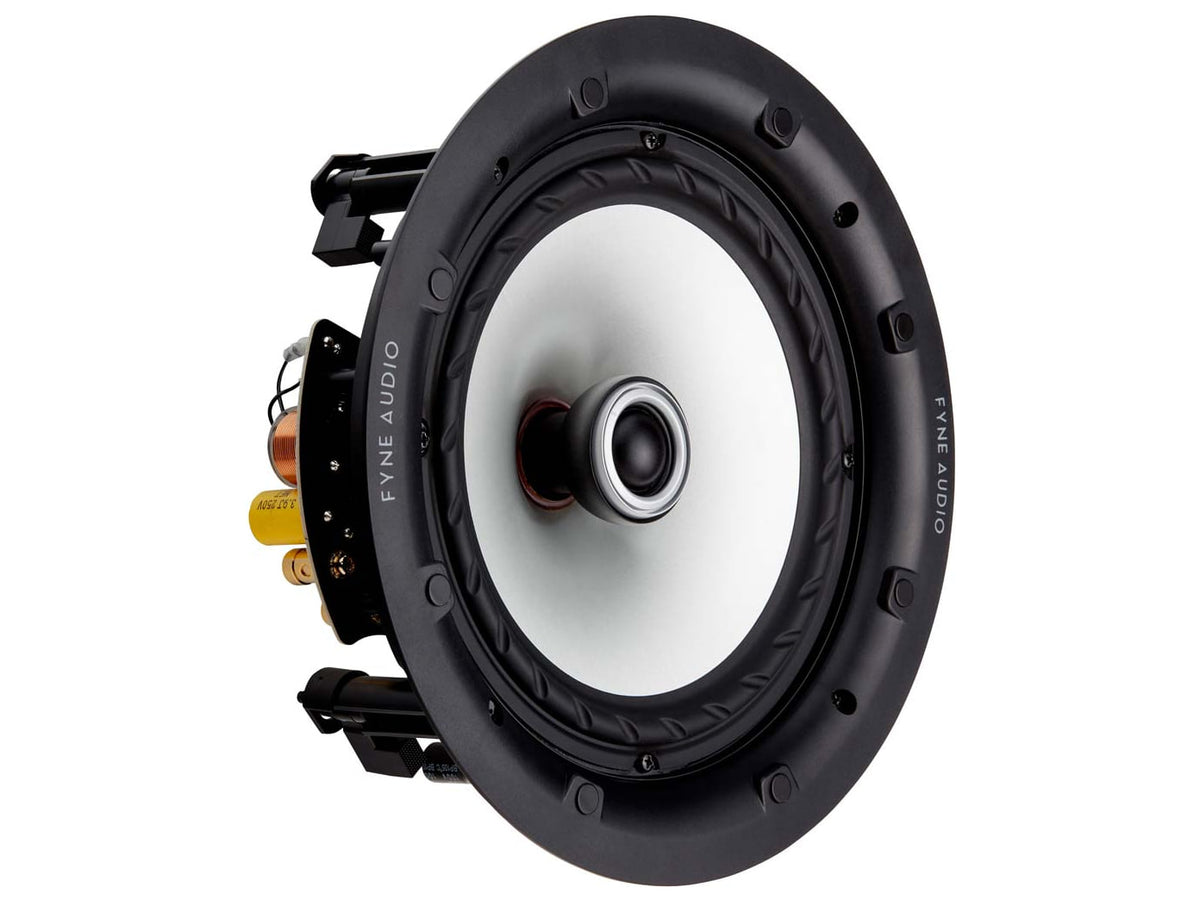

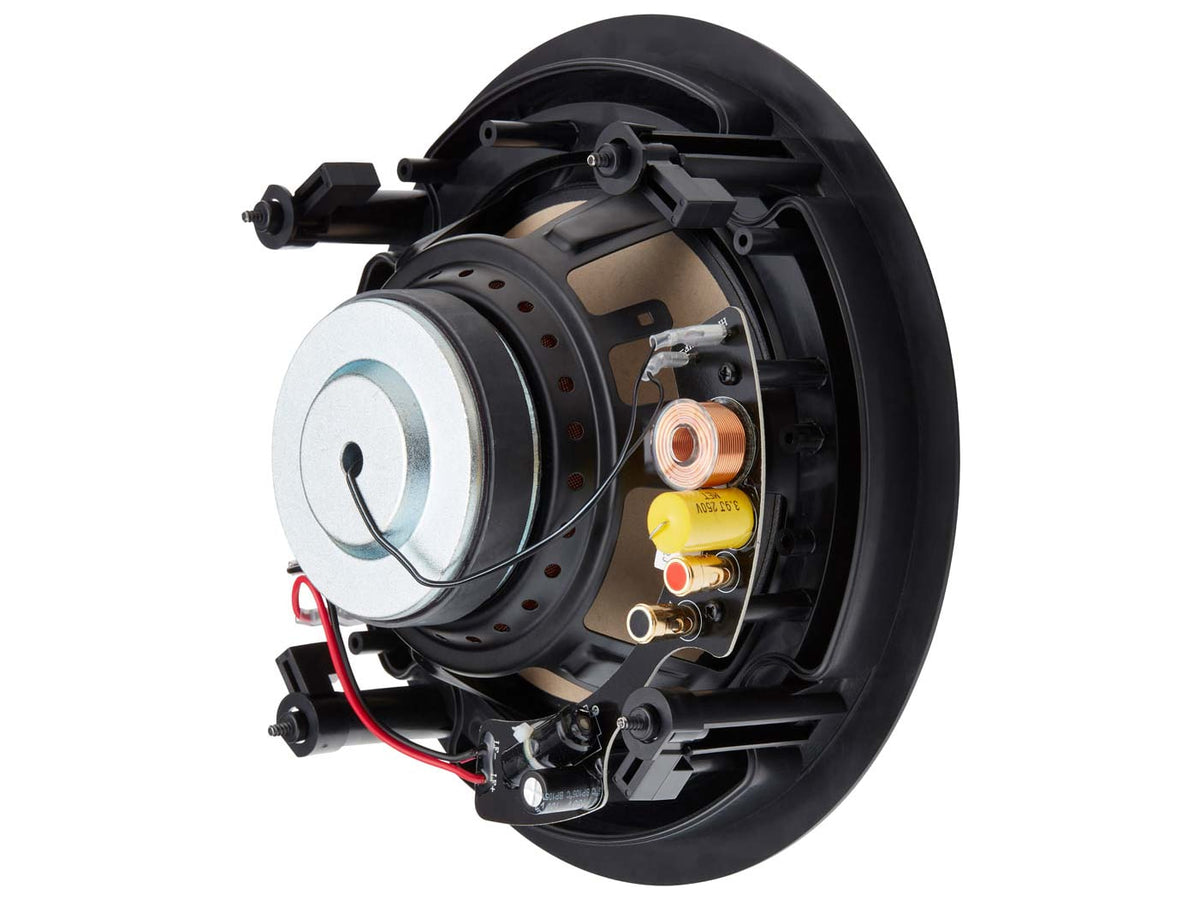

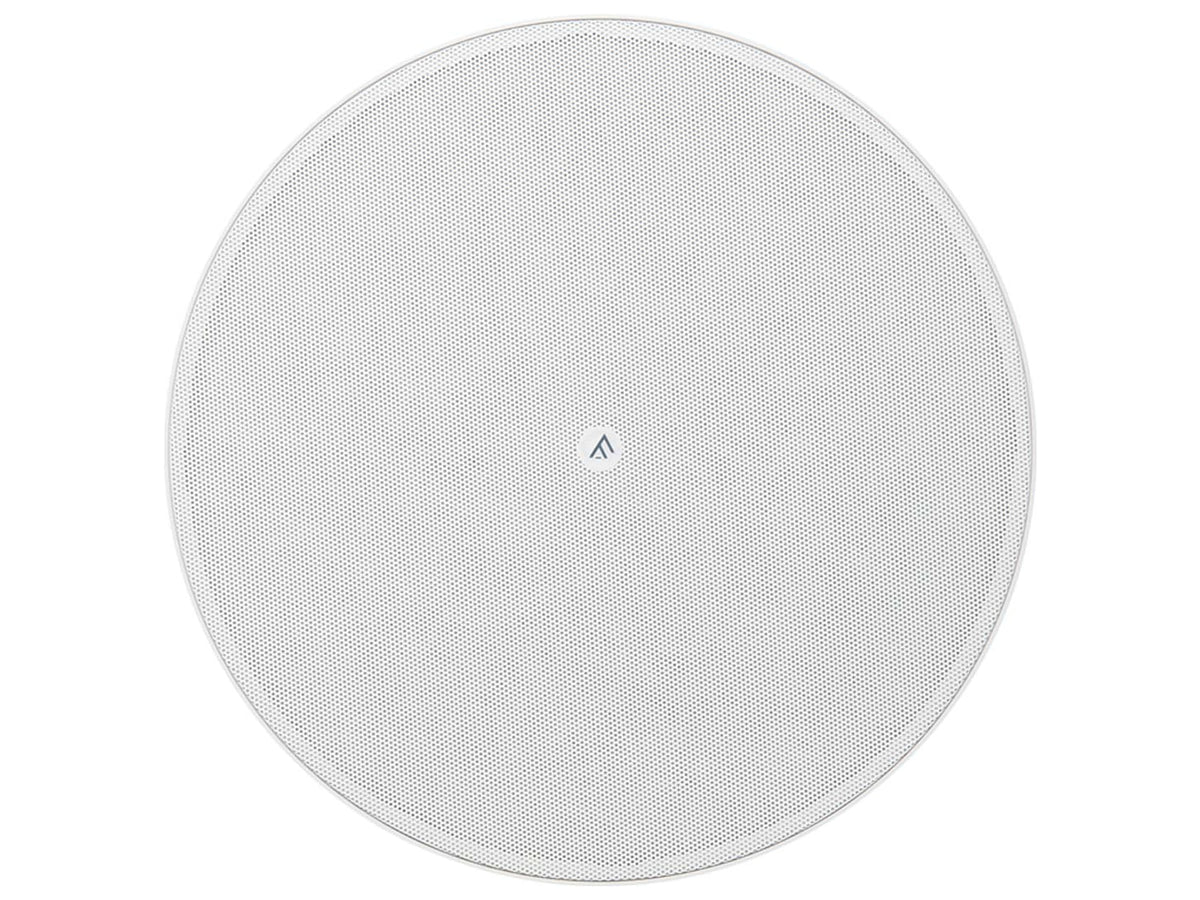

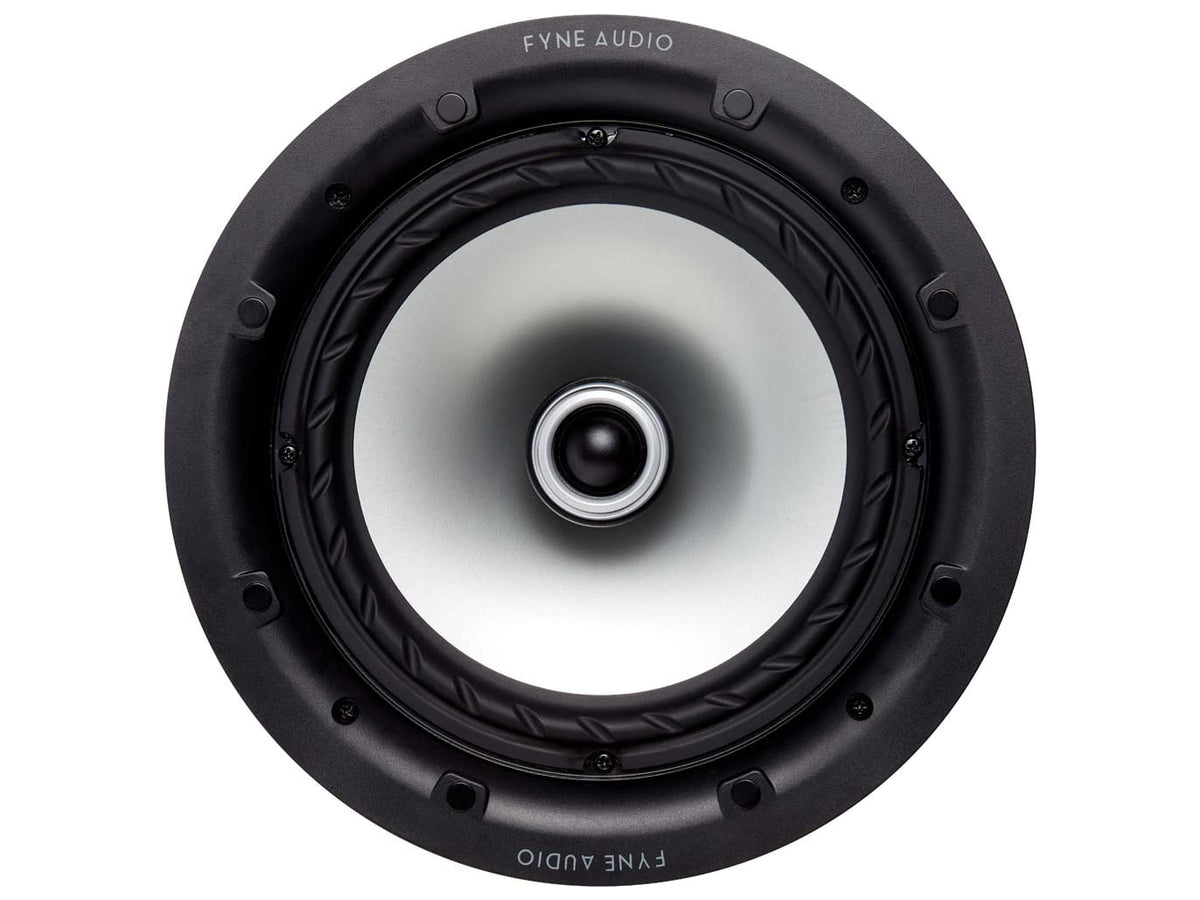

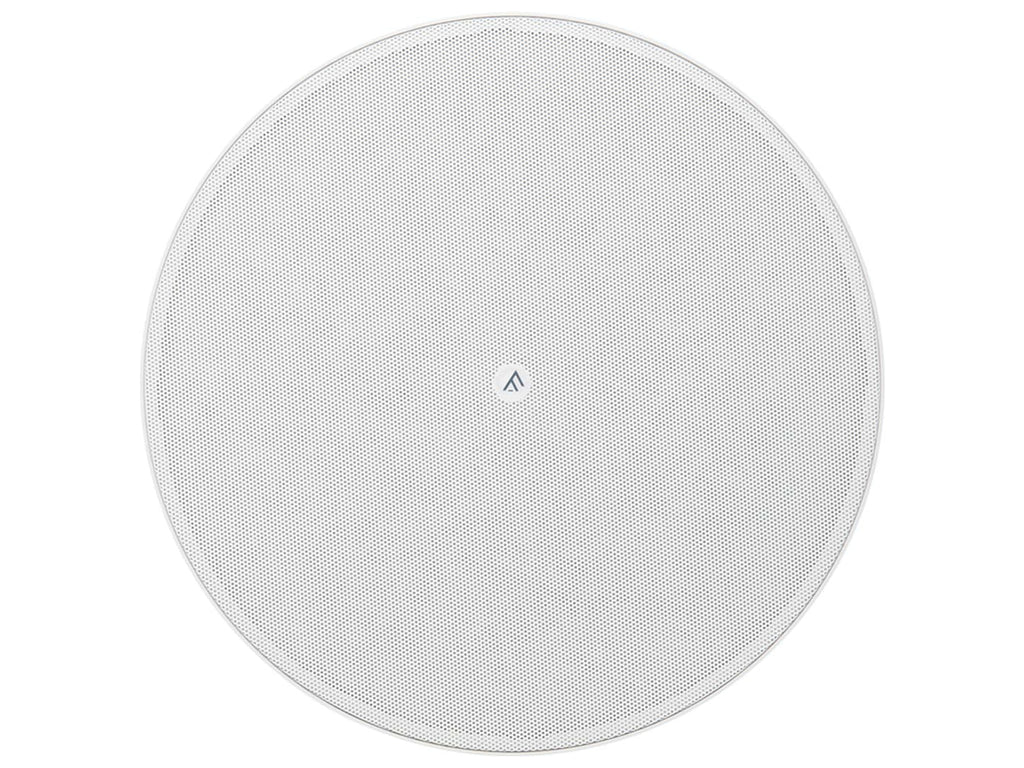

It derives from the bigger models of the F300 range: a 200 mm multi-fibre cone for bass and midrange, held by a FyneFlute surround, and a 25 mm soft polyester-dome tweeter placed coaxially. The tweeter pod can be swivelled so the sound is aimed at the listening seat. The crossover is voiced for a ceiling or wall position. The round magnetic grille has a low profile, lies nearly flush with the surface and accepts paint.
Key features
- 2-way coaxial system with a steerable tweeter
- 200 mm cone in multi-fibre, FyneFlute surround
- 25 mm coaxial tweeter with polyester dome
- Frequency response 37 Hz - 28 kHz (-6 dB, typical in-room figure)
- Sensitivity 90 dB (2.83 V at 1 m), nominal impedance 8 ohm
- Suggested amplifier output from 25 to 120 W RMS
Technical data
The passive crossover point is 2.8 kHz, using a second-order low-pass section and a first-order high-pass section. Power handling is 60 W RMS continuous and 240 W peak. The speaker measures 273 mm in diameter by 115 mm in depth and has a net weight of 2.1 kg.
Installation
Fitting relies on quick-fit clamps, sprung cable terminals and a template for the cut-out. The cut-out is 248 mm in diameter and the speaker takes up 112.5 mm of depth behind the mounting surface. The clamps travel from 5 to 50 mm and the suggested minimum volume is 15 litres. The round grille is 281 mm across; the square grille, 281 x 281 mm, is an optional accessory.
