Fyne Audio FA502iC LCR: 2-way flush-mount IsoFlare speaker with an angled driver for LCR channels
The Fyne Audio FA502iC LCR is the LCR variant of the FA502iC: it is meant for ceiling or wall installations in the home where the speaker is not in line with the listening seat, and for the three front channels (left, centre, right) in a home theatre system. It is sold singly.

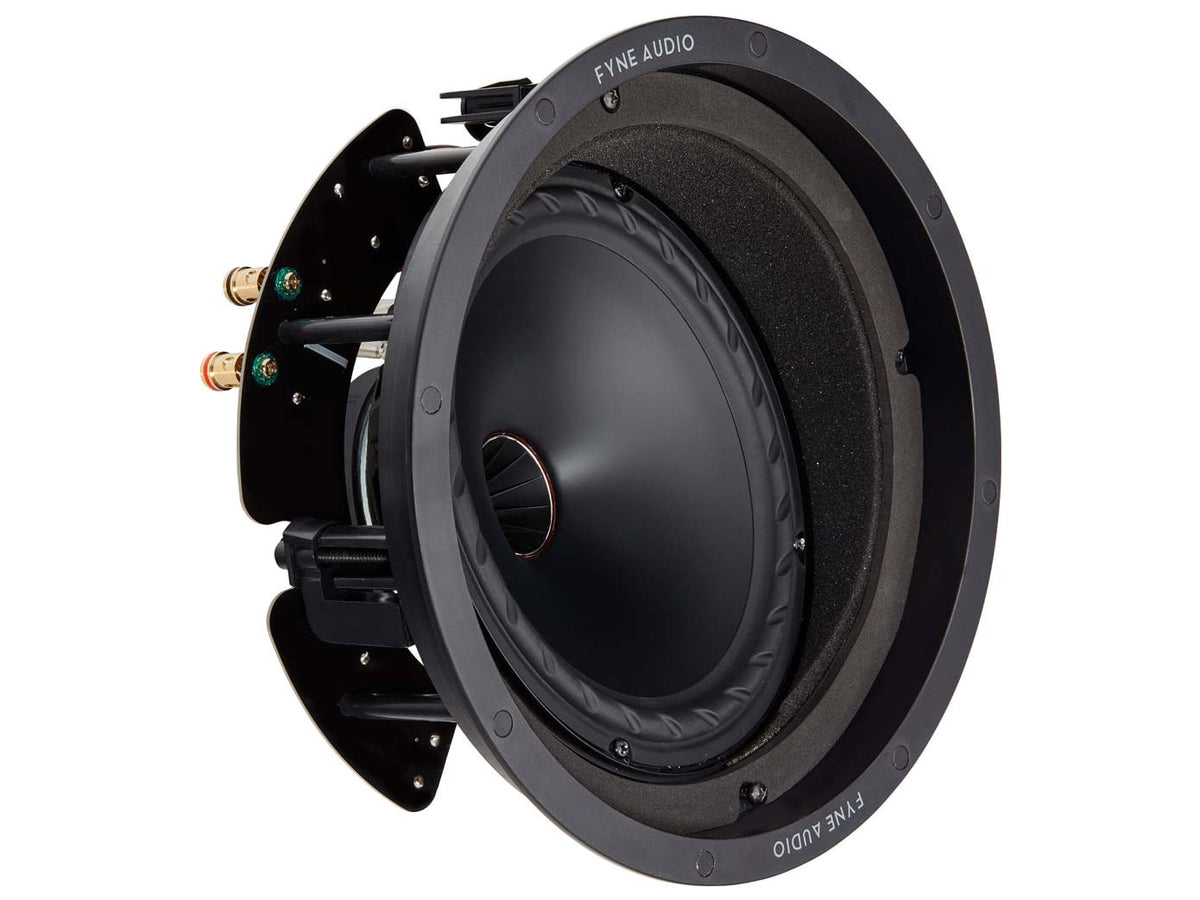

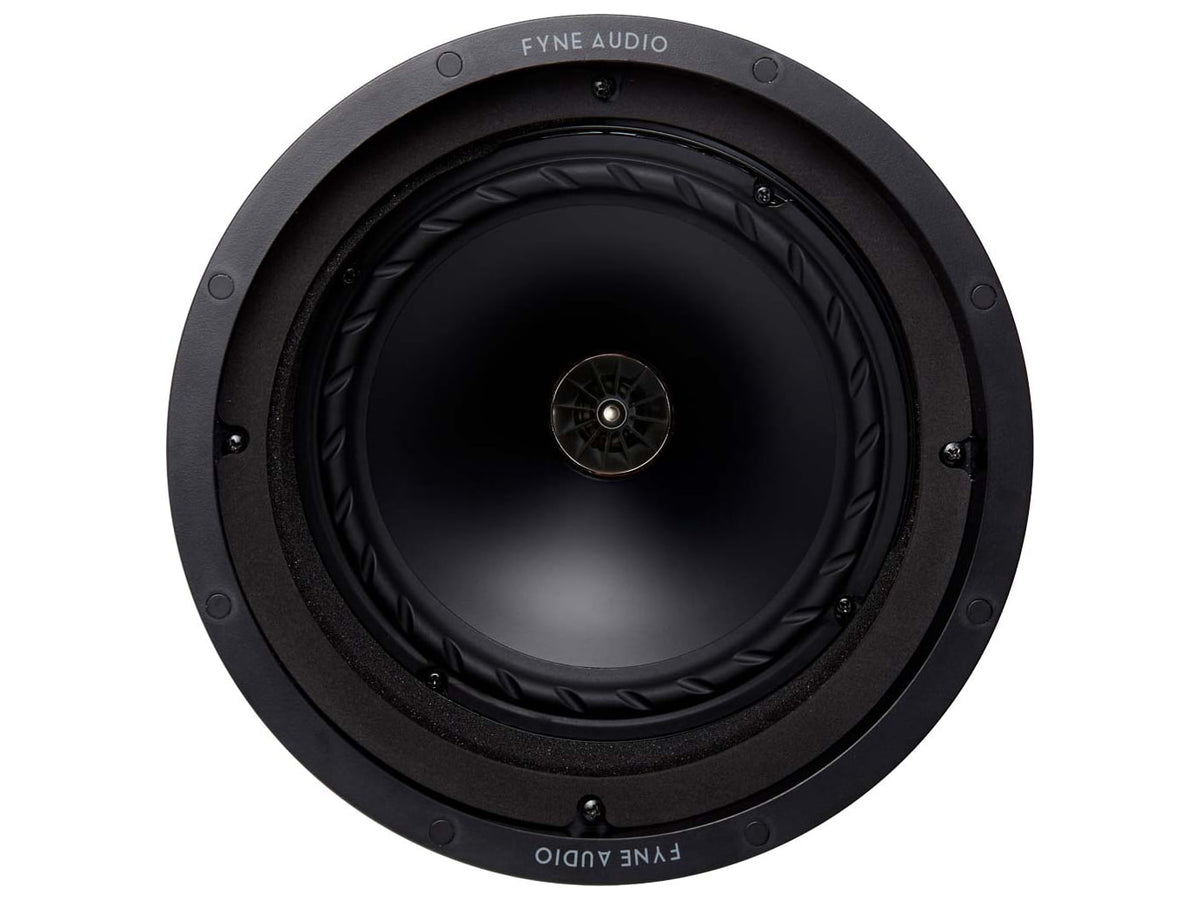

The 200 mm IsoFlare point source unit, made up of a multi-fibre cone for bass and midrange, a FyneFlute surround and a 25 mm titanium-dome compression tweeter, is tilted by 15 degrees relative to the mounting surface. Turning the speaker inside its round cut-out aims the output at the main listening seat. Fitting, power and performance are, according to Fyne Audio, those of the standard FA502iC.
Key features
- 2-way IsoFlare system with angled dispersion for LCR use
- 200 mm IsoFlare driver tilted by 15 degrees
- 25 mm compression tweeter with titanium dome
- Frequency response 35 Hz - 34 kHz (-6 dB, typical in-room figure)
- Sensitivity 91 dB (2.83 V at 1 m), nominal impedance 8 ohm
- Suggested amplifier output from 30 to 150 W RMS
Technical data

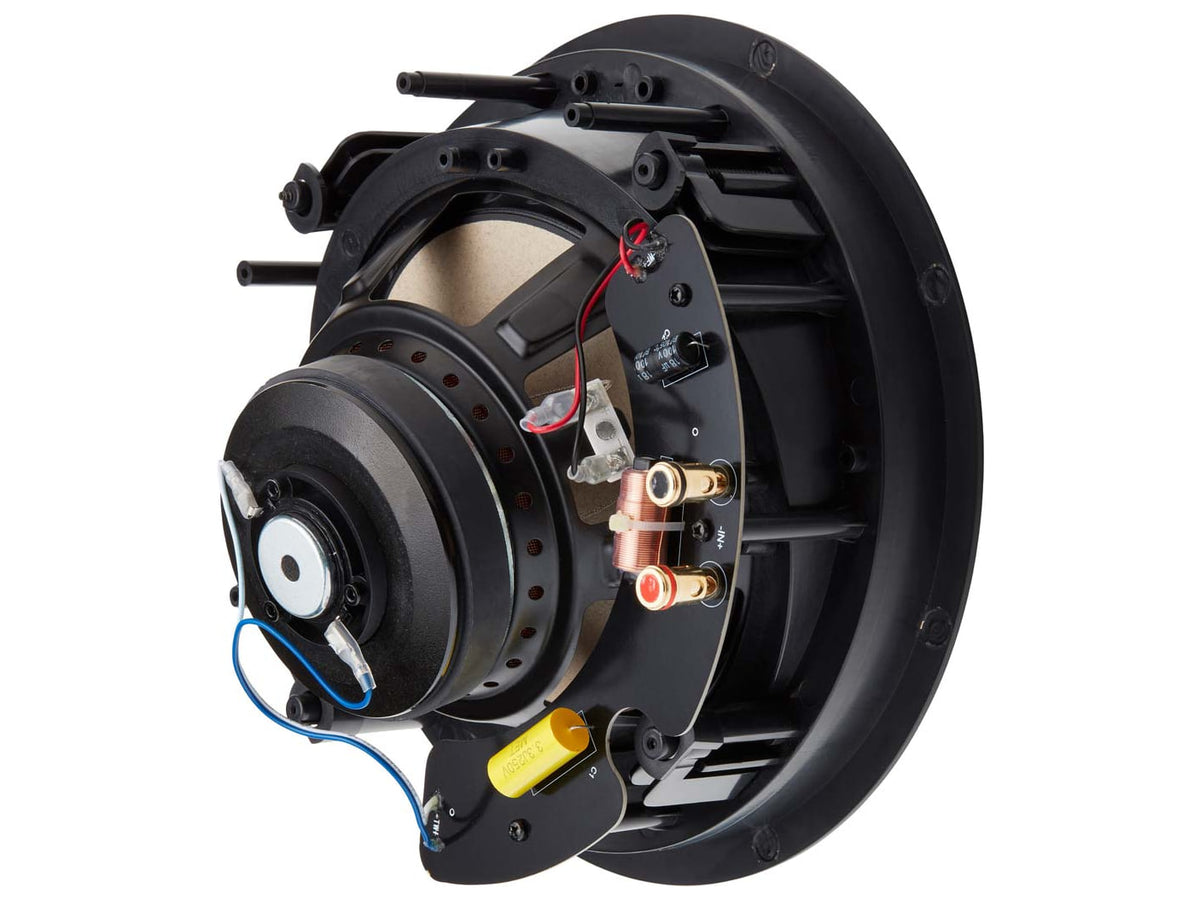

The passive crossover point is 1.7 kHz, using a second-order low-pass section and a first-order high-pass section. Power handling is 75 W RMS continuous and 300 W peak. The speaker measures 278 mm in diameter by 157 mm in depth and has a net weight of 2.4 kg.
Installation

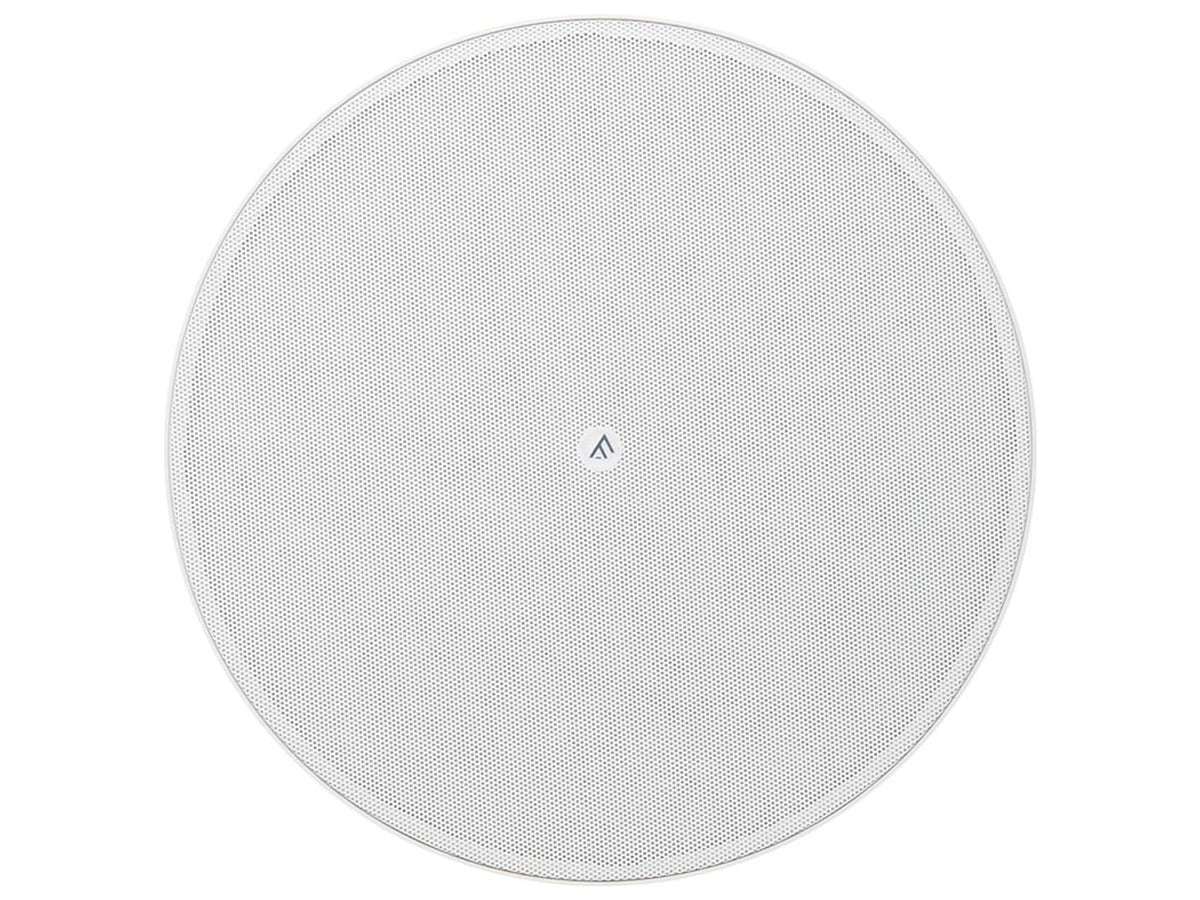

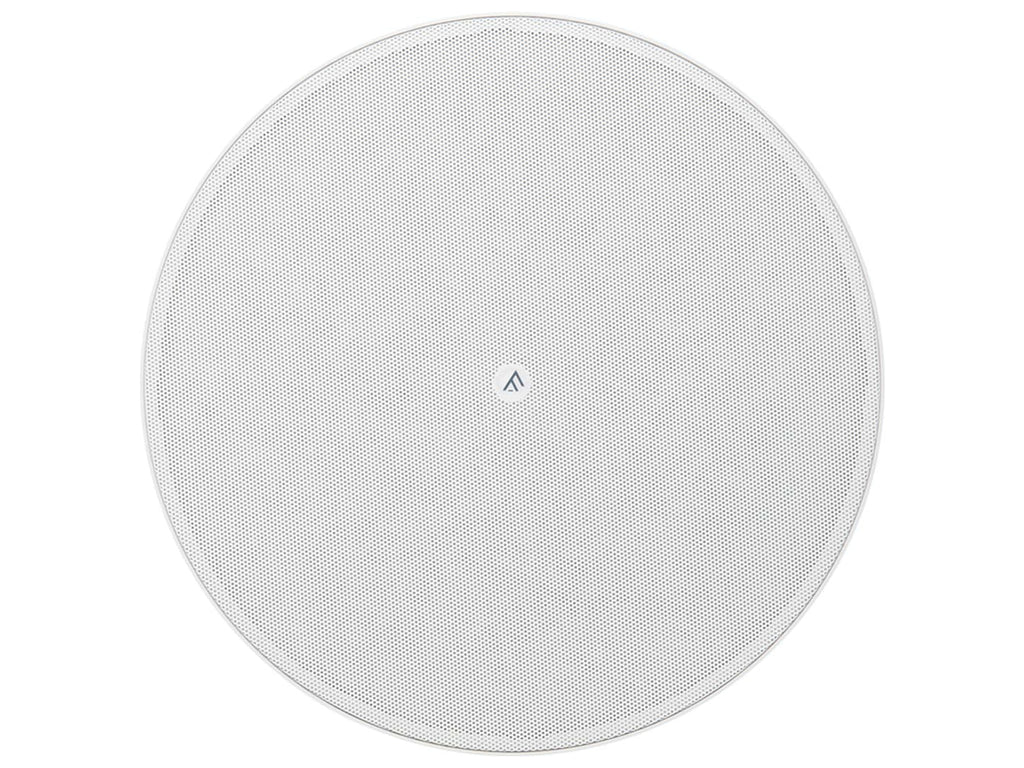

The cut-out is 255 mm in diameter and the speaker takes up 155 mm of depth behind the mounting surface. The clamps travel from 0 to 26 mm and the suggested minimum volume is 18 litres. A round low-profile grille that accepts paint, 288 mm across, is supplied; no square grille is offered for this model.
