2-way floorstanding loudspeaker with a 200 mm IsoFlare driver
Vintage Classic VIII is the floorstanding counterpart of the VIII SM model: a bigger cabinet, tall and narrow, intended to give a fuller sound. It belongs to the retro-styled Vintage Classic range. Sold as a pair.

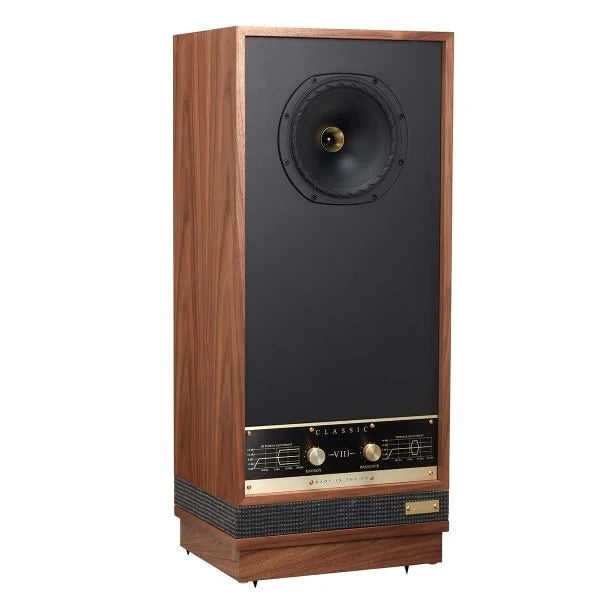

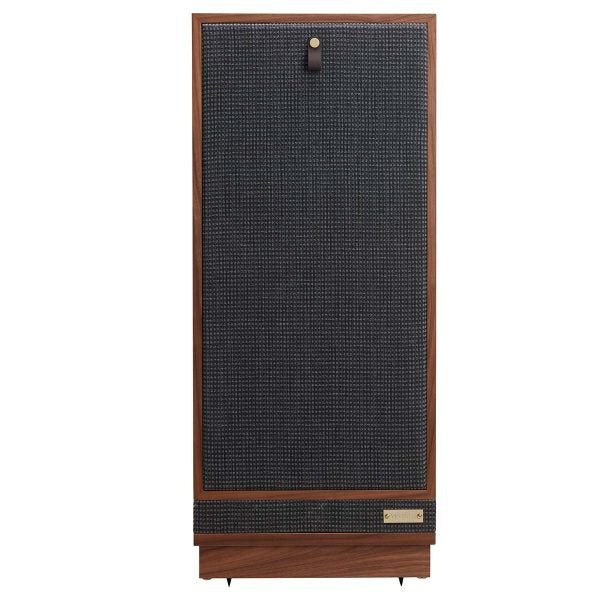

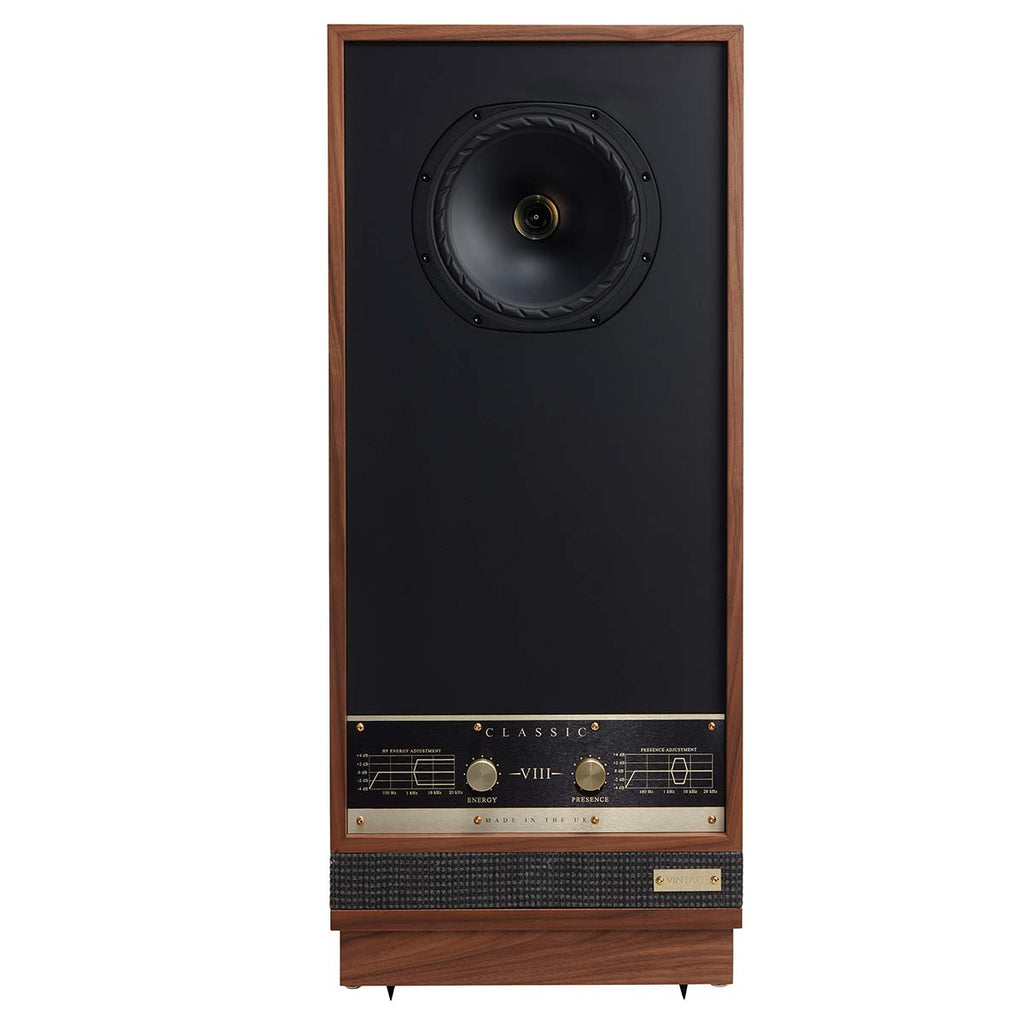

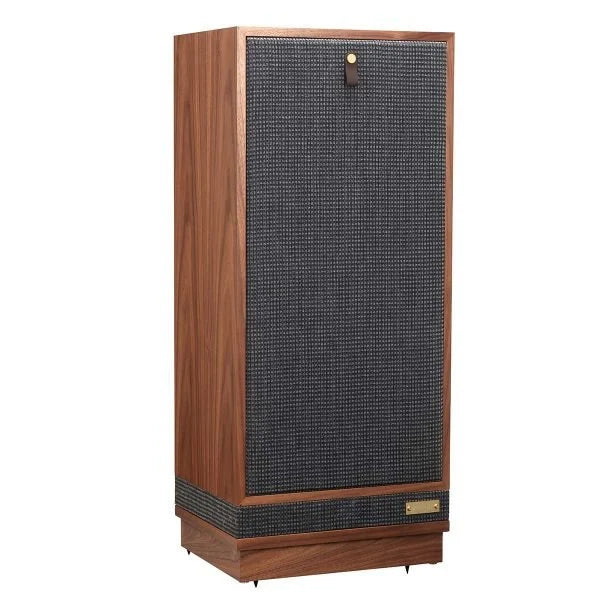

The rectangular cabinet has walnut-veneered panels, gold anodised trim and analogue adjustment knobs fitted to their own panel, which shows the frequency response graphs. The structure is high-density fibreboard, braced internally; the grille is woven cloth. The 200 mm IsoFlare point source unit pairs a multi-fibre cone on a FyneFlute surround with a compression tweeter using a 25 mm magnesium dome, driven by a ferrite magnet. The reflex port fires downwards, with a twin cavity and a BassTrax Tractrix diffuser of reduced size, suited to a relatively compact cabinet.
Key features
- 2-way system with a port firing towards the floor, twin cavity and BassTrax Tractrix diffuser
- 200 mm IsoFlare point source unit with a 25 mm magnesium compression tweeter
- Frequency response of 30 Hz - 34 kHz (-6 dB, typical in room)
- Sensitivity of 91 dB (2.83 V at 1 m), nominal impedance of 8 ohm
- Suggested amplifier output from 30 to 200 watt RMS; 100 watt RMS continuous, 400 watt peak
- Low-loss passive crossover, ready for bi-wiring; Cryo-Lite treatment
- ±3 dB adjustments for high-frequency energy and for presence
Technical data
The crossover operates at 1.8 kHz, with a second-order low-pass and a first-order high-pass. The adjustments act between 1.8 and 34 kHz (high frequencies) and between 2.5 and 5 kHz (presence). The cabinet measures 873 x 380 x 300 mm (height x width x depth) and weighs 29.1 kg: size and weight apply to one loudspeaker. For anyone adding a super tweeter, the data sheet gives its distance from the cabinet's front edge: 74 mm for S-Trax, 50 mm for SuperTrax.
Finishes
The loudspeaker is offered in the Walnut finish, with walnut-veneered panels and gold trim on the baffle.
