JBL 200P: powered subwoofer with a 250 mm woofer and 300 W dynamic
The 200P is the 250 mm powered subwoofer of the Stage 2 series, developed by JBL at its acoustic engineering centre in Northridge, California, to partner the loudspeakers of the same series in stereo or multichannel home theatre systems. Compared with the 220P it has a smaller woofer (250 mm rather than 300 mm), a less powerful amplifier and a more compact cabinet. It is sold as a single unit.

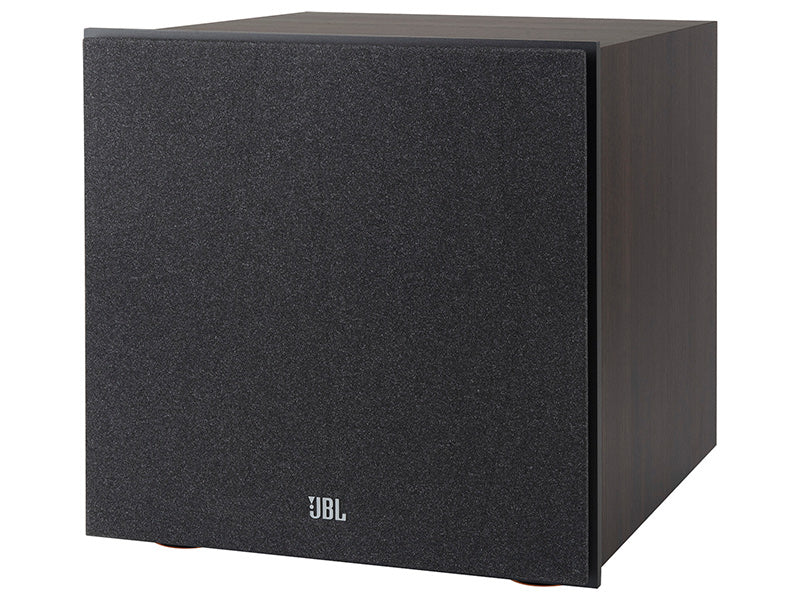

The woofer faces forward and has a ribbed, high-excursion Polycellulose cone: pure pulp to which JBL adds a proprietary blend of further materials to raise stiffness. The cabinet is a bass-reflex type with two tuned ports at the back; the flared shape of the ports slows the air as it leaves and, JBL states, removes chuffing and colouration. The built-in Class D amplifier delivers 150 W RMS and 300 W dynamic. The grille is held by magnets, and spikes adjustable from above screw into the feet, useful on rugs and carpet.
Key features

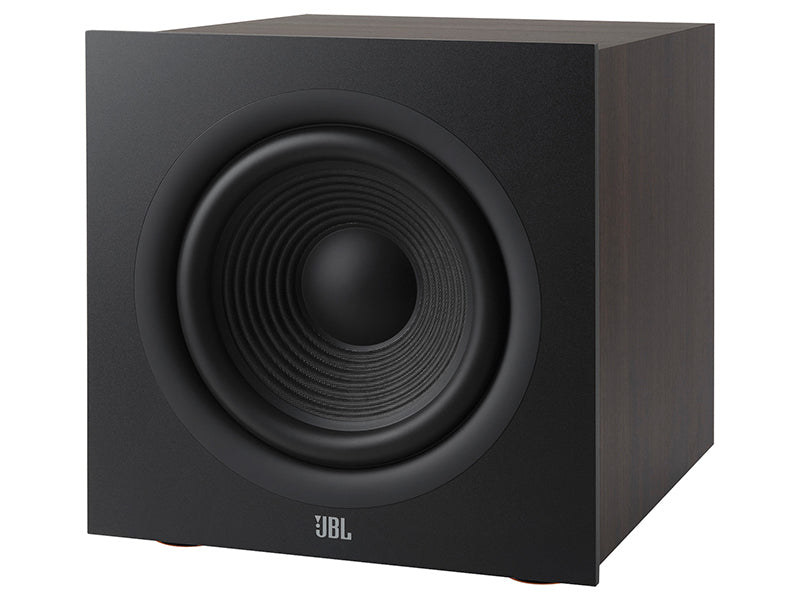

- Front-firing 250 mm Polycellulose woofer, ribbed cone with high excursion
- Class D amplifier: 150 W RMS, 300 W dynamic
- Frequency response from 28 Hz to 150 Hz (referred to 6 dB)
- Variable low-pass filter from 50 Hz to 150 Hz, slope of 24 dB per octave
- Bass-reflex loading with two flared ports at the rear
- Automatic power-on or always-on operation
Connections

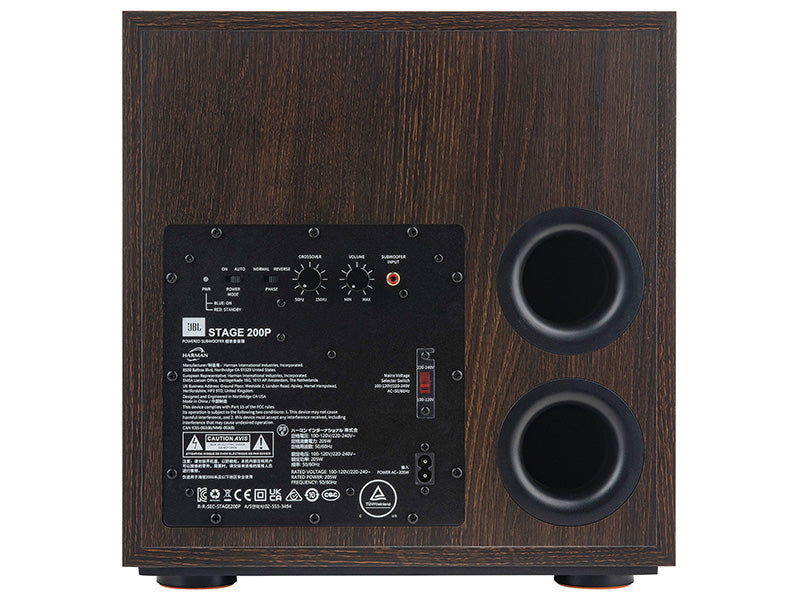

There is a single line-level LFE input, to be connected to the subwoofer output of an AV receiver or processor. The controls sit on the rear panel: level, crossover frequency, phase and power, which can stay on permanently or switch to Auto mode to cut consumption.
Technical data

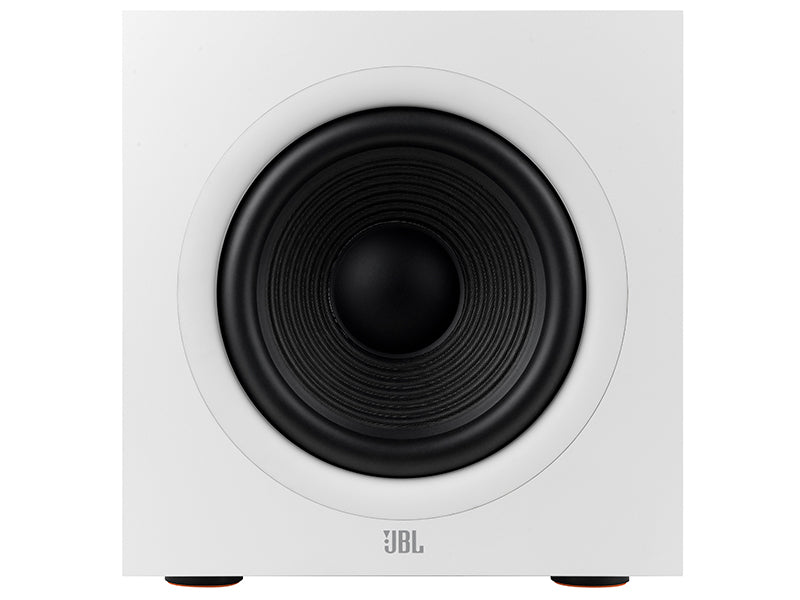

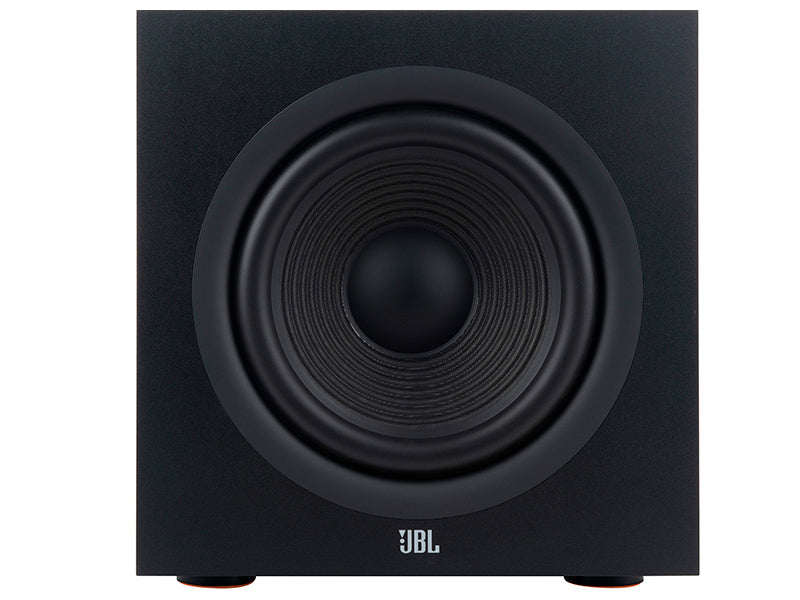

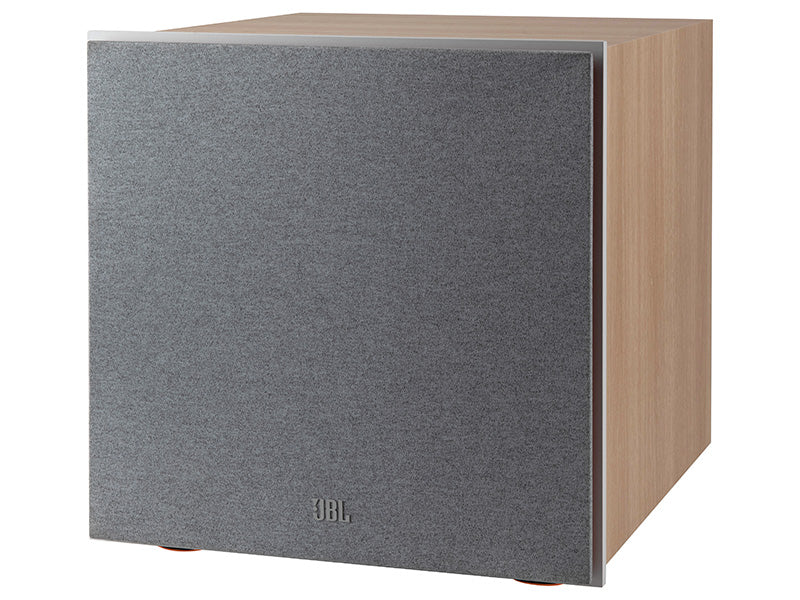

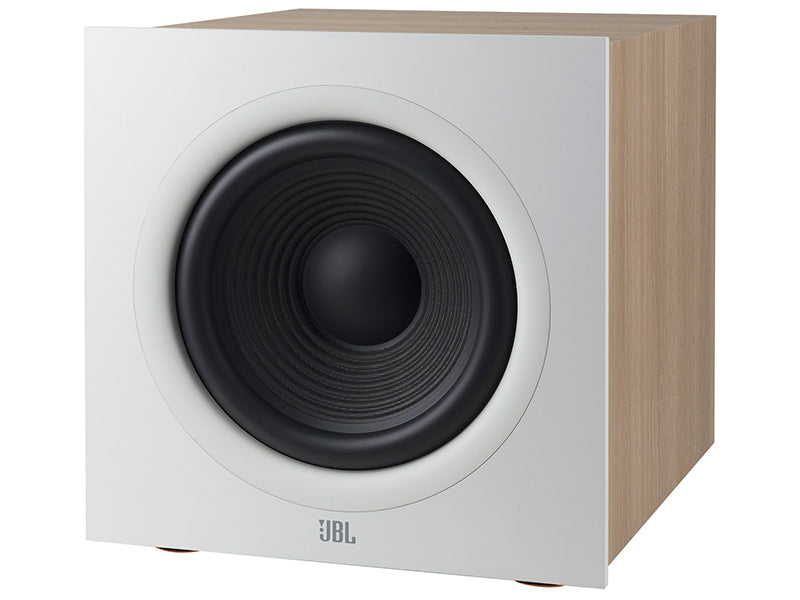

Dimensions: 361 x 350 x 385 mm (height x width x depth). Weight: 14.4 kg. Finishes on sale: Black, with a dark wood cabinet, black front baffle and dark grey grille, and White, with a light wood cabinet, white front baffle and light grey grille.
