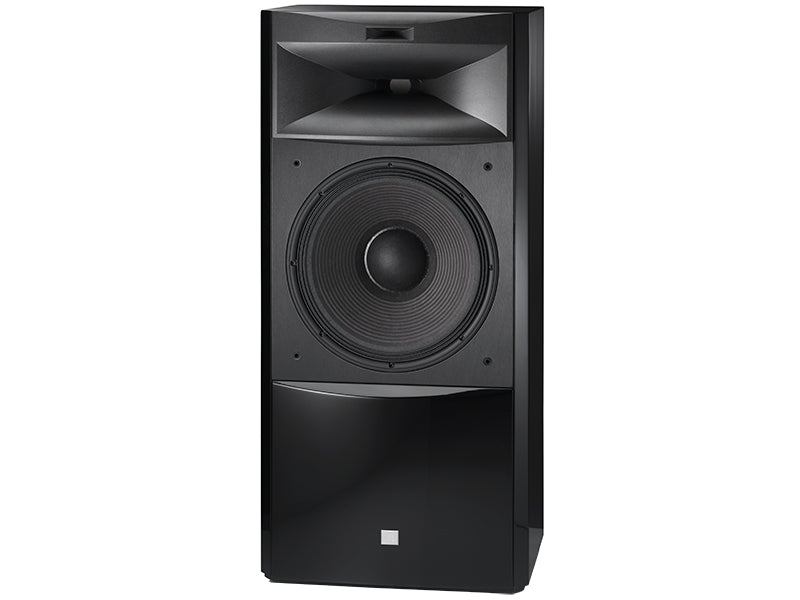

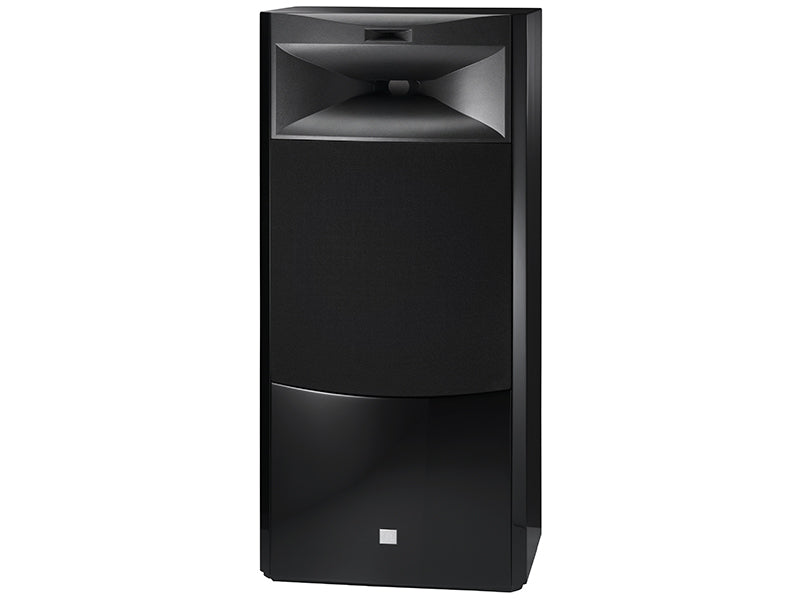

JBL S4700 in black lacquer: three-way floorstanding speakers
The special finish of the S4700 replaces the standard veneer with a black lacquer coat on the cabinet. The acoustic side does not change: it is the three-way floorstander of the Summit series with one 380 mm woofer and two titanium compression drivers, developed from the professional technology of the K2 S9900. Sold as a pair.
The woofer is built on a cast frame and has a pulp cone. For midrange and treble there is a 45 mm titanium compression driver working into a patented Bi-Radial horn, while another compression driver with a titanium diaphragm covers the ultra-high frequencies. Compared with the S3900, which splits the bass between two 250 mm woofers, this model is wider, heavier and more sensitive (94 dB against 92 dB).
Key features
- Cabinet in black lacquer finish
- One 380 mm woofer, cast frame and pulp cone
- 45 mm titanium compression driver, with Bi-Radial horn
- Second titanium driver for the ultra-high frequencies
- Range 38 Hz - 40 kHz at -6 dB; 94 dB sensitivity with 2.83 V at 1 m
- 300 W RMS power handling, 6 ohms nominal
Technical data

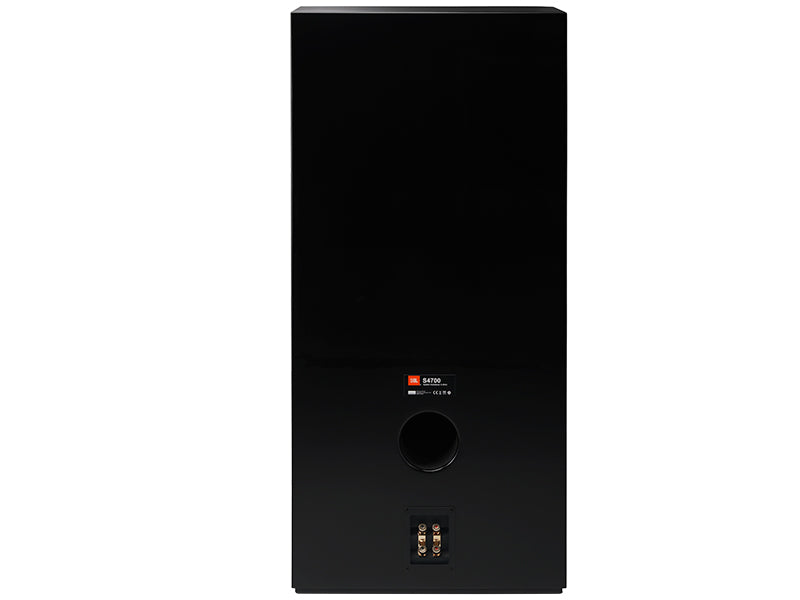

Each speaker measures 1068 mm in height, 500 mm in width and 371 mm in depth (height x width x depth) and weighs 54.5 kg net: these are figures for one unit, not for the two together. The crossover is an advanced design; at the back the inputs for low and high frequencies are separate, with gold-plated posts suited to bi-wiring.
Finishes
Black lacquer. The same hardware, with the cabinet in cherry, is described in the listing for the standard S4700.
