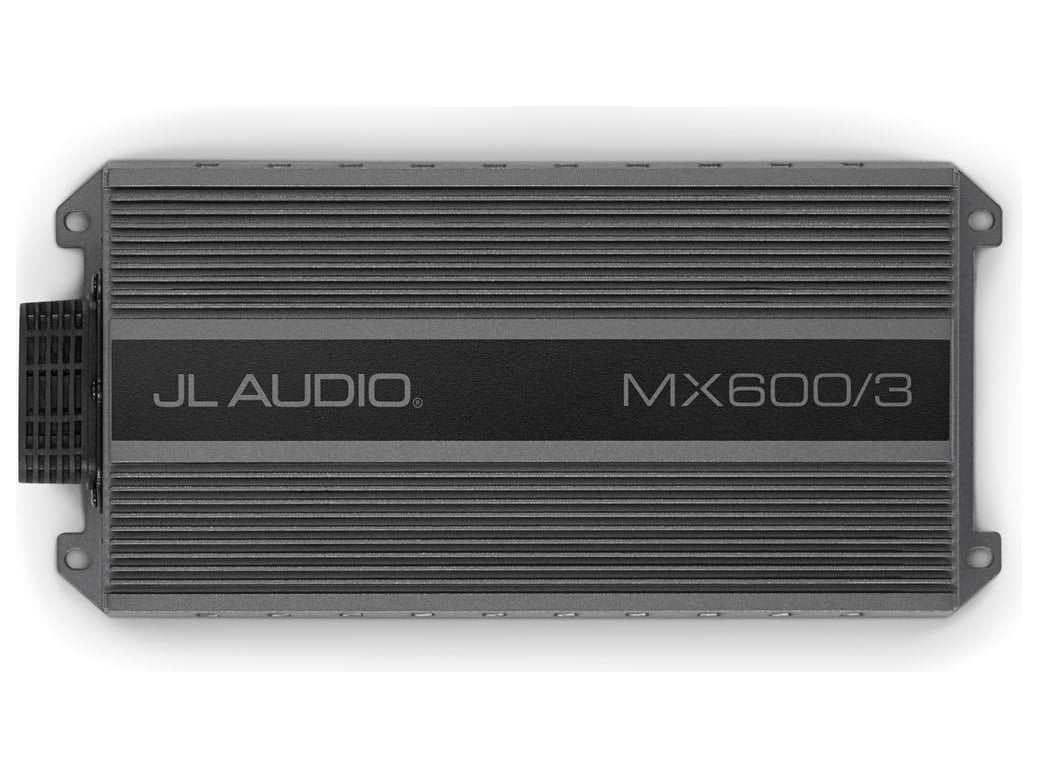

JL Audio MX600/3: sealed 3-channel system amplifier, 600 W
The MX600/3 is the sealed 3-channel system amplifier, 600 W in the JL Audio MX series: rugged, sealed amplifiers made for installations where moisture cannot be kept out entirely, on boats and powersports vehicles. On the two main channels it delivers 75 W RMS at 4 ohms and 100 W RMS at 2 ohms; on the subwoofer channel 250 W RMS at 4 ohms and 400 W RMS at 2 ohms (figures with a 14.4 V supply).
Small yet powerful, it drives a complete system on its own: two full-range outputs and one for the subwoofer, with the option of adding the remote bass control.
Key features
- Main channels: 75 W RMS x 2 at 4 ohms, 100 W RMS x 2 at 2 ohms
- Subwoofer channel: 250 W RMS at 4 ohms, 400 W RMS at 2 ohms
- Frequency response 20 Hz-20 kHz
- Class D with NexD technology
- Cast aluminium chassis, IPX7 rating
- Differential-balanced inputs
- Footprint 237 x 115 x 45 mm
- Operating voltage 11-15 V
NexD technology
The high-efficiency NexD design cuts current draw and heat and gives high-fidelity sound without straining smaller charging systems.
Signal processing

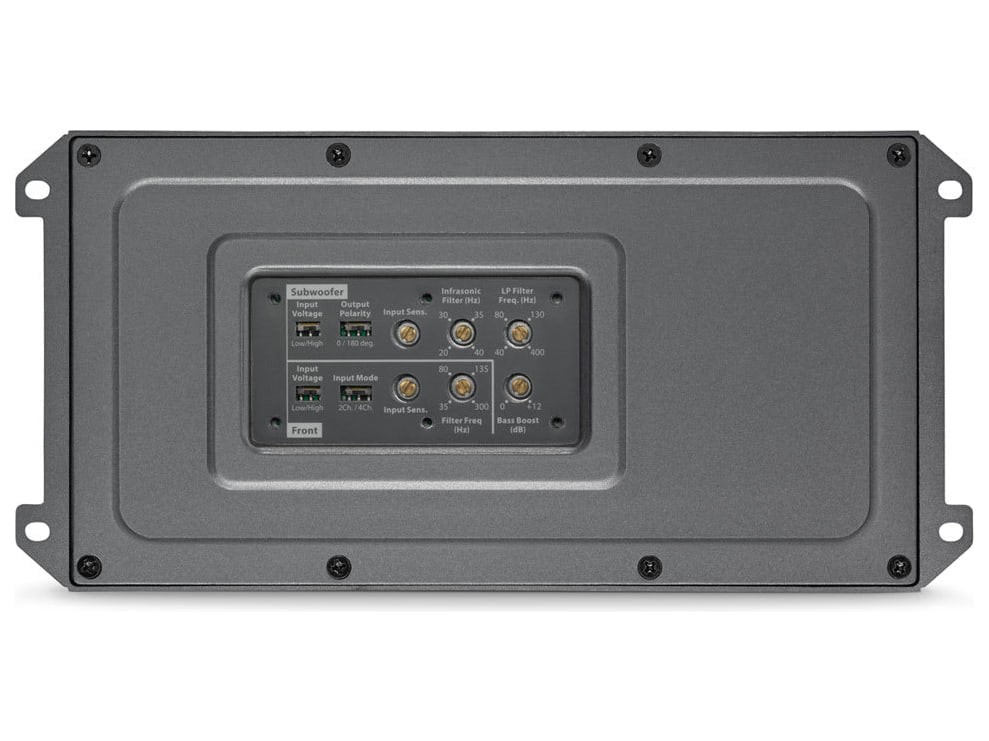

Behind the waterproof door of the control panel there is a full set of filters and processing functions, which makes setup simple and the system flexible. The main channels have a defeatable filter, low-pass or high-pass; the subwoofer channel has a defeatable low-pass from 40 to 400 Hz with a 12 dB per octave slope and a polarity switch.
Inputs
The differential-balanced inputs also accept the high-level signal from speaker outputs, with no converter, and reject noise. So no line-output converter is needed to connect to a source lacking preamp outputs.
The MX series
The series includes two full-range stereo amplifiers with four channels, 280 and 500 W, one 600 W system amplifier with two full-range outputs and one for the subwoofer, and two monoblocks, 300 and 500 W. The two smaller models measure 220 x 78.5 mm in plan, the other three 237 x 115 mm; height is 45 mm for all of them.

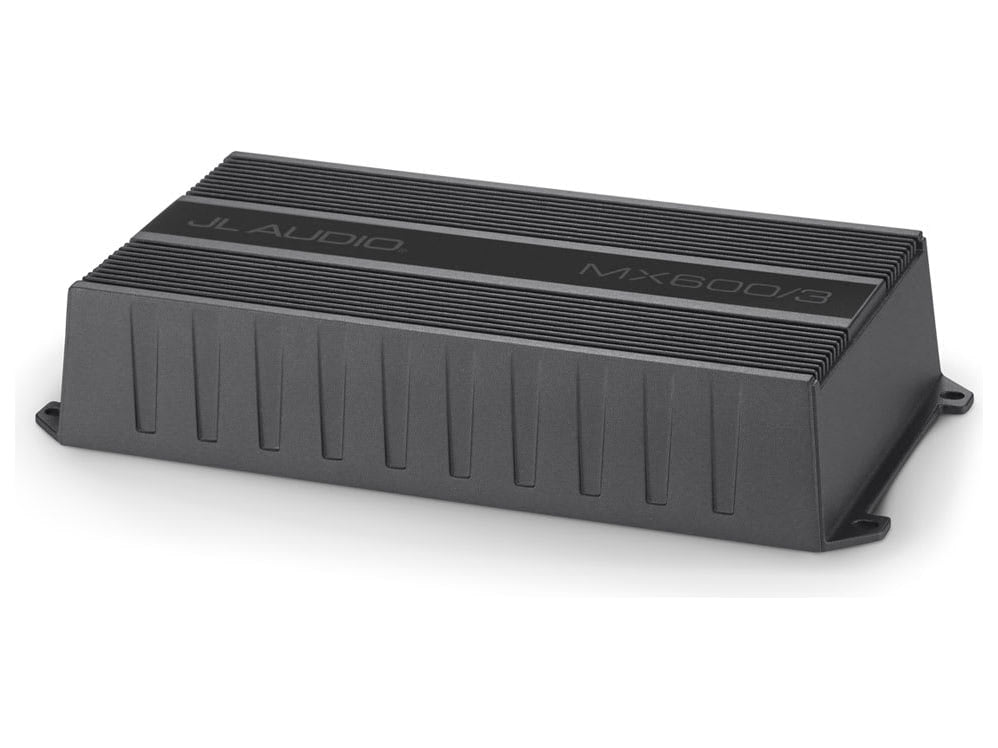

Build and installation
The small cast aluminium chassis is rugged, shock resistant and waterproof, rated IPX7. Powder coating and marine-grade hardware stop corrosion, and the safety door shields the controls. It measures 237 x 115 x 45 mm, fits in confined spaces too and runs on 11 to 15 V DC. The indicated fuse is 60 A, AFS, AGU or MaxiFuse type, and the power and ground cable 4 AWG copper at least. The series goes beyond international standards for salt and UV exposure.
What's in the box
- The amplifier, with its harnesses for power and signal
- Four self-tapping screws (2.5 cm)
