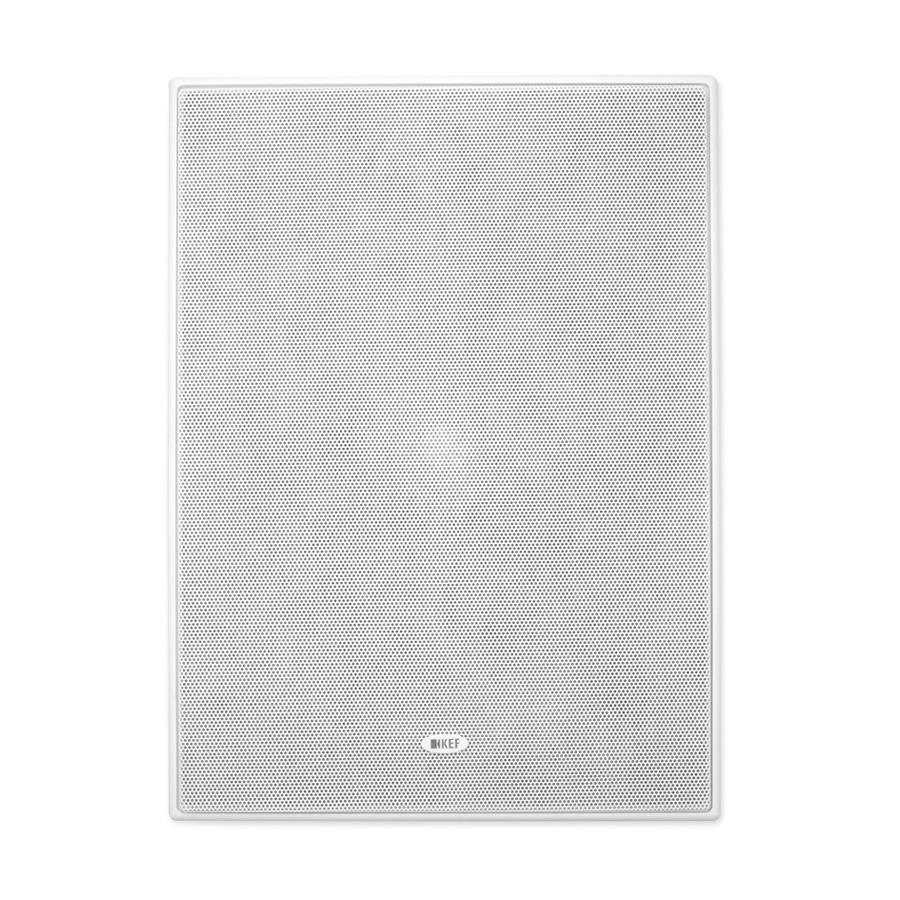

Rectangular in-wall or in-ceiling speaker with Uni-Q® driver
The KEF Ci200QL is a rectangular two-way flush-mount speaker designed to blend into walls and ceilings with the utmost discretion, filling the room with wide, even sound thanks to the KEF Uni-Q® driver. Sold individually, it combines a 200 mm (8") woofer with a 25 mm tweeter in a Uni-Q® configuration for a frequency response extending from 35 Hz to 34 kHz. The Ultra-Thin Bezel (UTB) frame keeps the visible edge to a minimum, ensuring flawless visual integration in any room.

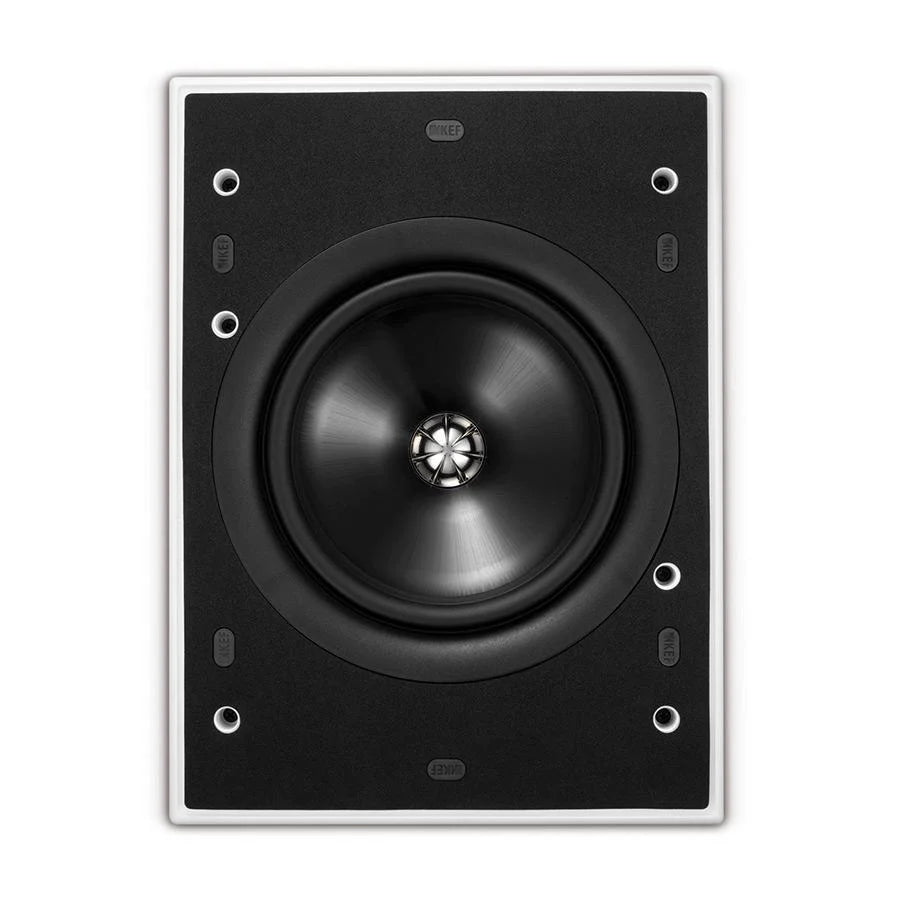

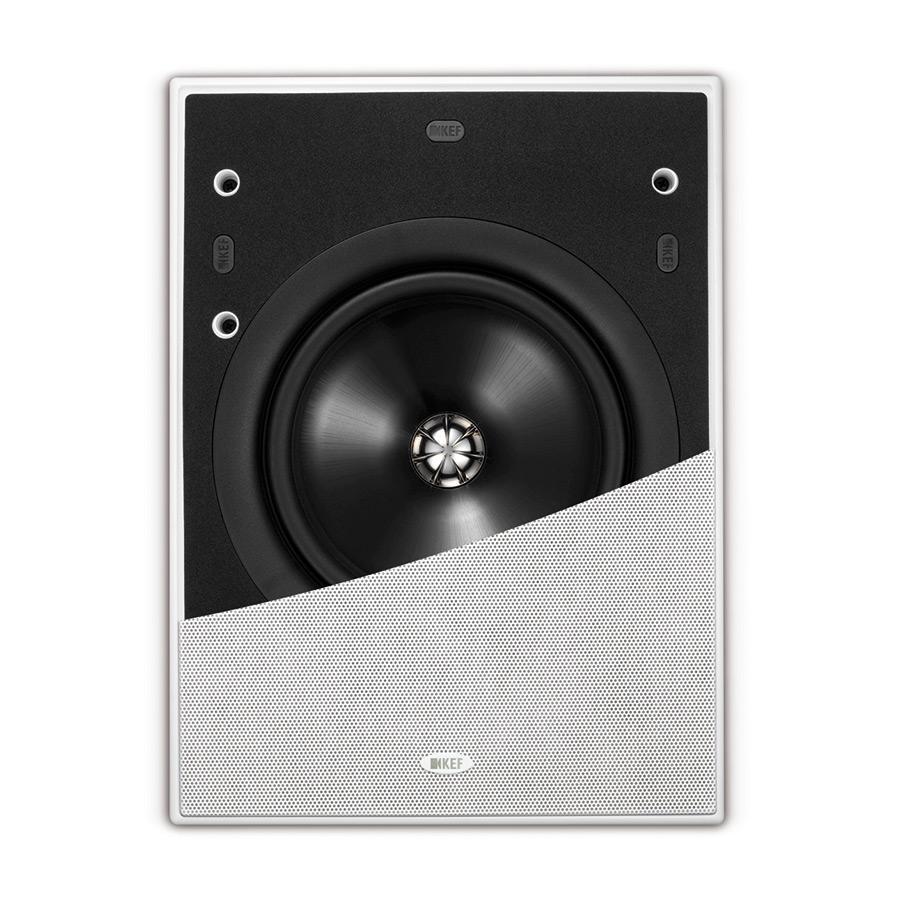

Uni-Q®: maximum sound coverage with fewer speakers
The KEF Uni-Q® driver places the 25 mm tweeter exactly at the acoustic centre of the 200 mm woofer, so that both act as a single point source. The result is wide, even sound dispersion throughout the room, which makes it possible to cover even large rooms with fewer speakers than conventional solutions — a real advantage from every point of view.
Full-range performance and installation in under two minutes
With a sensitivity of 90 dB, a response reaching down to 35 Hz and compatibility with amplifiers from 10 to 150 W into 8 Ω, the Ci200QL delivers rich, balanced sound suited both to background music and to more involved listening. The KEF fixing system is designed to make installation extremely quick: once the cable has been run and the hole cut, the speaker is up and running in under two minutes.

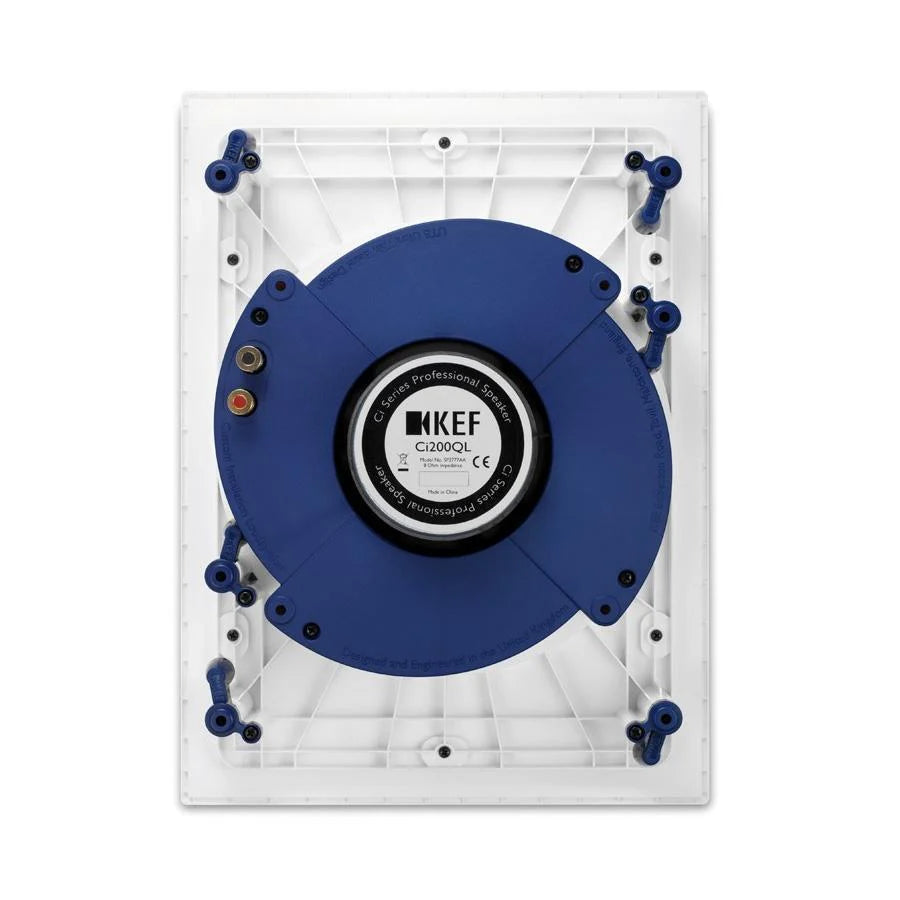

Flexible in-wall or in-ceiling installation
With external dimensions of 369 × 273 mm and a mounting depth of 99.8 mm, the Ci200QL fits walls and ceilings with a thickness from 6 to 37 mm. The required cut-out is 334 × 238 mm. The optional RIF200L pre-installation frame simplifies fitting during construction, while the optional RNC200L rear enclosure improves bass response and acoustic isolation from the cavity.
The versatile speaker for every zone of the system
The Ci200QL is the ideal choice for secondary listening zones, multiroom audio distribution, commercial spaces or as a surround channel in Home Theatre systems. It integrates perfectly with the other speakers in the KEF Ci-Q series — including the THX-certified models — ensuring the same Uni-Q® sonic signature at every point of the installation.
Technical specifications
| Type |
Rectangular two-way flush-mount speaker |
| Sold as |
Single |
| Driver |
LF: 200 mm (8") • HF: 25 mm Uni-Q® |
| Technology |
Uni-Q® driver array, Ultra-Thin Bezel (UTB) |
| Frequency response (±6dB) |
35 Hz – 34 kHz (open backed) |
| Crossover frequency |
2.5 kHz |
| Sensitivity |
90 dB (2.83 V / 1 m) |
| Nominal impedance |
8 Ω |
| Recommended amplifier power |
10 – 150 W |
| External dimensions (H × W × D) |
369 × 273 × 106 mm |
| Cut-out dimensions (H × W) |
334 × 238 mm |
| Mounting depth |
99.8 mm |
| Compatible wall/ceiling thickness |
Min. 6 mm – Max. 37 mm |
| Optional pre-installation frame |
RIF200L |
| Optional rear enclosure |
RNC200L |
| Net weight |
2.6 kg |
