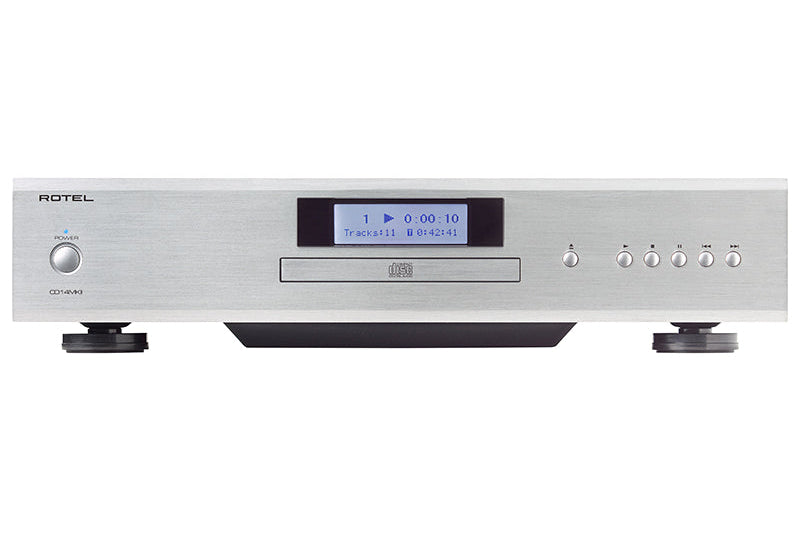

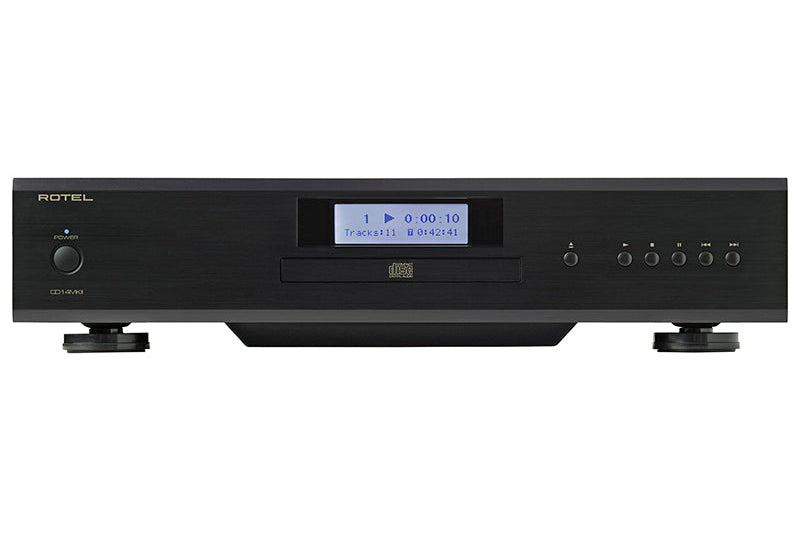

Rotel CD player
--
Rotel CD14 MKII plays all CDs with astonishing clarity, full of detail. Texas Instruments 32-bit DAC is supported by an independent power supply stage, as well as for the servos, completely isolated from the audio circuits, reducing noise and distortion.
The MKII model includes updates and innovations, both acoustic and performance, including improvements in the power supply stage, in the circuit layout with new isolation techniques, as well as in the use of new selected audio components, for a more accurate and detailed sound reproduction .
Technical features
- Total Harmonic Distortion: 0.0035% @ 1KHZ
- Frequency response: 20HZ - 20KHZ ±0.5DB
- Signal to Noise Ratio (A-WEIGHTED IHF): >118DB
- Dynamic Range: >99DB
- D/A converters: Texas Instruments
- Balance between channels: ±0.5DB
- Channel separation: >118DB @ 10KHZ
- Intermodulation Distortion: 0.0035% @ 1KHZ
- Phase linearity: ±0.5 degrees
- Digital Output: 0.5V, peak-to-peak
- Impedance analog outputs: 100Ω
- Load Impedance: 75Ω
- Dimensions (W×H×D): 430×98×314mm
- Front panel height: 80mm
- Power supply: 230V, 50HZ
- Absorption: 15W
- Standby power consumption: <0.5W
- Net Weight: 6.51Kg
