Precise CD playback with Pure Direct and USB sources

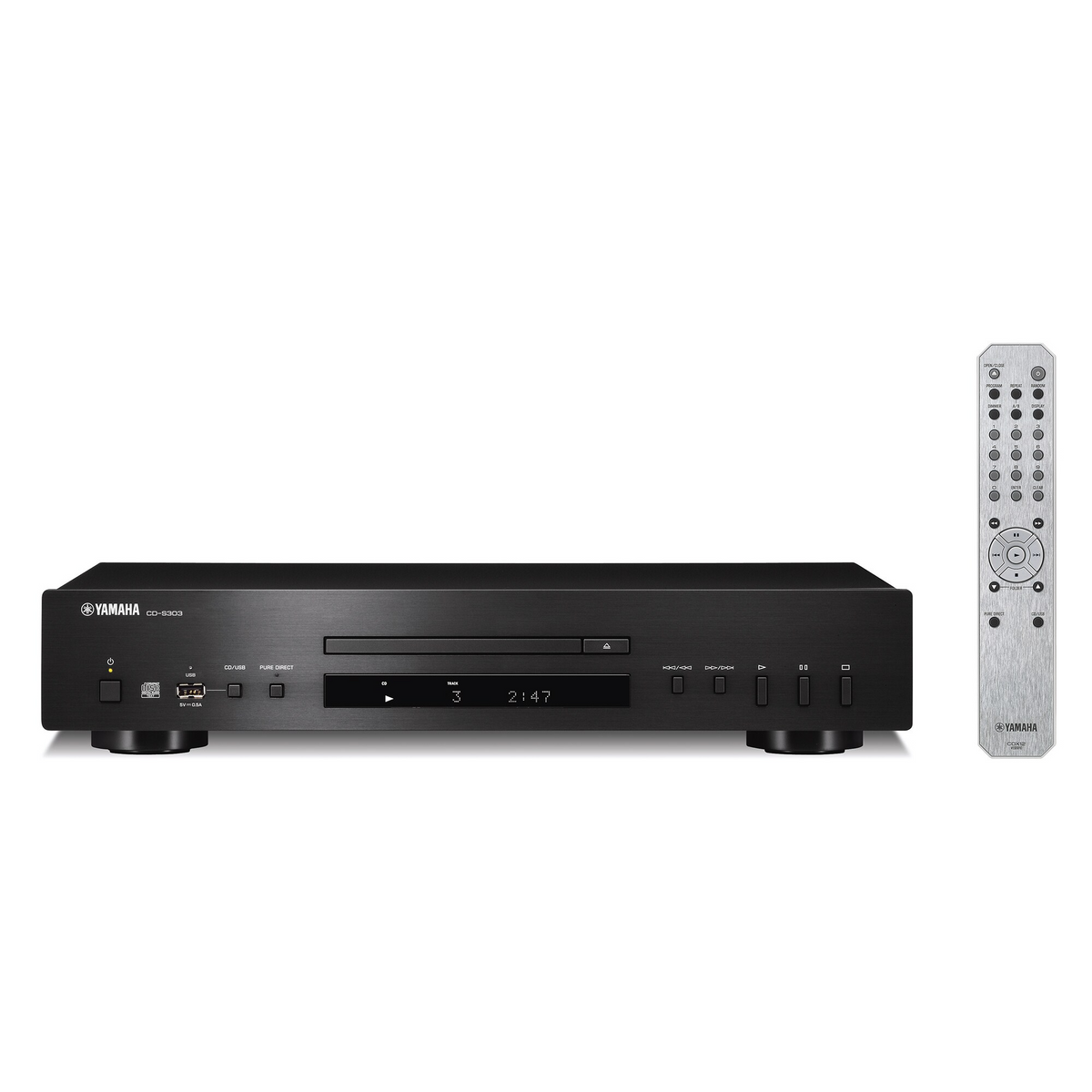

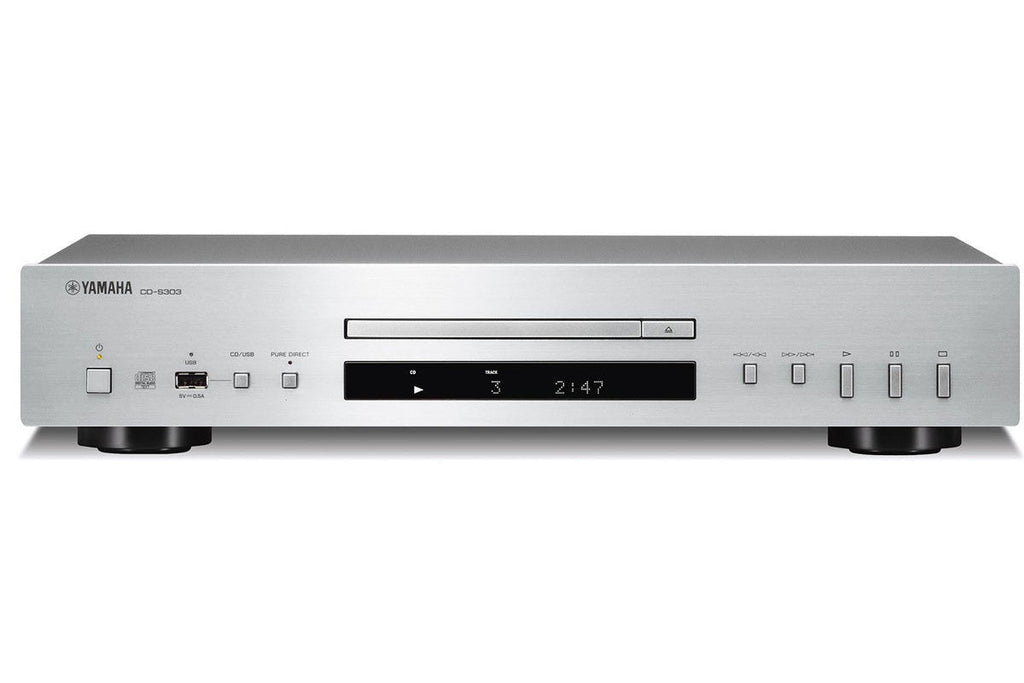

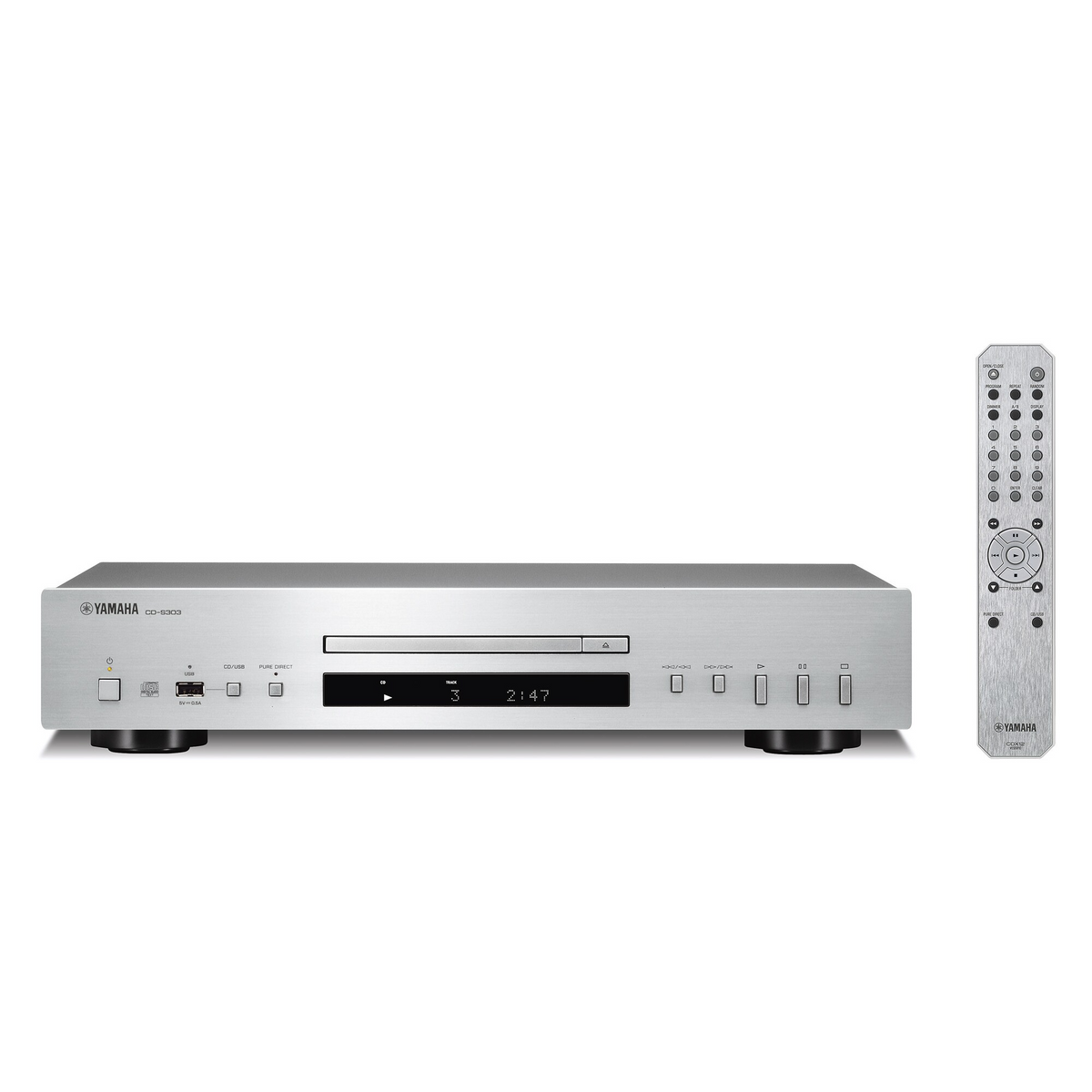

CD-S303 is a Yamaha CD player designed around a short signal path, an isolated reading mechanism and dedicated D/A conversion, with a front USB port for music files.
The internal architecture separates power supplies for the motor, display, USB and audio sections to reduce mutual interference. Pure Direct disables the display and digital output when the analogue output is used, while the floating pickup and Intelligent Digital Servo compensate for vibration, disc warping and other reading errors.
Key features
- Pure Direct to reduce interference during analogue output.
- Internal layout with separate power supplies for motor, display, USB and audio sections.
- Short and symmetrical signal paths.
- High-performance DAC and selected audio components.
- Laser pickup mounted on a floating mechanism.
- Intelligent Digital Servo with DSP control of tracking, focus and speed.
- Front USB port and playback of MP3, WMA, LPCM, AAC and FLAC.
- Analogue RCA, optical digital and coaxial digital outputs.
Pure Direct
Pressing Pure Direct disables the digital audio output and switches off the display, reducing two possible sources of noise when the analogue output is used. The function does not alter the musical content but simplifies the component's operating path, leaving only the sections needed for current playback active.
Layout and separate power supplies
The motor, display, USB, digital circuits and analogue section have separate power-supply areas to limit electromagnetic interference between blocks with different requirements. The reading mechanism is positioned centrally to distribute weight, while the boards follow a layout that keeps connections between sections shorter.
Signal paths
The internal arrangement is organised to make the signal paths as direct and symmetrical as possible. Reducing connection length limits opportunities to pick up noise or lose information, a principle Yamaha applies together with the selection of capacitors, operational amplifiers and damping materials.
Reading mechanism
The laser pickup is mounted on a floating structure that isolates it from chassis vibration. Intelligent Digital Servo uses a dedicated DSP to control tracking, focus and spindle speed, compensating for problems caused by slightly warped discs, dust or other irregularities during playback.
USB and digital formats
The front-panel USB port allows MP3, WMA, LPCM, AAC and FLAC files stored on compatible devices to be played. The same conversion electronics are therefore also used with digital content outside the optical disc, extending the player's function beyond traditional audio CDs alone.
Analogue and digital outputs

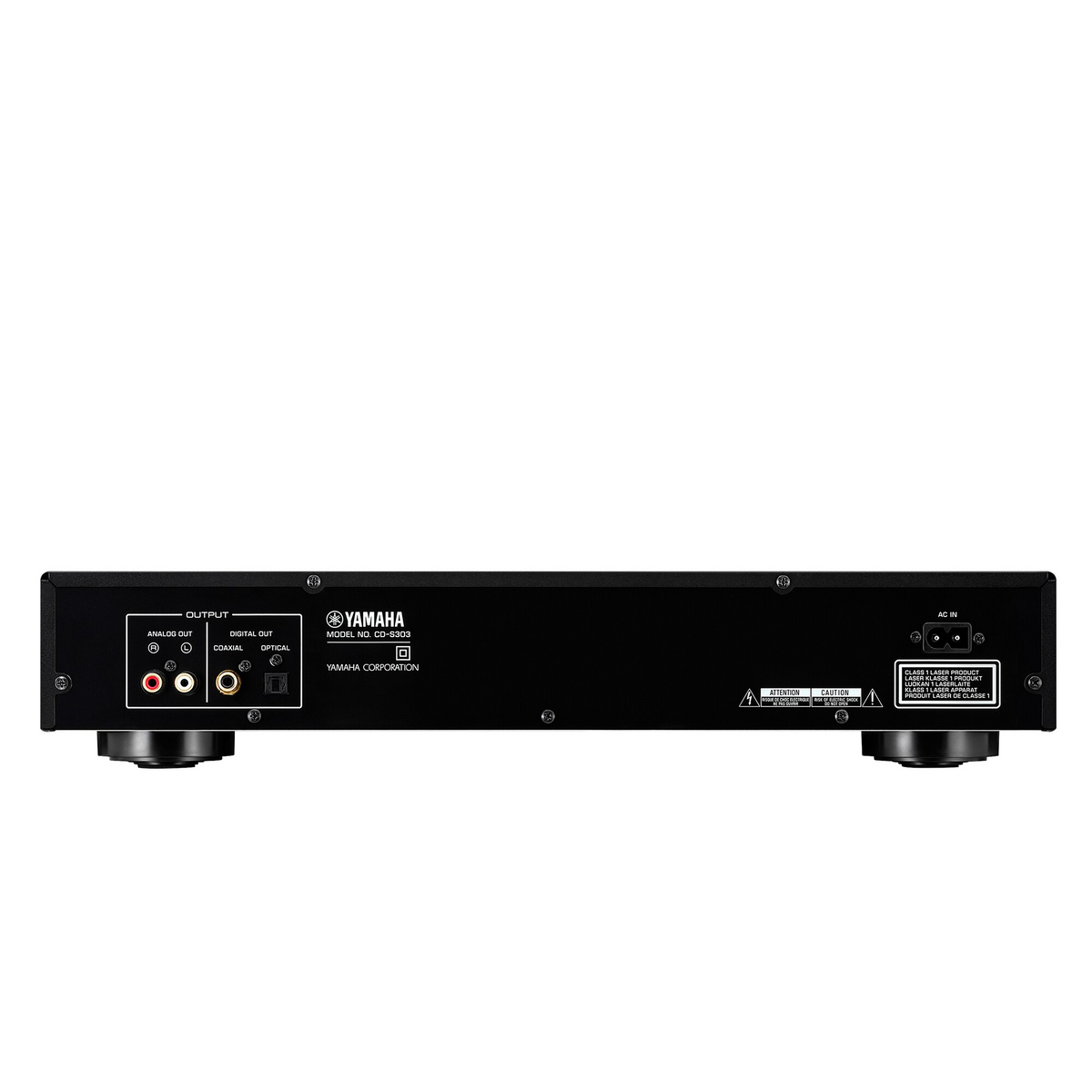

CD-S303 provides a pair of analogue RCA outputs plus optical and coaxial digital outputs. The internal DAC can therefore be used to send an analogue signal to an amplifier, or the digital stream can be transferred to an external converter or component, choosing which section of the chain performs conversion.
