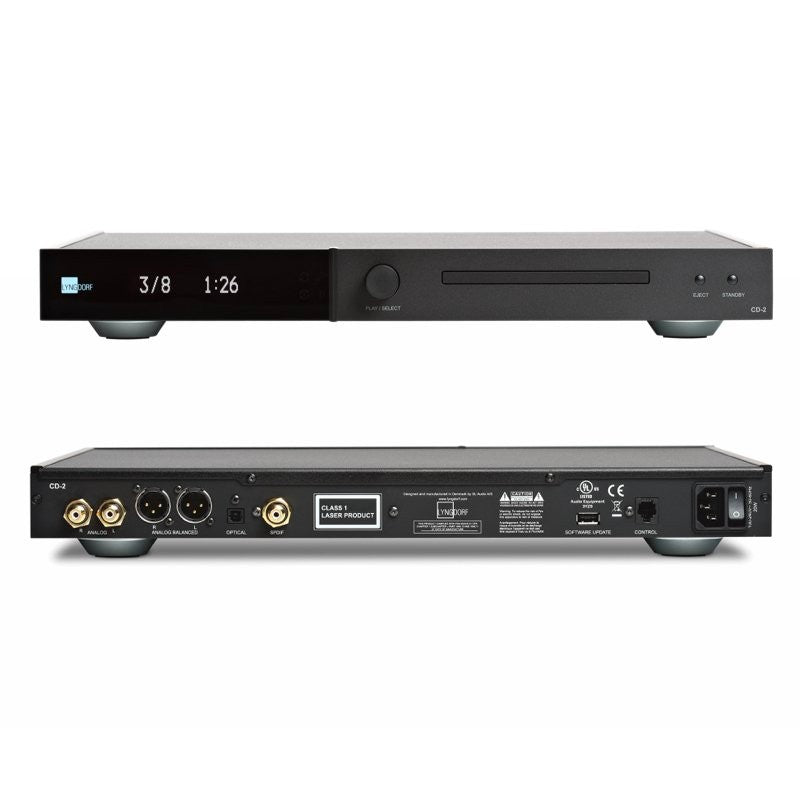

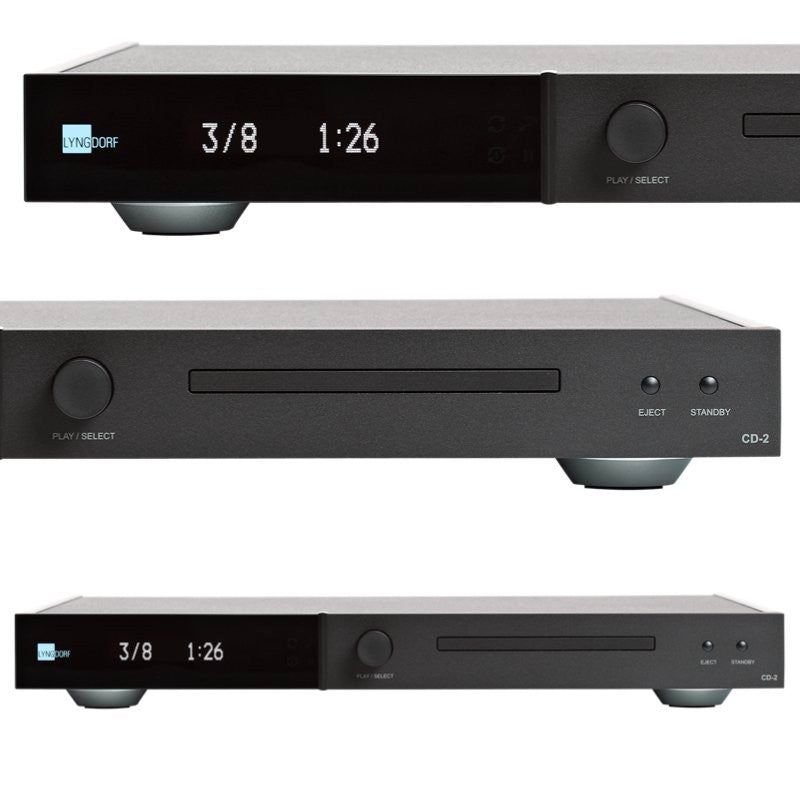

Lyngdorf CD-2

Lyngdorf CD-2: CD player with Wolfson converter and balanced outputs

The CD-2 reads Compact Discs only: no video and no multiple formats, a choice that for Lyngdorf keeps the design straightforward and avoids the resampling and interference typical of universal transports. Conversion is handled by a Wolfson WM8740 chip placed in a balanced circuit, followed by an output stage available on both RCA and XLR.

The switch-mode power supply is designed by Lyngdorf: the transformer has four independent secondaries, so the digital section and the analogue one receive separate current and digital noise stays away from the audio signal. The chassis is fully grounded and shields the unit from outside interference. Those who use an external converter or a digital amplifier will find the coaxial output, galvanically isolated, and the optical one.

Technical features

• Analogue outputs: single-ended RCA and balanced XLR
• Digital outputs: galvanically isolated coaxial and optical
• Converter: Wolfson WM8740
• Frequency response: from 20 Hz to 20 kHz within 0.02 dB
• Total harmonic distortion plus noise: 0.0018%
• Output sampling: 44.1 kHz at 16 bit or 48, 96 and 192 kHz at 24 bit
• Dimensions (height, width, depth): 5.8 x 45 x 37.5 cm with knob and connectors
• Weight: 6.1 kg
• Finish: matte black anodised aluminium
