The IC8 is a two-way in-ceiling loudspeaker, sold as a pair, with a 20.3 cm woofer and a 25 mm titanium tweeter: for anyone who also wants solid bass from a speaker hidden in the ceiling.
IC8: woofer, tweeter and fitting

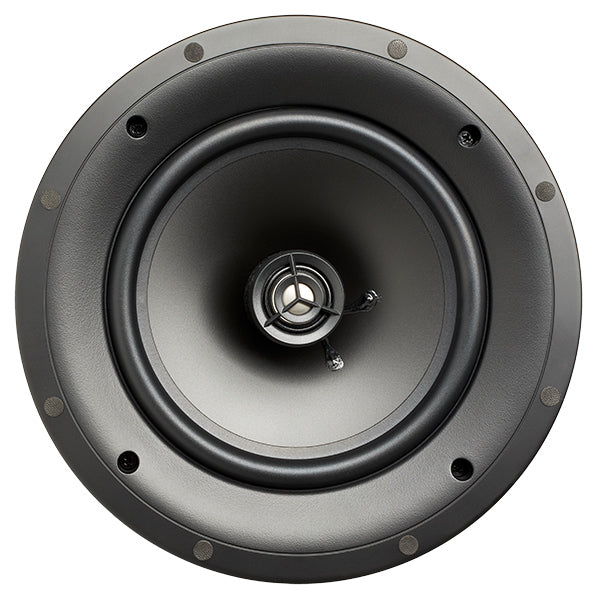

The IC8 is the ceiling model with the largest woofer in the Installer range: a 20.3 cm cone that takes the response down to 45 Hz and gives the low end weight and dynamics. Above 2,500 Hz a tweeter with a 25 mm dome takes over, wider than the one on the smaller models, and the band closes at 20 kHz. At 90 dB it is also the most sensitive of the family; the load suits 8 ohms and quoted power reaches 90 W. Installed, it measures 264 mm across.

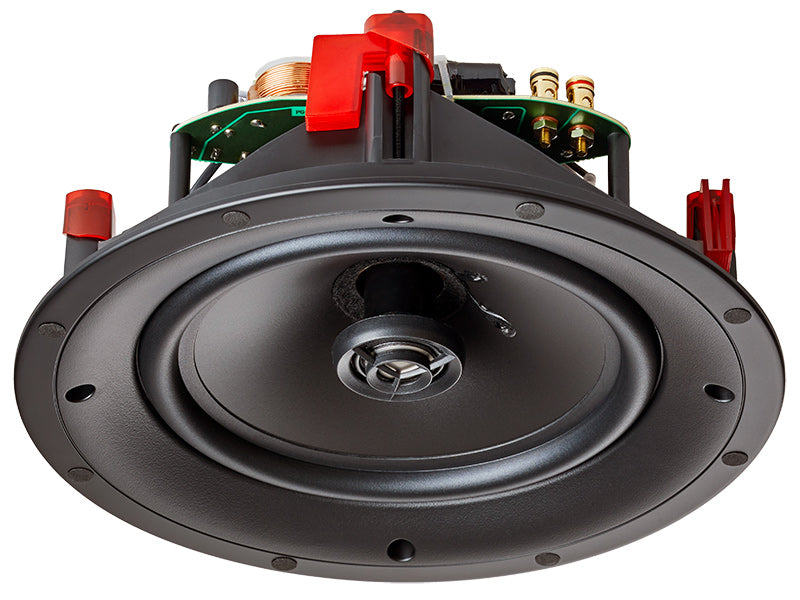

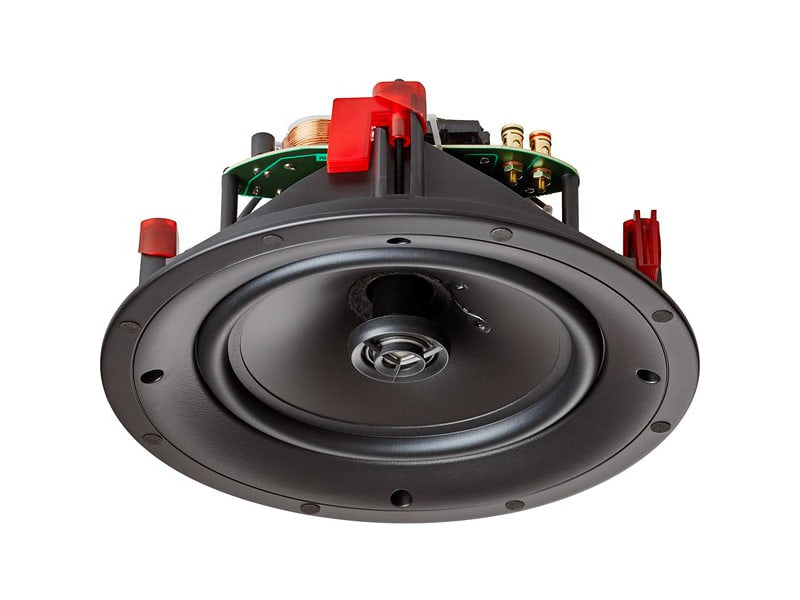

As on the other Installer models, the woofer has a polypropylene diaphragm with a mineral filler and a ferrite magnet developed with computer modelling, while the titanium tweeter is damped and cooled by ferrofluid so it stays even over a large listening area. The filter adopts the Vojtko layout and is made by hand with air-core inductors and polyester capacitors. Cable connects to sprung terminals, which also take banana plugs and pins.

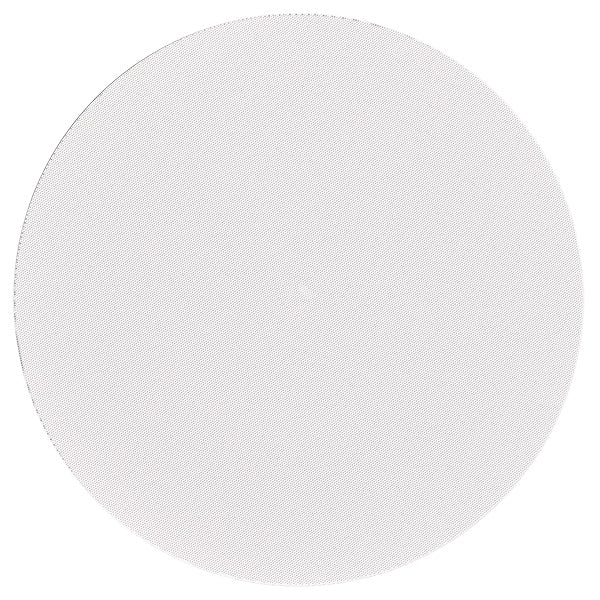

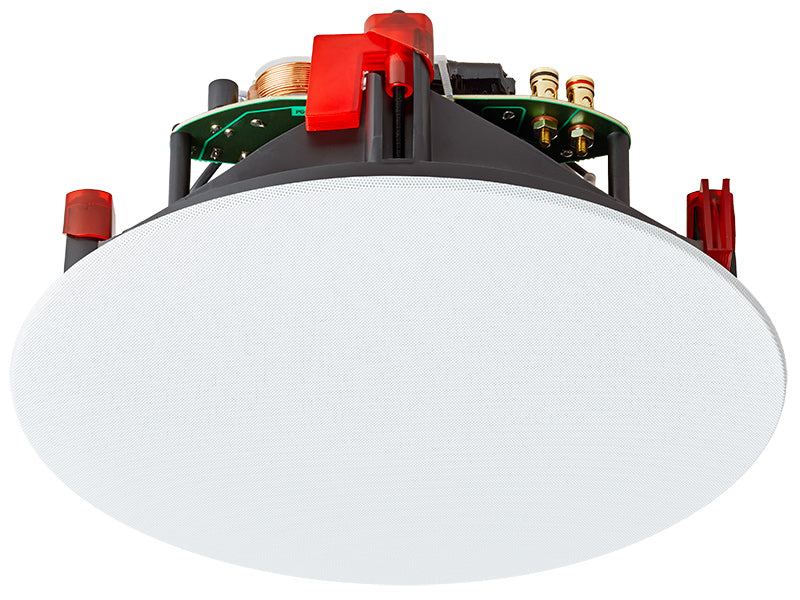

Fitting calls for a round hole of 238 mm and 93 mm of clear depth; when the job is done the speaker stands 8 mm proud of the ceiling. The box includes an actual-size template carrying the essential instructions. The locking clamps leave their seats as the screws are driven and anchor the frame firmly. The grille is micro-perforated, frameless, paintable and held magnetically; the square version and the pre-installation bracket are available separately.
Specifications
- Type: two-way in-ceiling loudspeaker
- Frequency range: 45 Hz - 20 kHz
- Sensitivity: 90 dB
- Impedance: suits 8 ohm amplifiers
- Suggested amplification: up to 90 W
- Crossover point: 2,500 Hz
- Tweeter: 25 mm dome in titanium
- Bass/midrange: 203 mm polypropylene cone with mineral filler
- Terminals: spring-loaded, for cable as thick as 12 AWG
- Overall size (diameter x depth): 264 x 101 mm
- Ceiling opening: 238 mm diameter
- Protrusion below the ceiling: 8 mm
- Mounting depth: 93 mm
- Weight: 2 kg
- Grille: round, magnetic, micro-perforated, paintable
- Optional extras: square grille, pre-installation bracket
- Supplied: sold as a pair
