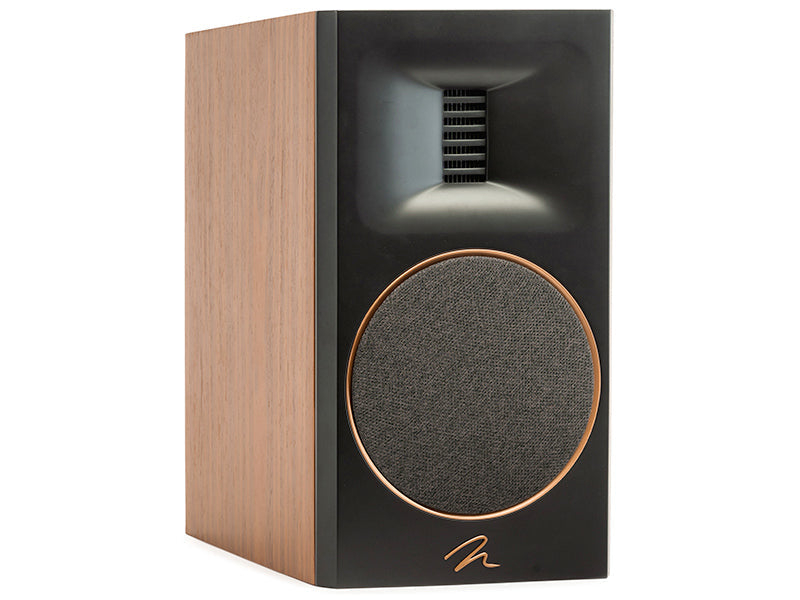

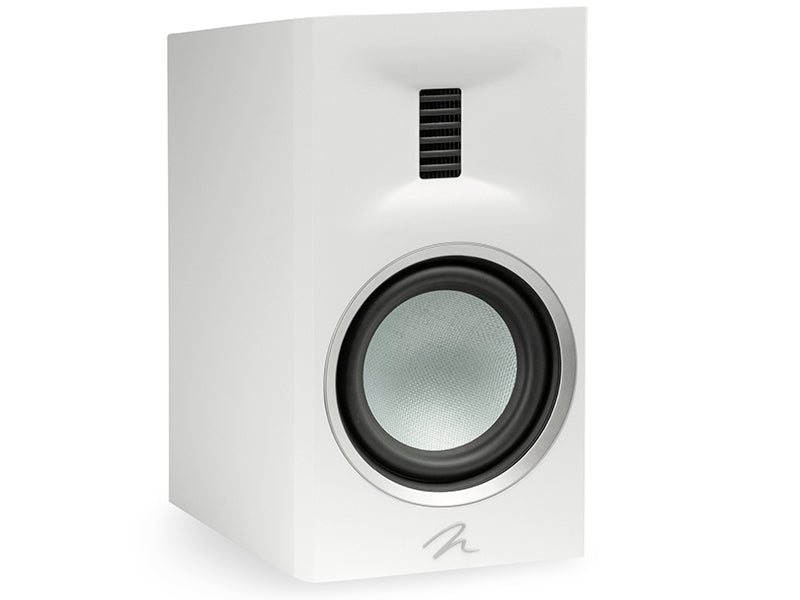

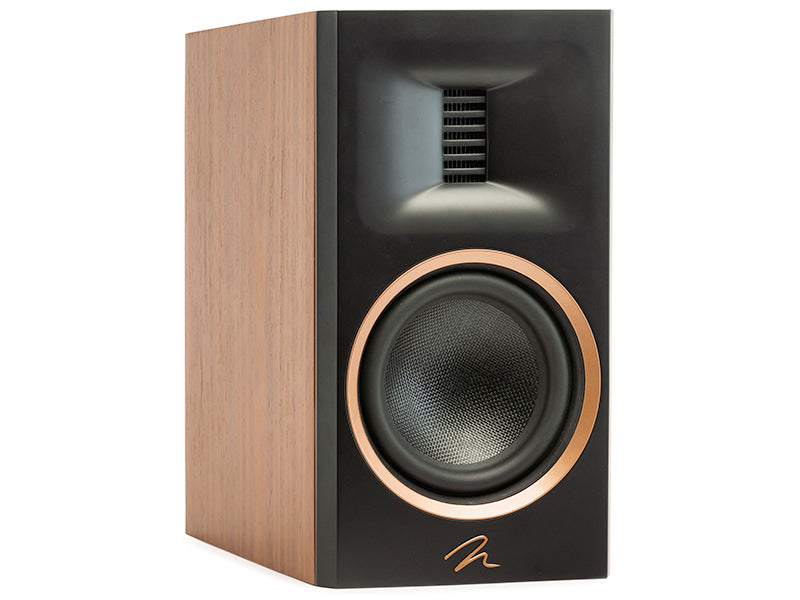

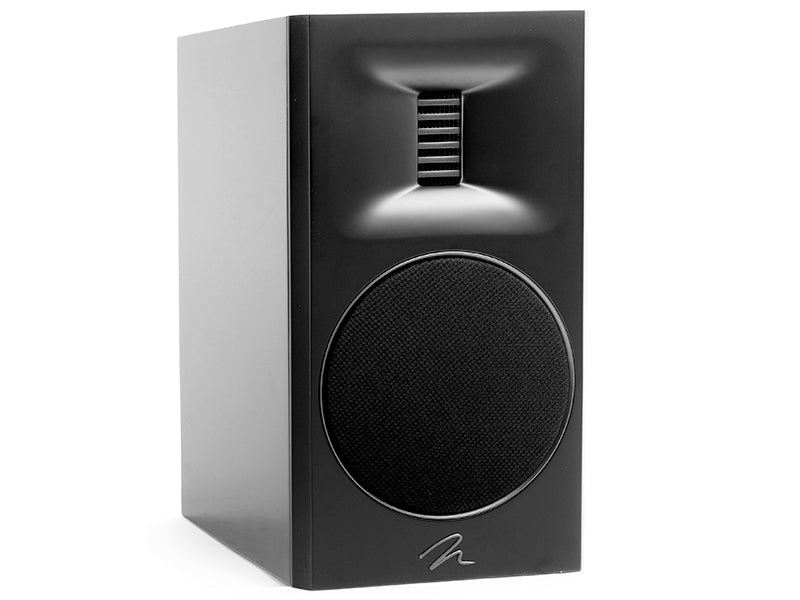

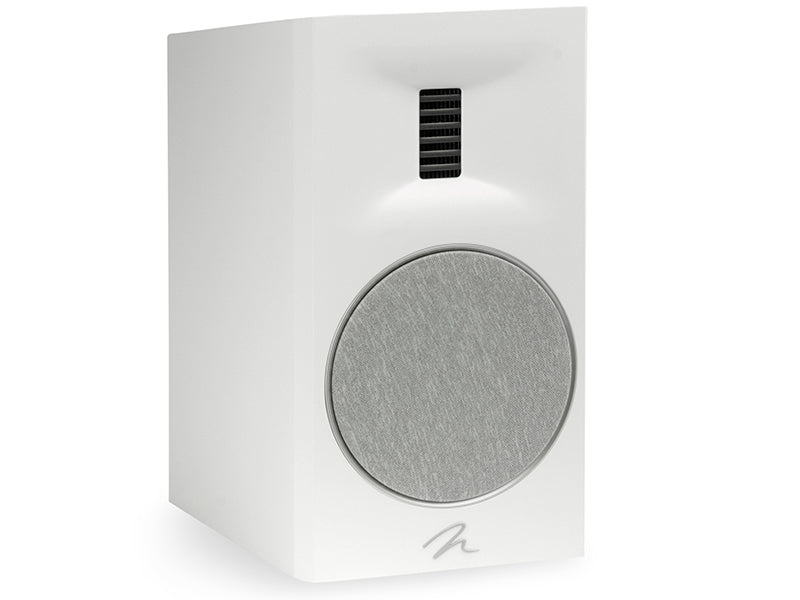

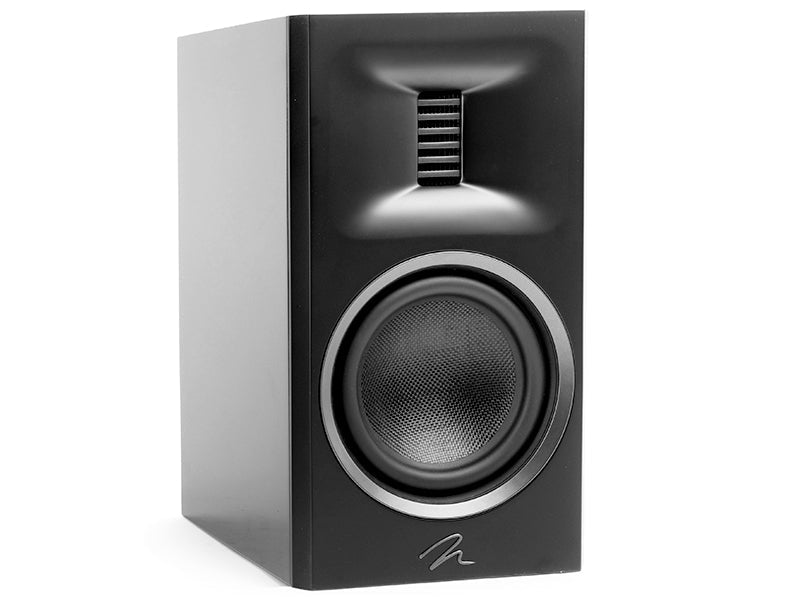

2-way bookshelf speaker, rear bass reflex, woofer/midrange with 165mm Nomex (reinforced Kevlar) inverted dome cone, 32x61mm Gen2 Obsidian Folded Motion XT ribbon tweeter. Power 20-250W . Efficiency 93dB . Impedance 4 ohms . Crossover with selected thermal/current protection components for tweeter. Bi-wiring predisposition.
OVERVIEW:
- Frequency response 45Hz - 25kHz ± 3dB
- 45° (vertical) x 90° (horizontal) dispersion
- Sensitivity 93dB
- Impedance 4 ohms
- Crossover frequency 2600 Hz (2-way)
- 1.25" x 2.4" (3.2cm x 6.1cm) high frequency driver
- Gen2 Obsidian Folded Motion® XT tweeter with 12.4 in² (79.8 cm²) diaphragm.
- 6.5" (16.5cm) Mid-Frequency Driver
- Nomex-reinforced Kevlar® cone with die-cast aluminum basket.
- Non-resonant asymmetric chamber format.
- Unibody cone construction.
- Low frequency drivers
- Closet N/A
- Rear door recommended
- Recommended amplifier power 20 - 250 watts

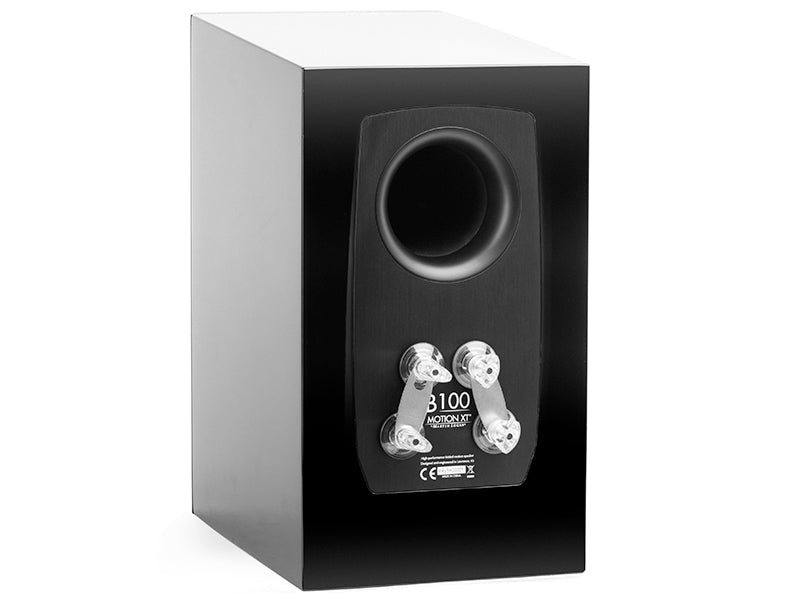

- Binding post inputs
- Custom 5-way bi-amp/bi-wire bindings
- Weight 20.5lbs / 9.3kg
- Dimensions (HxWxD)* 14-1/2" x 8" x 12-1/2" 36.8cm x 20.3cm x 31.8cm
