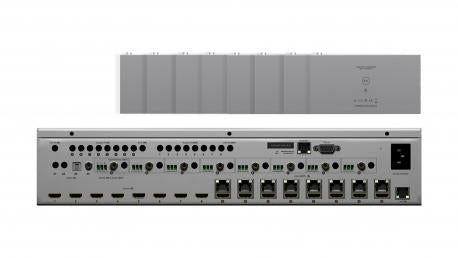

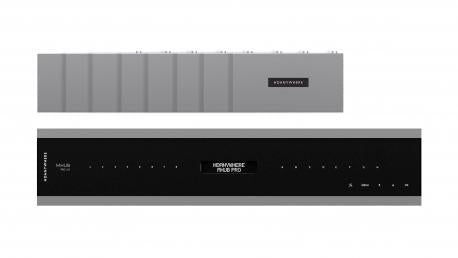

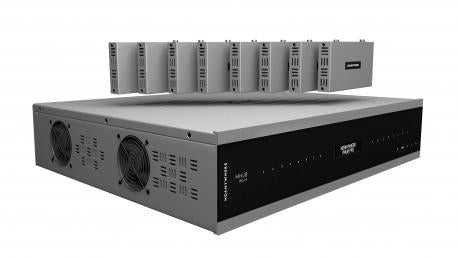

HDMI matrix with resolution up to 4K (18 Gbps), 8x8, 8 HDMI inputs, 8 HDMI outputs and 8 HDBaseT mirror outputs (10.2Gbps). PoE receivers for single CAT 6/7 cable connection up to 100m for 4k, 10/100 Ethernet LAN support. Max 4K/60Hz 4:4:4 resolution, HDMI 2.0 version, HDCP 2.2 version and simple edit management. Internal scaling 4K>1080p. All audio formats supported including Dolby Atmos and DTS:X. Digital audio extraction via digi-coax, and analog with downmixing via mini jack. Matrix control via App, IR, RS232, IP2IRGEN Hub and UControl. 8 HDBT receivers, remote control, IR included.
