MoFi SourcePoint 10: two-way standmount loudspeakers with 10-inch concentric driver
The SourcePoint 10 are two-way bass-reflex standmount loudspeakers from MoFi Electronics, designed by Andrew Jones. The 10-inch concentric driver, the result of 18 months of research, has a paper-pulp cone that has to move very little to give a big, dynamic sound, and so forms a constant waveguide for the soft-dome tweeter of 1.25 inches mounted at its centre, which comes into play at 1.6 kHz. The Twin-Drive neodymium magnet system creates a symmetrical field to reduce intermodulation distortion.

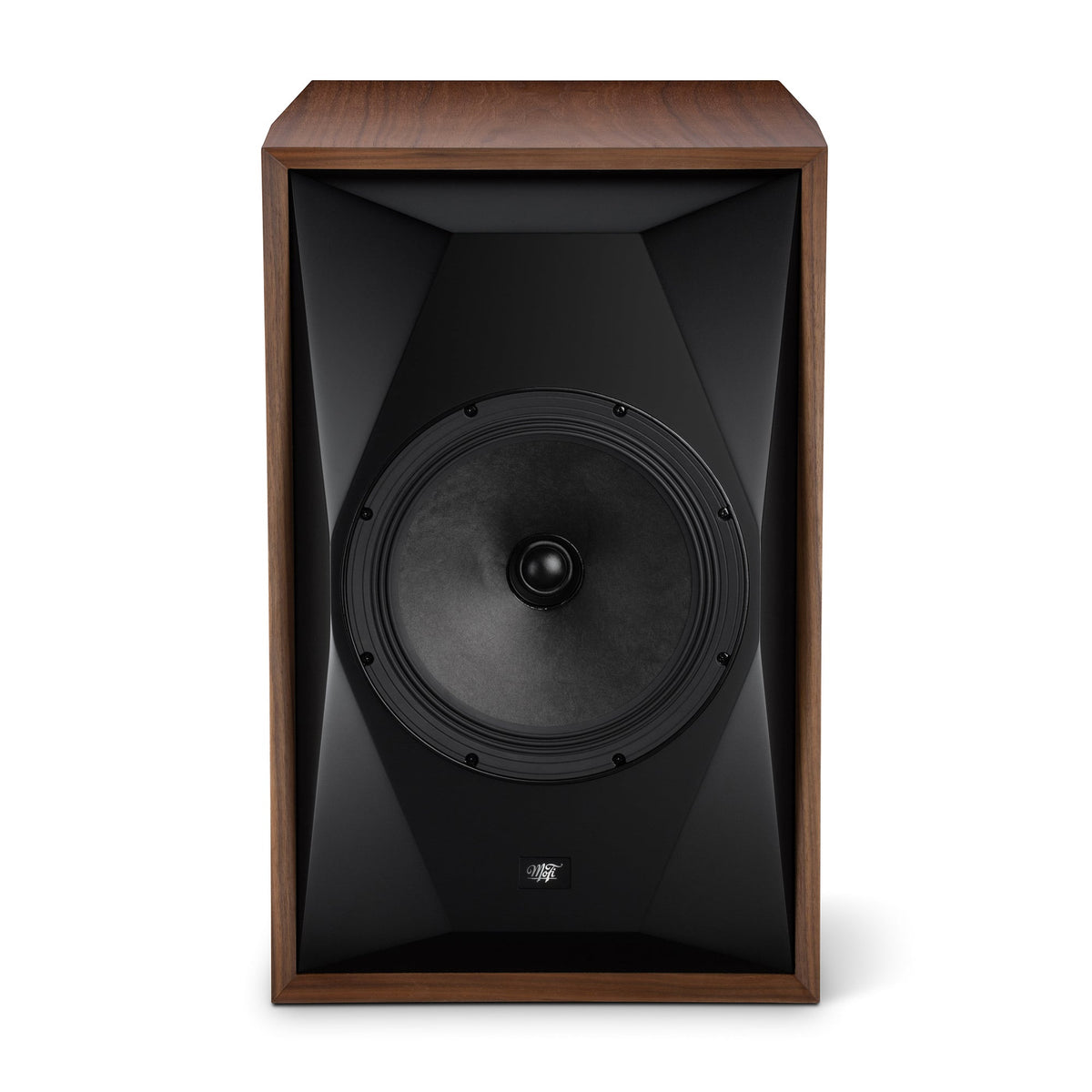

The cabinet has MDF walls 1 inch thick, two internal braces and a faceted front panel in 2-inch MDF, finished in satin black, which limits diffraction. The fabric grilles are magnetic. With 91 dB of sensitivity and 8 Ohm nominal, 30 W are enough to drive them, with valve or transistor amplifiers.
Technical features
- Configuration: two-way, bass reflex
- Drivers: 10-inch concentric unit, soft-dome tweeter of 1.25 inches
- Frequency response: 42 Hz - 30 kHz
- Sensitivity: 91 dB (2.83 V, 1 m)
- Nominal impedance: 8 Ohm
- Crossover frequency: 1.6 kHz
- Power: 30 W recommended minimum, 200 W maximum input
- Dimensions: width 368 mm, height 572 mm, depth 422 mm with grille (406 mm without)
- Weight: 21 kg each
Available versions

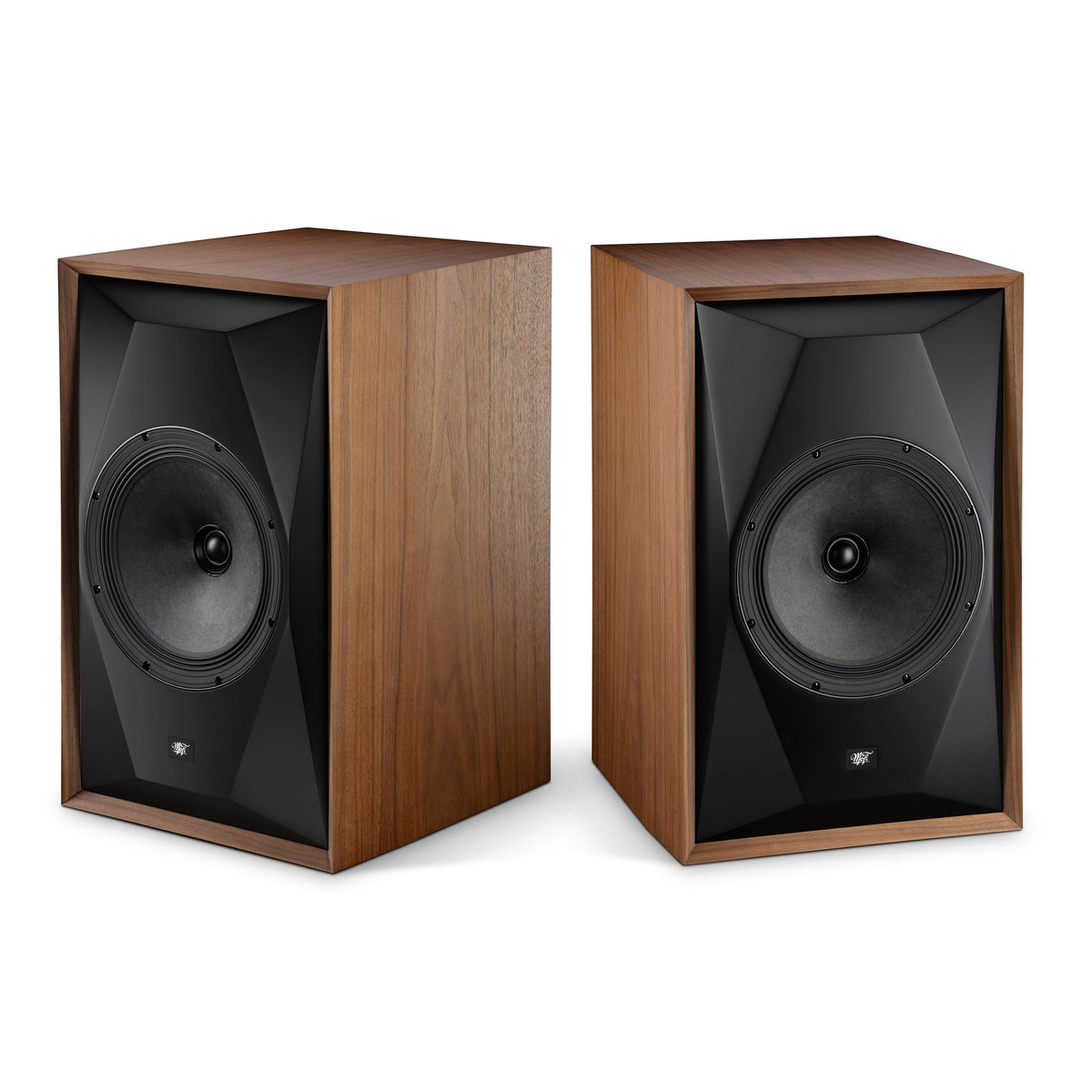

Sold as a pair, in Walnut finish, with real wood veneer, without stands.
