MoFi SourcePoint 8: two-way standmount loudspeakers with 8-inch concentric driver

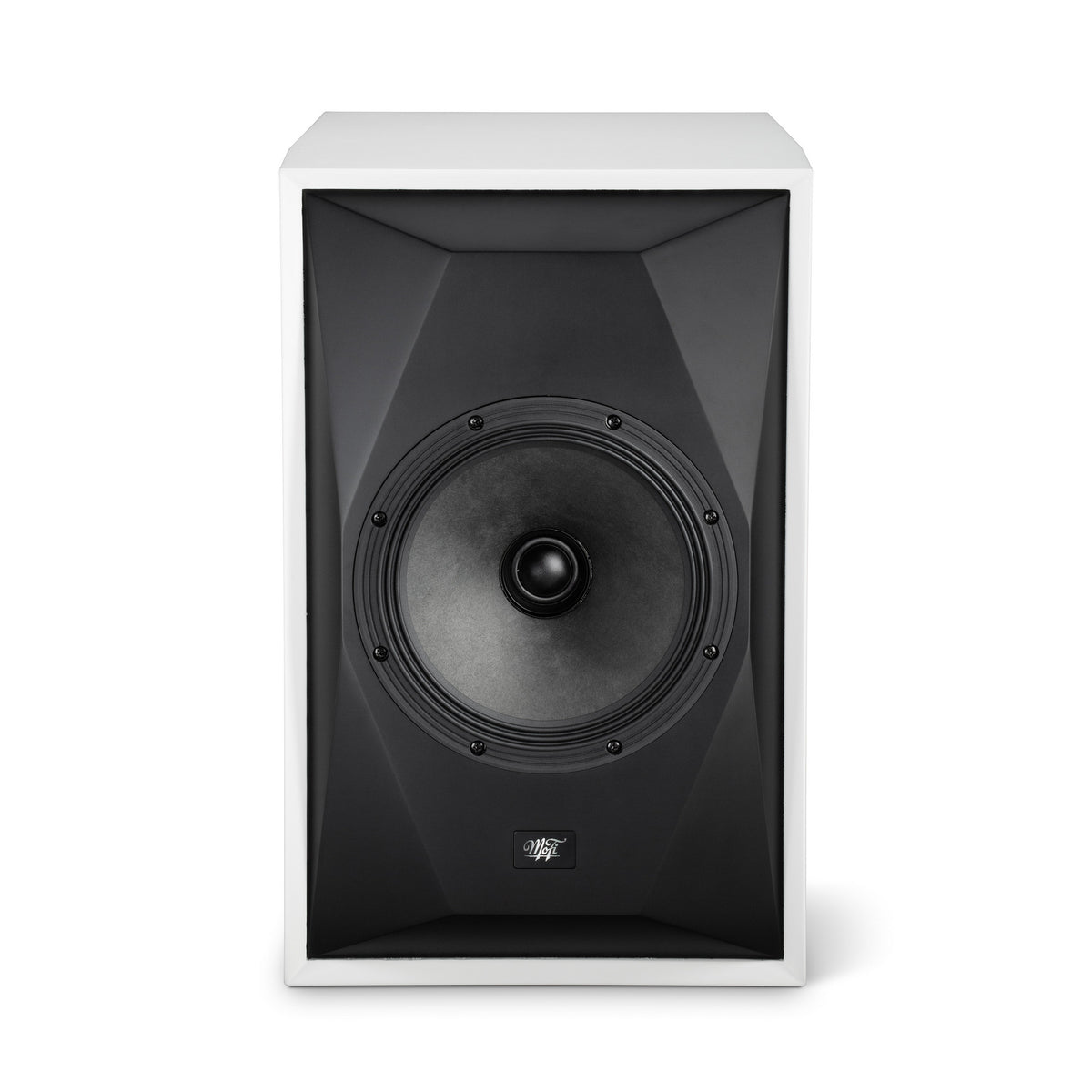

The SourcePoint 8 are two-way bass-reflex standmount loudspeakers, developed by Andrew Jones and the MoFi Electronics team by scaling down the SourcePoint 10, to bring its acoustic approach into a more compact cabinet suited to a larger number of rooms. The core is a custom-made 8-inch concentric driver with a soft-dome tweeter of 1.25 inches at its centre: a point source in which the cone of the woofer works as the tweeter's waveguide.

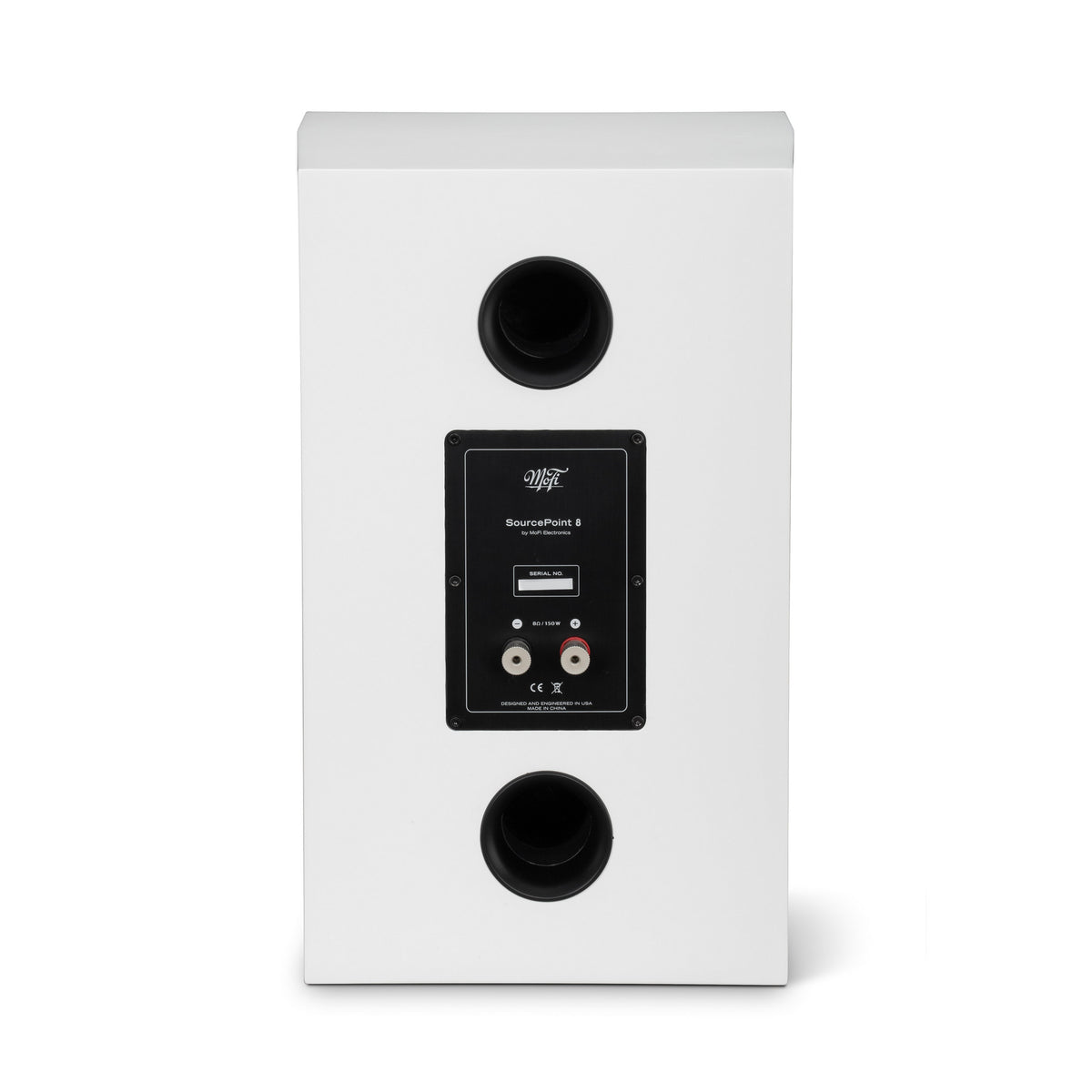

The Twin-Drive magnet system, based on high-flux neodymium, generates a completely symmetrical field, to keep intermodulation distortion low. The sculpted front panel with several facets reduces diffraction; the fabric grilles are held in place magnetically and MoFi advises taking them off to obtain maximum performance. The terminals accept five types of connection.
Technical features
- Configuration: two-way, bass reflex
- Drivers: 8-inch concentric unit, soft-dome tweeter of 1.25 inches
- Frequency response: 47 Hz - 30 kHz
- Sensitivity: 87 dB (2.83 V, 1 m)
- Impedance: 8 Ohm nominal, 6.4 Ohm minimum
- Crossover frequency: 1.6 kHz
- Power: 30 W recommended minimum, 150 W maximum input
- Dimensions: width 290 mm, height 456 mm, depth 335 mm with grille (320 mm without)
- Weight: 12.7 kg each
Available versions

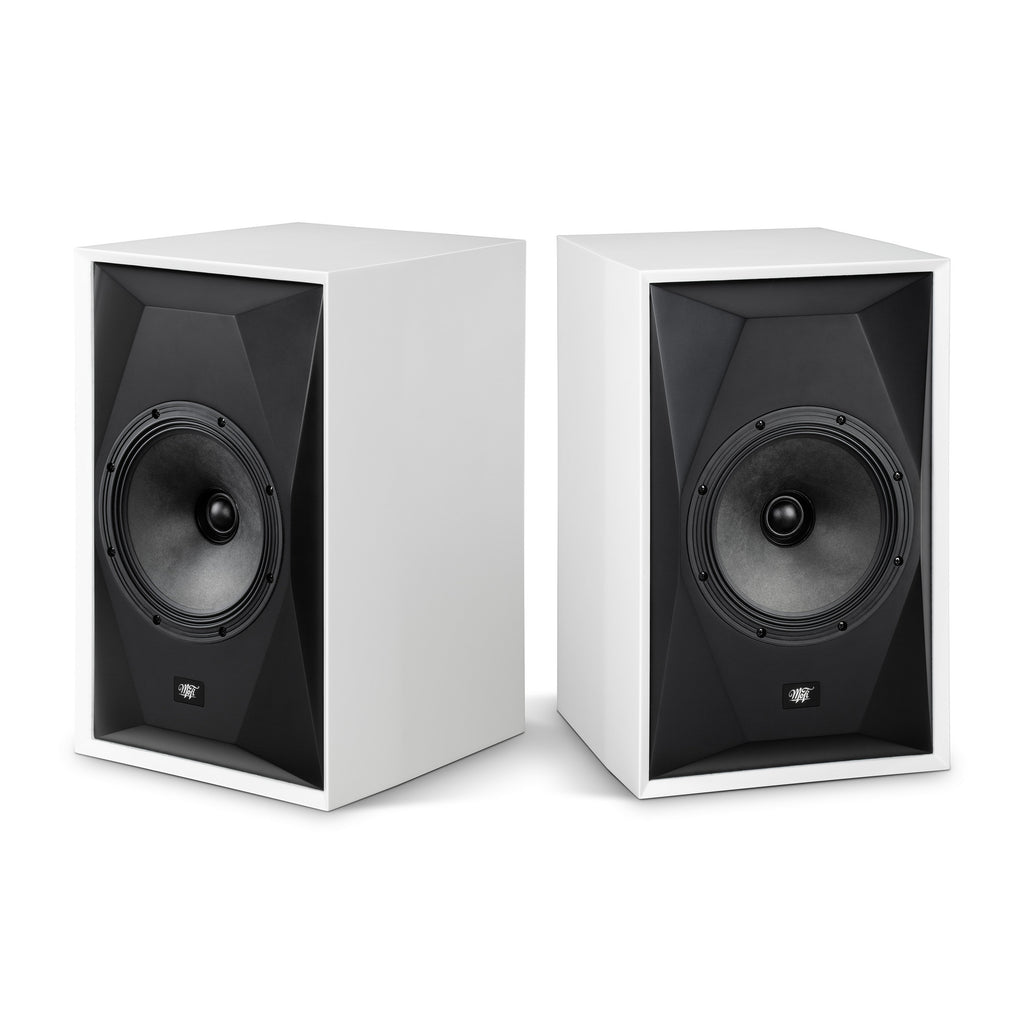

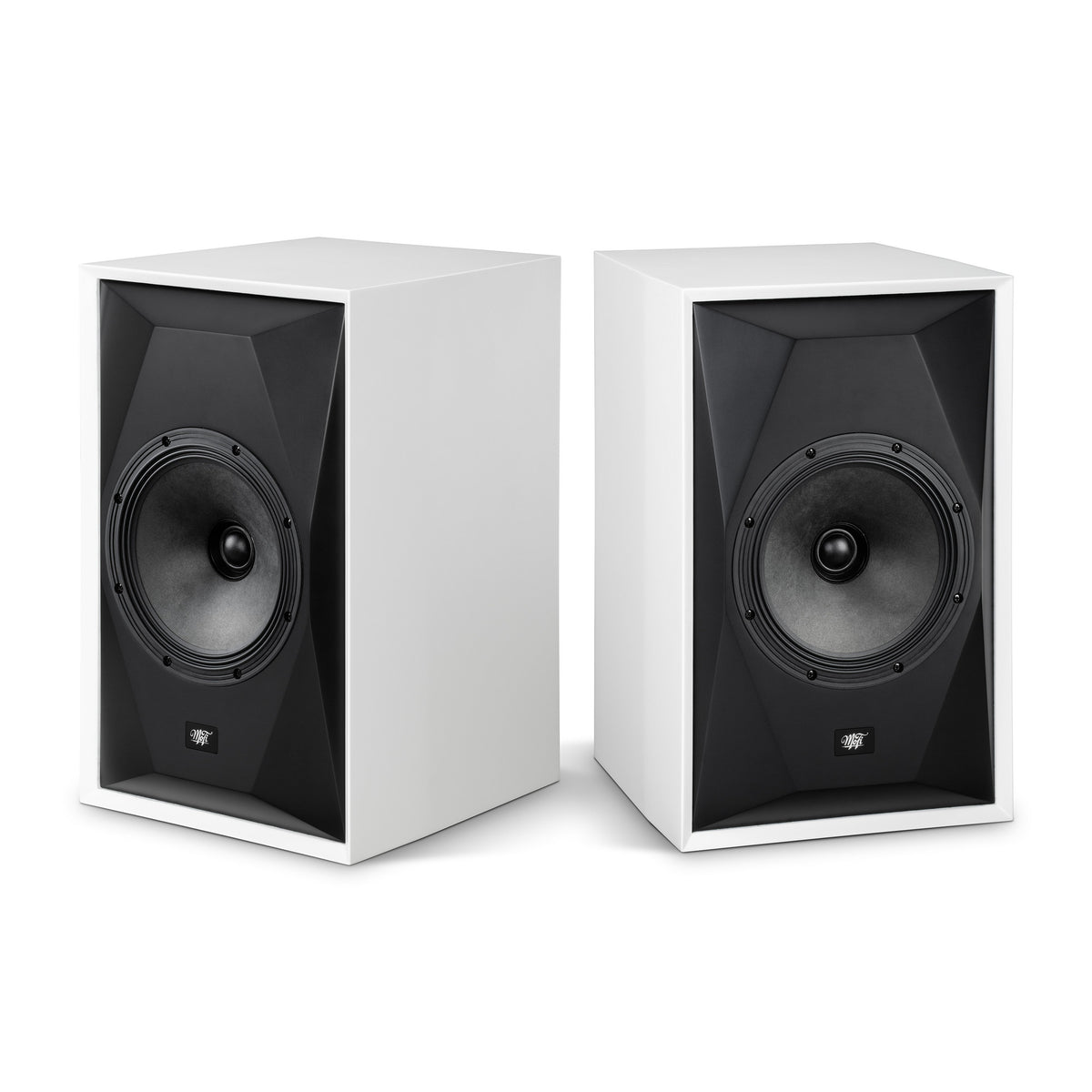

Sold as a pair, in White finish, without stands.
