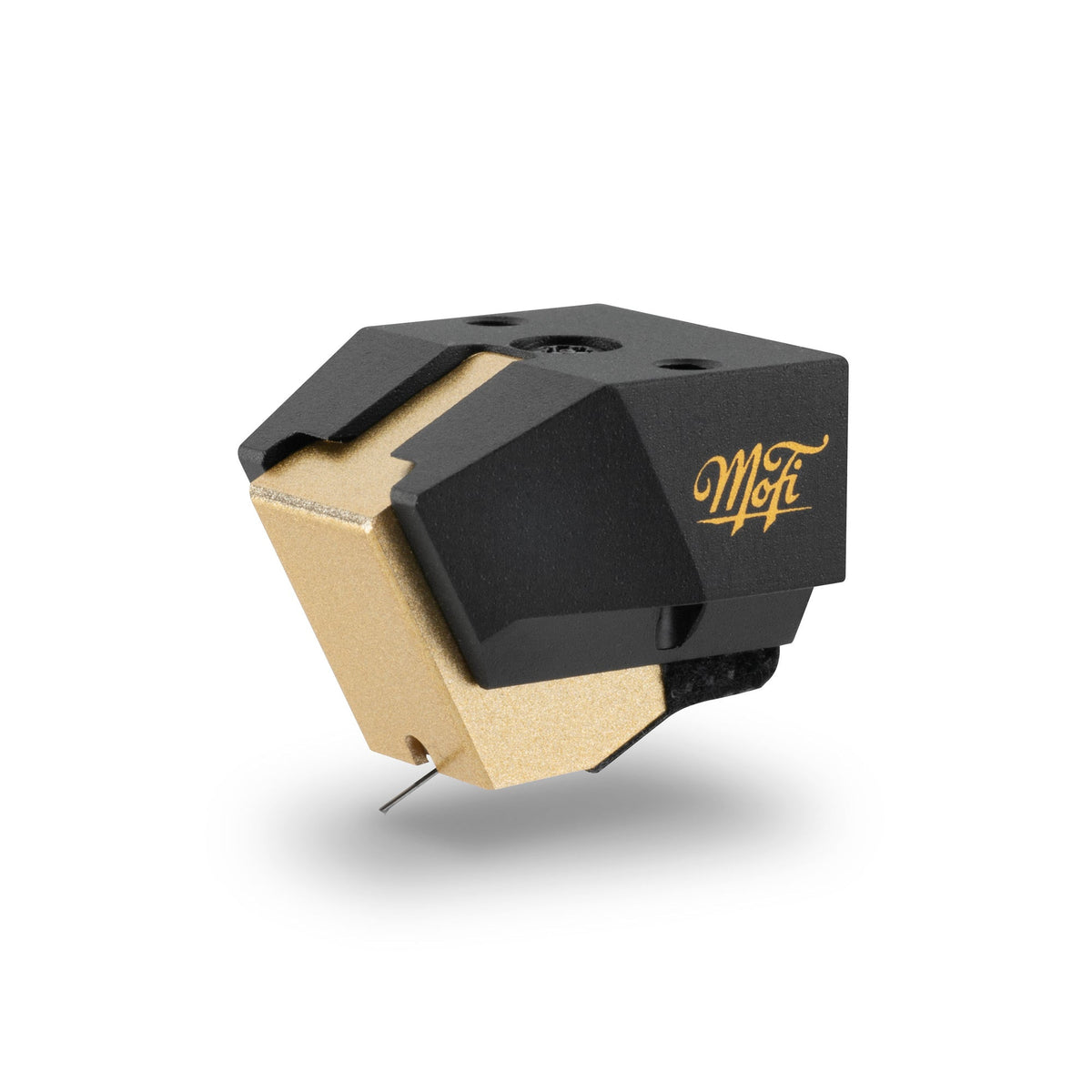

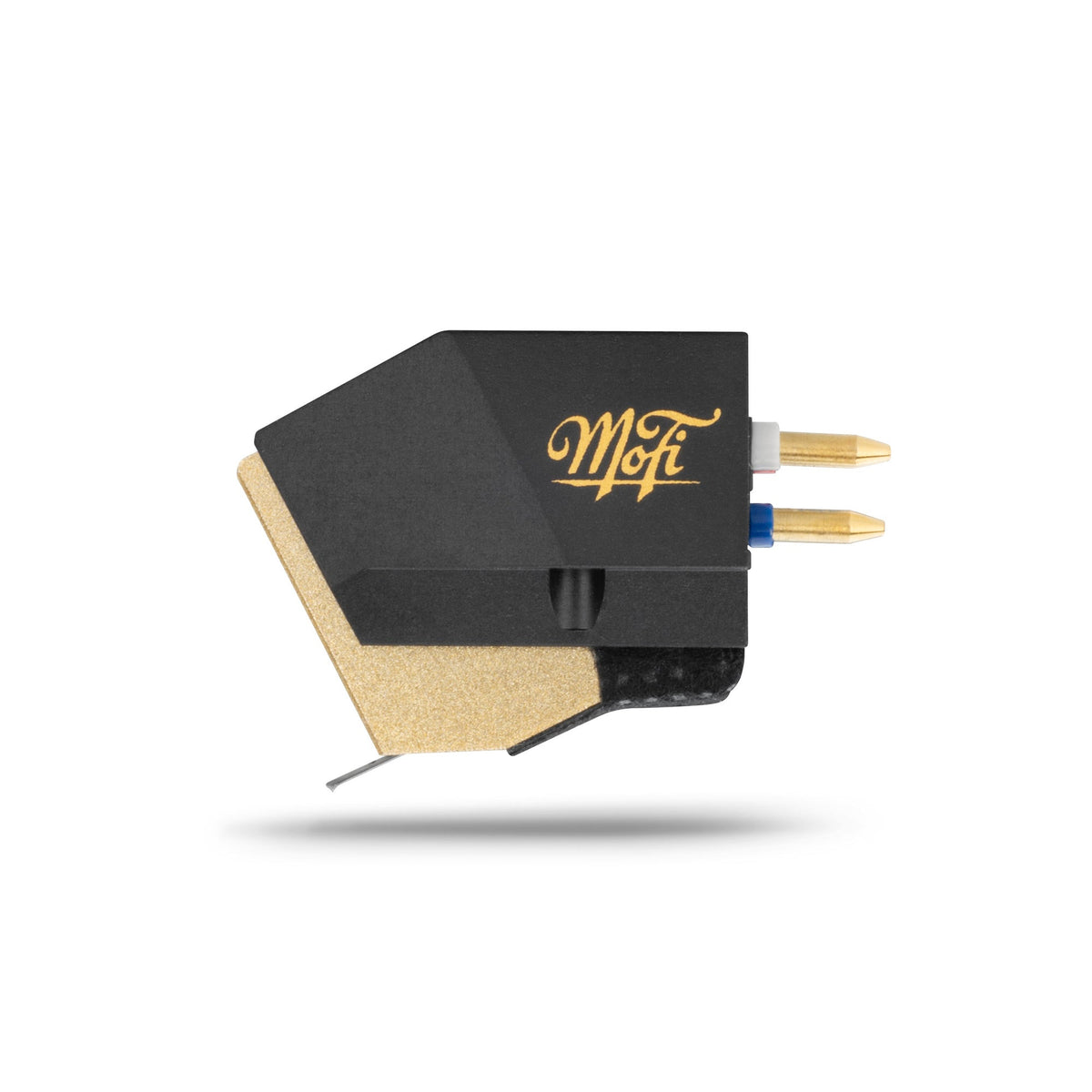

MoFi UltraGold MC: moving-coil cartridge with nude Shibata stylus
The UltraGold MC is a stereo moving-coil cartridge from MoFi Electronics, built in Japan under strict quality controls and voiced by ear by Allen Perkins, the founder of Spiral Groove. The declared goals are a very extended frequency response, crisp transients in the treble, dynamics and richness of detail, together with fidelity to the source and clean tracking.

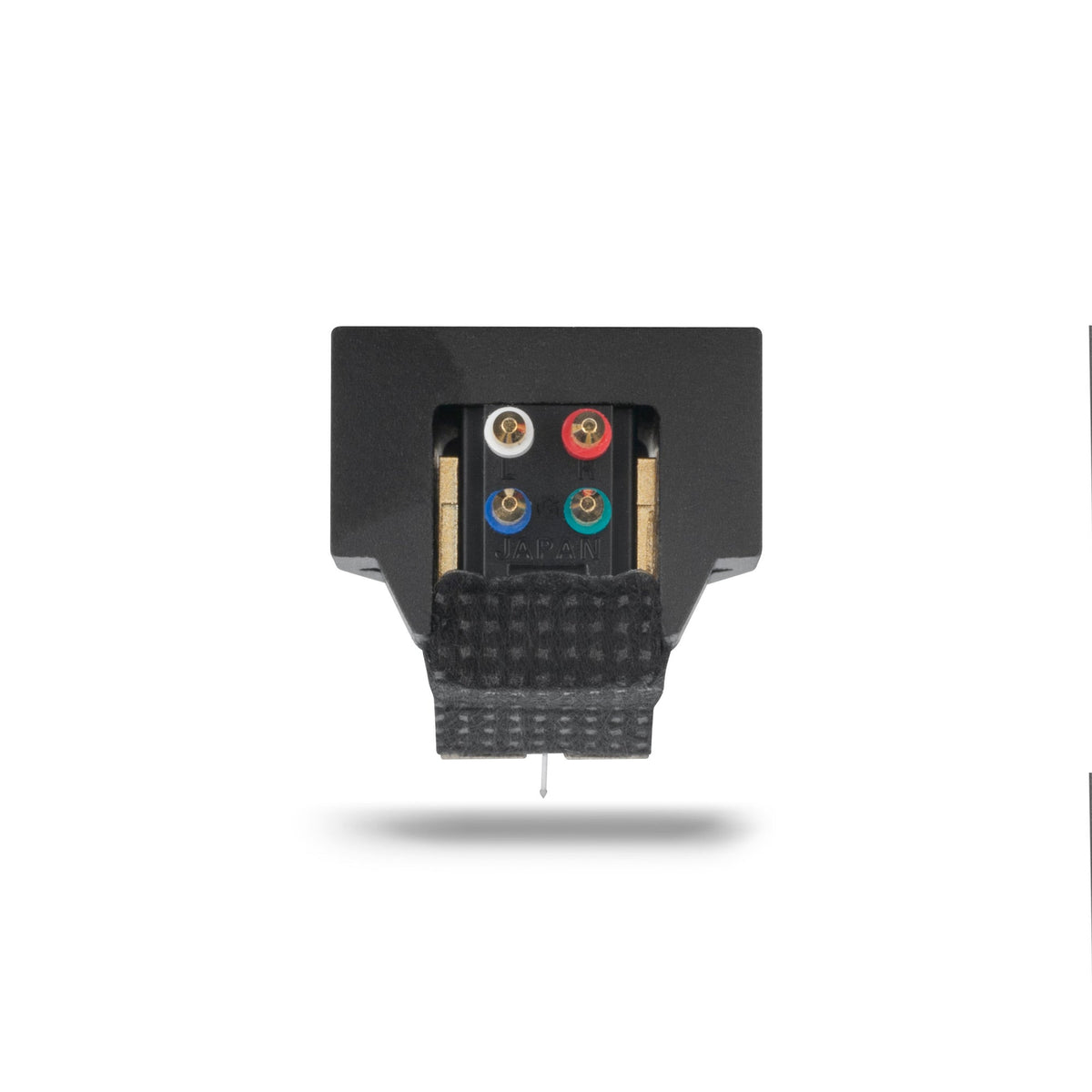

The stylus is a nude diamond with a Shibata profile, fitted to a boron cantilever; the generator uses a neodymium magnet with a permendur yoke and coils of pure PCOCC copper, obtained by Ohno continuous casting. The aluminium body has threaded holes: two screws, with no nuts, are enough to fix it to a headshell or to an arm with an integral shell. The output is 0.4 mV and the recommended load is at least 100 Ohm.
Technical features
- Type: stereo dual moving-coil (MC)
- Stylus: nude Shibata
- Cantilever: boron
- Output voltage: 0.4 mV
- Frequency response: from 20 to 35,000 Hz
- Tracking force: from 1.8 to 2.2 g
- Recommended load: 100 Ohm or higher
- Internal impedance: 12 Ohm
- Weight: 7.3 g
Available versions
Sold as a single unit.
