Monitor Audio AWC280-T2

Monitor Audio AWC280-T2: IP55 stereo in-ceiling speaker

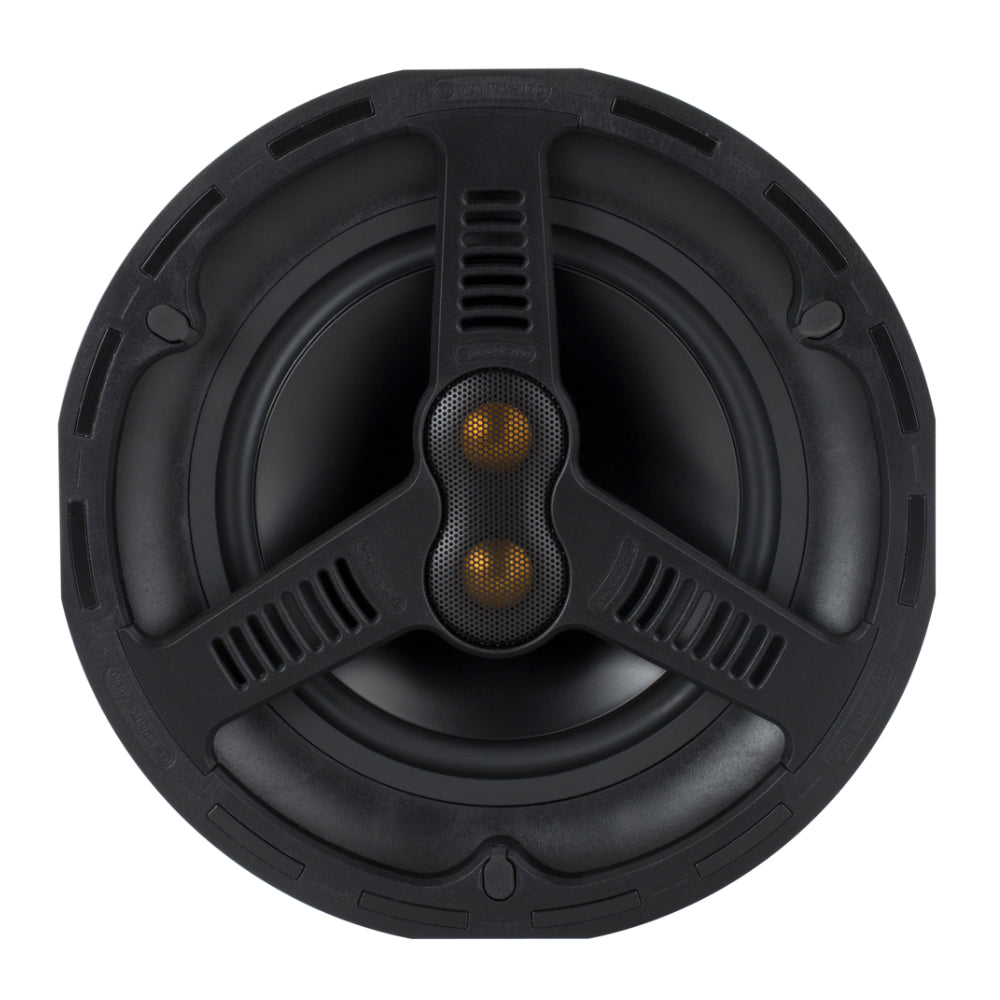

The AWC280-T2 is an in-ceiling or in-wall speaker from the Monitor Audio All Weather range which, where room is restricted, reproduces both stereo channels with just one unit. Its 8-inch C-CAM woofer, anodised black, is placed coaxially with respect to two 1-inch C-CAM Gold Dome tweeters, set side by side at a fixed angle.

Like the other All Weather models it has IP55 certification, a trimless grille in SS430 stainless steel, stainless fixing screws, EPDM barriers and non-ferrous samarium cobalt magnets; the operating temperature runs from -34 to 79 degrees C. The chassis is a mineral-filled PC-ABS polymer, flame retardant to UL V0. The fixing is the three-point Tri-Grip and the treble level is set at the time of installation; the accessories include an optional square grille with an outer side of 285 mm.

Technical features

• Drive units: 8-inch C-CAM cone woofer and two fixed-angle 1-inch C-CAM Gold Dome tweeters
• Frequency response: 50 Hz to 30 kHz
• Sensitivity of 88 dB (1 W at 1 m) with both channels driven
• Nominal impedance of 8 + 8 Ohm
• Maximum sound pressure level: 109 dBA
• Power: 100 W RMS handling; suggested amplifier from 20 to 100 W
• Connections: two pairs of gold-plated push terminals; treble level at +3, 0 or -3 dB
• Cut-out: 247 mm diameter; mounting depth 97.6 mm
• Size with grille: 285 mm diameter, 102.5 mm deep; weight 2.8 kg

Available versions

Sold as a single unit.
