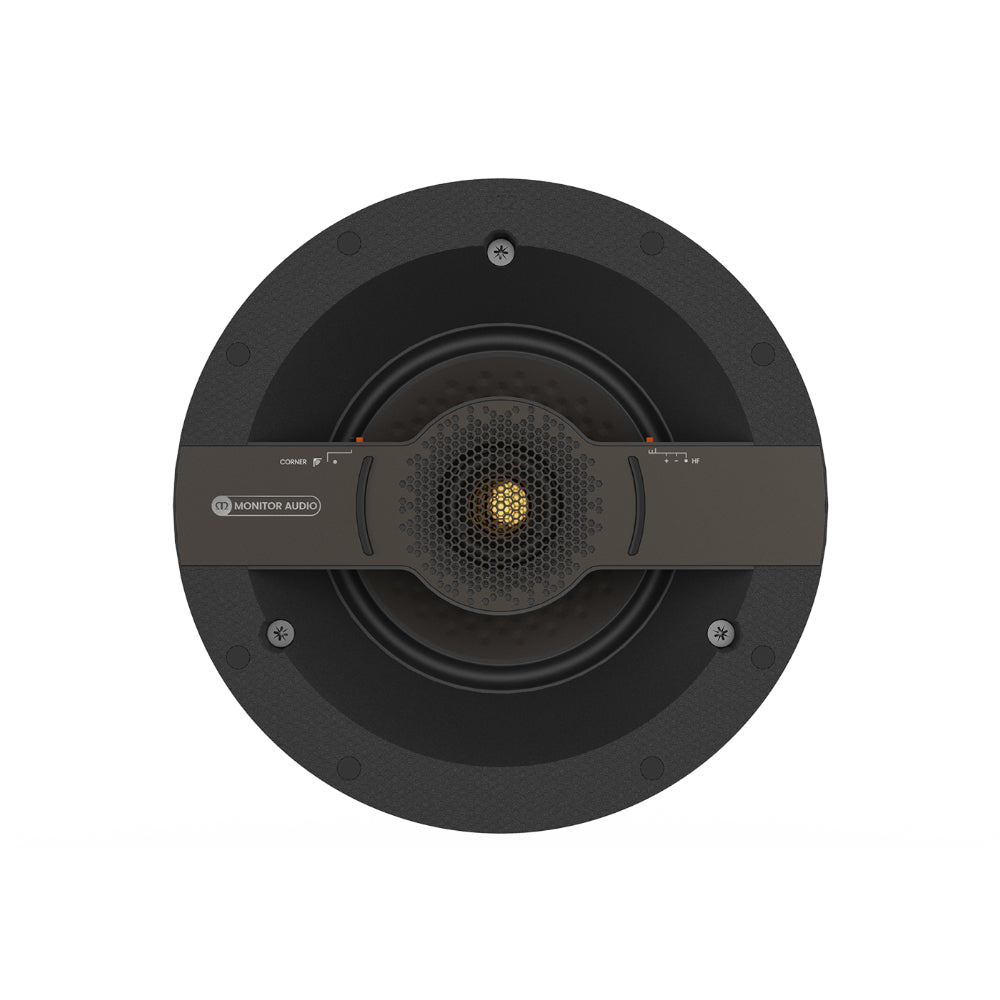

Monitor Audio Creator C2S: two-way in-ceiling speaker
The Creator C2S is the small model in the Tier 2 level of the Monitor Audio Creator Series, intended for systems where acoustic quality is a central requirement. Its two-way design pairs a 5-inch RST II mid-bass unit with a 1-inch C-CAM tweeter fitted with a UD Waveguide, brought together in one chassis that mounts in the ceiling.
The cut-out required is 171 mm in diameter. The cable is attached through the Quik-Link connector, which speeds up wiring, and the Tri-Grip II system fixes the speaker simply and securely. The speaker carries a Corner switch (on or off) and a three-position HF selector for the high frequencies (-, 0, +). The standard grille is white; black grilles, round or square, are listed as an accessory.
Technical features
- Configuration: two-way, one channel
- Drive units: RST II mid-bass, 5-inch (127 mm), and C-CAM tweeter, 1-inch (25 mm), crossing over at 2.5 kHz
- Frequency response (installed, -6 dB): 40 Hz to 30 kHz
- Impedance: 8 Ohm nominal, 6.8 Ohm minimum at 150 Hz
- Sensitivity: 84 dB (2.83 Vrms at 1 m, installed); peak sound pressure level up to 111 dB
- Power: 65 W continuous handling; suggested amplifier from 35 to 130 W
- Cut-out: 171 mm diameter; mounting depth 99 mm
- Outer size with grille: 201 x 201 mm, 103 mm deep; weight 1.5 kg
Available versions
Sold as a single unit. The white CS-Round round grille is included.
