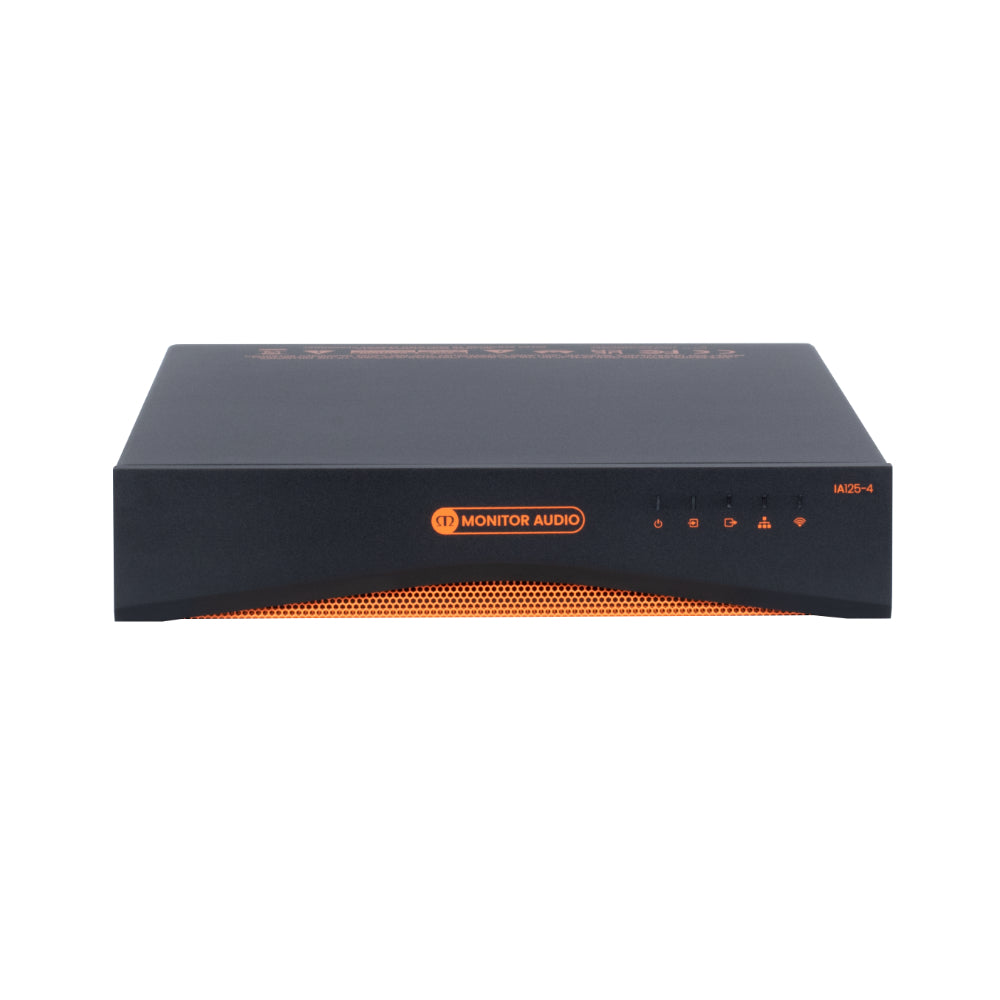

Monitor Audio IA125-4: multi-channel installation amplifier
The IA125-4 is a compact DSP amplifier with very high power density, housed in a half-rack chassis 1U high. It delivers 125 W into four channels or 250 W into two channels, and in power sharing mode it can drive Monitor Audio's Cinergy 100 speakers, THX Ultra certified, in a home cinema room or in a medium-sized garden.
It suits two-zone stereo systems and the height channels of home cinema set-ups. The power supply is a switch-mode type, with power factor correction and a standby converter, and accepts universal mains voltage; the protection circuits act in the event of short circuit, direct current, undervoltage, excessive temperature and overload. The chassis has a black anodised finish. The kits for rack mounting and for wall or desk mounting are separate accessories.
Technical features
- Channels: 4
- Power into 4 or 8 Ohm: 4 x 125 W (single ended outputs)
- Power on 70/100 V lines: 2 x 250 bridged (BTL)
- Power sharing: 2 x 250 W at most
- Signal-to-noise ratio: over 106 dB (A-weighted, 8 Ohm load)
- Typical THD+N distortion: below 0.05%
- Consumption 150 W; in standby under 0.5 W
- Mains supply: 100 to 240 V, 50-60 Hz
- Size in mm: 44 x 220 x 325; 1U half-rack format
Available versions
Sold as a single unit.
