Description
Rose RS250 with Reference ESS SABER 9038 DAC
Discover the Purity of Sound of Rose RS250
Reference DAC section with ESS SABER 9038
Rose RS250 is a Media Center and Music Server designed as a versatile digital source, Audio/Video player based on the reference SABER ES9038 Q2M DAC capable of playing PCM files up to 32bit/768kHz , native DSD512 (22.5792 Mhz) and MQA (Master Quality authenticated).
Maximum precision in music reproduction is ensured by the use of FEMTO clocks that reduce Jitter to unmeasurable levels, ensuring reference audio performance.
To provide a complete multimedia experience, the ROSE RS250 also features a 4K video processor on HDMI output and its own 8.8" wide color Multi Touch Screen .
The RS250 is the ideal audio source for coupling to an existing HiFi system.
Finely milled aluminum frame
To maximize thermal efficiency, the pure aluminum from which the Rose RS250 is made is machined into a single body, and by minimizing the assembly area, vibrations that can affect sound quality are greatly reduced, thus creating a deep and ideal listening pleasure.
Audiophile quality linear transformer
The linear power supply provides a clean and reliable power source to separate secondaries, independently dedicated to both the CPU and the circuits that make up the sophisticated audio output stage.
A linear transformer and robust shielding are employed together to ensure that any noise that could potentially be transmitted to the sensitive DAC is thus completely inhibited, resulting in the best possible sound reproduction.
HiFi Audio & 4K UHD Video with 4K UltraHD Video support
Play video files from connected storage devices or stream from RoseTube/Tidal/Bugs in Ultra HD 4K resolution to an external display via the HDMI connection.
You can enjoy the vivid impression of the Opera House right in your home.
The ROSE RS250 is a device capable of reproducing all the most recent Audio formats, but also Video, with full support for MPEG , H.264 , H.265 , VP9 with high definition Audio and Video.
The built-in ROSE Tube App allows you to enjoy streaming video and high-quality content without any ads.

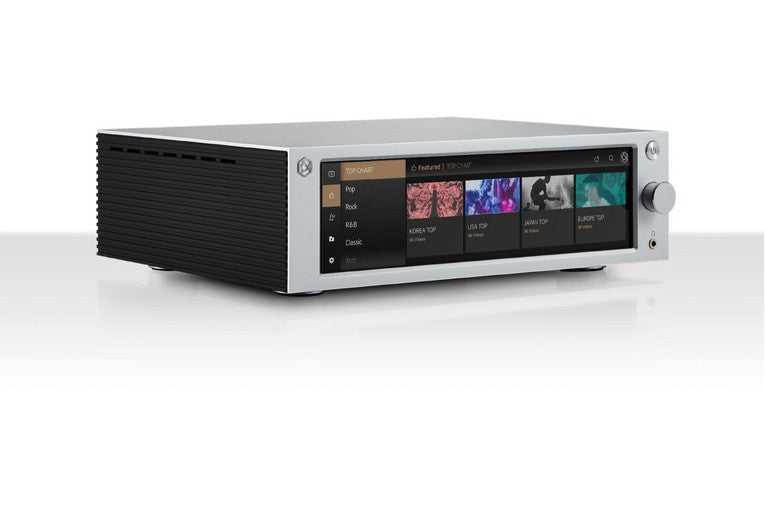

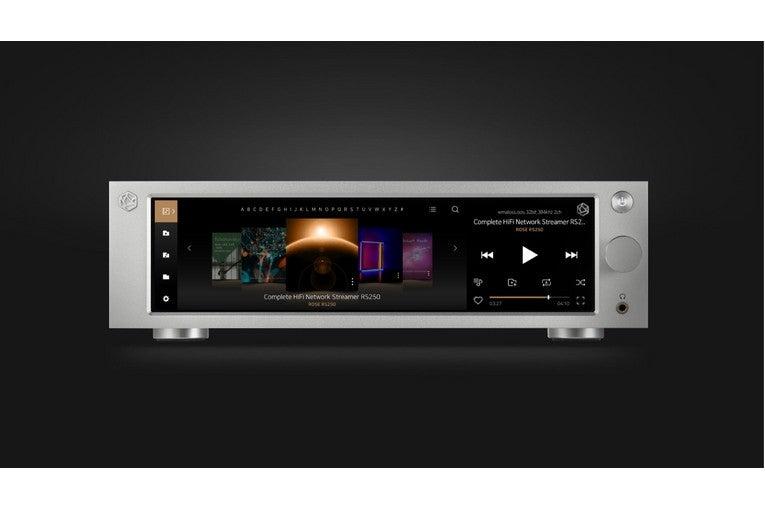

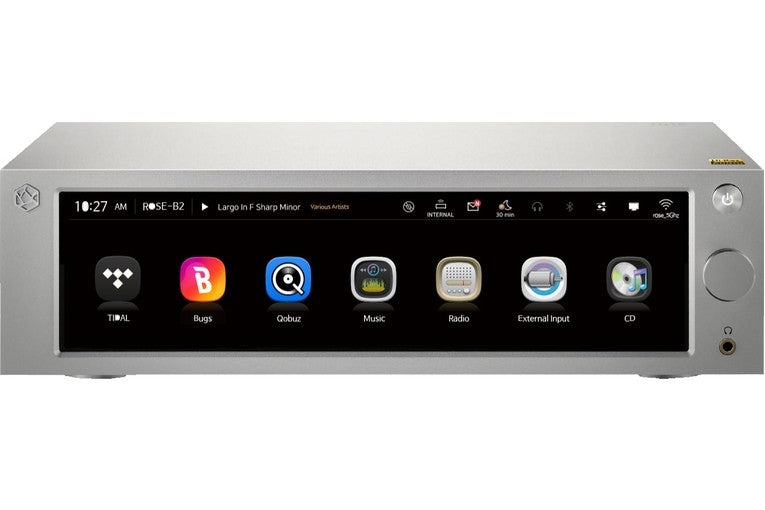

Large 8.8-inch IPS TouchScreen with Advanced Control System
The Rose RS250 provides an intuitive and convenient user interface thanks to an excellent 8.8" IPS Multi Touch panel with high resolution and wide viewing angle.
The front display shows all information about the album being played in high definition graphical representation and can also play video at up to 60 fps .
ROSE Connect Premium application
Users can wirelessly play all audio and video sources from both local and network storage sources via the dedicated app that supports Android and Apple iOS platforms .
Versions for desktop and notebook computers with Microsoft Windows 10 (beta version) and Apple MacOS (alpha version) are also available.
Bluetooth remote control
You can easily control the device with a dedicated Bluetooth remote control, which is provided. Through Bluetooth technology, the control of the functions of the Rose RS250 will be much more precise and the experience of use will be much more comfortable than using a traditional infrared remote control.
ROSE OS operating system
Hi-Fi ROSE's proprietary operating system provides an innovative listening environment.
In addition to the highest quality music playback and streaming, it offers a variety of services including 4K high-definition video playback, music-focused YouTube listening, Pod casts, various radio broadcasts from around the world, playback and ripping CDs.
Music
You can play music files from local storage media (USB / MicroSD / SSD), or from shared folders on the network, from NAS and from DLNA and UPnP devices. Thanks to playlists, you can easily listen to your favorite songs or albums.
Your music library can be viewed organized by albums, artists, genres, composers, folders, etc.
Audio formats supported
- WAV, FLAC, WMA, MP3, APE, DFF, DSF, AIFF, ALAC, M4A.
- PCM 8kHz~768kHz (8/16/24/32bit per Sample)
- Native DSD : DSD64 (1bit 2.8MHz) / DSD128 (1bit 5.6MHz) / DSD256 (1bit 11.2MHz) / DSD512 (1bit 22.4MHz)
- Native MQA with Full-Unfold
CD Ripping
By connecting a computer-type USB CD reader (optional), ROSE RS250 can perform direct reading or CD-Ripping of Audio Compact Discs .
You can store your CDs on mass storage connected to the ROSE, such as an SSD up to 4TB, a USB stick, a NAS.
The formats for CD-Ripping are WAV, FLAC.
TIDAL
Integrated Tidal app for a high performance streaming service, including Tidal HiFi and Master MQA . Easily integrate all existing features, such as platform access, playlists and music playback.
QOBUZ
Integrated Qobuz app for a high performance streaming service, including Qobuz Studio at 24bit/192Khz. Easily integrate all existing features, such as platform access, playlists and music playback, biographies, etc.
SPOTIFY CONNECT
* Future free firmware updates will provide additional Hi-Fi streaming services.
Roon Ready
RS250 is a Roon-Ready device . It supports automatic network detection, stable library operation, and multi-channel playback of high-quality audio sources.
Video
You can play video files from local storage media (USB / MicroSD / SSD), or from shared folders on the network, from NAS and from DLNA and UPnP devices. If you connect Rose to TV with HDMI cable, you can watch movies on big screen,
with a maximum native resolution of 4K UHD.
- H.264/AVC Base/Main/High/High10 profile@level5.1; up to 4Kx2K@30fps
- MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
- H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier; up to 4Kx2K@60fps
ROSE Tube
We provide you with a preferred channel to watch YouTube videos without ads and we also provide you with convenient search functions, channel subscriptions, and playlist service.
By connecting ROSE to a TV with an HDMI cable, you can also watch movies on the big screen, in standard resolution, HD and even UltraHD 4K.
ROSES Podcasts
This is the ability to listen to podcast channels provided by iTunes. The ROSE server offers channels based on their popularity and is organized by theme. Create your free subscriptions to your favorite Podcast channels, generate playlists and organize your favorite channels and content.
Internet radio
You can listen to internet radio channels from hundreds of handpicked channels, featuring radio stations from major countries around the world.
Currently, over 9900 high-quality stations are already available, which you can also organize via the favorites list function.
Hi-Res AUDIO - High Resolution Audio Certification
Hi-Fi ROSE RS250 is officially certified as " High-Resolution Audio " licensed by JAS (Japan Audio Society).
Music Playback in Studio Master Quality
PCM 32bit/768khz, DSD 512 Native 22.4MHz, MQA
Support for the most modern High Resolution audio formats, such as PCM 32bit-768kHz , Native DSD up to 22.4MHz (DSD512) and MQA , offers you full and dynamic sound through the High Performance Reference Saber ES9038Q2M DAC .
Our High-Speed Drive Variation Technology combined with our pure path ultra HD power amplifier, provides outstanding tone with ultra-low distortion and smooth sound quality that extends across the entire frequency range.
Versatility of Wired and Wireless Connections
You can use Airplay , DLNA , as well as audio/video files stored on locally connected mass devices, via USB , SSD , Smartphone, Tablet and NAS present in your LAN network.
Standard are the network interfaces Bluetooth , Wi-Fi and also the wired Gigabit Ethernet .
RS250 is equipped with the latest audio interfaces such as an analog Line-In input , an analog RCA Pre-Out output (with variable volume level), Optical and Coaxial Inputs and Outputs , Headphone Output , HDMI Output .
The USB Audio Out can also be used to connect an external DAC converter .
RS250 can also be connected directly to the inputs of integrated amplifiers and power amplifiers, both solid state, tube or hybrid.
For viewing multimedia files, in addition to using the integrated touch screen, you can connect an external TV via the HDMI connection and enjoy the maximum resolution available, which is managed natively up to 4K UltraHD.
Extensive media library connection capability
ROSE RS250 is designed to allow you to easily connect to a suitable storage space to handle high quality music.
It can recognize a hard drive up to 4TB internal SSD and a 10TB external hard drive .
It also supports connection with NAS systems .
Now enjoy listening to high quality music without worrying about storage space!

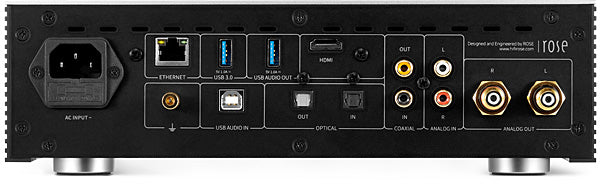

The Complete Back Panel Connections
ROSE RS250 has numerous inputs and outputs that allow it to be inserted into any pre-existing audio/video system.
Characteristics
|
Qobuz Studio (up to 24bit/192kHz)
Tidal (HiFi and MQA)
Bugs
RoseTube
Rose PodCast
Internet radio
FM Internet Radio
|
Video Services
|
Tidal Video
Bugs Videos
RoseTube (supports up to 4K UHD 60p)
|
Streaming Protocols
|
Bluetooth A2DP Sink
Airplays
DLNA extension
Roon Ready
Spotify Connect
|
CD playback
Ripping CDs
|
Support for CD playback and CD-Ripping via an external USB DVD-RW burner (optional)
|
Internet radio
|
Thousands of internet radio stations
|
Network Services
|
|
Software Update
|
Firmware updates via OTA, USB Storage, Rose Store
|
USB audio input
|
USB Audio Class 2.0 compatible, with USB Audio IN support (Windows PC-ASIO drive / MAC PC-Core Audio / Linux PC-ALSA drive supported)
|
USB audio output
|
Compatible with USB Audio Class 2.0 standard It allows the connection of numerous DAC models via USB Audio. |
Hi-Res Audio
|
It supports high-quality audio formats (24~32bit/48~768kHz) thanks to JAS Hi-Res Audio certification.
|
MQA extension
|
MQA Full Decoder
|
Audio Codecs Supported
|
WAV, FLAC, ALAC, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, AIFF
PCM :
8kHz~768kHz(8/16/24/32bit per Sample)
Native DSD :
DSD64(2.8MHz)
DSD128(5.6MHz)
DSD256(11.2MHz)
DSD512(22.4MHz)
|
Video Codecs Supported
|
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1,
VP9, VP8, MVC,
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
|
Storage (archiving)
|
Internal SATA SSD mounting slot up to 4TB
USB 3.0 for connecting external hard drives up to 10TB or USB sticks
|
Technical specifications
|
ROSE OS 3.5 - Custom Android 7.1 (Nougat).
|
Design
|
|
Dimensions
|
278x202x76mm
|
Weight
|
3.2Kg
|
Finish
|
High quality anodized aluminum for the front and top panel (one block single frame)
|
Screen
|
|
Power
|
|
CPUs
|
Hexacore
Dual Core Cortex-A72 up to 1.8Ghz
Quad Core Cortex-A52 up to 1.5Ghz
|
GPUs
|
Mali-T864 GPU, OpoenGL ES 1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
|
Memory
|
LPDDR3 4GBytes
|
Pre-Out
|
|
DAC Chips
|
Saber ES9038 Q2M(ESS) x1 (Single Stereo Design)
Output Level: Max 2.3 Vrms, Unbalanced
THD: 0.0002% (1kHz 2.3Vrms unbalanced)
THD + N: 0.0003% (1kHz 2.3Vrms unbalanced)
IMD: -102dB (SMPTE 4:1, 60Hz:7KHz)
SNR: 116dB (A-wt)
Dynamic Range: Max 126 dB (CCITT filter)
Crosstalk: > -133dB, 20~20kHz
Frequency Response: 20Hz to 20,000 (+/-0.5dB)
Output impedance. 100 ohms
|
Wired & Wireless Network
|
|
Network Interfaces
|
10/100/1000BASE-T Gigabit Ethernet
WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
|
Bluetooth
|
Bluetooth 4.0 (AD2DP SINK, AVRCP v1.3)
|
Streaming
|
Airplay / DLNA / DIAL Service
|
Inputs / Outputs
|
|
Audio inputs
|
RCA analog line input Digital Toslink Optical Input Digital coaxial input USB Audio IN |
Audio outputs
|
Headphone Output : Connection for 3.5mm headphone jack (1Vrms)
Pre-amp output : Connection for a power amplifier or integrated amplifier (2.3Vrms)
Optical Output : S / PDIF Toslink
Coaxial output : Coax 75 Ohms
USB Audio Out (for connecting external DACs)
|
Video Outputs
|
HDMI 2.0 connection for TVs and projectors
HDMI Passthrough functionality to be able to send the multi-channel audio signal to an external DTS / Dolby receiver for appropriate decoding.
|
Linkable Resources
|
USB 3.0 x 2 (File system - NTFS/FAT32, supported capacity up to 10TB)
SATA SSD x 1 (File system -NTFS, supported capacity up to 4TB)
Supported network protocols: SMB, FTP, WebDav
|
Supported CODECs
|
|
Audio codecs
|
WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, AIFF, ALAC, ISO SACD
PCM :
8KHz~768KHz(8/16/24/32bit per Sample)
Native DSD :
DSD64(2.8MHz)
DSD128(5.6MHz)
DSD256(11.2MHz)
DSD512(22.4MHz)
Native MQA Certified:
Full Unfold MQA
|
Video codecs
|
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
|
Diet
|
|
Entrance
|
AC input 220-240V, 50-60Hz.
Input power: 50W
Standby power consumption <0.5W
|
Updates
|
Firmware updates automatic via internet, or manual via USB (recommended)
|
Online Streaming Services
|
|
Audio / Video
|
YouTube (RoseTube)
Podcasts
Internet radio
Tidal HiFi and Tidal MQA Master
Spotify Connect
Qobuz Studio (up to 24bit/192kHz)
Roon Ready Certified
Bugs
VLC extension
|
Control Systems
|
|
Remote control
|
Bluetooth remote control included
|
Native app
|
Rose Connect Premium HiFi for Android or iOS Smartphones and Tablets, Windows PC and MacOS
|
Endowment
|
Power cord x 1
Quick Start Guide x 1
Bluetooth remote control x 1
Batteries (AAA) x 2
SSD fixing screws x4
|
