Description ROSES RS301
Dual passive radiator duct.
Studio Mastering Sound Player RS301
RS301 is an Audio/Video player based on the SABER ES9018K2M DAC, capable of playing music files up to 32Bit/384Khz and DSD256.
Easy and intuitive to use with a 5" Touch Screen. It integrates a 2x50W power amplifier with active speakers with Dual Passive Radiator Duct proprietary reflex system.
Compact and Technological
An Award-Winning Minimalist Design
RS301 has a modern and innovative design that has obtained important worldwide recognition, winning 3 of the most coveted design awards: the IF Design Award, the Reddot Design Award and the PINUP Design Award Best of the Best.
Designed for HiFi Audio
Elegant aluminum chassis
ROSE RS301 is made with a high quality aluminum chassis, which covers the entire structure, making it solid and, at the same time, pleasant to the touch.
The front panel has 2,047 punched holes, showing the pinnacle of CNC metalworking technology.

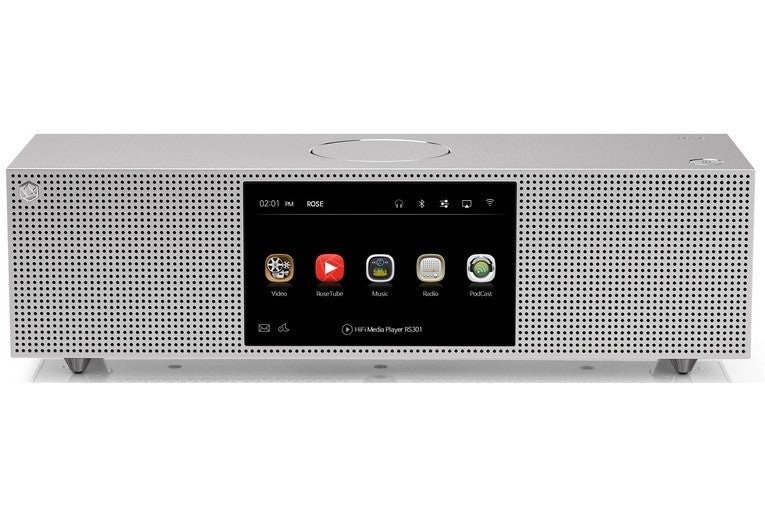

5" color touch display
ROSE RS301 provides a simple and intuitive user interface. With a few gestures, you can play audio and video from your media libraries of files.
Mastering Quality Sound
Crystal clear sound in high fidelity
PCM 32bit/384khz, DSD 256 Native 11.2MHz
The Dynamic Super Bass – 3-way full range speaker configuration with dual passive radiators and internal ducting.
Audio Technology Patented by ROSE
Our audio expertise in the HiFi sector is confirmed by ROSE patented technologies, such as "High Resolution Speaker", "High Precise Amp" and the "Dual Passive Radiator Duct Module", devices that allow you to obtain excellent audio performance in a volume of volume reduced.
High Resolution Speakers
A 20mm High Resolution Tweeter with Crystalline and Pure Tone and a High Performance 63mm Mid-Range in the medium range together with our Woofer with patented Dual Passive Radiator system finally allows you to obtain a very well balanced and correct Reference Sound.
"High Resolution Amp" amplification
Our "High Speed Gate Driver" Technology combined with the design of our High Resolution Amplifier with feedback can provide a stable tonal quality with excellent levels of channel separation, silent and free of distortion.
HiFi sound in high resolution
RS301 can reproduce liquid music in high and very high resolution, thanks to the 32Bit/384Khz and DSD256 Saber 9018K2M DAC converter.
Easy Connections
Local and Network Storage and Streaming
Audio/Video files stored by Micro SD, playback from USB sources not only directly connected but also content sent directly via Smartphone, Tablet, PC, NAS, DLNA, Airplay, Bluetooth, WiFi.
Dial service on Android devices, AUX, and PC USB connection.
 |
 |
|
|
DLNA extension
|
USB and microSD
|
|
|
Audio and Video files can be played from smartphones, tablets, PCs and NAS.
|
Music files or high definition videos can be read directly from USB or Micro SD.
|
|
 |
 |
|
|
Airplays
|
AUX-in
|
|
|
High quality sound through Airplay.
|
You can connect any external analog source, such as a CD player .
|
|
 |
 |
|
|
Bluetooth 4.1
|
USB PC connection
|
|
|
Compatible with all Bluetooth devices for streaming music.
|
You can send audio from your PC, coming from music files, videos, games, and play it through the ROSE RS301 speakers.
|
Versatility of Connections

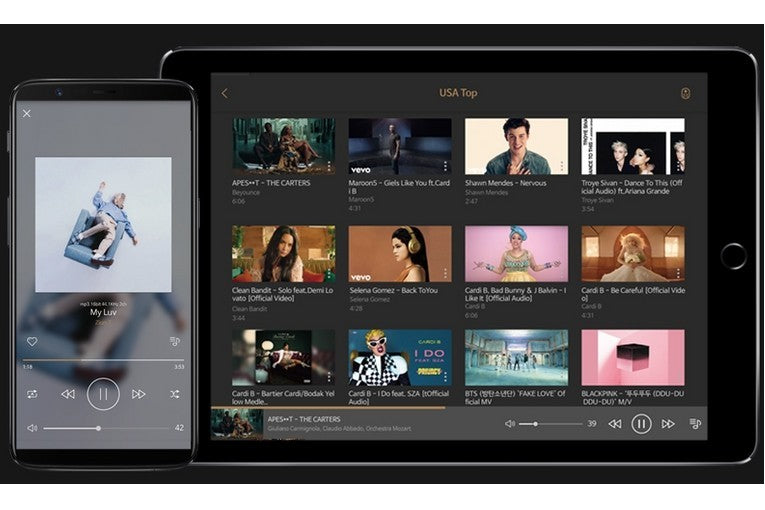

Rose App RoseWare Connect
Life Style: Practical and Versatile
 |
 |
|
|
Music
|
Ad-free YouTube
|
|
|
Playback of audio files from local and network storage, with the function of creating playlists of favorite albums and songs.
|
You can create your favorite video playlists, and watch them without any ad interruptions.
|
|
 |
 |
|
 |
 |
|
|
Video playback in High Definition
|
Internet radio
|
|
|
Support MKV, MP4 format files, to watch movies, video clips, etc.
|
You can listen to internet radio from all over the world, edit lists and add new radio stations to your liking.
|
|
 |
 |
|
 |
 |
|
|
Podcasts
|
Digital Utilities
|
|
|
With this service, you can listen to Podcasts divided by country, genre, topic, etc.
|
RS-301 also provides you with some nice utilities, such as the clock, alarm clocks, weather functions, with indication of the temperature, level of atmospheric pollution, wind, etc.
|
|
 |
 |
ROSE RS301 Technical Specifications
|
|
Android 5.0 (Lollipop)
|
|
Design
|
|
|
Dimensions
|
360x110x108mm
|
|
Weight
|
2.2Kg
|
|
Finish
|
High quality anodized aluminum for the front and top panel (one block single frame)
|
|
Volume control
|
70mm aluminum wheel
|
|
Screen
|
|
|
Power
|
|
|
Maximum output power
|
50 Watts
|
|
Speaker configuration
|
3-way Full Range
Tweeter (8ohm ± 15%) - 10W x 2.20mm Dom, Sensitivity (5K, 6K, 8K, 10K) 93dB ± 3dB
MidRange (8ohm ±15%) -10W x 2 66mm Dom
Woofer (Dual Passive Radiator) - 5W4~16H
|
|
Wired & Wireless Network
|
|
|
Wired
|
10/100Base-T Ethernet
|
|
Wireless
|
WiFi (802.11 a/b/g/n)
|
|
Bluetooth
|
Bluetooth 4.0 (AD2DP SINK, AVRCP)
|
|
Streaming
|
Airplay / DLNA / DIAL Service
|
|

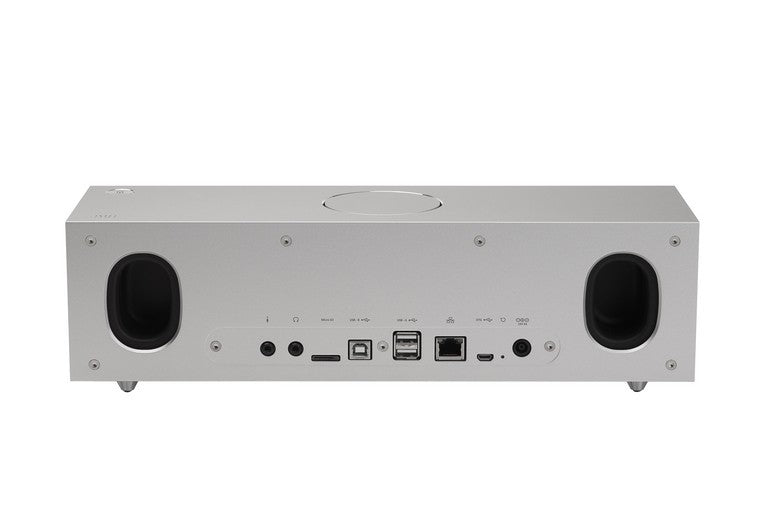

Inputs / Outputs
|
|
|
Audio inputs
|
AUX-in : 3.5mm x 1 |
|
Audio outputs
|
Headphone Output : Connection for 3.5mm headphone jack (1Vrms) |
|
Linkable Resources
|
USB 2.0 Type A x 2
USB 2.0 Type B x 1 (for PC Audio out)
MicroSD x 1
Micro USB x 1 (service port)
|
|
Supported CODECs
|
|
|
Audio codecs
|
WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-C3, MID, MPL, MP2, MPC, MPGA, M4A
PCM : 32bit/ 384KHz
Native DSD :
DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
|
|
Video codecs
|
MPEG-1, MPEG-2, MPEG-4,H.263, H.264, H.265, VC-1, VP8, MVC
H.264 up to HP level 4.2 : 1080p@60fps
H.265 up to MP Level 4.1 High Tier : 1080P@60fps
|
|
Diet
|
|
|
Entrance
|
AC/DC 100-240V, 50-60Hz power supply. Standby power consumption <0.5W
Current consumption: 5~20W
|
|
Exit
|
DC 19V, 3.0A
|
|
Updates
|
Firmware updates automatic via internet, or manual via USB (recommended)
|
|
Online Streaming Services
|
|
|
Audio / Video
|
YouTube (RoseTube), Podcasts, Internet Radio
|
|
Control Systems
|
|
|
Remote control
|
Bluetooth remote control (optional)
|
|
Native app
|
Rose Connect HiFi for Android or iOS Smartphones and Tablets
|
|
Accessories
|
AC/DC power adapter x 1
Quick Start Guide x 1
Tips x 3
Silicone pads x 4
|
| DLNA-DMR | Yes |
| DLNA-DMS | Yes |
| FLAC | Yes |
| Native app | Yes |
| Input In | Yes |
| Saber 32 | Yes |
| UPnP | Yes |
| USB Hosts | Yes |
| Wifi | Yes |
