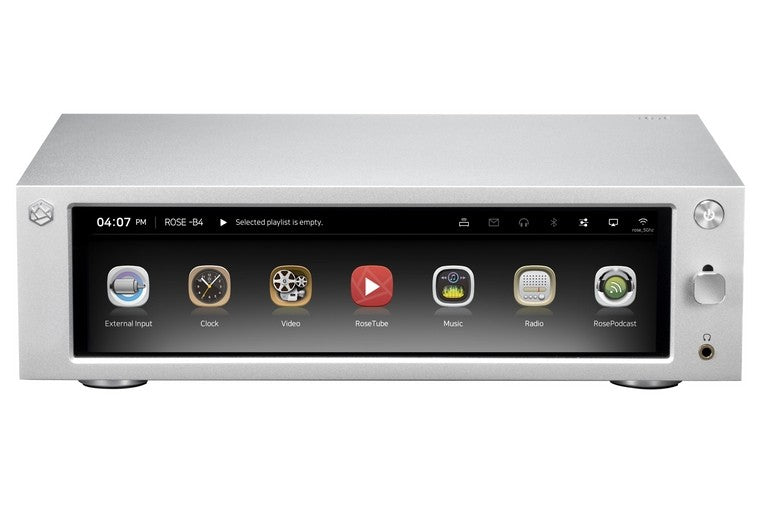

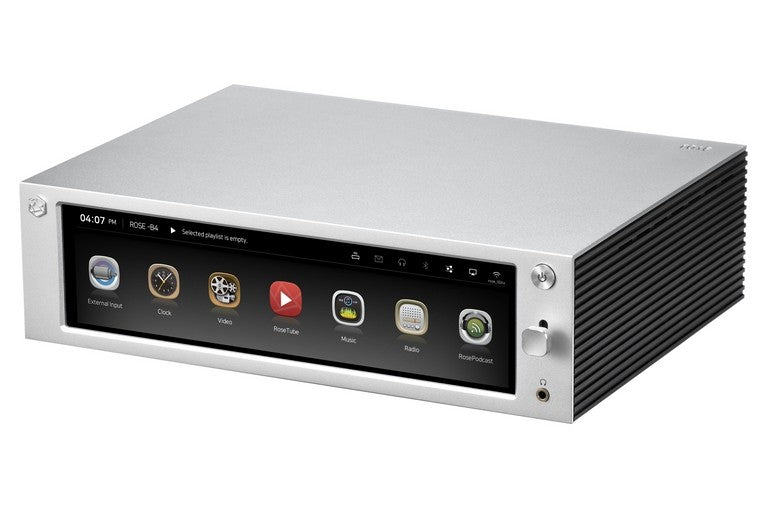

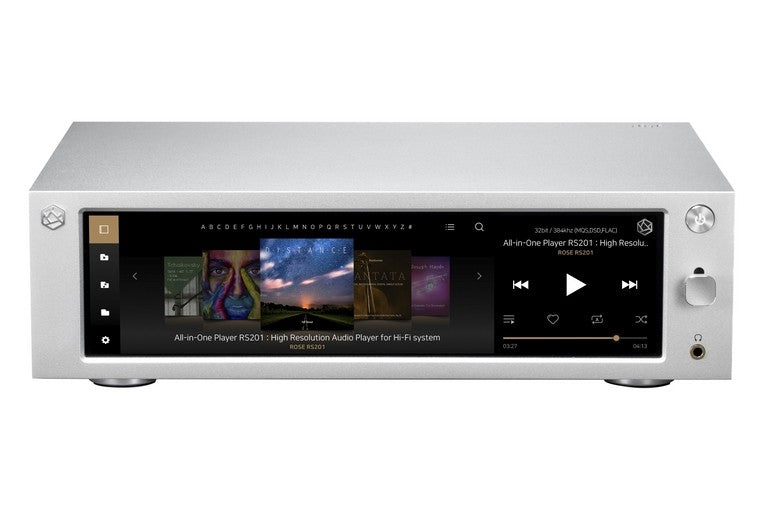

ROSE RS201E

Media Playback HiFi Audio & UHD 4K Video

USB 3.0, Micro SD, SSD, network connection Wired, Wireless, Bluetooth, Airplay, NAS support, allow you to freely access your entire music, audio, video, film library from a single control center multimedia.

This is the ROSE RS201E in a nutshell: a device capable of reproducing all the most recent Audio formats, but also Video, with full support for MPEG, H.264, H.265, VP9 with High Definition Audio and Video.

The built-in ROSE Tube App allows you to enjoy streaming video and high-quality content without any ads. Furthermore, Internet Radio and Podcasts, together with the Time Shift function, make listening and viewing even more complete.

Music

* Supported Audio Formats:

• WAV, FLAC, WMA, MP3, APE, DFF, DSF, ISO SACD.
• PCM 8kHz~384kHz (8/16/24/32bit per Sample)
• Native DSD : DSD64 (1bit 2.8MHz) / DSD128 (1bit 5.6MHz) / DSD256 (1bit 11.2MHz)

CD Ripping

By connecting a computer-type USB CD reader (optional), ROSE RS201E can perform direct reading or CD-Ripping of Audio Compact Discs.

You can store your CDs on mass storage connected to the ROSE, such as an SSD up to 4TB, a USB stick, a MicroSD.

The formats for CD-Ripping are WAV, FLAC.

Video

You can play video files from local storage media (USB / MicroSD / SSD), or from shared folders on the network, from NAS and from DLNA and UPnP devices.

If you connect Rose to your TV with an HDMI cable, you can watch movies on a big screen, with a maximum native resolution of 4K UHD.

* Playable video formats:

• H.264/AVC Base/Main/High/High10 profile@level5.1; up to 4Kx2K@30fps
• MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, ​​VP8, MVC
• H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier; up to 4Kx2K@60fps

ROSE Tube

We provide you with a preferred channel to watch YouTube videos without ads and we also provide you with convenient search functions, channel subscriptions, and playlist service.

Using a smartphone or tablet, you can remotely control RS201E via DIAL service.

By connecting ROSE to a TV with an HDMI cable, you can also watch movies on the big screen, in standard resolution, HD and even UltraHD 4K.

ROSES Podcasts

This is the ability to listen to the podcast analics provided by iTunes. The ROSE server offers channels based on their popularity and is organized by theme.

Create your free subscriptions to your favorite Podcast channels, generate playlists and organize your favorite channels and content.

Internet radio

You can listen to internet radio channels from hundreds of handpicked channels, featuring radio stations from major countries around the world.

There are currently over 800 high-quality stations already available, which you can also organize via the favorites list function.

TIDAL

Integrated Tidal app for a high performance streaming service, including Tidal HiFi and Master MQA . Easily integrate all existing features, such as platform access, playlists and music playback.

QOBUZ

Integrated Qobuz app for a high performance streaming service, including Qobuz Studio at 24bit/192Khz . Easily integrate all existing features, such as platform access, playlists and music playback, biographies, etc.

Spotify Connect

Spotify Connect support.

RS201E supports 4K UHD via HDMI

Concerts, Films, Videos in maximum resolution, in very high definition up to 4K UHD. Through the HDMI port you can connect ROSE RS201E to your TV to get a 360° multimedia entertainment system.

High Fidelity audio

Music Playback in Studio Master Quality

PCM 32bit/384khz, DSD 256 Native 11.2MHz



Support for the most modern High Resolution audio formats, such as PCM32bit-384kHz and Native DSD up to 11.2MHz (DSD256), gives you a full and dynamic sound through the High Performance Reference Saber 9018 DAC.

Our High Speed ​​Drive Variation Technology combined with our pure path ultra HD power amp, provides outstanding tone with ultra-low distortion and smooth sound quality that extends across the entire frequency range.

Versatility of Connections

You can use Airplay, DLNA, DIAL Services via network, as well as audio/video files stored on locally connected mass devices, via USB, SSD, Smartphone, Tablet and NAS present in your LAN network.

RS201E is equipped with the latest interfaces such as Line-In line input, Pre-Out output (with variable volume level), Optical Inputs/Outputs, Amplified Speaker Output (can be deactivated), Headphone Output, HDMI Output.

The USB Port can also be used to connect an external DAC converter .

RS201E can also be connected to integrated amplifiers and power amplifiers , both solid state, tube or hybrid.

For viewing multimedia files, in addition to using the integrated touch screen, you can connect an external TV via the HDMI connection and enjoy the maximum resolution available, which is managed natively up to 4K UltraHD.

RoseWare Connect

ROSE RS201E can also be controlled via the free Rose Connect App.

Through the App, you can view your entire multimedia library (Audio and Video) in special sections divided into tabs.

RoseTube, Rose Podcast, Internet Radio, Tidal, Remote Control, and System Settings sections are available.

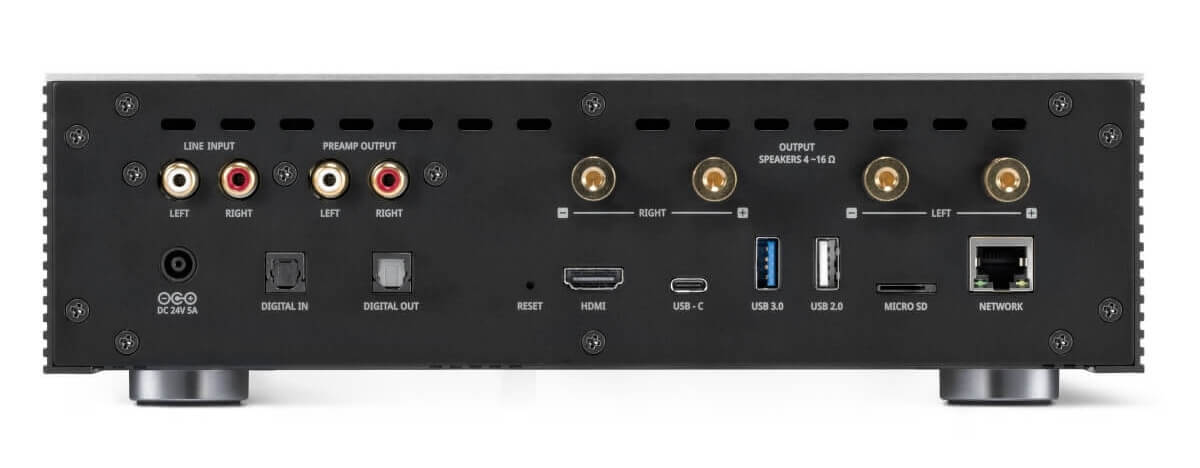

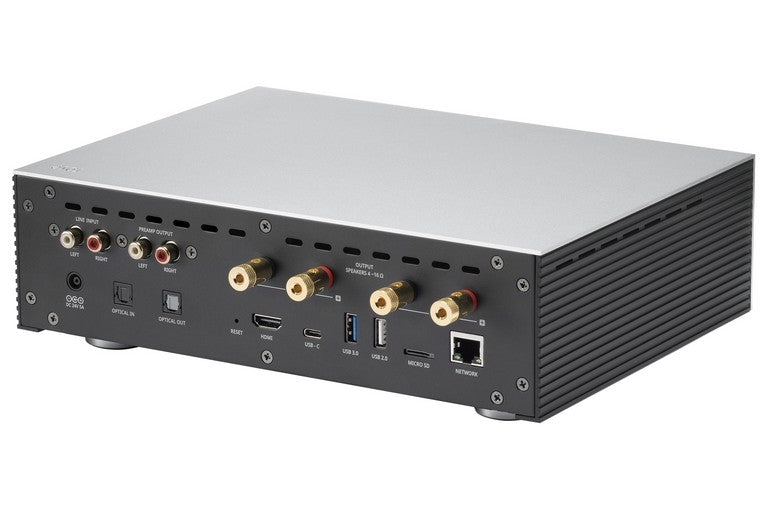

The Back Panel

ROSE RS201E has numerous inputs and outputs that allow it to be inserted into any pre-existing audio/video system, as well as being able to create a completely independent system, in which only a pair of speakers need to be connected.

Storage such as USB, Micro SD, SSD and Network Resources such as NAS. Line input and connection of CD, DVD, Blu ray player, TV through the optical input.

ROSE RS201E Technical Specifications

os	ROSE OS 3.0 - Android 7.1 (Nougat)
Design
Dimensions	278x202x76mm
Weight	2.3 Kg
Finish	High quality anodized aluminum for the front and top panel (one block single frame)
Screen	Wide 8.8" multi-touch color screen
Power
Maximum output power	100 Watts (at 8 O), 80 Watts (RMS)
Speaker impedance	4~16 ohms
Wired & Wireless Network
Network Interfaces	WiFi (802.11 b/g/n/a/ac) 2.4Ghz/5Ghz Dual Band
Bluetooth	Bluetooth 4.0 (AD2DP SINK, AVRCP)
Streaming	Airplay / DLNA / DIAL Service
Inputs / Outputs
Audio inputs	Connections for sources such as CD/ DVD /Blu-ray players S / PDIF connections for TVs, Projectors, CD / DVD / Bluray players
Audio outputs	Headphone Output : Connection for 3.5mm headphone jack (1Vrms) Pre-amp output : Connection for a final power amplifier or an integrated (3Vrms) Loudspeaker output : L+/L-, R+/R- loudspeaker connection (can be deactivated) Optical Output : S / PDIF (e.g. to connect a Soundbar)
Video Outputs	HDMI connection for TVs and projectors
Linkable Resources	USB 2.0 x 1, USB3.0 x 1 (File system - NTFS/FAT32, supported capacity - 512GB USB flash drive, 4TB external HDD) MicroSD x 1 (File system - NTFS/FAT32, supported capacity - 512GB) SATA3.0 SSD x 1 (File system - NTFS, supported protocol - FTP/WebDav, 4TB) USB C type x 1 (service port)
Supported CODECs
Audio codecs	WAV, FLAC, WMA, MP3, APE, DFF, DSF, ISO SACD, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A PCM : 8KHz~384KHz(8/16/24/32bit per Sample) Native DSD : DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)
Video codecs	ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, ​​VP8, MVC H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
Diet
Entrance	AC/DC 100-240V, 50-60Hz power supply. Standby power consumption <0.5W
Exit	DC 24V, 5.0A
Updates	Firmware updates automatic via internet, or manual via USB (recommended)
Online Streaming Services
Audio / Video	YouTube (RoseTube), Podcasts, Internet Radio, Tidal HiFi and MQA Master, Qobuz, Spotify Connect, Roon Ready Certified, VLC
Control Systems
Remote control	Bluetooth remote control included
Native app	Rose Connect HiFi for Android or iOS Smartphones and Tablets
Accessories	AC/DC Power Adapter x 1, Quick Start Guide x 1, Bluetooth Remote Control x 1, Batteries (AAA) x 2, SSD Fixing Screws x4, Screwdriver x 1
