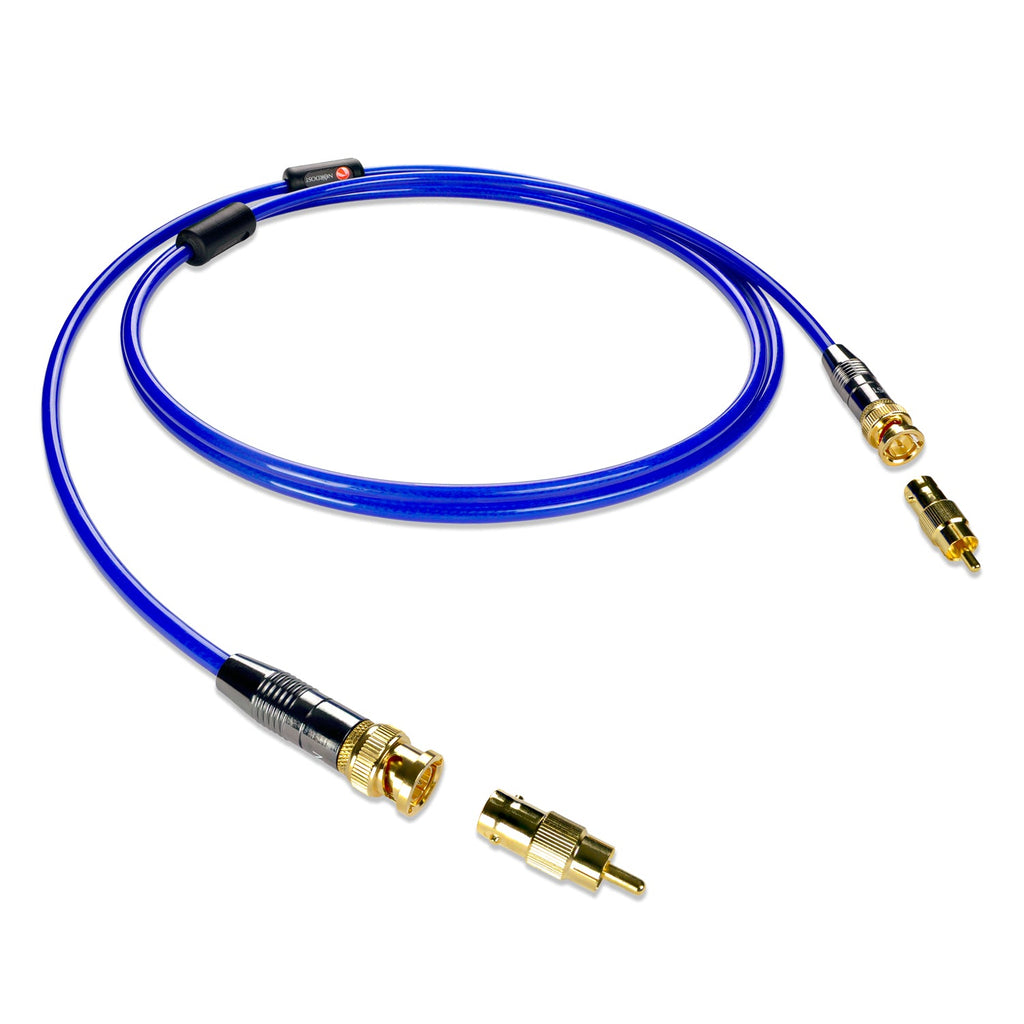

Nordost Blue Heaven 3: 75 Ohm coaxial digital cable
Blue Heaven 3 Digital is a coaxial digital cable from the Leif 3 series, with a true impedance of 75 Ohm. It is used to link digital sources such as streamers, servers and transports to a converter. The coaxial build is paired with patented Micro Mono-Filament technology, which supports high-speed transmission and keeps the digital signal stable.
There is a single solid-core conductor, in OFC copper plated in silver and with FEP insulation. Termination is with BNC connectors, which ensure accurate signal coupling; for equipment with RCA inputs, quality gold-plated adapters are included.
Technical features
- Impedance: 75 Ohm
- Conductor: 1 of 24 AWG, solid core
- Material: 99.9999% pure OFC copper, plated in silver
- Insulation: FEP (fluorinated ethylene propylene)
- Construction: coaxial, Micro Mono-Filament, with mechanically tuned spacing
- Capacitance: 16 pF/ft
- Propagation velocity: 85%; 95% shielding
- Termination: gold-plated 75 Ohm BNC; RCA adapters, also gold-plated, are supplied
Available versions
The cable is available in lengths of 1 m, 1.5 m and 2 m, with BNC connectors and RCA adapters supplied.
