Nordost Frey 2: analog interconnect cable
Frey 2 is an analog interconnect from the Norse 2 series, suited to the most critical signal links in a system. It adopts Dual Mono-Filament construction, a Nordost proprietary design that made its debut on the Valhalla reference cables: a suspension system for the conductor that surrounds it with a dielectric made almost entirely of air.
There are five 24 AWG conductors, solid core in OFC copper plated in silver, with FEP insulation. The higher conductor count improves ground integrity and lowers the noise floor, to the benefit of detail and dynamic range. Design and materials are shared by the whole Norse 2 series.
Technical features
- Conductors: 5 of 24 AWG, solid core
- Material: 99.99999% pure OFC copper, plated in silver
- Insulation: FEP (fluorinated ethylene propylene)
- Construction: Dual Mono-Filament, with mechanically tuned lay and length
- Capacitance: 28.0 pF/ft
- Propagation velocity: 85%
- Inductance: 0.055 μH/ft
- 97% shielding; gold-plated Nordost MoonGlo connectors, RCA or XLR
Available versions

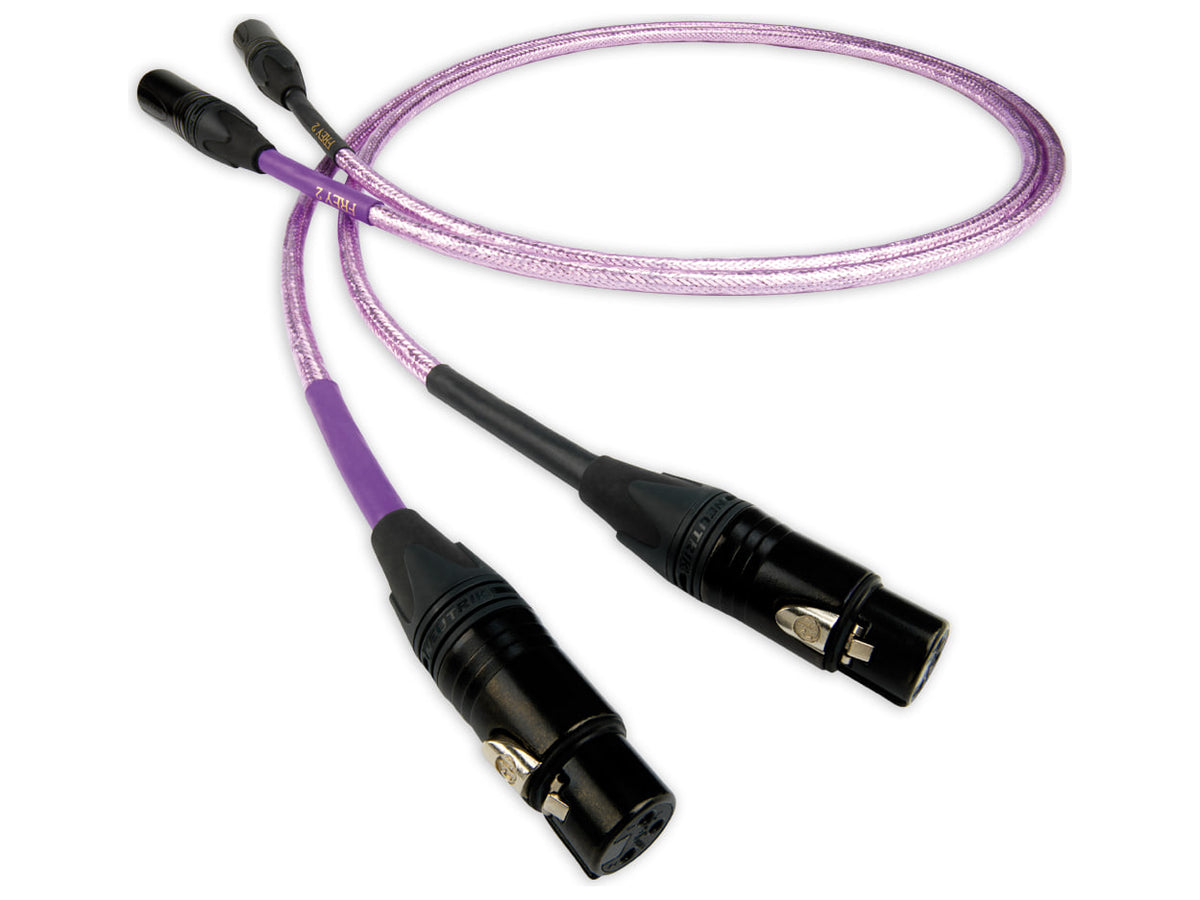

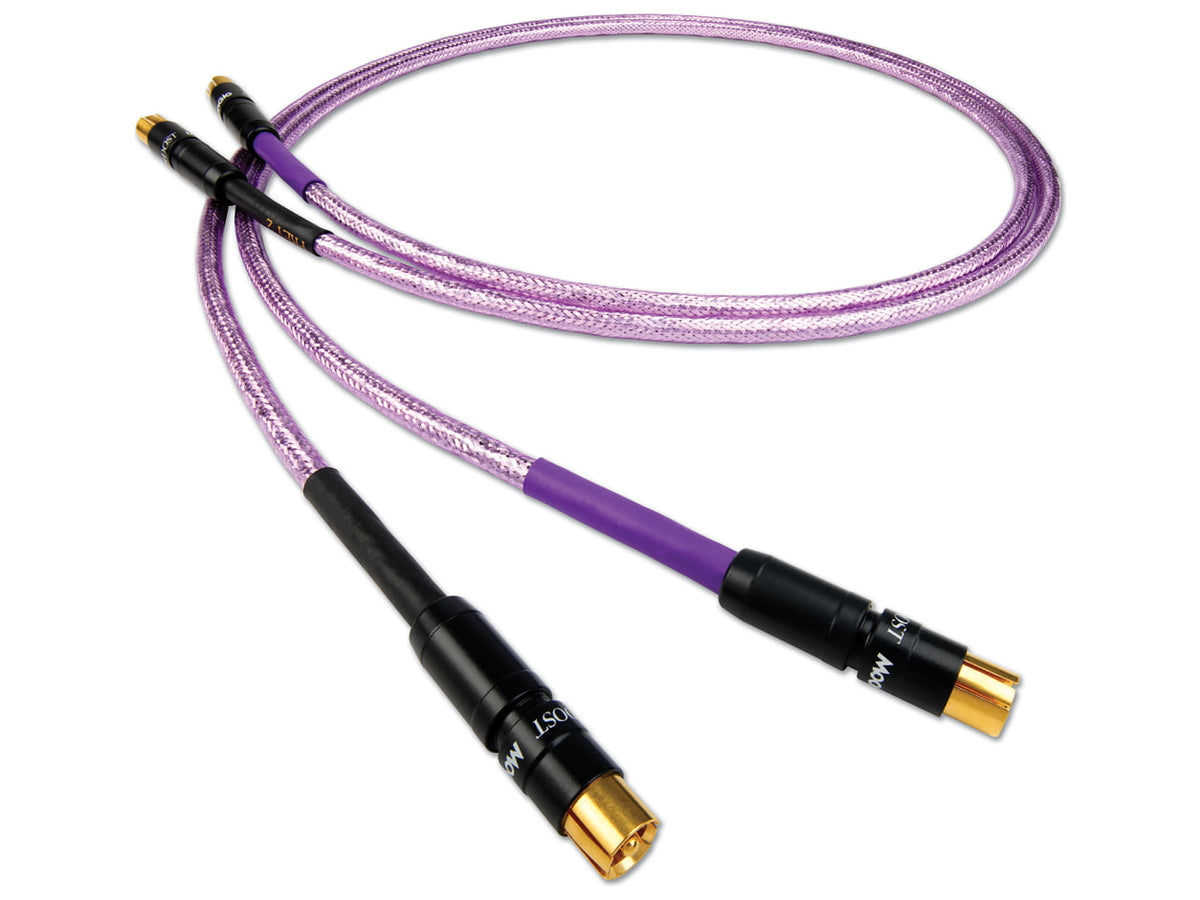

The cable is sold as a pair, in lengths of 0.6 m, 1 m, 1.5 m and 2 m, terminated with RCA or XLR connectors.
