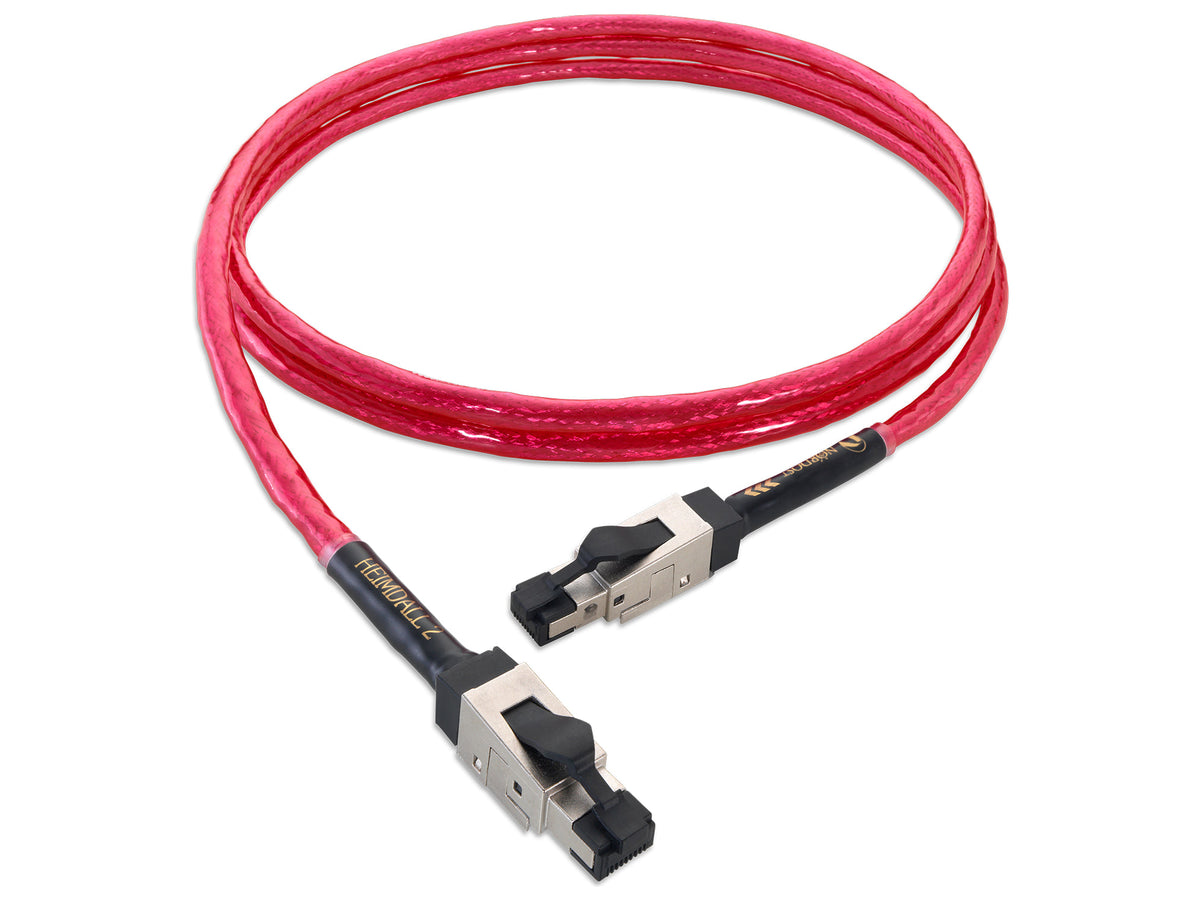

Nordost Heimdall 2: shielded Ethernet cable for network audio
Heimdall 2 Ethernet is a network cable for bringing a NAS and music streaming into a hi-fi system. It is made up of eight 23 AWG conductors with polymer insulation, laid out as four twisted pairs shielded one by one, then wrapped in a braided shield of silver-plated copper and enclosed in a high-density polymer jacket.
This fully shielded build brings crosstalk and electromagnetic interference close to zero. The conductors are cut to mechanically tuned lengths, to limit microphony and high-frequency resonance and to make the signals arrive at the same instant. The cable handles frequencies of 1000 MHz and speeds of up to 40 Gbit per second.
Technical features
- Conductors: 8 of 23 AWG
- Material: copper, solid core
- Insulation: high-density polymer
- Construction: S/FTP with shielded twisted pairs and mechanically tuned length
- Shielding: full, double braid
- Termination: shielded, ruggedised 8P8C/RJ45 connectors
Available version
The cable is available in a length of 1 m, terminated with RJ45 connectors at both ends.
