Moving coil cartridge with an elliptical stylus.
MC X10: the design

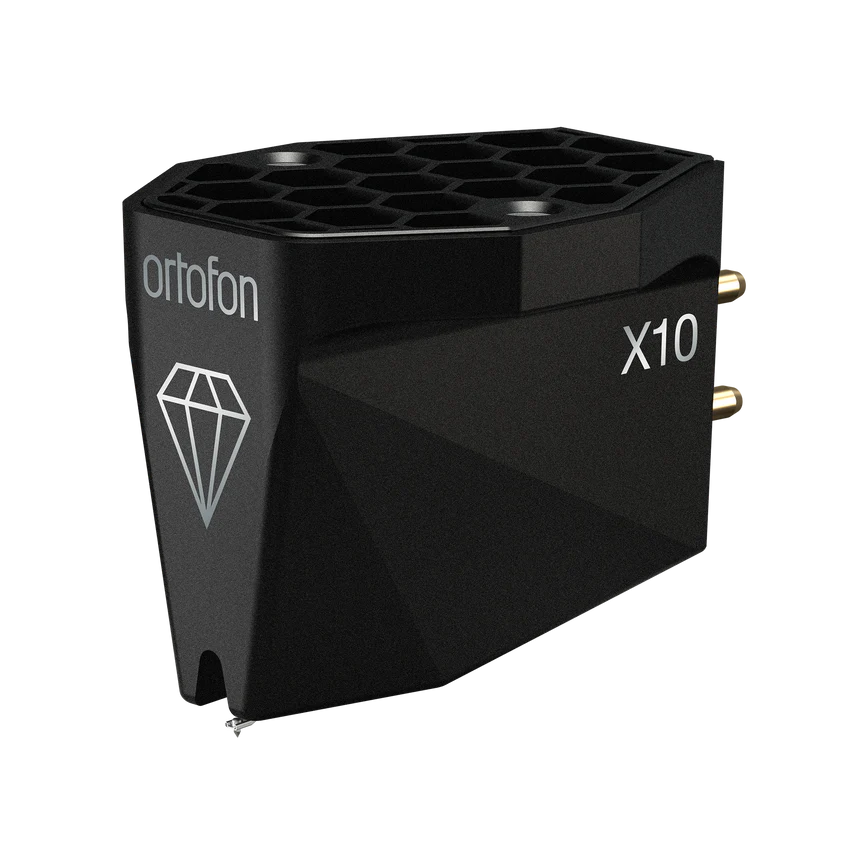

The MC X series is the way into Ortofon moving coils: a stainless steel body with honeycomb structure and silver coils throughout, with the models set apart by stylus and cantilever.
It carries an elliptical stylus on a aluminium cantilever. Output is 0.4 mV, it tracks at 2 g and wants a load above 50 ohms.
Specifications
- Type: moving coil (MC)
- Stylus: elliptical
- Cantilever: aluminium
- Coil: silver
- Output voltage: 0.4 mV
- Recommended tracking force: 2 g
- Recommended load: above 50 ohms

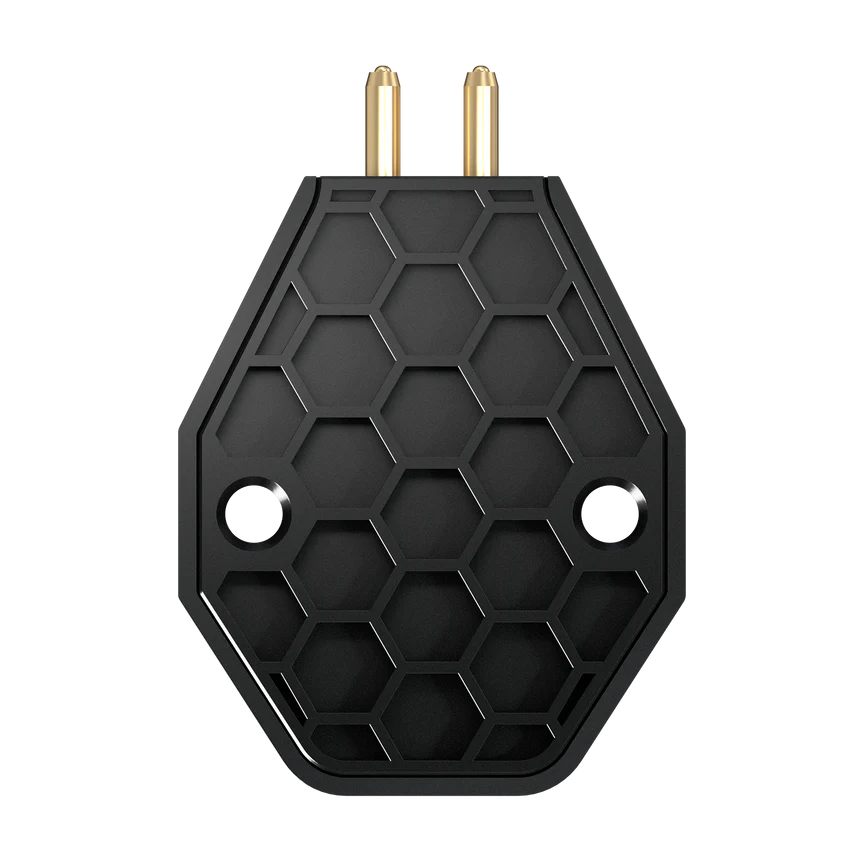

- Body: stainless steel with honeycomb structure, black
- Weight: 8.6 g
