A three-way bass-reflex floorstander sold as a pair: two 178 mm X-PAL woofers beneath a Truextent beryllium midrange and tweeter, in a cabinet just 24.1 cm wide.
Persona 3F: how it is built
Persona 3F spreads four drive units across three ways. At the top sits the 25 mm beryllium dome, directly below it a 178 mm midrange in the same material, then two 178 mm woofers with high-excursion X-PAL cones. The filters are third-order, crossing at 450 Hz and 2.4 kHz, so the midrange alone covers more than two octaves in the middle of the band with no break partway through.
The midrange is driven by a neodymium motor of the Inverse Differential Drive type and has a 38 mm high-temperature voice coil; as on the tweeter, a perforated PPA lens in front of the diaphragm takes care of phase alignment. The woofers use overmoulded ART surrounds and 38 mm tandem voice coils. Midrange and woofers are fixed to the cabinet through the Shock-Mount system, which isolates them from the structure, while the tweeter is damped and cooled with ferrofluid.
On-axis response lies within ±2 dB between 48 Hz and 45 kHz, and bass extension reaches 24 Hz. With 92 dB in-room sensitivity (89 dB anechoic) and a load that suits 8 ohm amplifiers, the 3F works with 15 to 400 W and accepts a maximum of 200 W. Each speaker stands 112.6 cm tall, 24.1 cm wide and 42.7 cm deep, and weighs 34 kg. The series is designed and built in Canada.
Specifications
- Type: three-way floorstander with four drive units, bass reflex
- Tweeter: 25 mm Truextent beryllium dome, ferrofluid, PPA lens
- Midrange: 178 mm Truextent beryllium, Inverse Differential Drive neodymium motor, PPA lens
- Woofers: two 178 mm X-PAL, high excursion, ART surrounds, 38 mm tandem voice coils
- Crossover: third-order, 450 Hz and 2.4 kHz
- On-axis response: 48 Hz - 45 kHz (±2 dB)
- Response 30° off axis: 48 Hz - 20 kHz (±2 dB)
- Bass extension: 24 Hz
- Sensitivity: 92 dB in room, 89 dB anechoic
- Recommended amplifier: 15 to 400 W
- Maximum power input: 200 W
- Impedance: suits 8 ohm amplifiers
- Dimensions (H × W × D): 112.6 × 24.1 × 42.7 cm
- Weight: 34 kg each
- Supplied: sold as a pair

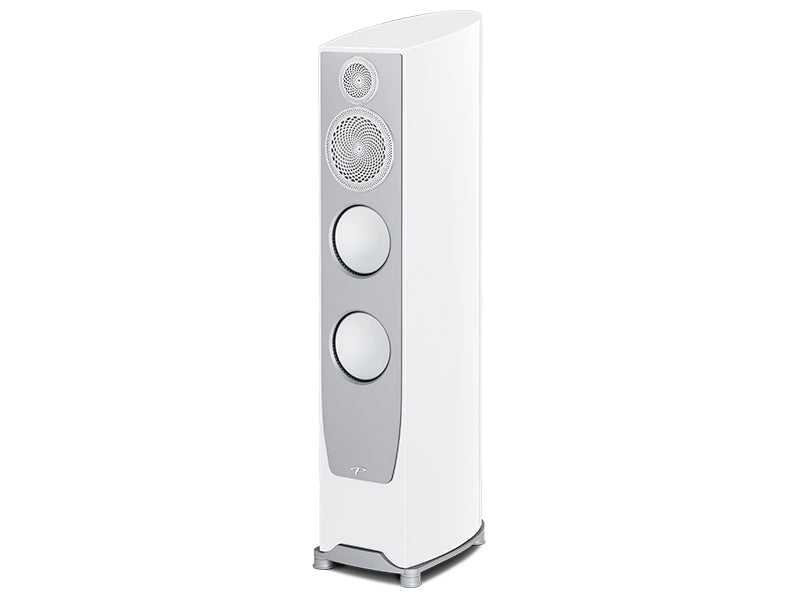

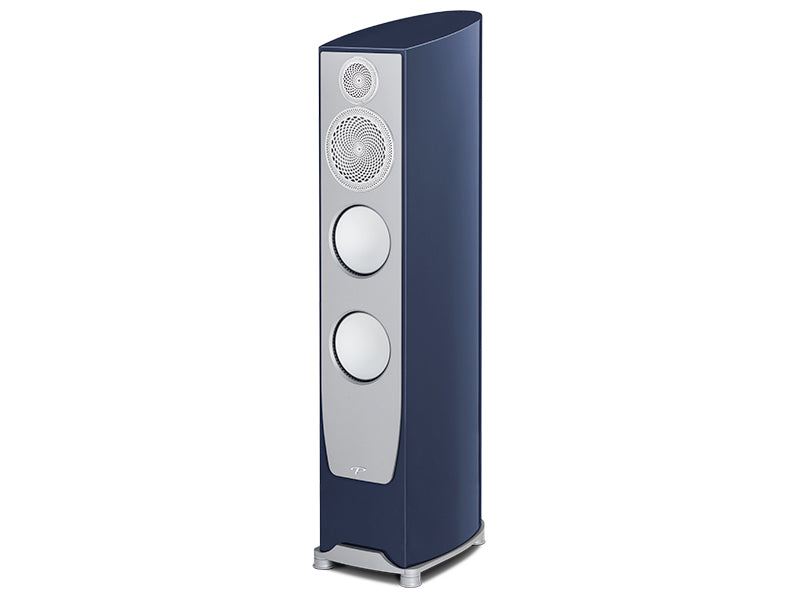

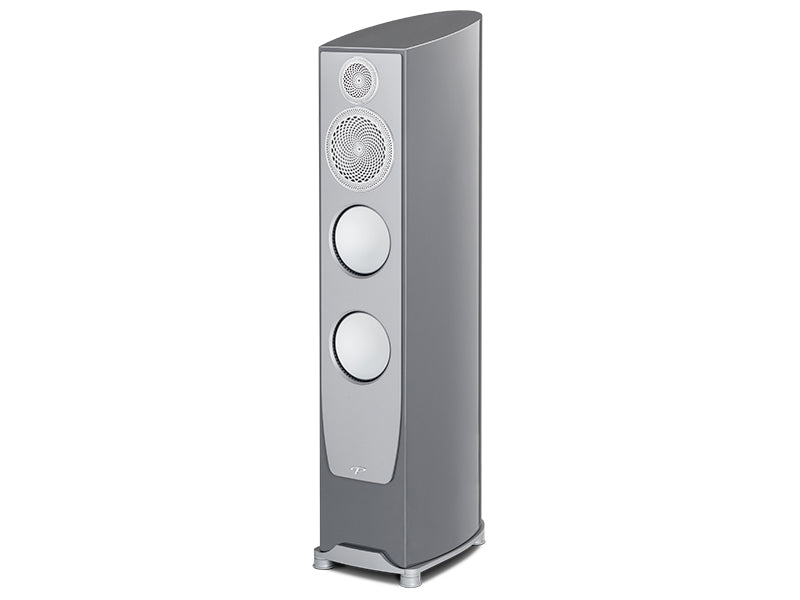

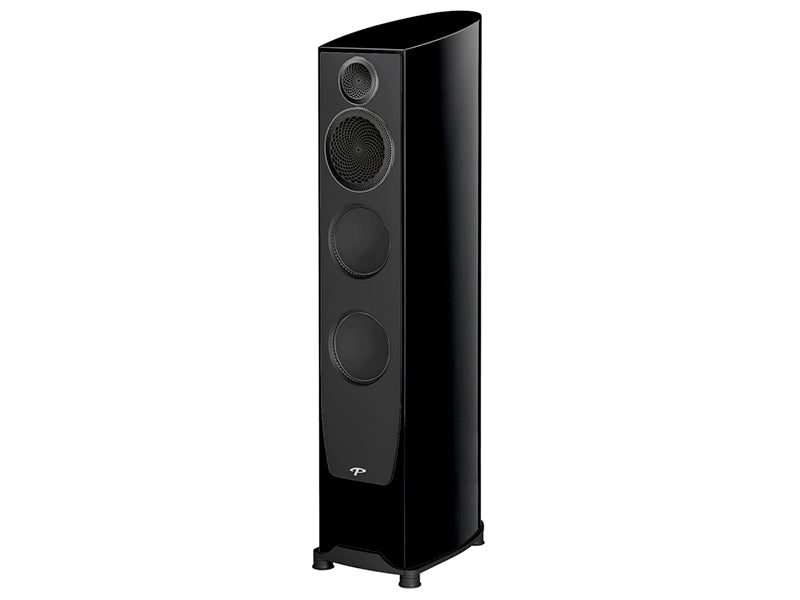

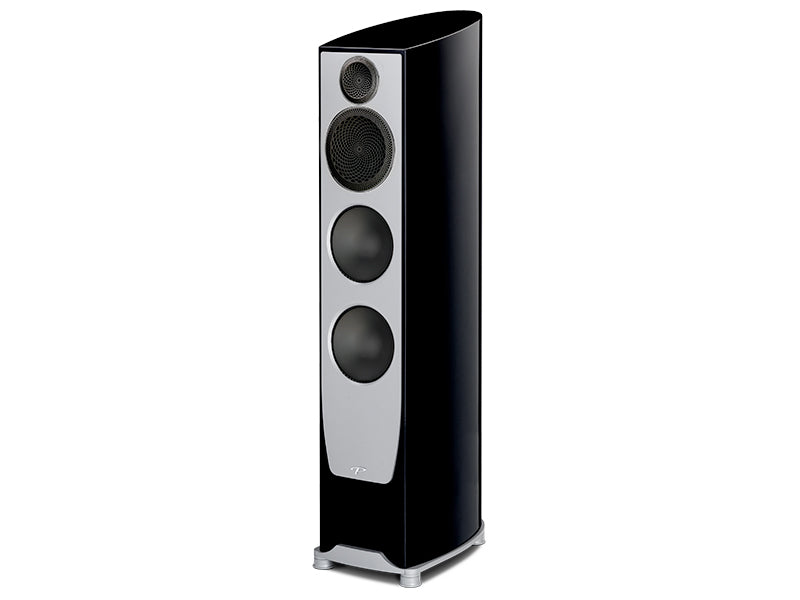

- Finishes: Vanta Black gloss, Aria Blue metallic, Sonic Silver metallic, Harmony White gloss, Carbon Black gloss
