This version of the Signature SUB 2 is set apart by its black lacquer cabinet finish: beneath the lacquer it remains the hexagonal sealed active subwoofer with six 254 mm drivers and an Ultra-Class-D amplifier, intended for reference systems.
Signature SUB 2 - Finitura Speciale: lacquered cabinet and VCDA engineering

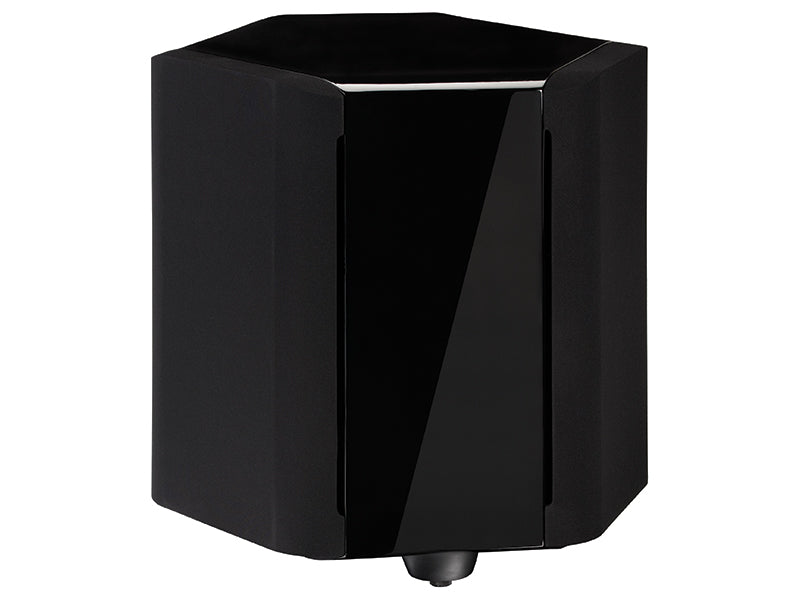

The special finish concerns appearance alone: the hexagonal cabinet is lacquered in black, a glossy skin that brings this large subwoofer closer to a piece of furniture, which is what Paradigm aimed for when designing it. Engineering and performance are those of the Signature SUB 2 in its other versions. With grilles and feet it measures 62.2 × 60.3 × 56.8 cm and weighs 106 kg; the grilles are fixed, on account of the power and sound pressure involved.
Inside, six 254 mm drivers work in pairs on three sides following the VCDA scheme: the opposing mechanical thrusts balance out and the cabinet does not vibrate, to the point that the maker describes a subwoofer that moves air and not itself. The mineral-loaded polypropylene cones with RCR ribs, the overmoulded thermoplastic foam edges and the ten-layer 76 mm voice coils are conceived for extreme excursions. On axis the subwoofer covers 9 to 260 Hz within ±3 dB and reaches 7 Hz (DIN).
The Ultra-Class-D amplifier does without a transformer and relies on power factor correction to make the most of the electrical supply: at 240 V it reaches 4,500 W RMS continuous and 9,000 W dynamic peak, and it accepts voltages between 108 and 265 V. Optically isolated inputs cut noise and short-circuit protection acts within 10 microseconds. The picture is completed by RCA and balanced XLR inputs, a 35 to 150 Hz low-pass filter that can be bypassed, variable phase and the PBK kit for room correction.
Specifications
- Finish: black lacquered cabinet (special version)
- Type: hexagonal sealed active subwoofer, VCDA scheme
- Drivers: 6 × 254 mm with RCR cones in mineral-loaded polypropylene
- Voice coils: 76 mm, ten layers, long excursion
- Chassis: die-cast aluminium with AVS cooling
- Amplifier: transformerless Ultra-Class-D, power factor correction
- Power on 240 V: 4,500 W RMS continuous, 9,000 W dynamic peak
- Mains voltage accepted: 108 to 265 V
- On-axis response: 9-260 Hz ±3 dB
- Low-end extension: 7 Hz (DIN)
- Low-pass filter: 35-150 Hz adjustable, can be bypassed
- Phase: variable, 0° to 180°
- Inputs: RCA (left and right or LFE) and balanced XLR
- Room correction: PBK kit supplied, compatible with ARC Genesis
- Grilles: fixed, cannot be taken off
- Dimensions (H × W × D): 62.2 × 60.3 × 56.8 cm, grilles and feet included
- Weight: 106 kg
