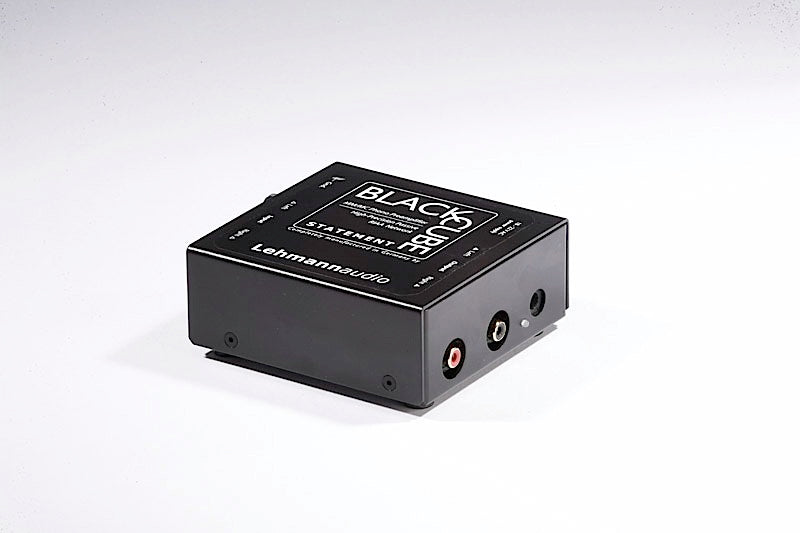

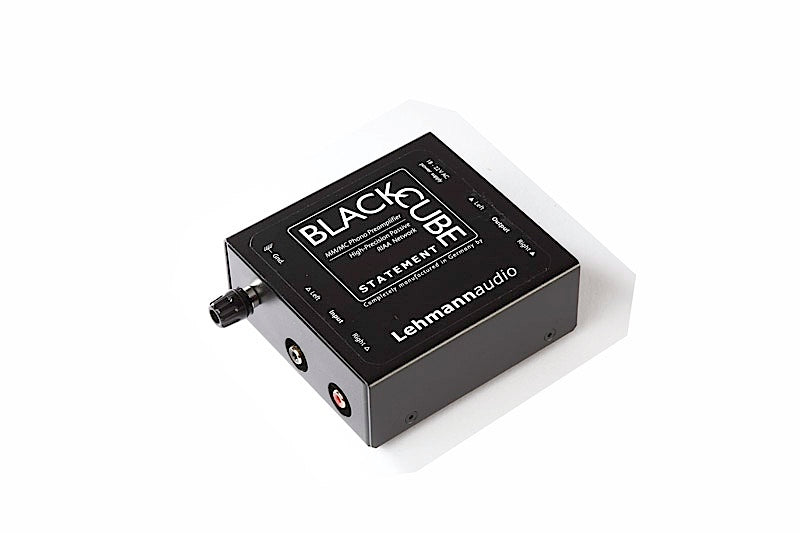

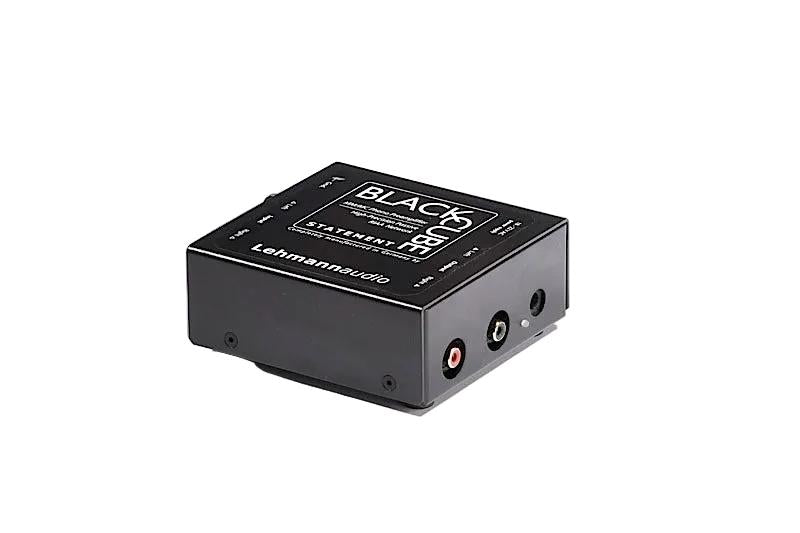

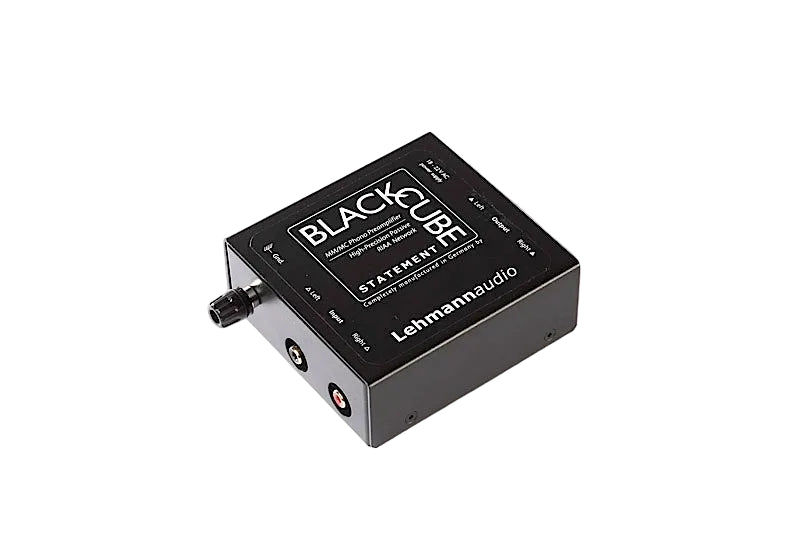

MM/MC phono stage.
--

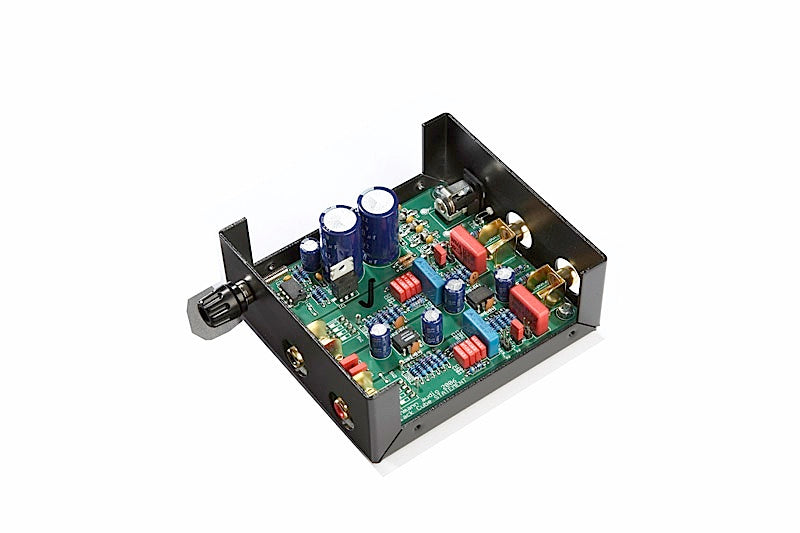

MM/MC phono stage. Infinite possibilities for matching impedance of the cartridge. Gold-plated gain and load selectors. RIAA stage made with high precision MKS paper capacitors. Low noise metal film resistors. Gold-plated RCA input and output. External transformer.;
Gain at 1kHz: 41dB - 61dB in four different settings
Signal to noise: 78dB/57dB MM/MC
Input capacitance: 100pF
Input impedances: 47 kOhms, 1000 Ohms, 100 Ohms selectable via DIP switches underneath the unit.
One slot for custom impedance
Output impedance: <100 ohms
Channel separation: >80dB
Filter: RIAA, passive equalization between to linear gain
internships
Channel balance: typ. 0.5dB
Power consumption: <2W (external AC power supply)
Dimensions: Audio section
(W x D x H) 103 x 108 x 45mm³
Weight: Audio section app. 0.2kg
Power supply app. 0.3kg
