MM/MC phono stage with VOLTAiR technology, RIAA equalisation to a Douglas Self design and a subsonic filter.
Phonos: the design
On the Phonos the MM stage offers a choice of 150, 220 or 330 pF capacitance; the MC stage six impedance values, from 100 ohms to 10 kohms. Output gain has two positions, −10 dB and +4 dB. Input and output are on gold-plated RCA connectors.
Like the other SPL components it uses VOLTAiR technology: the audio circuits run on ±60 V rails, with discrete op-amps of SPL's own design and a shielded toroidal transformer.
Specifications
- Cartridges: MM and MC
- MM: 150/220/330 pF capacitance
- MC: 6 impedance values, 100 ohms to 10 kohms
- Output gain: −10 dB or +4 dB
- Filter: subsonic

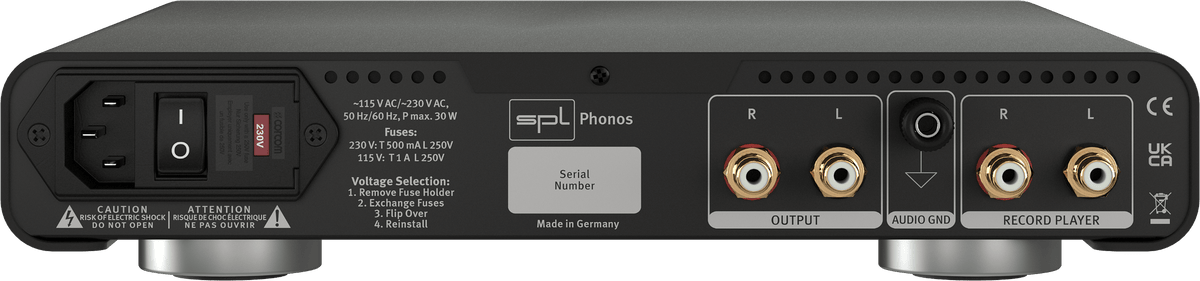

- Connections: gold-plated RCA
- Dimensions (W × H × D): 278 × 100 × 330 mm
- Weight: 3.2 kg

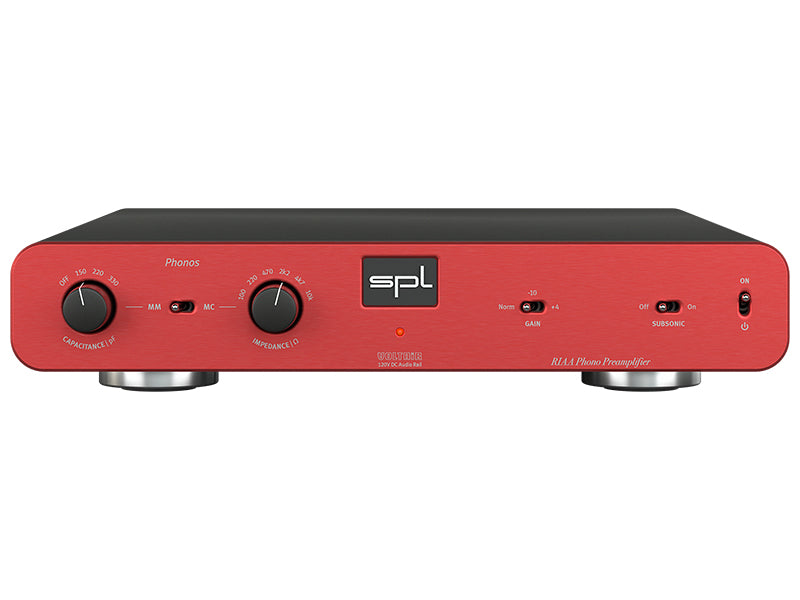

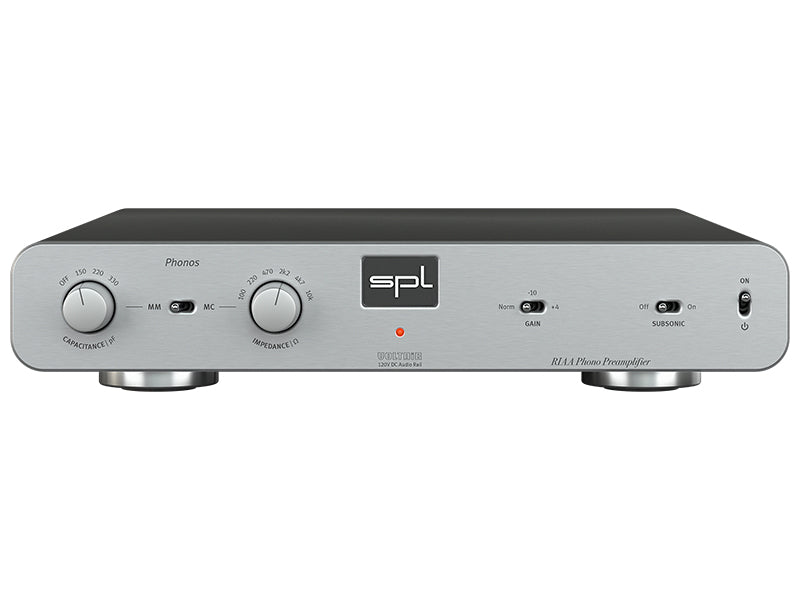

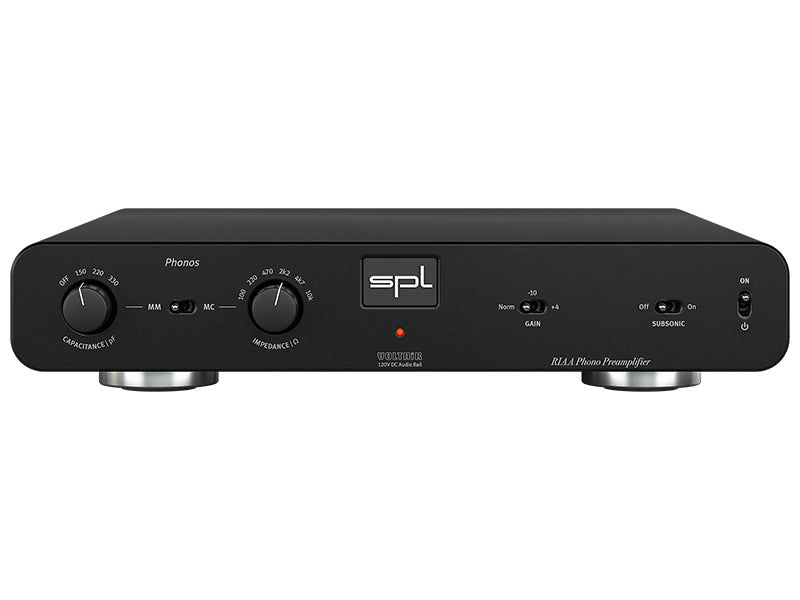

- Finishes: black, silver, red
