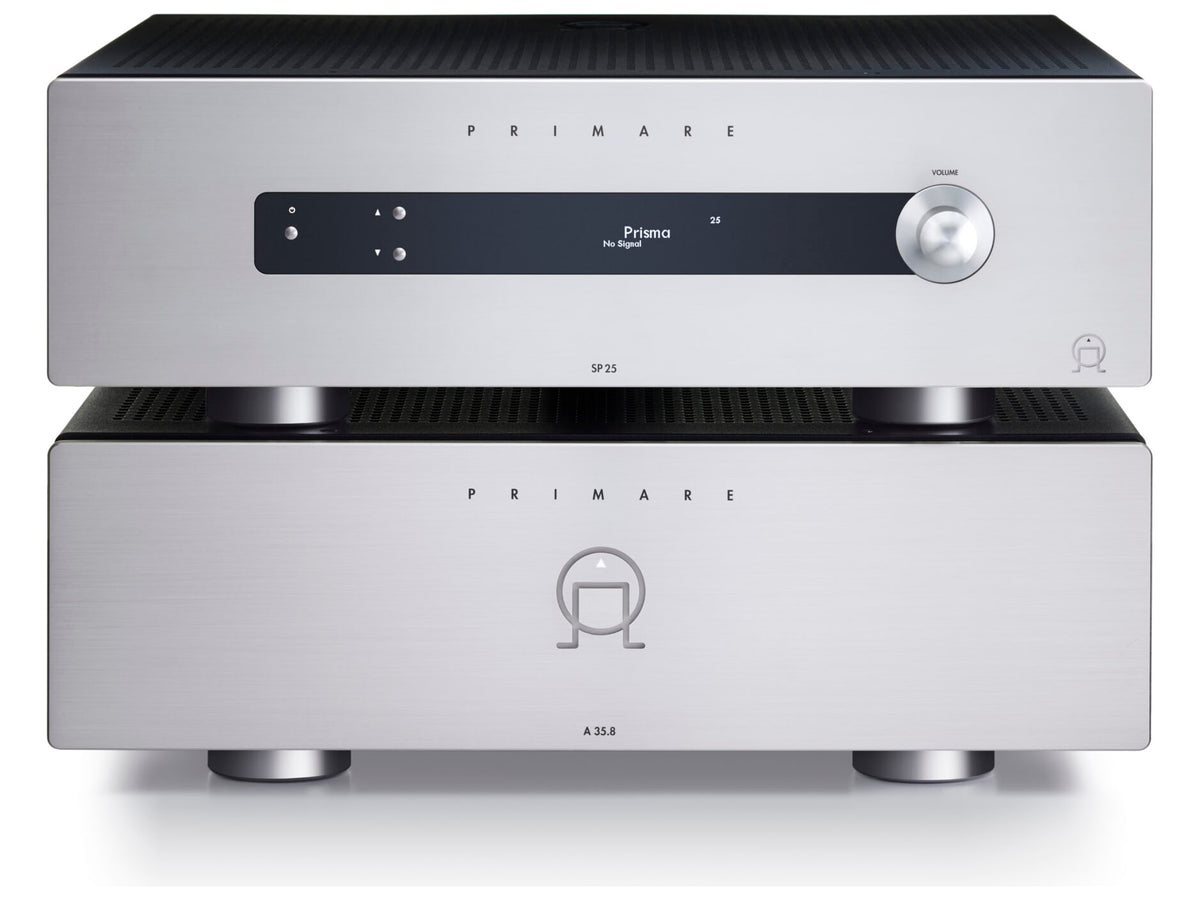

Primare SP25 Prisma: 11-channel home cinema preamplifier and processor
The SP25 Prisma multi-channel processor is built for home cinema as well as music listening. It decodes up to 11 channels of immersive audio in Dolby Atmos and DTS X, and includes Dirac Live room correction together with the Prisma network player. It is a preamplifier: every output is a pre out, the subwoofer one included, while in the same range the integrated amplifier role belongs to SPA25 Prisma.

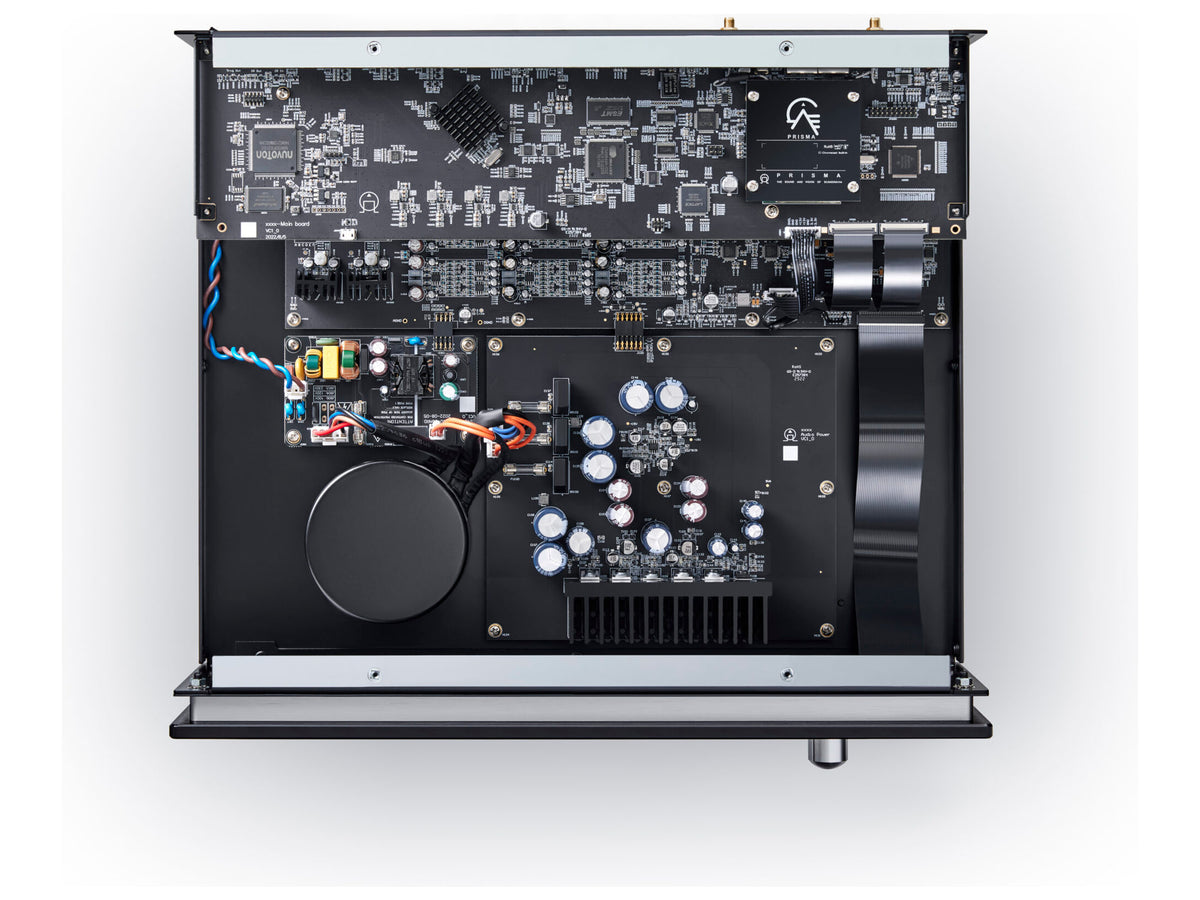

Conversion is handled by two ESS 9026PRO chips. Seventeen user-defined input presets let digital and analogue sources be combined freely, while five speaker setup presets store different loudspeaker and DSP arrangements. The left and right front analogue outputs are doubled, so the main speakers can be bi-amped. Dirac Live analyses the room and digitally reduces its influence, leaving scope for manual tuning: the Limited Bandwidth licence is included, the Full Bandwidth one is ordered from the Dirac website.
Key features
- Dolby Atmos and DTS X processing over 11 channels
- Dirac Live room correction
- D/A conversion with two ESS 9026PRO
- HDMI 2.0b: 4 inputs, 2 outputs (one eARC, one auxiliary), HDCP 2.2
- Prisma network player with Spotify Connect, AirPlay 2, Roon Ready, Bluetooth and Chromecast built-in
- Control: RS232, 12 V trigger output, 3.5 mm IR input and output
- Dimensions 430 x 405 x 145 mm (width x depth x height), weight 10 kg
Connections

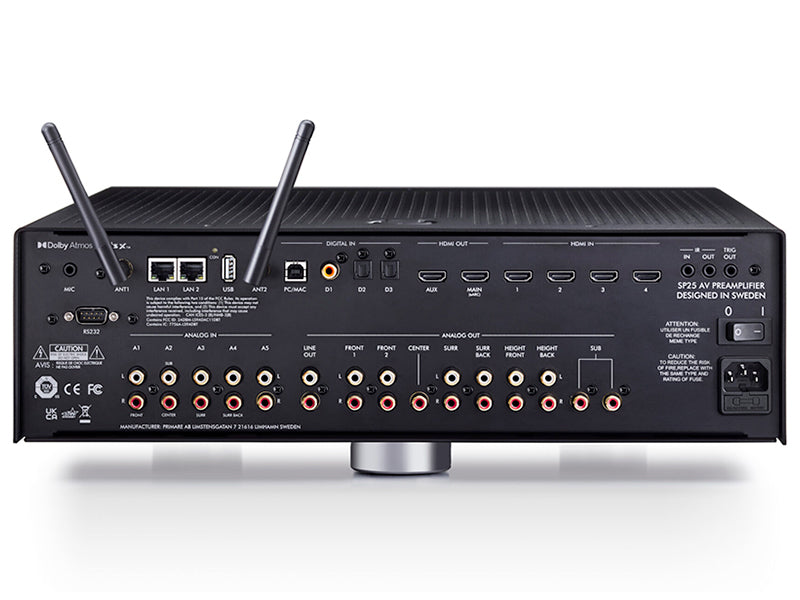

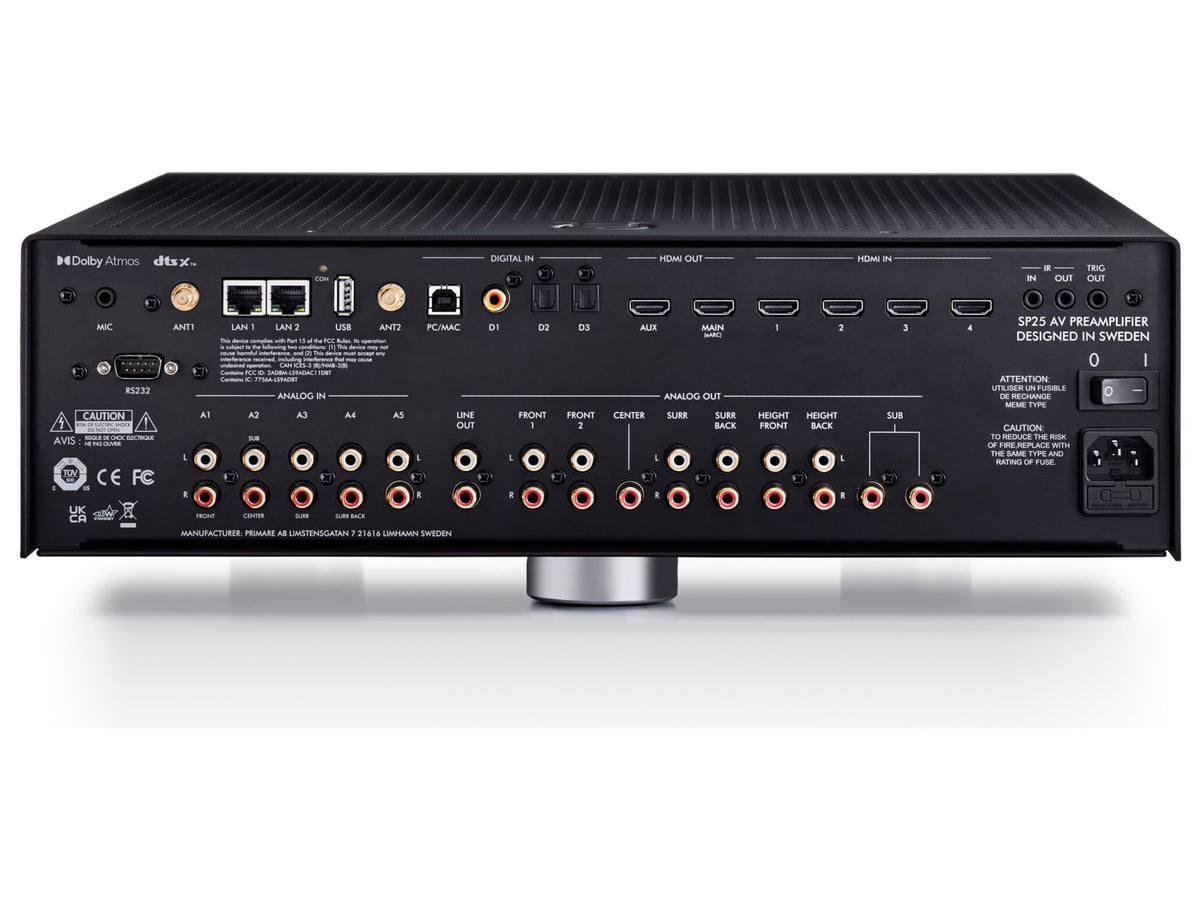

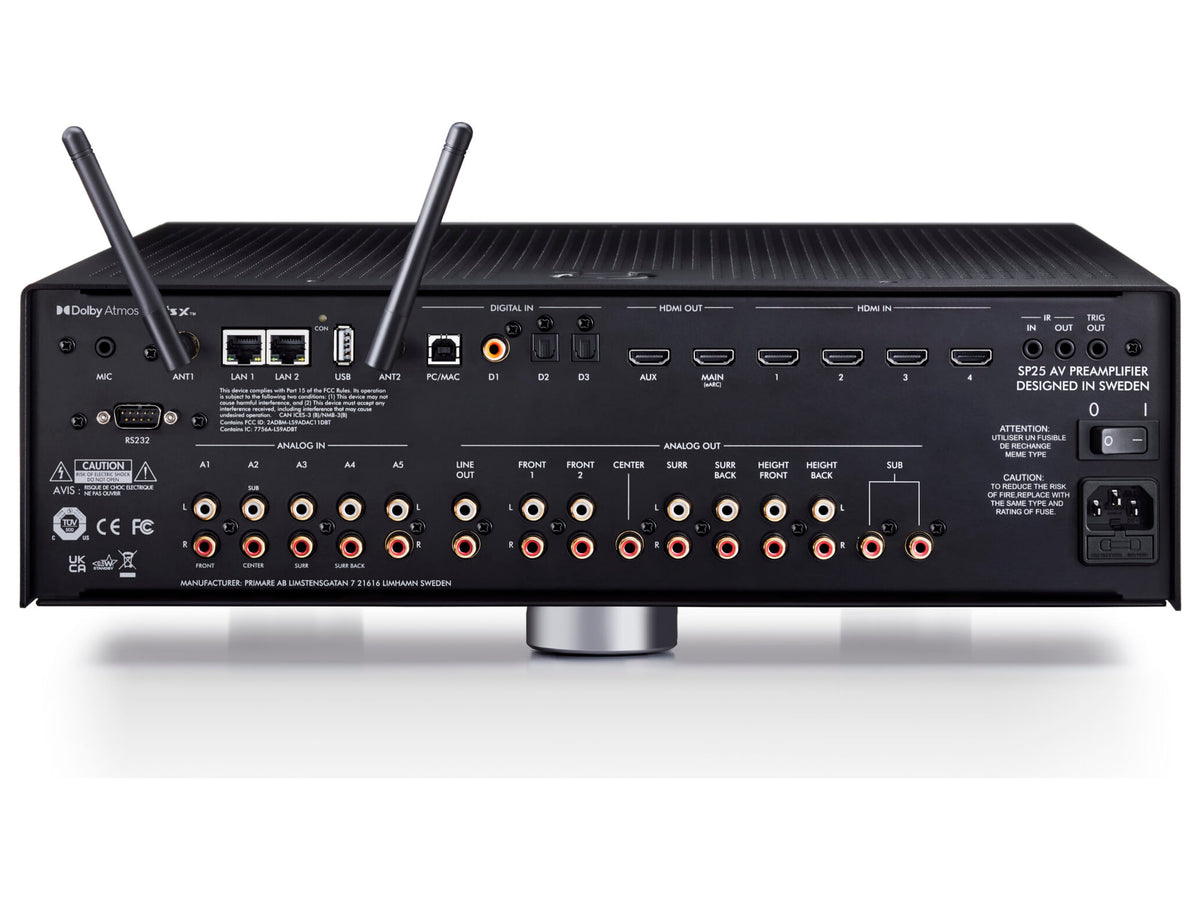

On the video side there are four HDMI 2.0b inputs and two outputs, one with eARC and one auxiliary; the matrix handles 4K signals with HDR, HDR 10+ and Dolby Vision. Audio sources connect to five analogue RCA inputs, plus a multi-channel 7.1 input, to one coaxial digital input, to two Toslink optical ones and to a USB-B port; a USB-A socket is fitted as well. Networking runs through two Ethernet ports or over WiFi.
Streaming and control

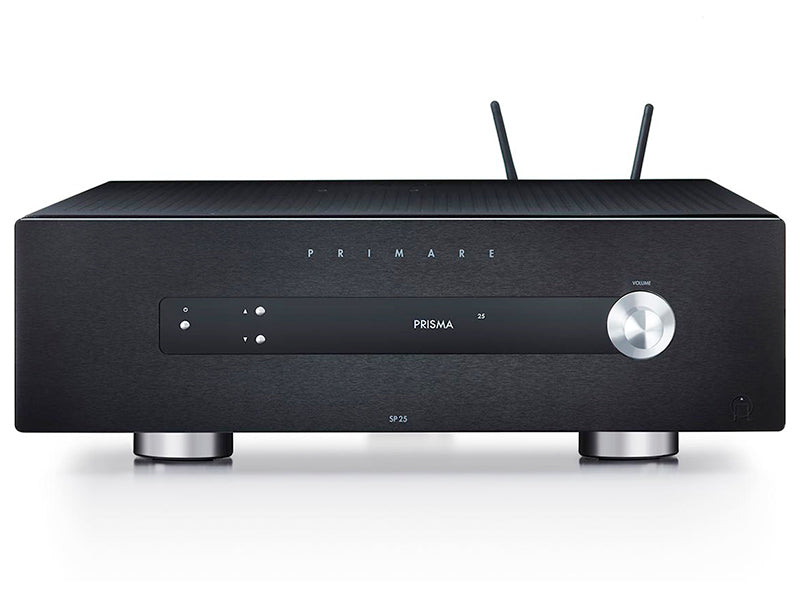

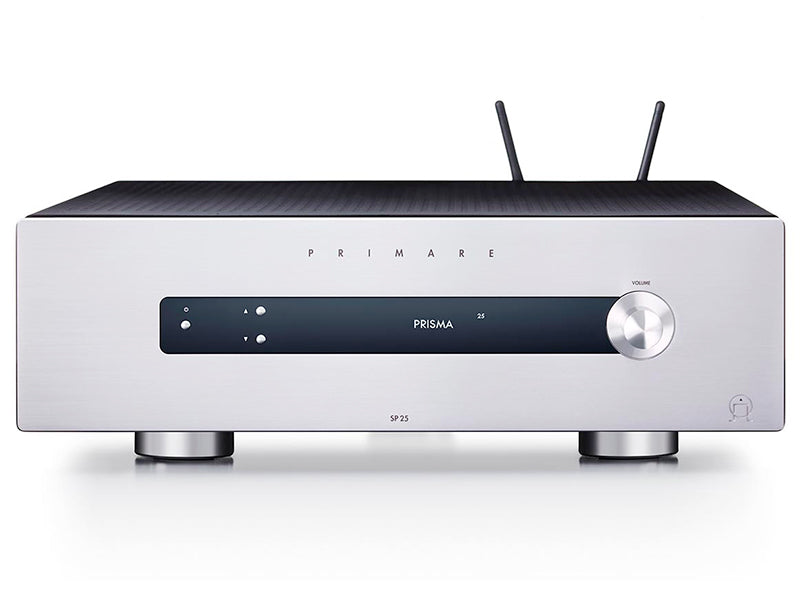

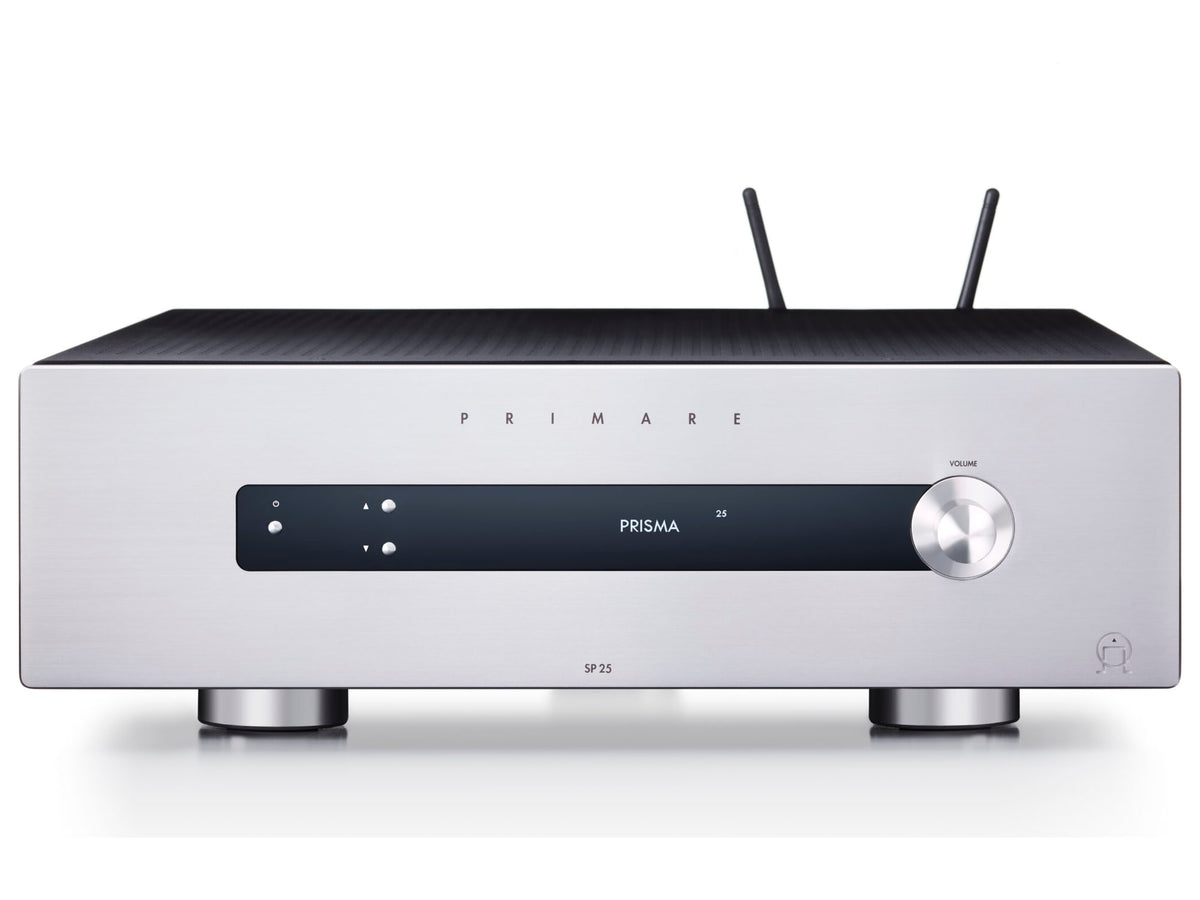

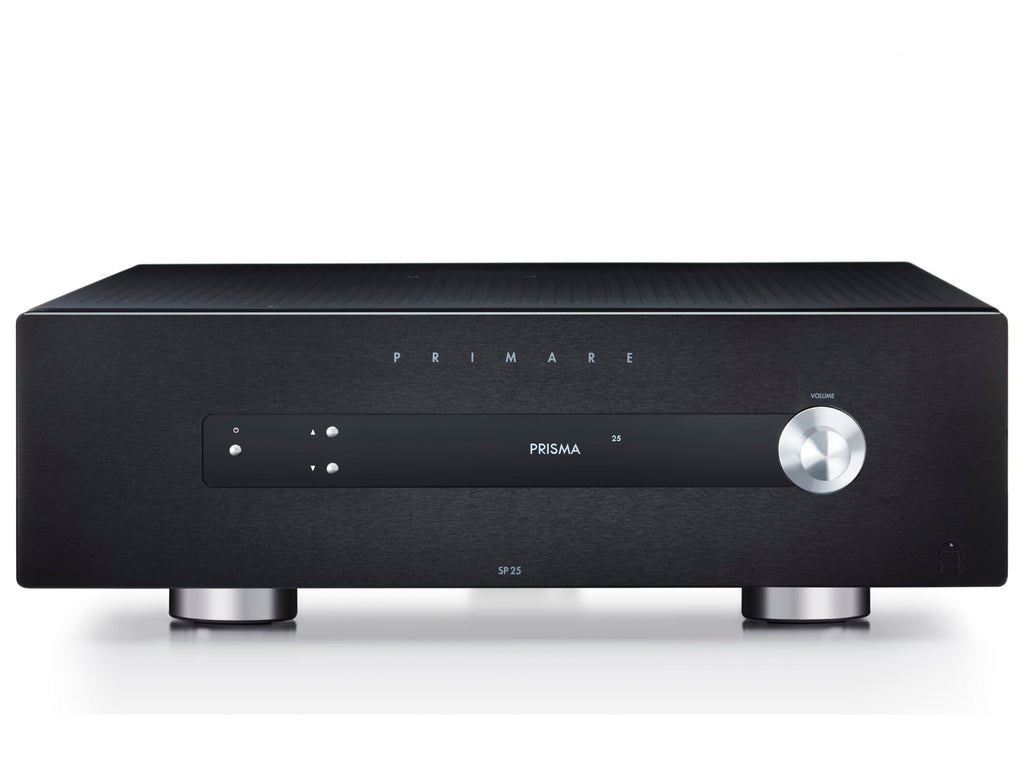

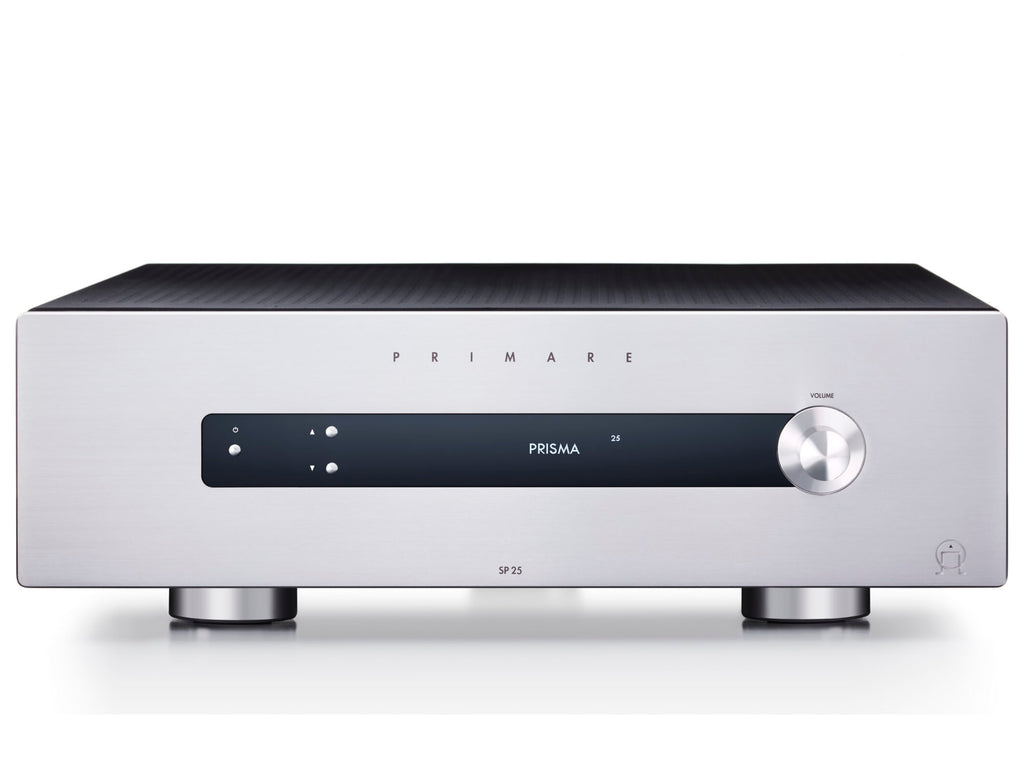

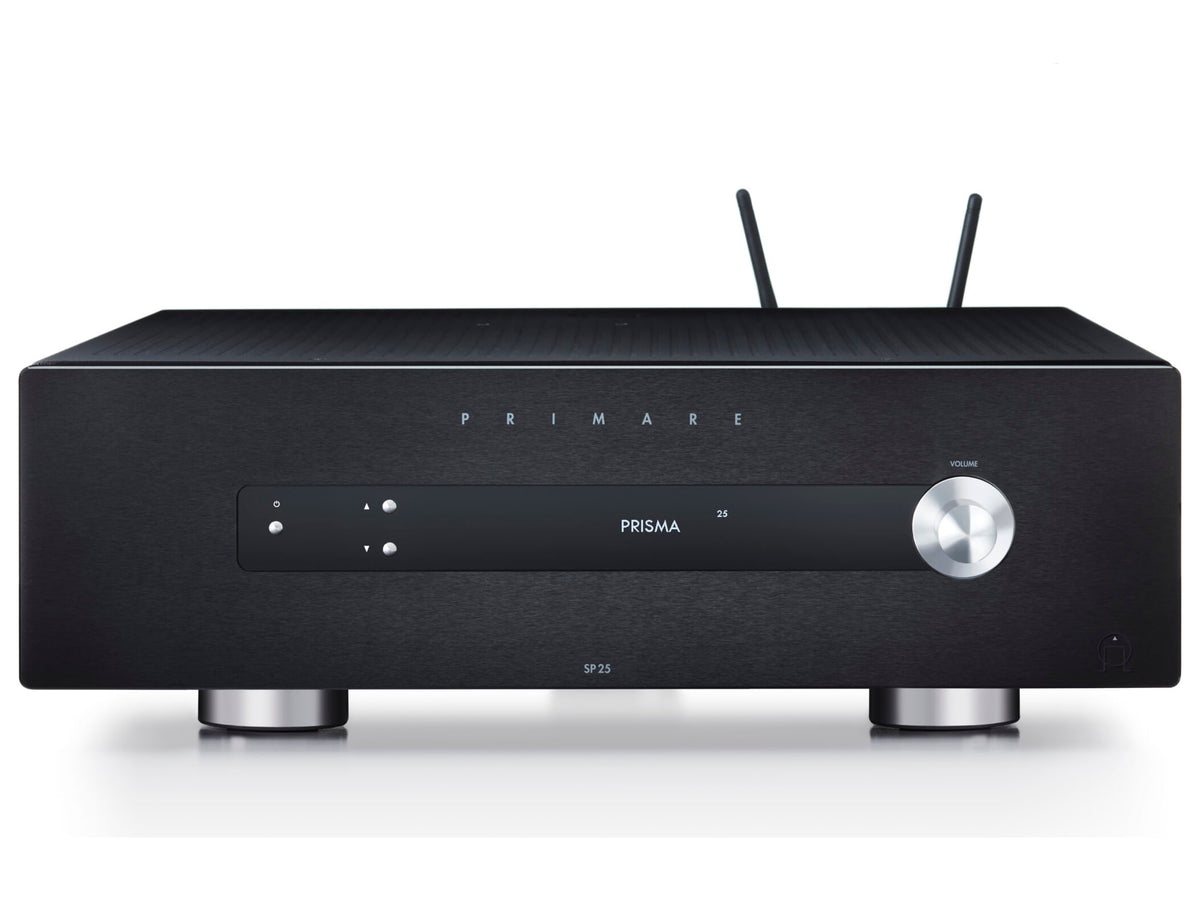

Prisma streams from services including Qobuz, Spotify and Tidal, and the unit is Roon Ready. The backlit Prisma Remote system handset is supplied; it also gives basic control of the television and takes OTA updates. An on-screen menu, the RS232 port and the 12 V trigger help with system integration. SP25 Prisma is offered in the Black and Titanium finishes.
