A 2.5-way floorstanding speaker, sold as a pair: two 5 inch carbon and glass-fibre composite woofers, a 1 inch silk tweeter, a rear reflex port and a sand-ballasted base. It calls for amplifiers of 20 to 200 W.
Speaker Box 12 E Carbon: two and a half ways

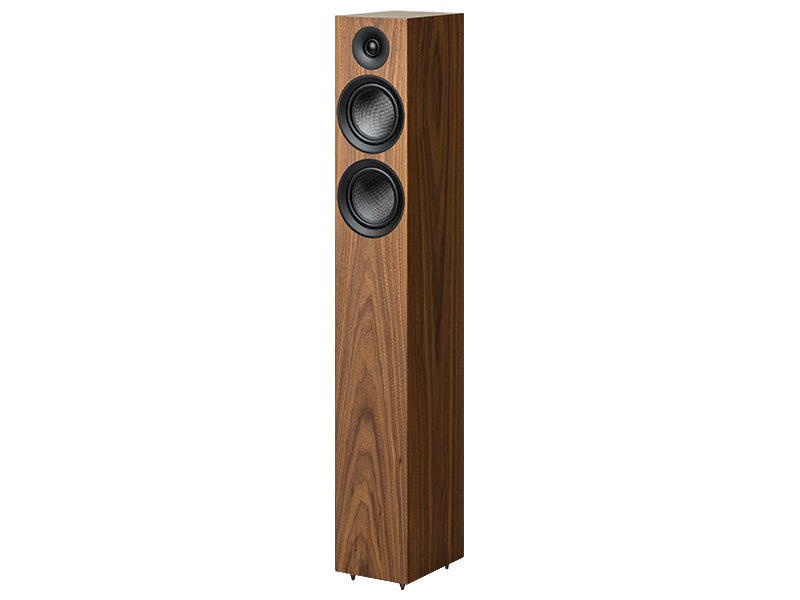

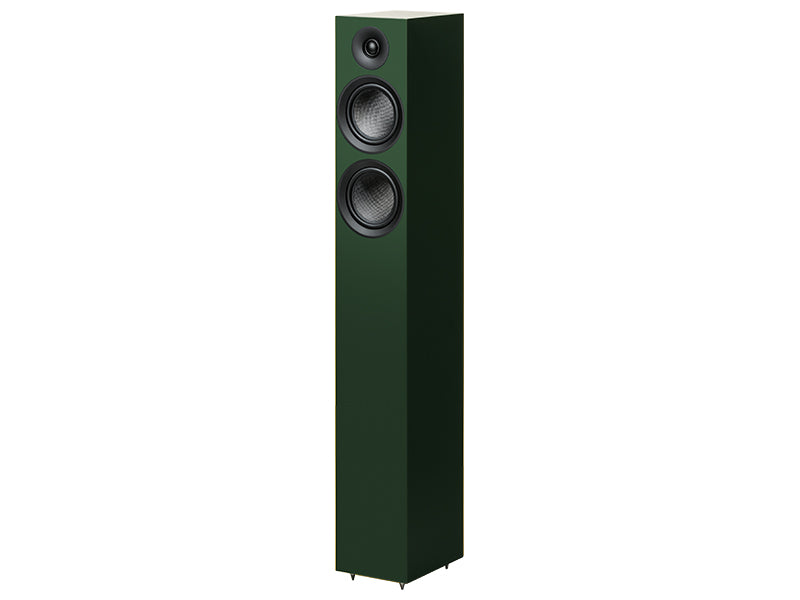

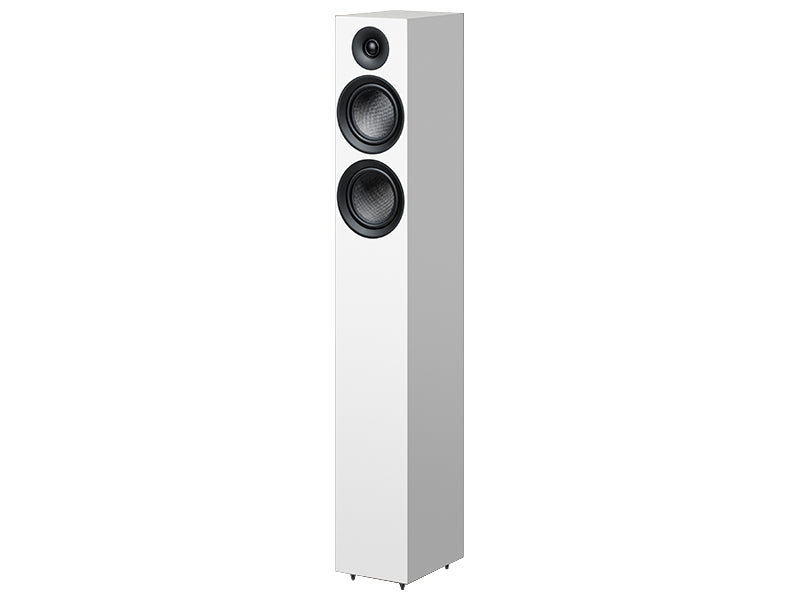

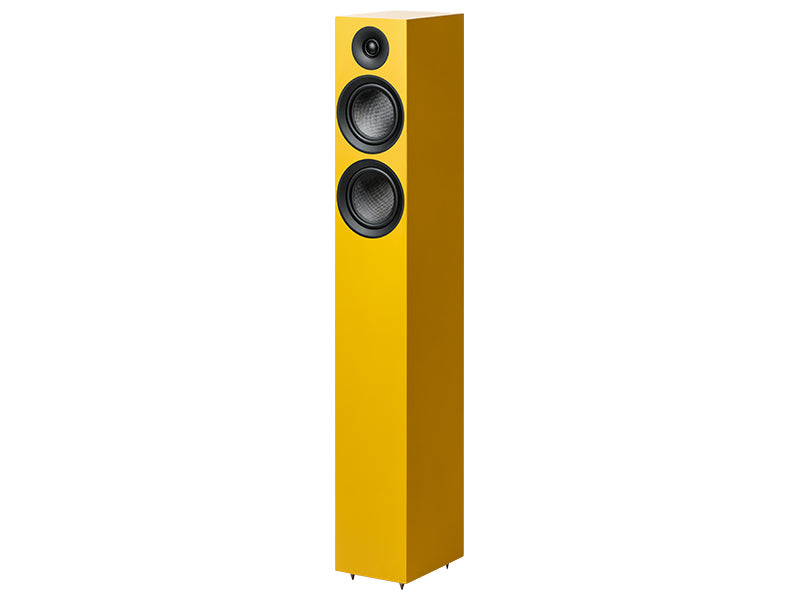

There are three drivers: a 1 inch silk dome and two 5 inch units with glass-fibre and carbon diaphragms. In the two-and-a-half-way layout both reproduce bass, but the lower one stops there and leaves the midrange to the other: the result is fuller low end, able to fill the room, without weighing down voices.

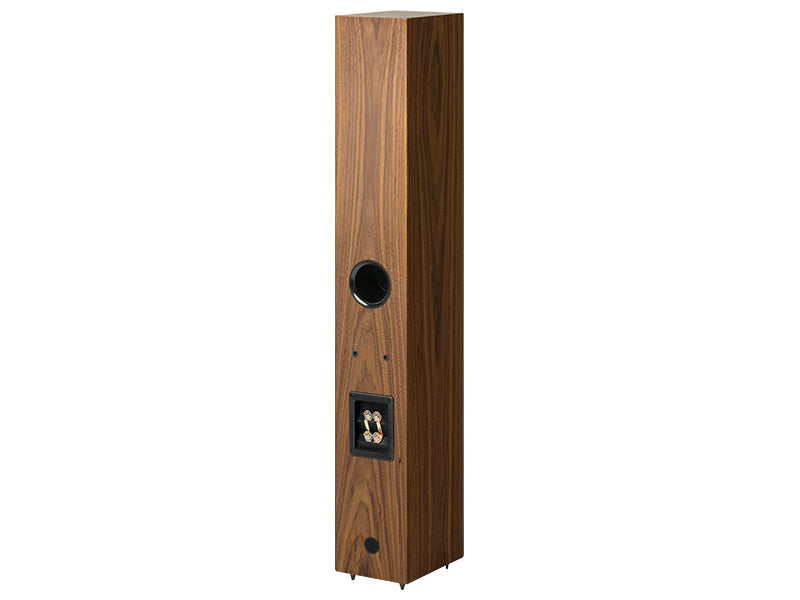

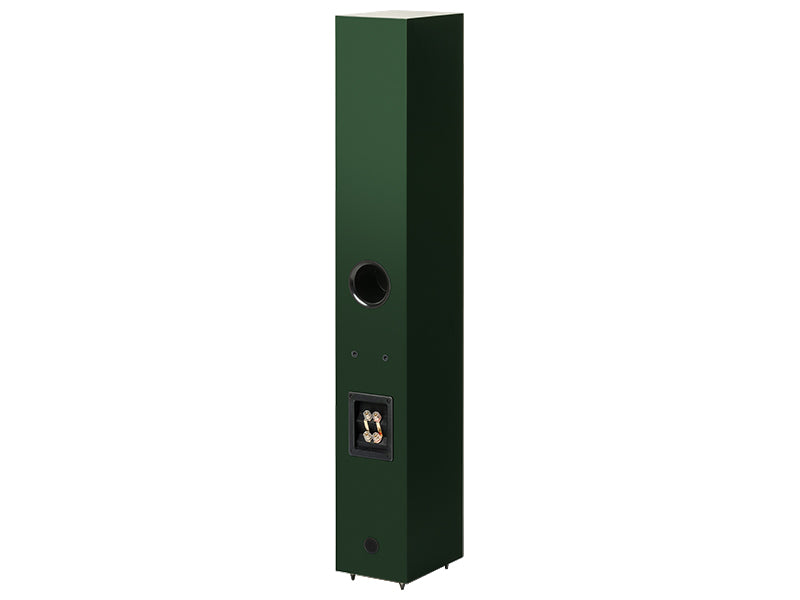

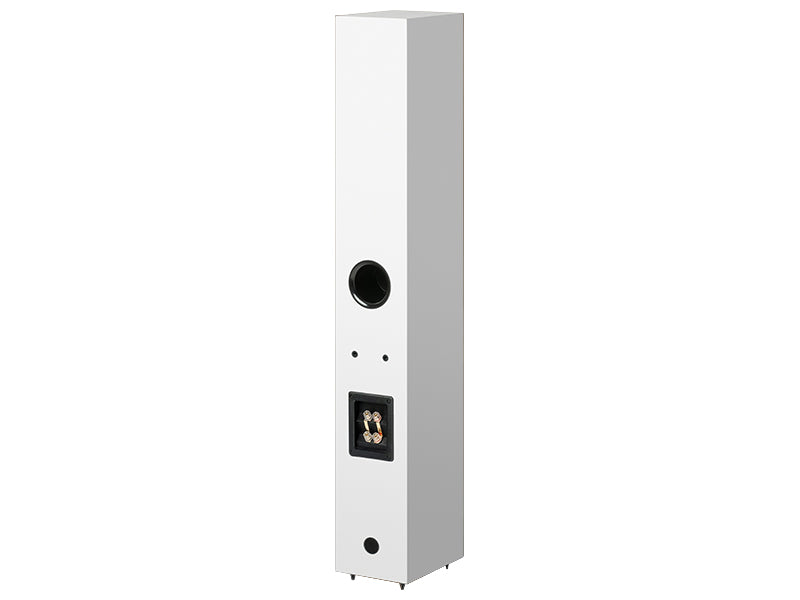

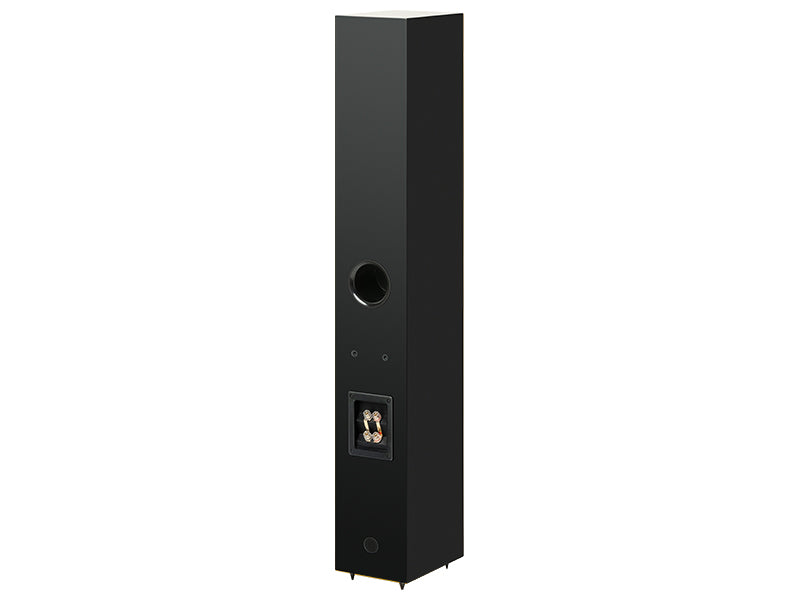

The very rigid MDF enclosure rests on a separate chamber packed with sand, which lowers the centre of gravity, soaks up vibration and steadies a column 1,100 mm tall. The baffle shows no screws and the grilles, included, attach with magnets. The model comes in several finishes.
Pro-Ject quotes a level response from 42 Hz to 20 kHz and 89 dB sensitivity into 4 ohms, with warm, clear mids and solid bass. The terminal panel is doubled: you can bi-wire, or bi-amp by giving woofers and tweeter their own amplifiers for extra clarity and a lower risk of distortion. At least 20 W a channel are needed; the matches named are the Stereo Box DS3 and the MaiA DS3.
Specifications
- Type: 2.5-way floorstanding speaker
- Loading: reflex, port on the back panel
- Tweeter: 1 inch silk dome
- Woofers: two 5 inch, carbon and glass fibre
- Frequency range: from 42 Hz up to 20 kHz
- Sensitivity: 89 dB at 1 W and 1 m
- Impedance: 4 ohms nominal
- Amplifier power: 20-200 W suggested
- Cabinet: high-rigidity MDF on a sand-filled base
- Terminals: doubled and gold-plated, bi-wiring and bi-amping
- Grilles: magnetic, supplied
- Size (H x W x D): 1,100 x 165 x 220 mm
- Weight: 15.17 kg per speaker
- Supplied: sold as a pair
- Finishes: black, white, yellow, green, blue, walnut
