A compact stereo integrated amplifier rated at 2 x 80 W into 8 ohms and 2 x 150 W into 4 ohms, with three line inputs, an MM/MC phono input and Bluetooth 5.0 aptX HD.
Stereo Box DS3: what it offers
The Stereo Box DS3 is the classic integrated amplifier of the DS3 series in revised form: three RCA line inputs for a CD player, tuner and the like, a phono input suited to MM as well as MC cartridges, and Bluetooth 5.0 reception with aptX and aptX HD. Rated output is 150 W per channel into 4 ohms and 80 W into 8 ohms. The Italian distributor describes it as a digital amplifier with a pulse-width-modulated (PWM) power supply; the layout is dual mono.
Volume is analogue, set by a motor-driven potentiometer that can also be worked from the supplied remote, which selects the input too; the distributor's list adds control through the Box Control App over Bluetooth. The gold-plated speaker terminals accept bare wire, spades or 4 mm banana plugs. For private listening the headphone output gives 2 x 450 mW into 32 ohms.

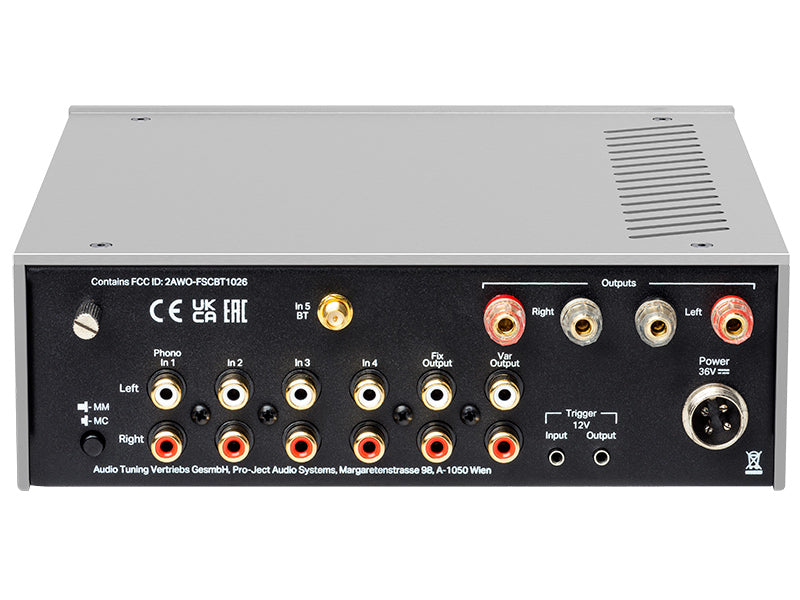

There are two RCA outputs. The variable one follows the volume control and is meant for a subwoofer or a second power amplifier; the fixed one bypasses it and passes the signal to a recorder or another device. Trigger input and output coordinate switch-on with the other components of the system. All the electronics sit in a machined aluminium enclosure that screens them from interference; the unit is designed and hand-built in Europe, and magnetic side panels in wood can be added as a separate purchase.
Specifications
- Output: 2 x 150 W into 4 ohms, 2 x 80 W into 8 ohms, at 1% THD
- Frequency response: 20 Hz to 20 kHz, -0.1 to +0.3 dB
- Signal-to-noise ratio: over 98 dB (105 dB A-weighted) at 1 kHz
- Channel separation: 73 dB at 10 kHz
- Distortion (THD): below 0.01% at 10 W
- Phono input: MM 40 dB into 47 kohms, MC 60 dB into 100 ohms
- Line inputs: 3 RCA pairs, 860 mV sensitivity, 50 kohm impedance
- Bluetooth: version 5.0 with aptX and aptX HD (A2DP)
- Line outputs: one variable RCA pair and one fixed RCA pair
- Headphone output: 2 x 450 mW into 32 ohms
- Speaker terminals: for bare wire, spades or 4 mm banana plugs
- Trigger: input and output
- Power: 36 V / 5.5 A DC from a 100-240 V mains adapter; standby under 0.5 W
- Remote control: supplied, takes two 1.5 V AAA cells
- Dimensions: 206 x 71 x 194 mm (width, height, depth), 211 mm deep with connectors and controls
- Weight: 1800 g, power supply excluded

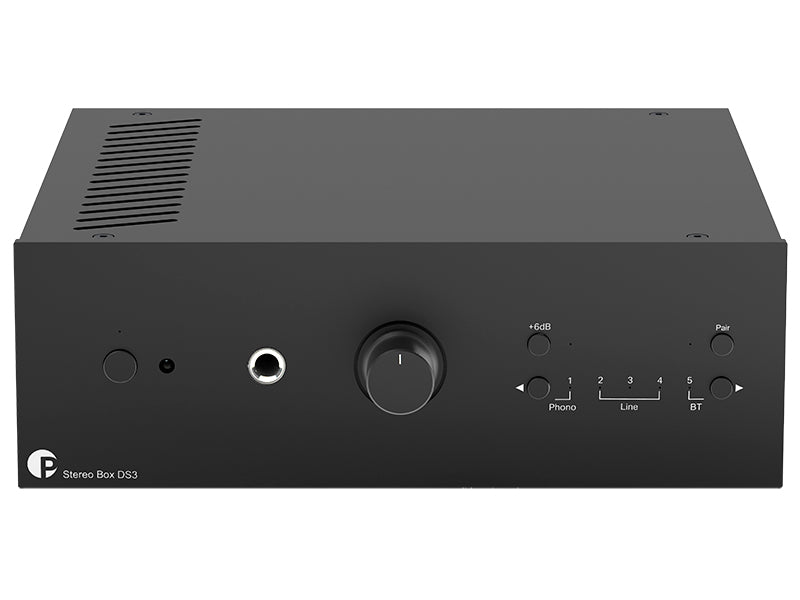

- Finishes: black, silver
