The Rotel RAS-5000 is an integrated amplifier with network streaming, designed for Hi-Fi enthusiasts who want to listen to their favorite music from digital sources. This device offers exceptional sound quality and is designed for maximum convenience, allowing you to stream music from services such as Qobuz , Spotify Connect , Tidal Connect and Internet Radio .
Thanks to the built-in ESS 32-bit/384kHz DAC , the RAS-5000 offers high-resolution audio playback, supported by a power output of 220 watts per channel in Class AB at 4 ohms, ensuring powerful and dynamic performance.
Superior Sound Quality
The RAS-5000 uses a custom-built toroidal transformer , which provides constant, low-noise power, ensuring stable power to all components.
This ensures detailed and controlled music reproduction, even at high volumes, with deep, dynamic bass .
Complete Connectivity

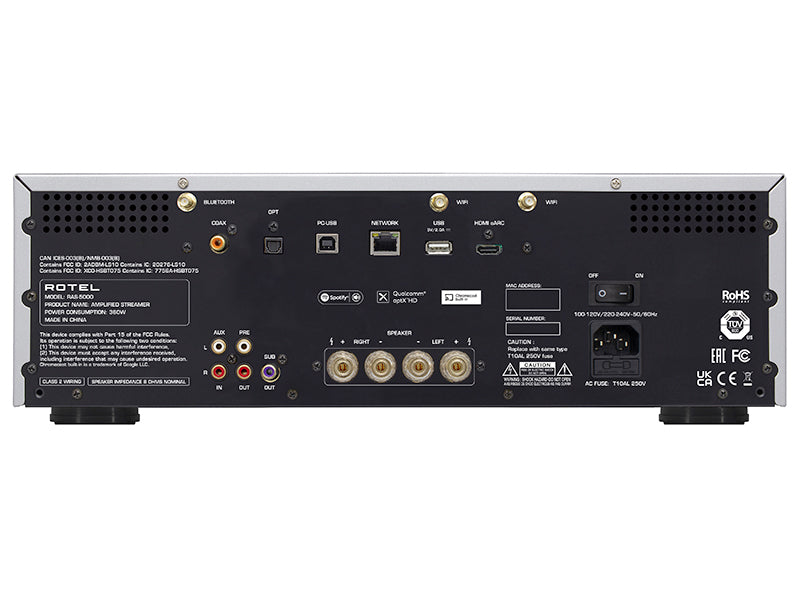

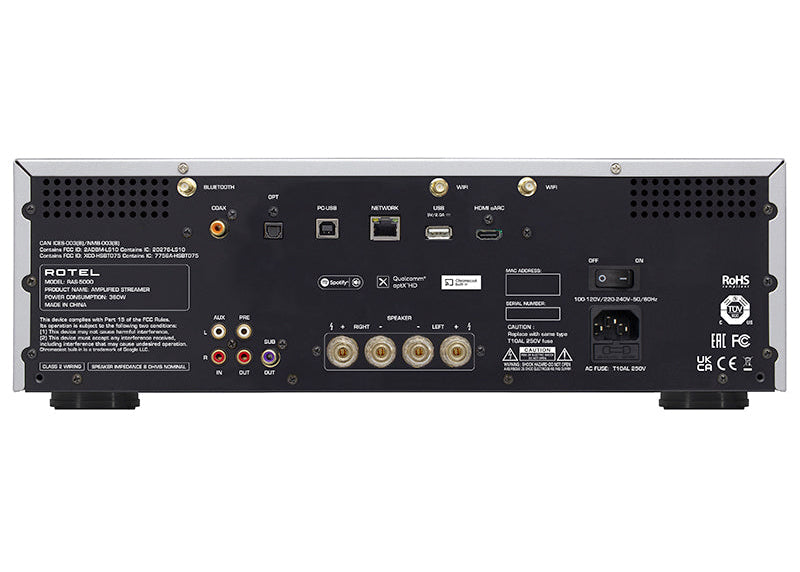

The device offers a wide range of inputs, including coaxial , optical , HDMI ARC , analog , PC-USB and Bluetooth aptX™ HD . It also supports playback of MP3, WMA and AAC files via USB flash drives.
The HDMI ARC port lets you easily connect your TV for immersive audio when watching movies or TV shows.
Advanced Network Streaming
The RAS-5000 is compatible with dual-band Wi-Fi and wired connections, allowing access to streaming services such as Roon , Airplay 2 and Google Cast . It is also ready to play MQA files available on Tidal , ensuring impeccable playback quality.
Elegant Design and Functionality

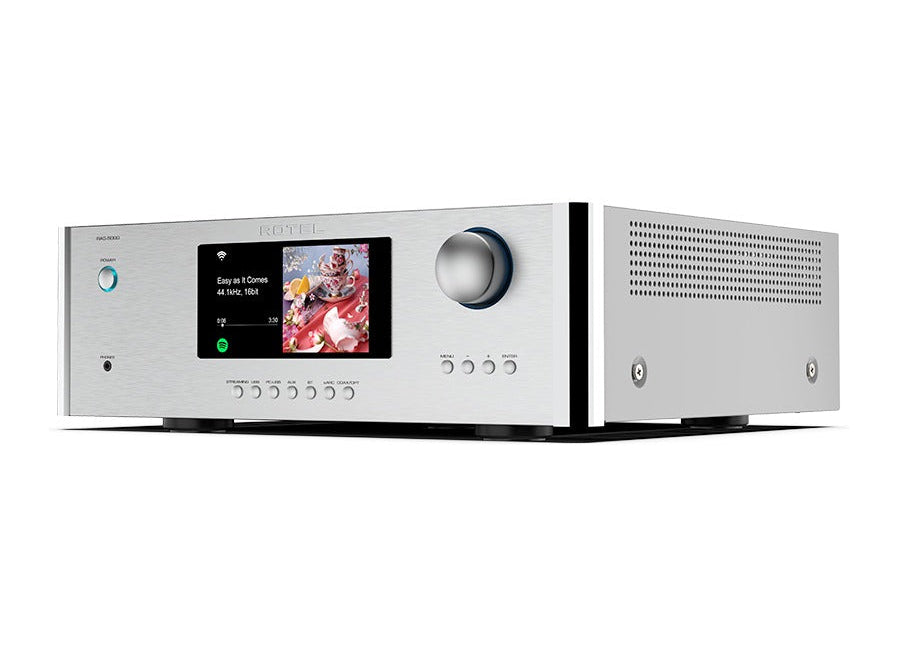

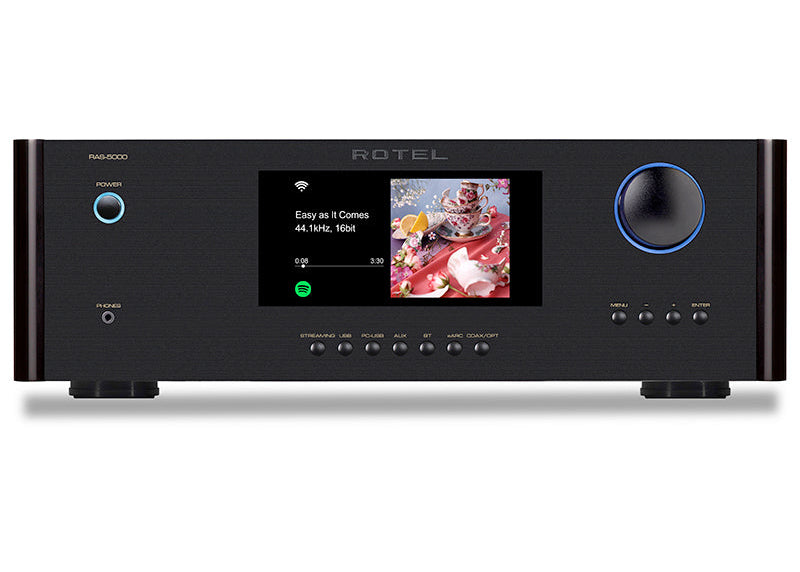

The front panel features a color LCD display that shows all track information and makes system setup easy.

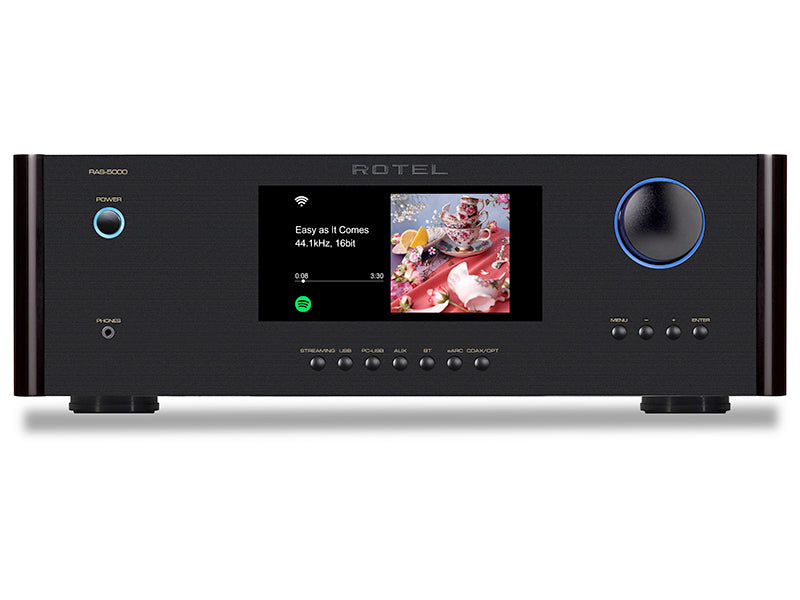

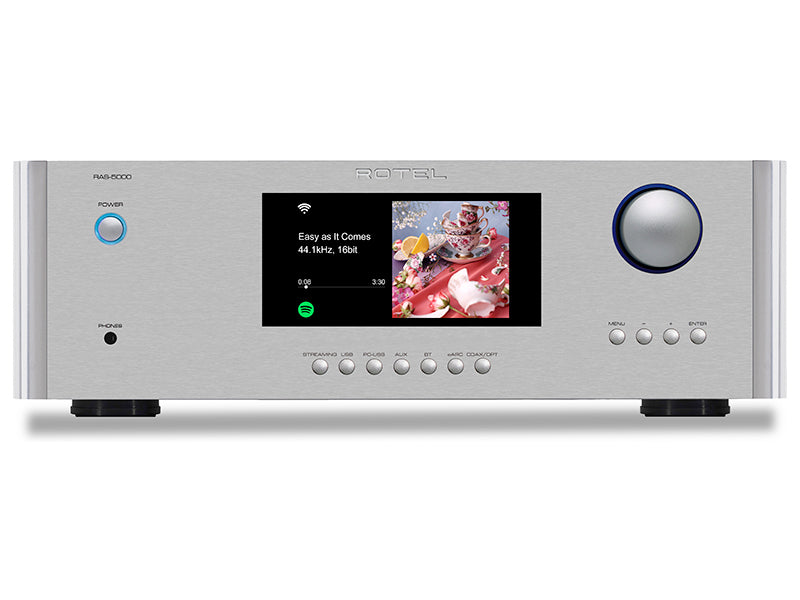

The Rotel RAS-5000 is available in Black and Silver finishes, to fit perfectly into any environment, whether modern or more traditional.
Technical Features
Maximum output power
|
220W/Ch (4Ω) |
Continuous output power
|
140W/Ch (8Ω) |
Total Harmonic Distortion
|
<0.03% |
Frequency response
|
10Hz – 100kHz, ±0.5dB |
Signal to Noise Ratio (S/N)
|
103dB (Line inputs), 105dB (digital inputs) |
Damping factor
|
290 |
Input impedance
|
Line: 46kΩ, Digital: 75Ω |
Standby consumption
|
<0.5W |
Dimensions (W×H×D)
|
431×144×425mm |
Weight (net)
|
15.7kg |
