Screenline Wave EVO 16:9

Screenline Wave EVO 16:9: the motorised screen made to stay on show

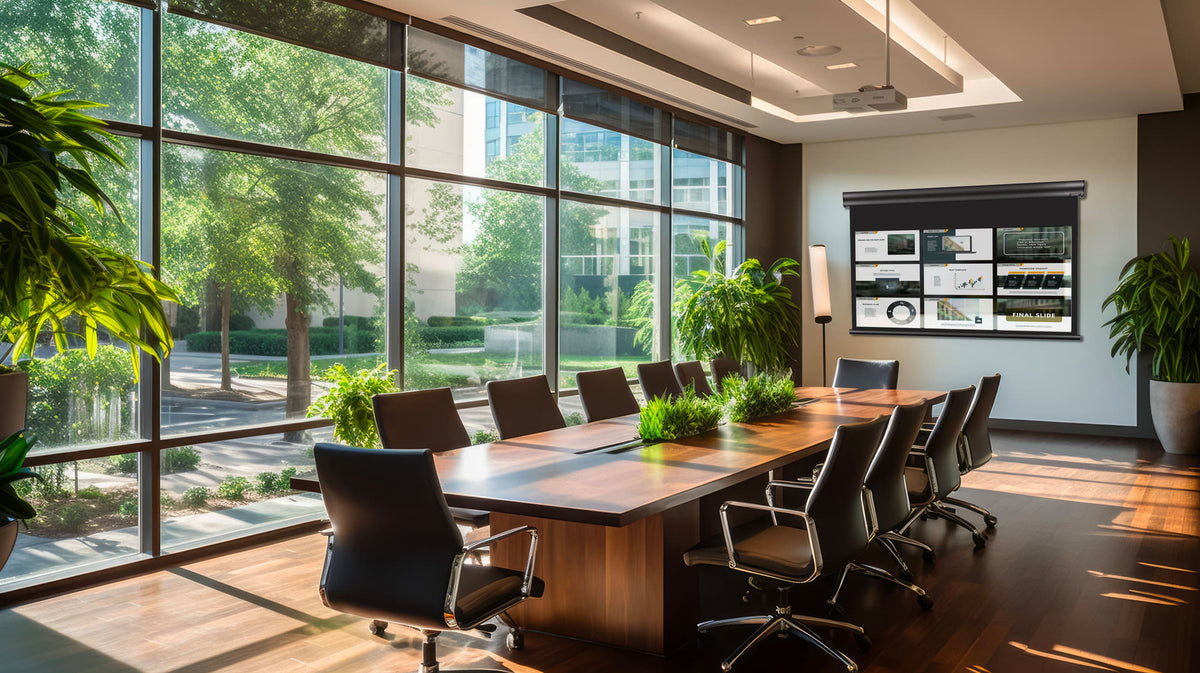

Wave is the motorised projection screen Screenline designed to be seen: its case has a shaped profile that allows mounting flush to the wall or in a corner, and its clean lines keep it discreet in a home cinema room as much as in a meeting room. The EVO version uses the EVO motor: quiet (43 dB measured), with a counterweight that stops by itself on closing and a case that closes completely.

The fabric comes down from the front side of the case and stops about 11 cm away from the wall: it stays nicely flat and leaves room behind it for a TV, a painting or a panel. This page covers the 16:9 version with black borders.

Key features

• 16:9 format with 5 cm black borders and a 50 cm drop
• Five sizes: base from 203 to 420 cm, diagonal from 92" to 190"

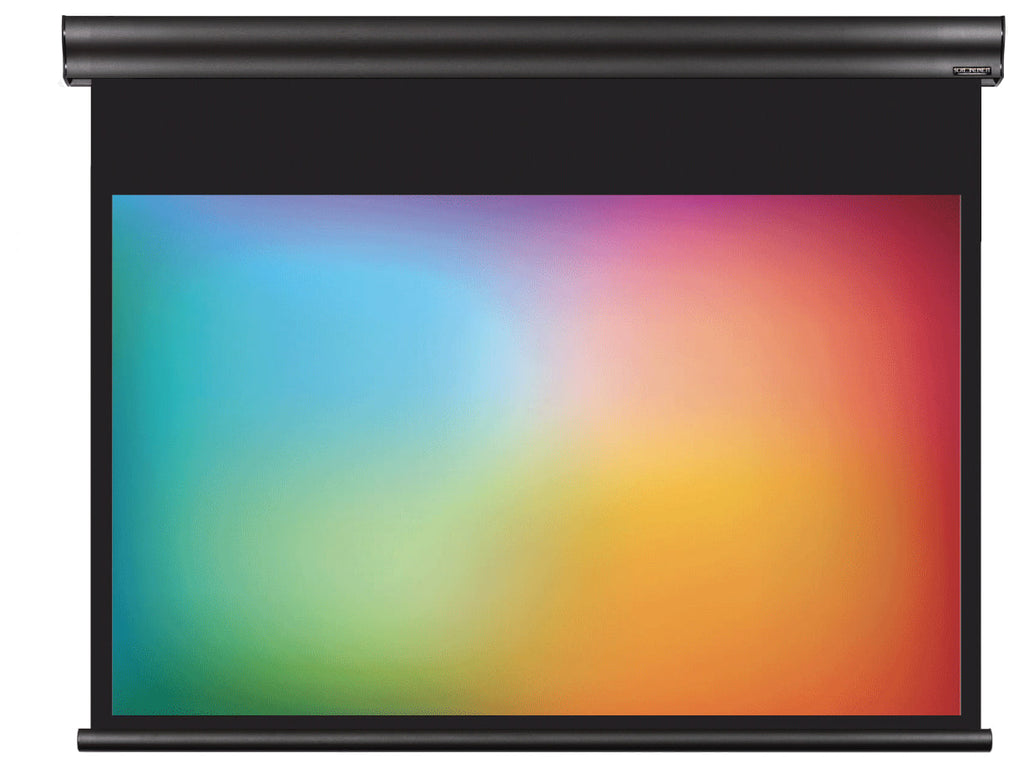

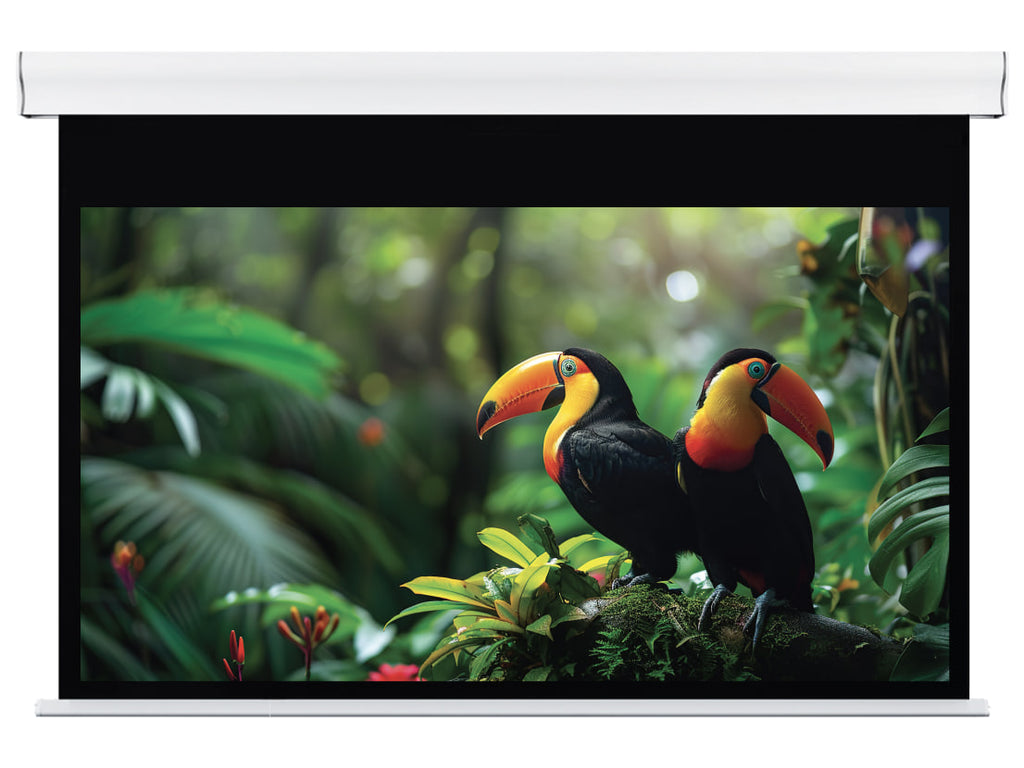

• Case in matt white or matt black
• EVO motor as standard, quiet (43 dB measured)
• Manual switch and wall or ceiling brackets supplied
• Six projection surfaces: five for front projection and one for rear projection

The surfaces

• White Ice (front projection, gain 1.1): white fire-retardant PVC fabric, 0.40 mm thick and finely embossed, giving an even picture across a 150° viewing angle. The back is white too: best to avoid windows and lights right behind the screen.
• Home Vision (front projection, gain 1.2): white composite PVC with a black back, not transparent. The black back makes the picture sharper and higher in contrast and stops light coming from behind. It must not be used as a blackout blind: sun and heat damage it.
• Microperforated (front projection, sound-transparent, gain 1.05): lets through the sound of speakers placed behind the screen, with 0.4 mm holes you cannot see while projecting. Screenline gives 406 x 228 cm as the largest size and recommends the tensioned version.
• Grey High Contrast (front projection, gain 0.8): soft grey PVC that makes dark colours deeper; Screenline indicates it for projectors above 1,500 ANSI lumens. On Wave EVO 16:9 it goes up to the 335 cm base.
• Radiance 0.6 (front projection in ambient light, gain 0.6): reflective PVC with mineral microparticles, for high-contrast projection even in a normally lit room. On Wave EVO 16:9 it goes up to the 335 cm base.
• Coral (rear projection, gain 1.8): PVC for projecting from behind the screen, very bright and even, with a viewing angle above 90°. It suits fairly bright rooms with powerful projectors; direct light on the fabric cuts contrast sharply.

What is supplied and special requests

The screen comes with the EVO motor, the manual switch and the brackets for wall or ceiling mounting. On request Screenline also makes non-standard sizes: contact us for these.

To control it remotely: Kit RF with remote control, sold separately.
