Round in-ceiling Ultra Thin-Line speaker from the Visual Experience Series, with a 5.25" woofer
Sonance VX52R UTL brings the Visual Experience Series into ceilings where a regular speaker does not fit: its mounting depth is only 35.7 mm. Cloth dome tweeter and 5.25" woofer with an anodised aluminium cone. Sold as a pair.
It is designed for concrete slabs with suspended ceilings on 2.5" (63.5 mm) metal profiles, common in apartment blocks and tall buildings. It uses the transducers and waveguides of the VX range, with a sinusoidal textured surface that keeps the tone even across the room, and installs with the same single-step procedure as the other VX models.
Key features
- 1" (25 mm) cloth dome tweeter, Ferrofluid cooled, with rear acoustic chamber
- 5.25" (130 mm) woofer with anodised aluminium cone and rubber surround
- Frequency response from 55 Hz to 20 kHz (+/- 3 dB)
- Power handling from 5 to 100 W
- Sensitivity 89 dB (2.83 V at 1 m)

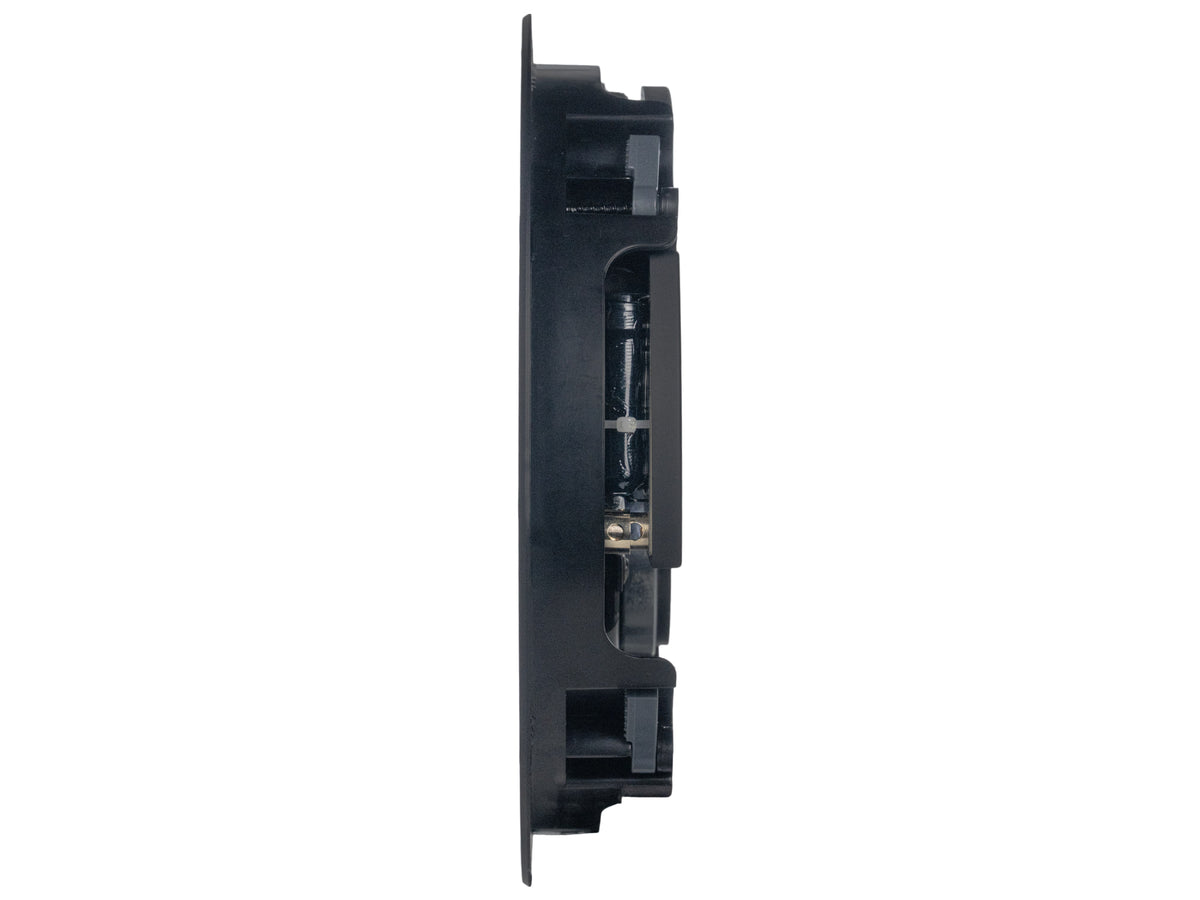

- Mounting depth of 35.7 mm
Installation
The cut-out has a diameter of 210 mm; the speaker measures 233 mm across and 36 mm deep. It fits suspended ceilings on 2.5" metal profiles where standard VX models have no room.
Finishes and grilles

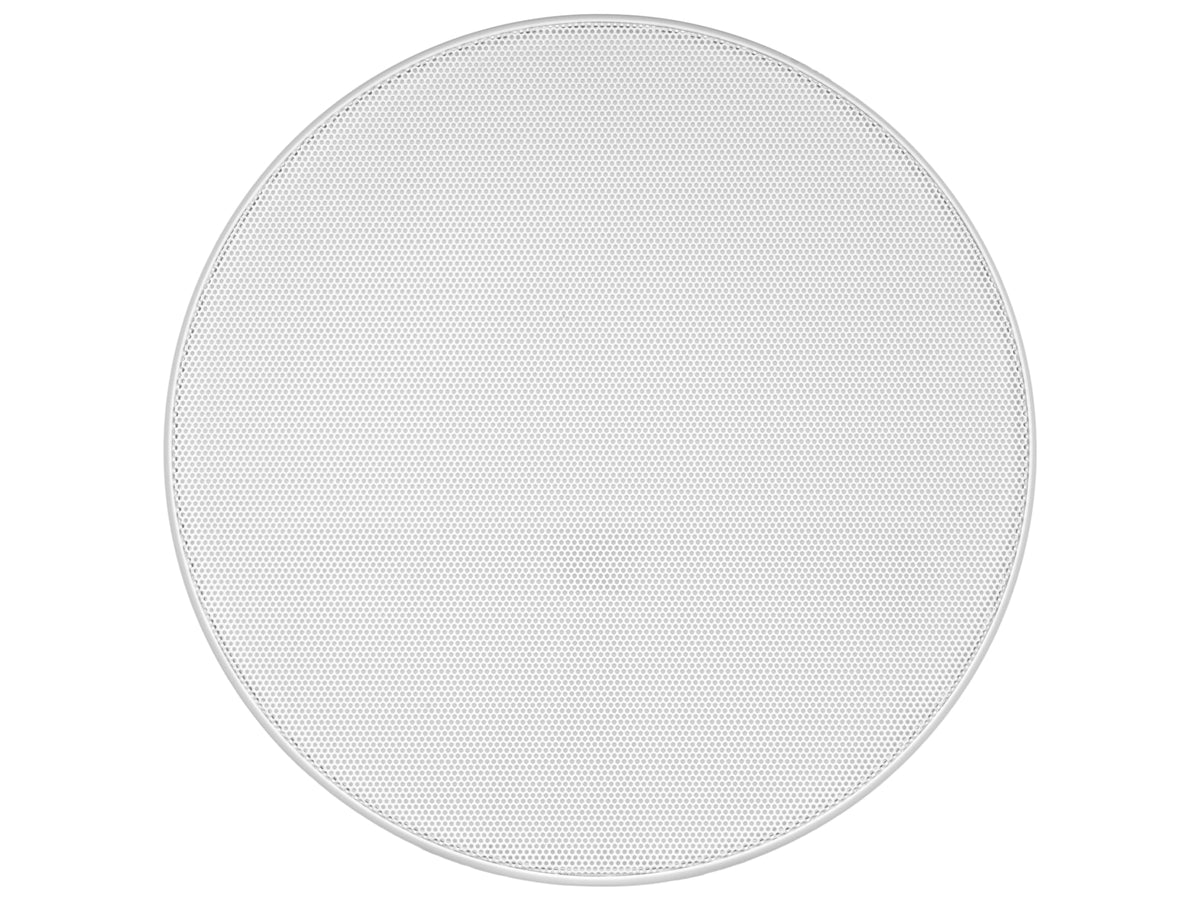

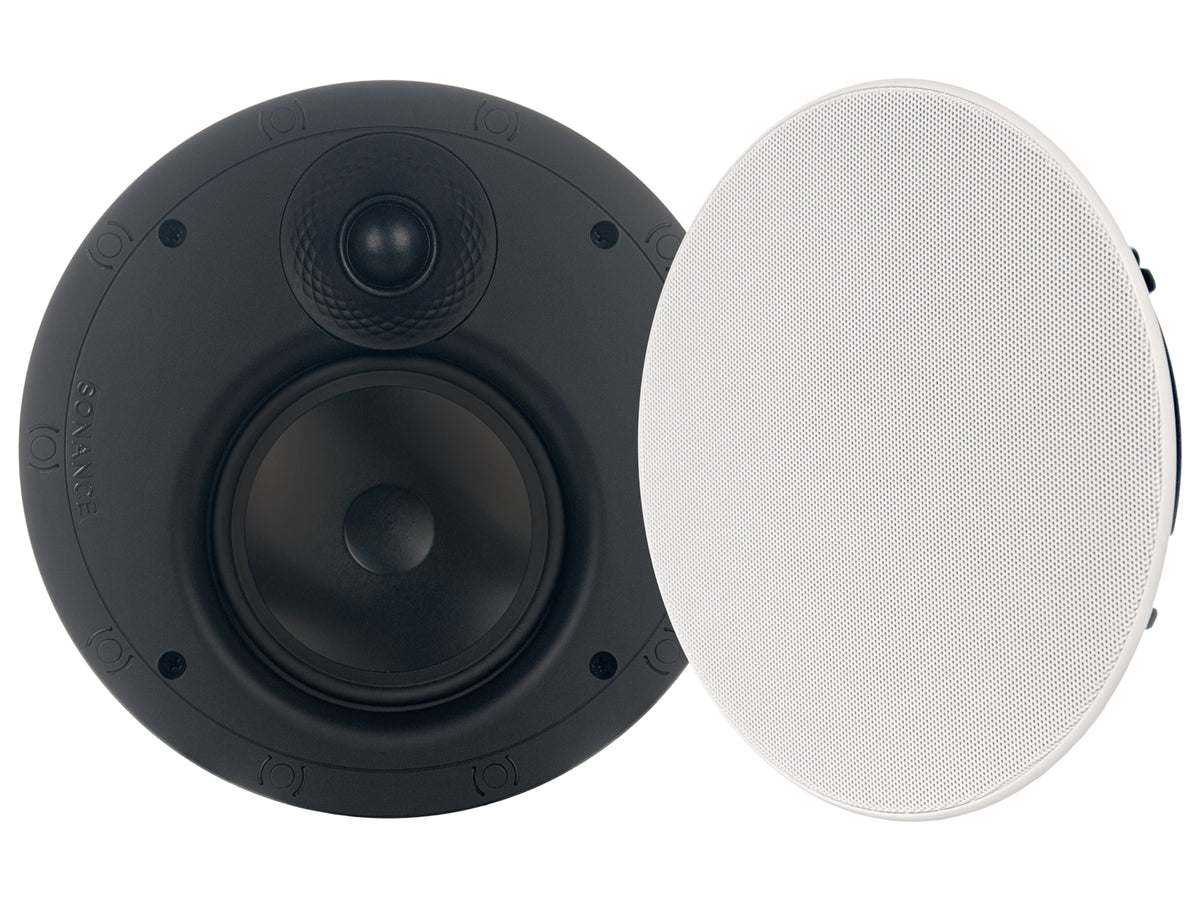

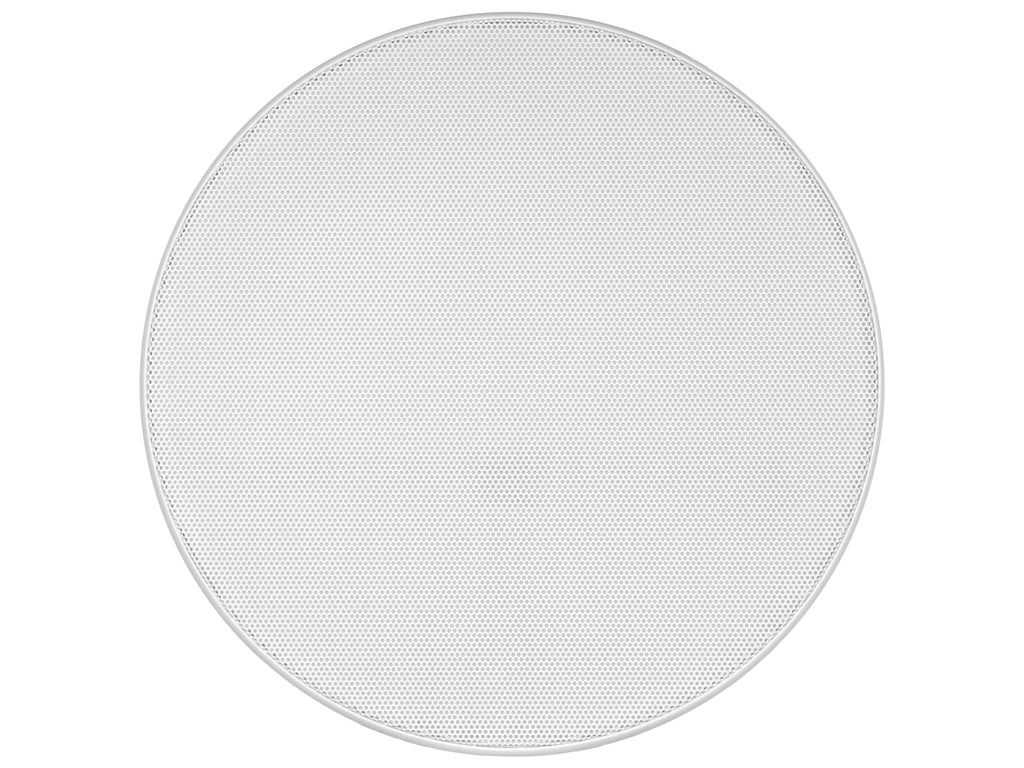

The VX grilles are paintable, in Sonance brilliant white, in micro trim versions, with a thin frame, and trimless versions, flush with the ceiling.
