Two-way analogue crossover with VOLTAiR technology, for adding one or two subwoofers to a stereo system.
Crossover: the design
The Crossover splits the signal between subwoofer and speakers, with a crossover frequency from 50 to 120 Hz in six positions. The bass section rolls off at 24 dB per octave; the mid/high section at 12 or 24 dB, or stays flat. Inputs are RCA and XLR, outputs XLR only; VU meters show the input level.
Like the other SPL components it uses VOLTAiR technology: the audio circuits run on ±60 V rails, with discrete op-amps of SPL's own design and a shielded toroidal transformer.
Specifications
- Crossover frequency: 50 to 120 Hz, 6 positions
- Slope: bass 24 dB; mid/high 12 dB, 24 dB or flat
- Phase: continuous 0–180° adjustment
- Subwoofers: one or two, level from −10 to +10 dB
- Filter: switchable cut below 20 Hz
- Trigger: 12 V, in and out
- Connections: RCA and XLR inputs, XLR outputs
- Dimensions (W × H × D): 278 × 100 × 330 mm
- Weight: 5.4 kg

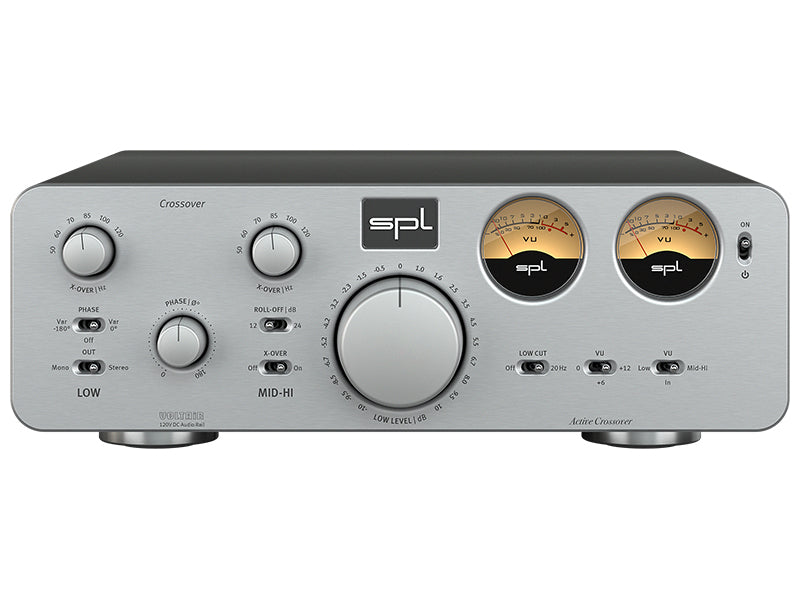

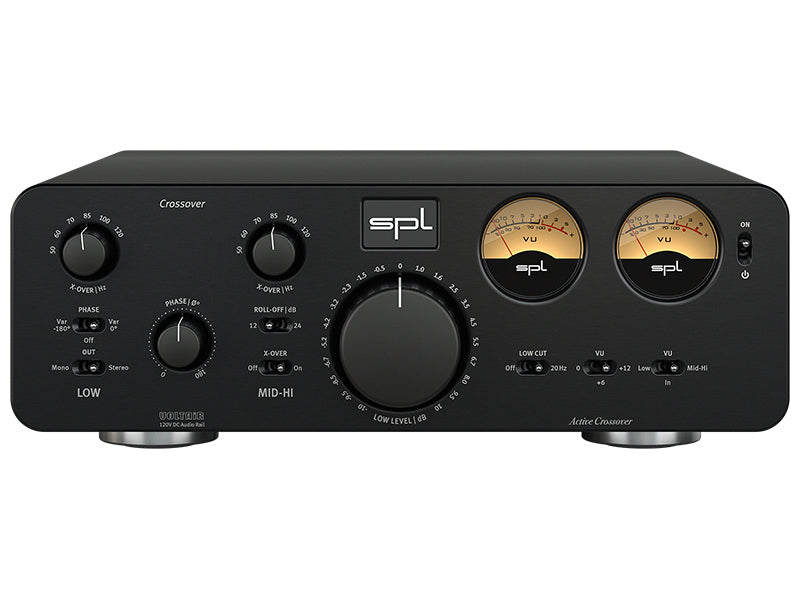

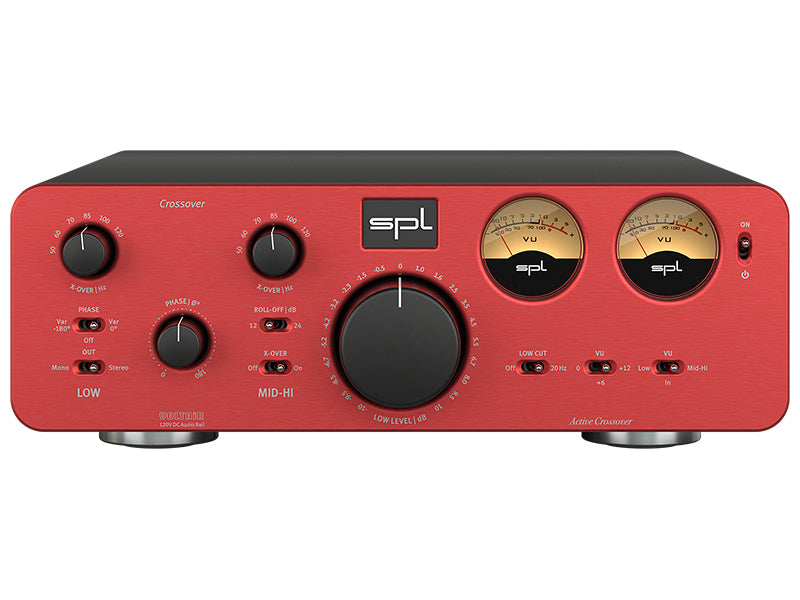

- Finishes: black, silver, red
