Pro-Ject's BT Box S2 HD is a Bluetooth 5.0 audio receiver with aptX HD, aptX and SBC codecs: it picks up music from a phone, tablet or computer and hands it to the hi-fi through an analogue RCA output or an optical digital one.
BT Box S2 HD: how it works
Its purpose is to give Bluetooth to an amplifier that lacks it. The receiver runs Bluetooth 5 with the A2DP profile and, where the source allows, uses the aptX HD codec, which according to Pro-Ject holds on to detail and dynamics even when the radio link dips for a moment. The stated working range is roughly 10 metres in line of sight, with the aerial that comes in the box.

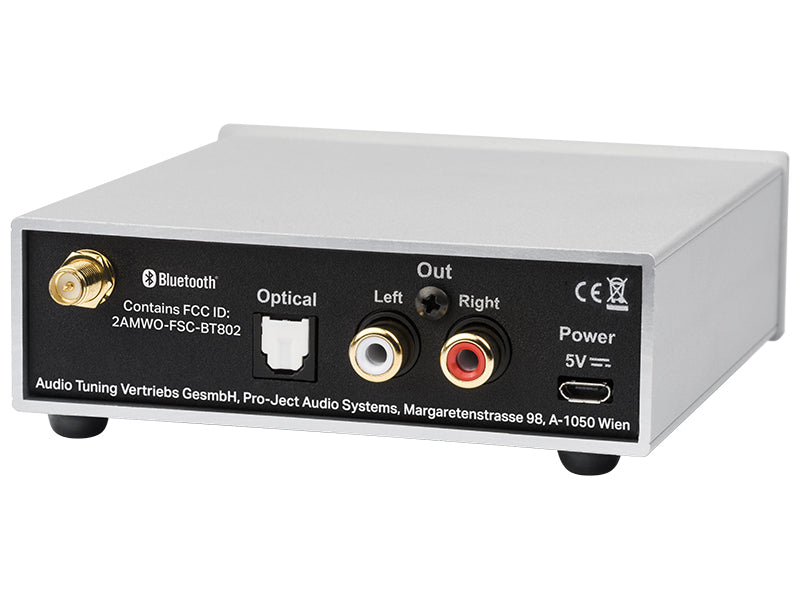

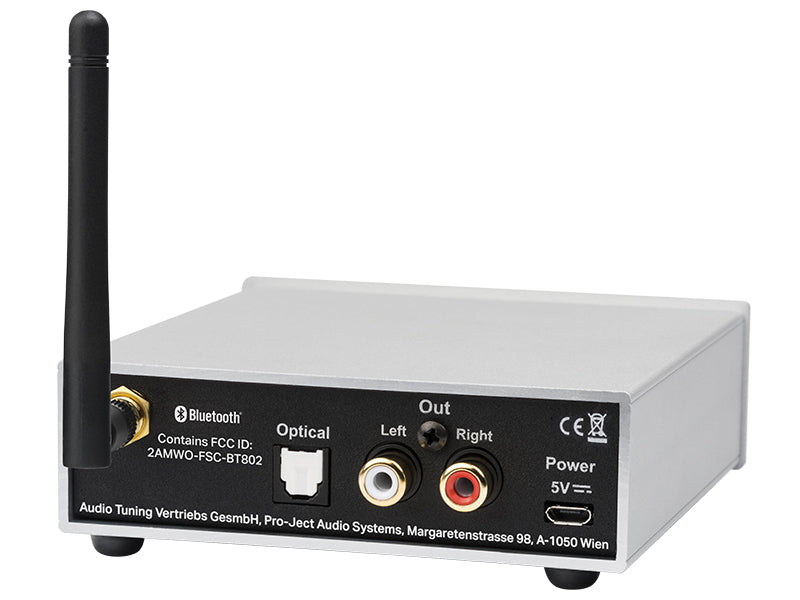

It is simple to live with: automatic pairing takes 3 to 5 seconds and the unit remembers as many as eight different sources. On the analogue side Pro-Ject has fitted a dedicated output buffer stage, which drives the amplifier's line input at a nominal 2 V. Owners of an external converter can take the signal from the optical Toslink output instead.
The published figures give a frequency response from 20 Hz to 20 kHz, a signal-to-noise ratio better than 85 dB at the line output, and distortion under 0.1 % in analogue and under 0.003 % at the optical output. The external 5 V power supply comes with it. The maker states that the unit is built by hand in Europe.
Specifications
- Type: Bluetooth audio receiver
- Signal-to-noise ratio (line): above 85 dB
- Bluetooth: version 5, A2DP profile
- Codecs: aptX, aptX HD, SBC
- Range: as far as 10 m in line of sight
- Remembered sources: 8 at most
- Radio frequency: 2402 - 2480 MHz
- Sensitivity: -88 dBm
- Analogue output: stereo RCA, 2 V RMS nominal
- Digital output: Toslink optical (S/PDIF)
- Bandwidth (-1.5 dB): 20 Hz to 20 kHz
- Distortion: under 0.1 % line, under 0.003 % optical
- External power supply: 5 V DC, 1000 mA (100-240 V, 50/60 Hz), supplied
- Current draw: 200 mA DC
- In the box: aerial and power supply
- Weight: 320 g, power supply excluded
- Size (width x height x depth): 116 x 37 x 103 mm (108 mm with sockets)
- Finishes: black, silver
