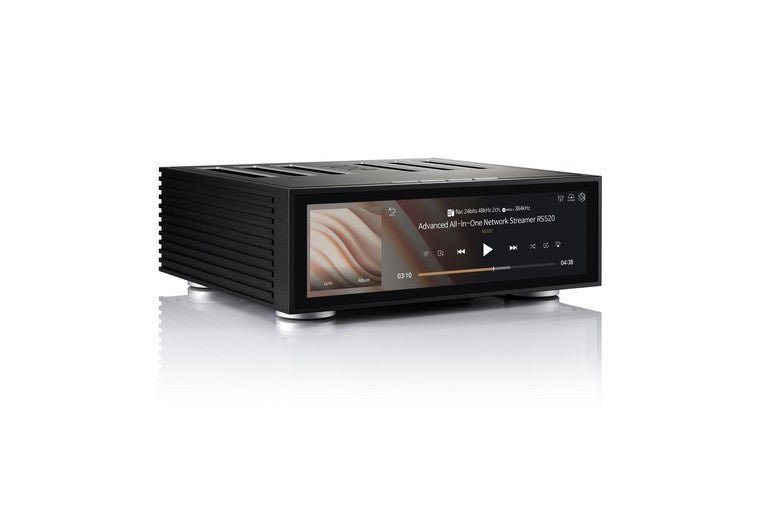

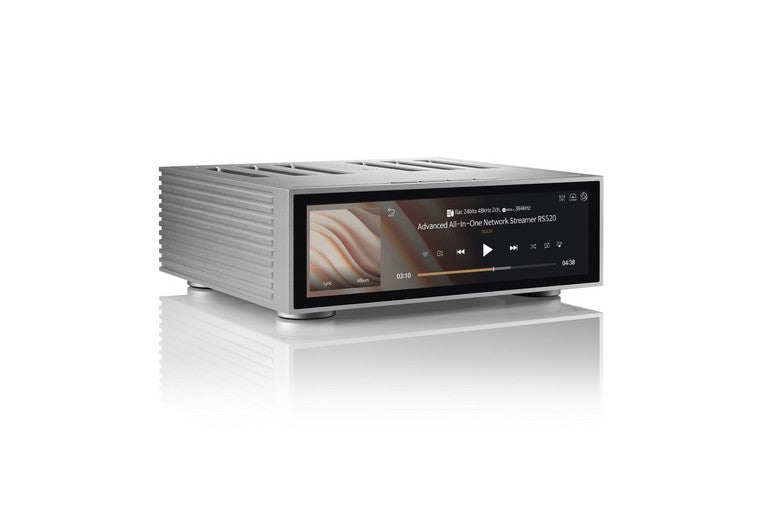

RS520
ROSE RS520 it's more than just a source device with a built-in amplifier. It's a true all-in-one system, where every element has been expertly engineered to deliver performance that rivals multi-unit systems. Even when paired with larger or more "difficult" speakers, it offers a more refined and elegant sound quality that is controlled and uniform throughout the frequency range.
Solid foundations
The four surfaces of the RS520's elegant housing are machined from a single piece of high-strength aluminum, reducing the number of separate parts needed to produce the bodyshell. This "one-piece" manufacturing method dramatically reduces the risk of vibration transfer through the body and minimizes standing waves, which can affect final sound quality.

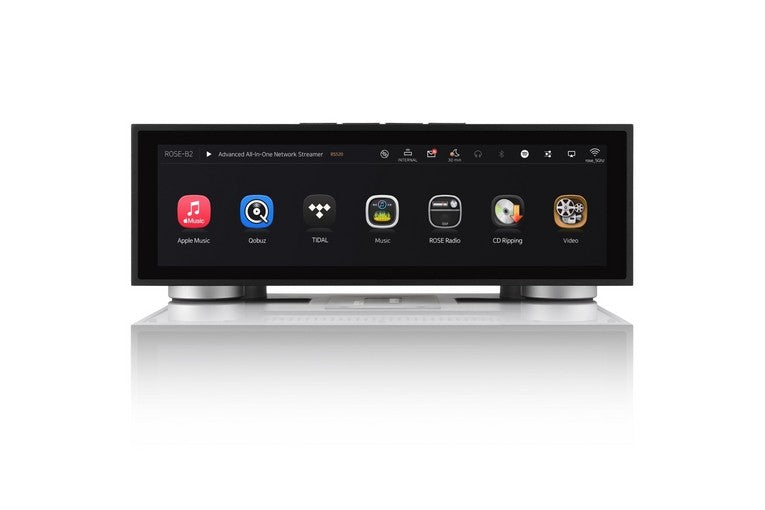

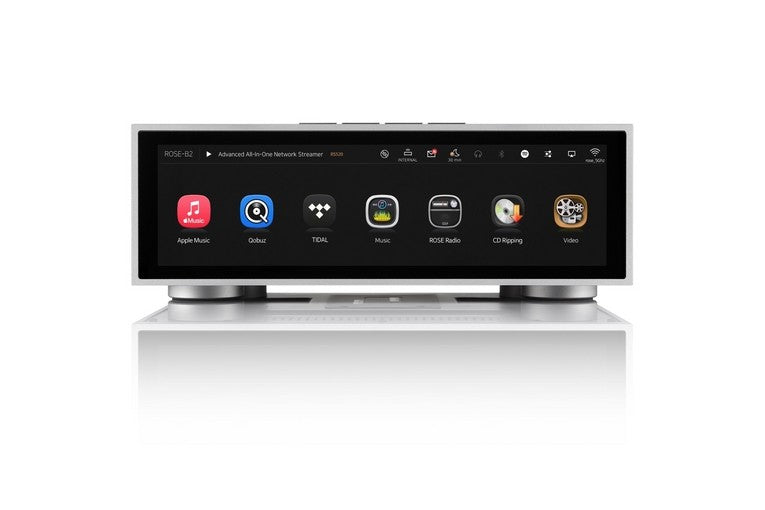

Like all Rose streamers, the RS520 is recognizable above all by its large multi-touch screen . At 12.6 inches wide, the 1920 x 515 resolution LCD panel offers a razor-sharp display that's easy and a pleasure to interact with for complete control of your listening experience. The main transport controls are also located on the top of the RS520 for ease of use.
OVERVIEW:
Basic OS:
|
Custom Android 7.1 |
CPUs:
|
Hexacore CPU Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
GPUs:
|
Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11 |
Memory:
|
LPDDR3 4GB |
Max power:
|
250W (THD 1%) |
Input Sensitivity:
|
2V |
Damping Factor:
|
> 190V rms (@ 1kHz) |
Input Impedance:
|
100kohm |
Frequency Response:
|
10Hz – 90kHz (Speaker Outputs) |
Channel Balance:
|
0.021dB |
S/N Ratio:
|
105dB (@ 250W Speaker Output) |
Network Connectivity:
|
Ethernet 10/100/1000BASE-T Wi-Fi (802.11ac Dualband – via dongle) |
Bluetooth:
|
Bluetooth supported (v4.2) |
Streaming Service:
|
Bluetooth Airplays DLNA extension Roon Ready Spotify Connect |
Music Services:
|
Qobuz TIDAL ROSE Tube, ROSE Podcasts, Internet Radio |
Audio Inputs:
|
Line Input x 1 Optical In x 1 COAX x 1 USB Audio In x 1 HDMI eARC x 1 |
Audio Outputs:
|
Analogue Out (Unbalanced RCA) x 1 Optical Out x 1 COAX x 1 |
Video Outputs:
|
HDMI 2.0 x 1 (up to 3840 x 2160 / 60Hz) |
Media Connection:
|
USB 3.0 x 2 (File system-NTFS/exFAT/FAT32, support up to 10TB) SATA SSD x 1 (File System-NTFS/exFAT/FAT32, support up to 4TB) |
Network Support Protocol:
|
SMBv1 / FTP / WebDAV |
Supported Audio Codecs:
|
MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC PCM: 8kHz - 768kHz (8 / 16 / 24 / 32bit sample rate) |
Native DSDs:
|
DSD64 (2.8MHz) - DSD512 (22.4MHz) |
Supported Video Codecs:
|
ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps |
Display:
|
12.6-inch TFT LCD & Capacitive Touch Screen (eDP) |
Size:
|
346x328x127mm |
Weight:
|
8.1kg |
Accessories:
|
Power Cord x 1, Bluetooth Remote Controller x 1, Wi-Fi / Bluetooth Dongle x 1, Manual x 1, SSD Screw x 4 |
Technical Specifications of the Amplification Stage
Output Power:
|
250W + 250W@ 8? , 4? |
Sensitivity (Line in)
|
2Vrms |
Sensitivity (Pre Out):
|
2Vrms |
Power Bandwith (-3Db):
|
10Hz~85Khz, 8? , 200W |
THD+N (Pre Out)
|
0.00033%, 1kHz, 600?, 2Vrms |
THD+N (Speaker)
|
0.007%, 1kHz, 8?,150W |
Damping Factor (1kHz):
|
150 |
Input Impedance:
|
100K? |
Output Impedance:
|
50m? |
Frequency Response (+1/-3dB):
|
10Hz ~ 83kHz |
Signal-to-Noise Ratio (Pre Out):
|
124dB, 1kHz, 8?, 2Vrms |
Signal-to-Noise Ratio (Speaker):
|
109dB, 1lHz, 600?, 2Vrms |
FLAC
|
Yes |
DSD extension
|
Yes |
Native app
|
Yes |
Hi-Res HD Audio
|
Yes |
Qobuz
|
Yes |
MQA extension
|
Yes |
