Invisible 10" in-wall subwoofer from the Invisible Series

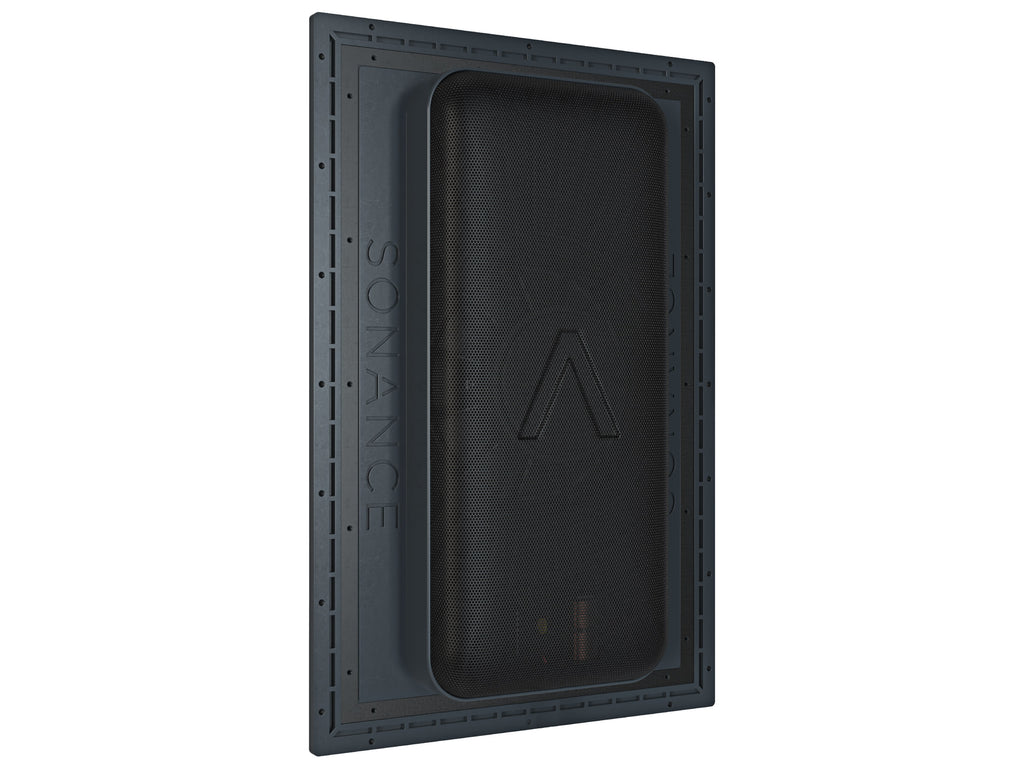

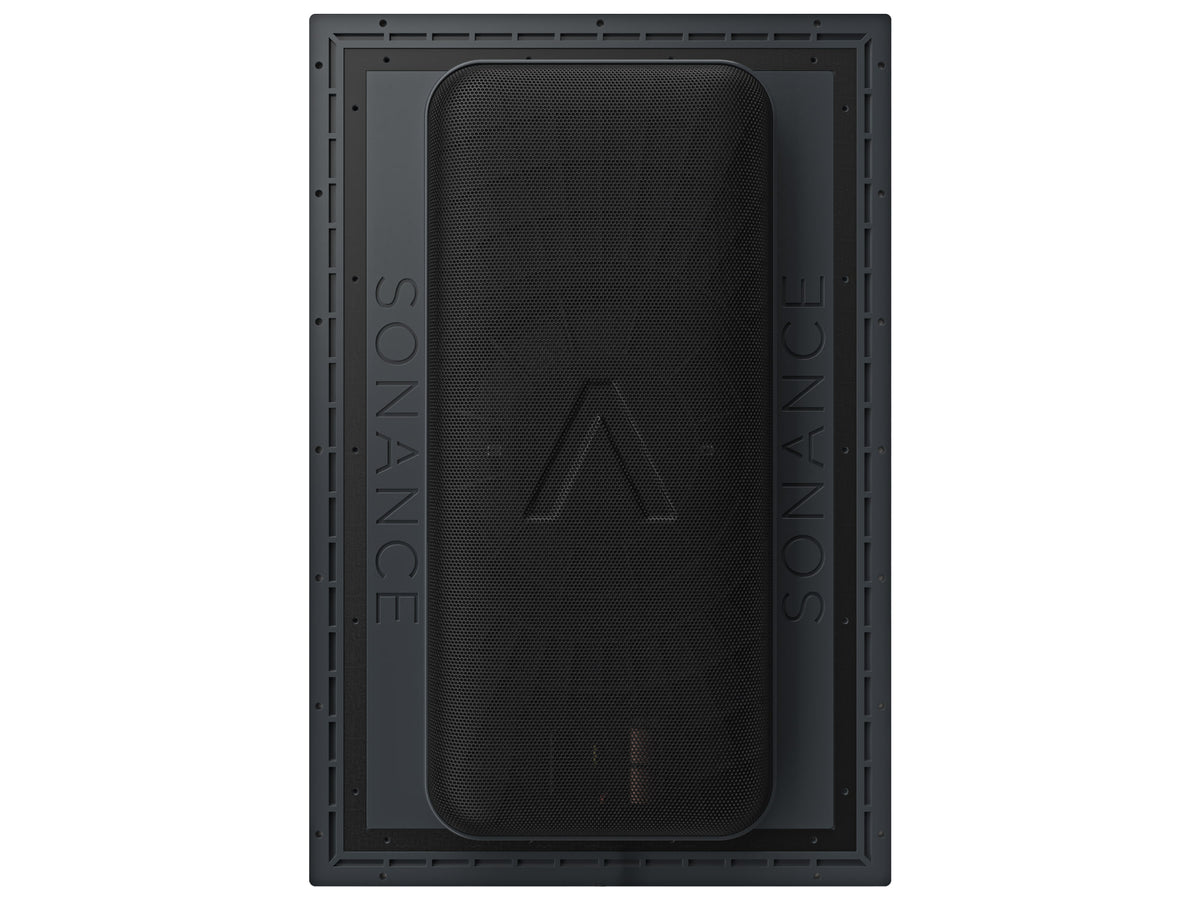

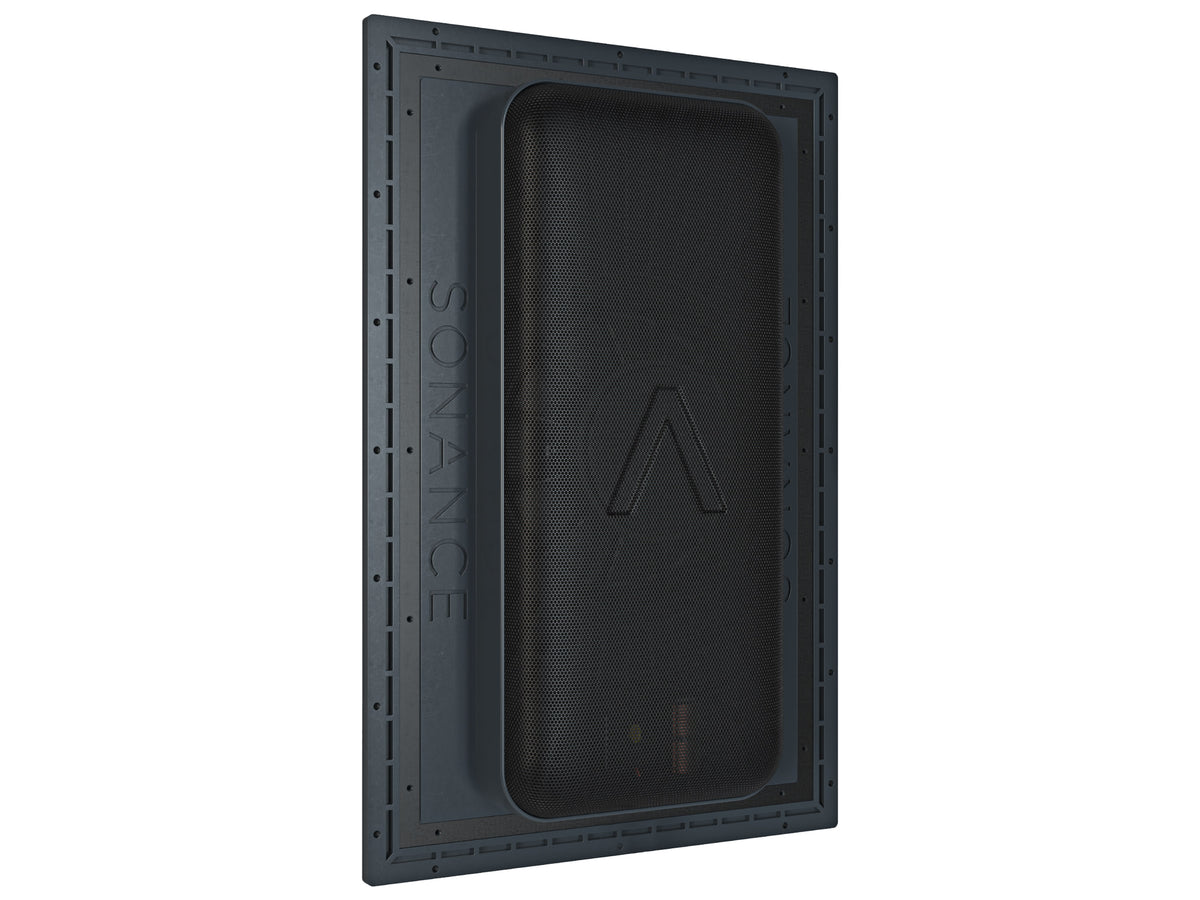

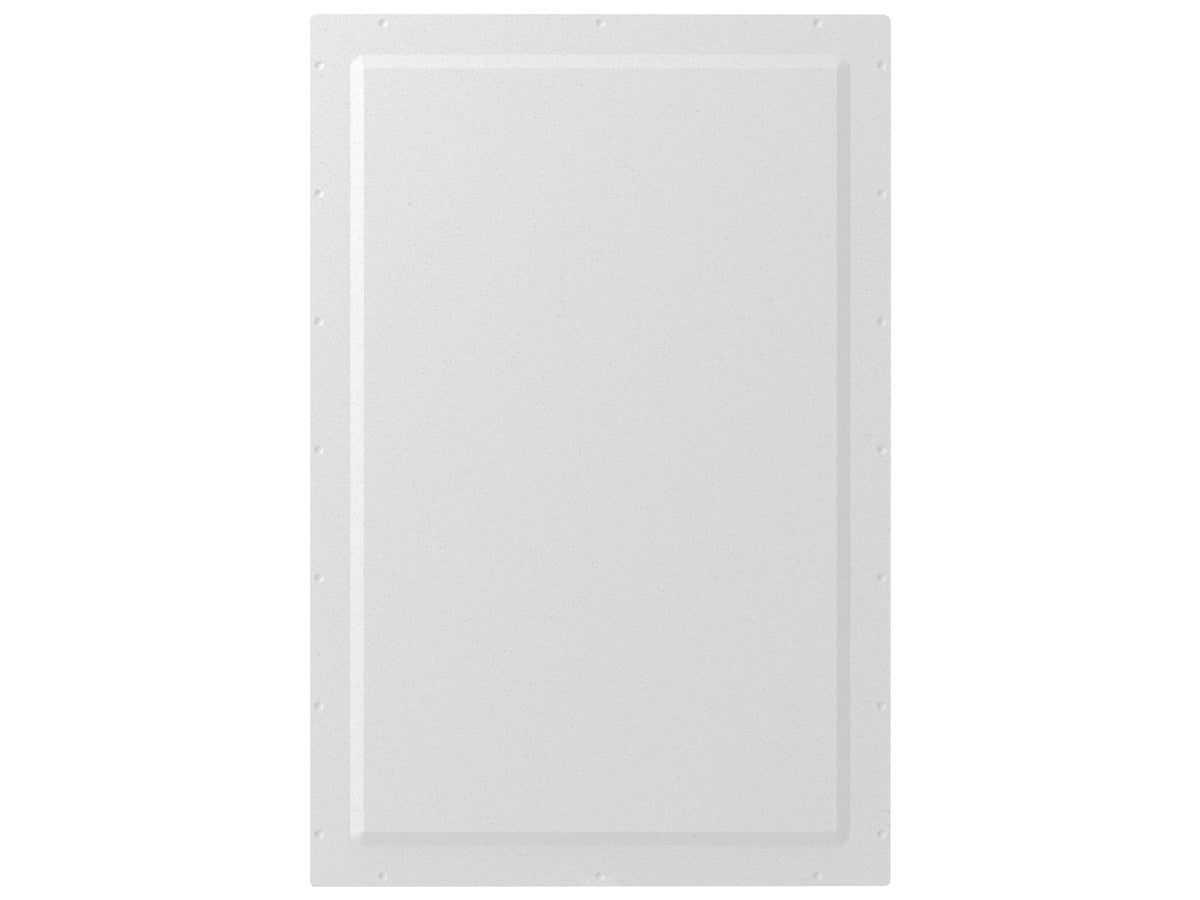

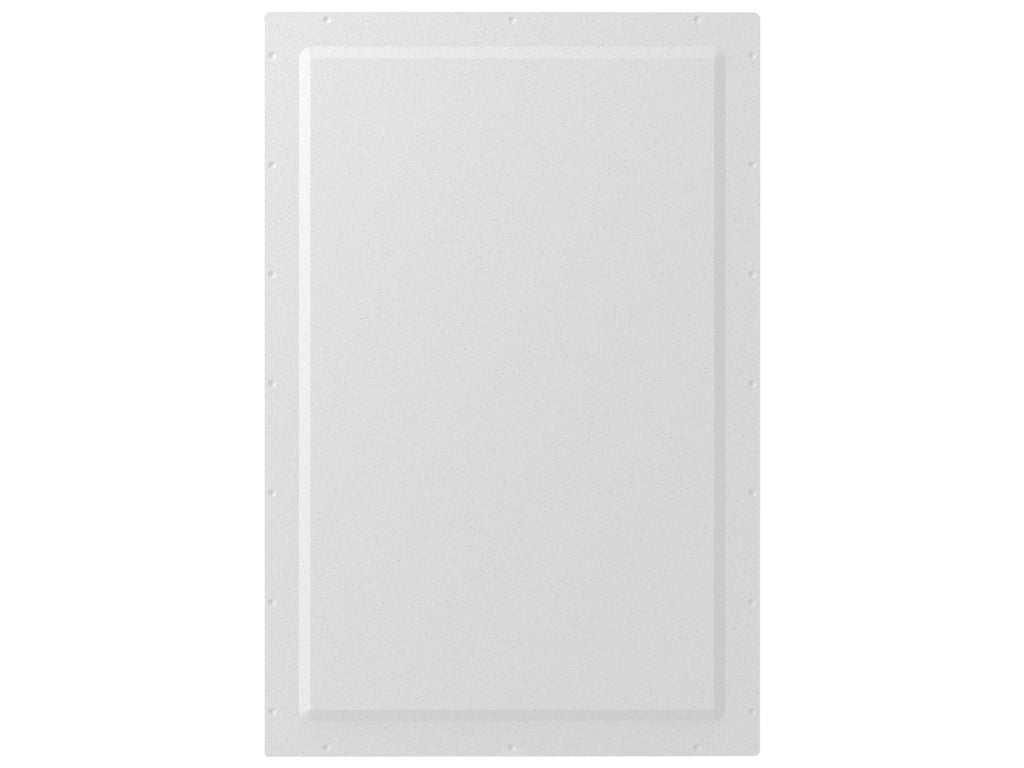

Sonance IS10W is the passive in-wall subwoofer of the Invisible Series: it mounts in the drywall, gets skimmed and painted like the surface and delivers deep bass with no grille in sight. 10" glass fibre woofer, in a narrow panel that fits studs spaced 16" (406 mm) apart. Sold singly.
It works with the Motion Flex technology of the Air Flex Woofer: a 1,573 cm² air-pulse membrane, acoustically isolated from the frame, is driven by the woofer and moves air like a piston. It pairs with the speakers of the series to round off the low end of an invisible system.
Key features
- Frequency response from 35 to 250 Hz (+/- 3 dB)
- Power handling 200 W RMS
- Sensitivity 87 dB (2.83 V at 1 m)
- 180° hemispherical dispersion up to 250 Hz
- Finish layer of up to 3 mm over the membrane
- DISC system to measure the finish thickness
Installation
The panel measures 409 x 613 x 80 mm (width by height by depth) and needs 68 mm of mounting depth. Besides drywall it can be covered with wallpaper, leather, wood veneer and some types of plaster. As options Sonance offers the IS-ENCL M acoustic enclosure and the medium-size Space Saver spacers.
Unit of sale
The unit of sale is the single subwoofer.
