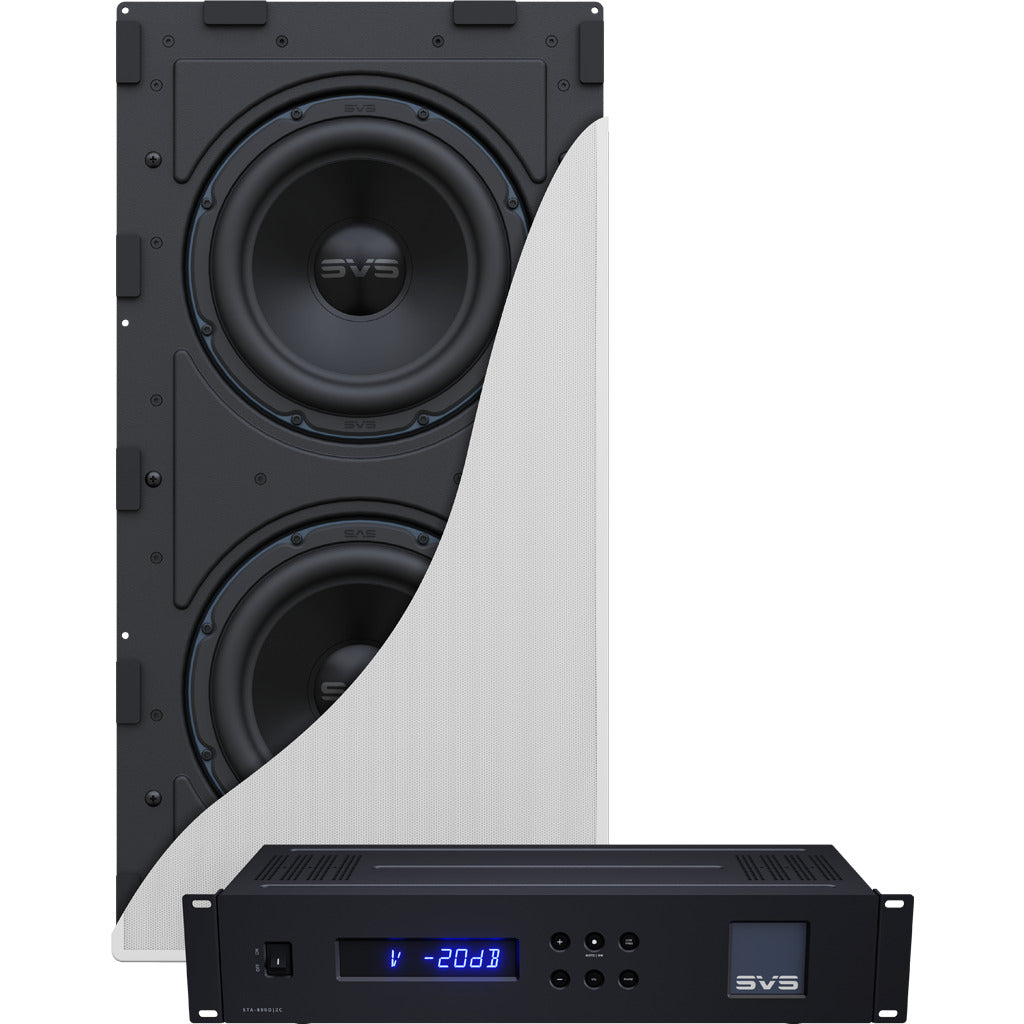

SVS 3000 In-Wall Single: in-wall subwoofer with an external 800 W amplifier

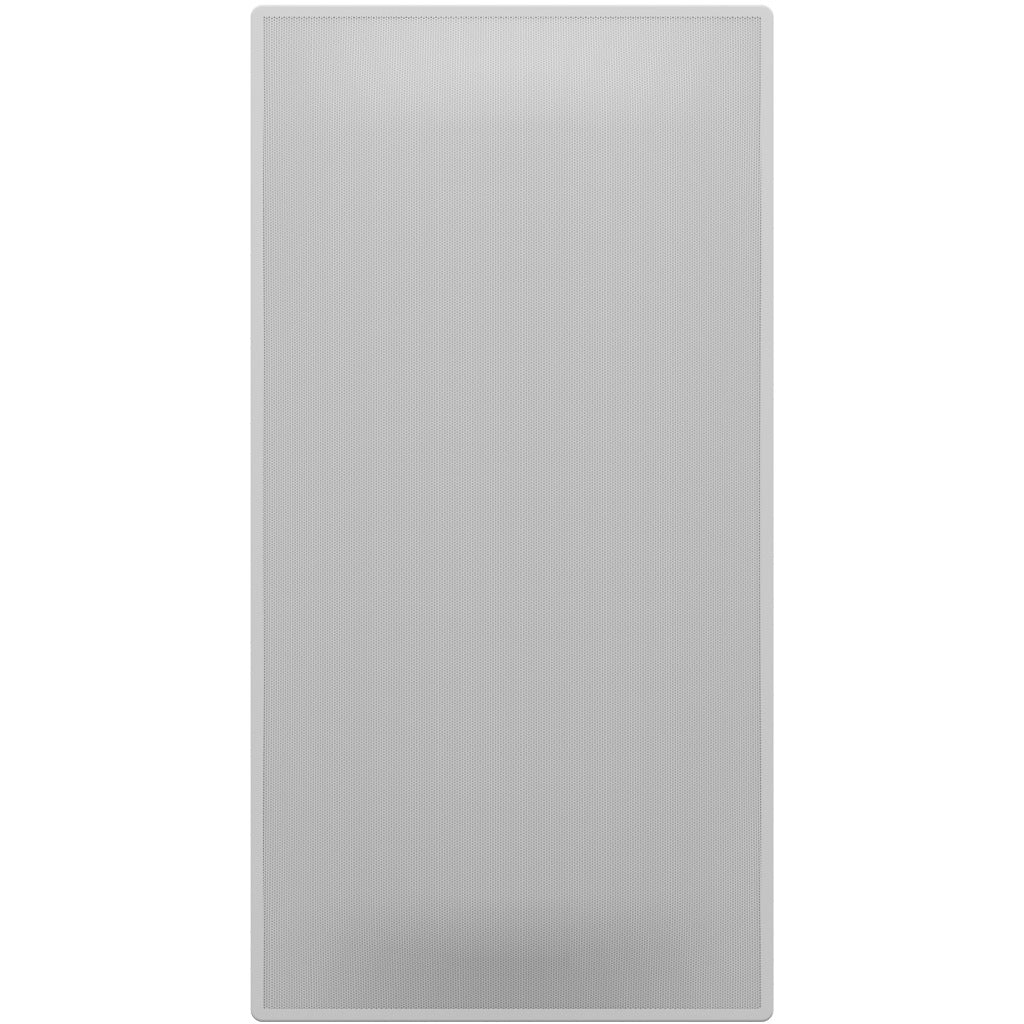

The 3000 In-Wall is the SVS in-wall subwoofer: a slim sealed module that mounts inside the wall, between the studs, paired with an external amplifier. In the Single system the amplifier drives one module; SVS also provides a Dual configuration with two modules. The module has two active high-excursion drivers of 9 inches with aluminum cones, wired in parallel, and a paintable magnetic grille.

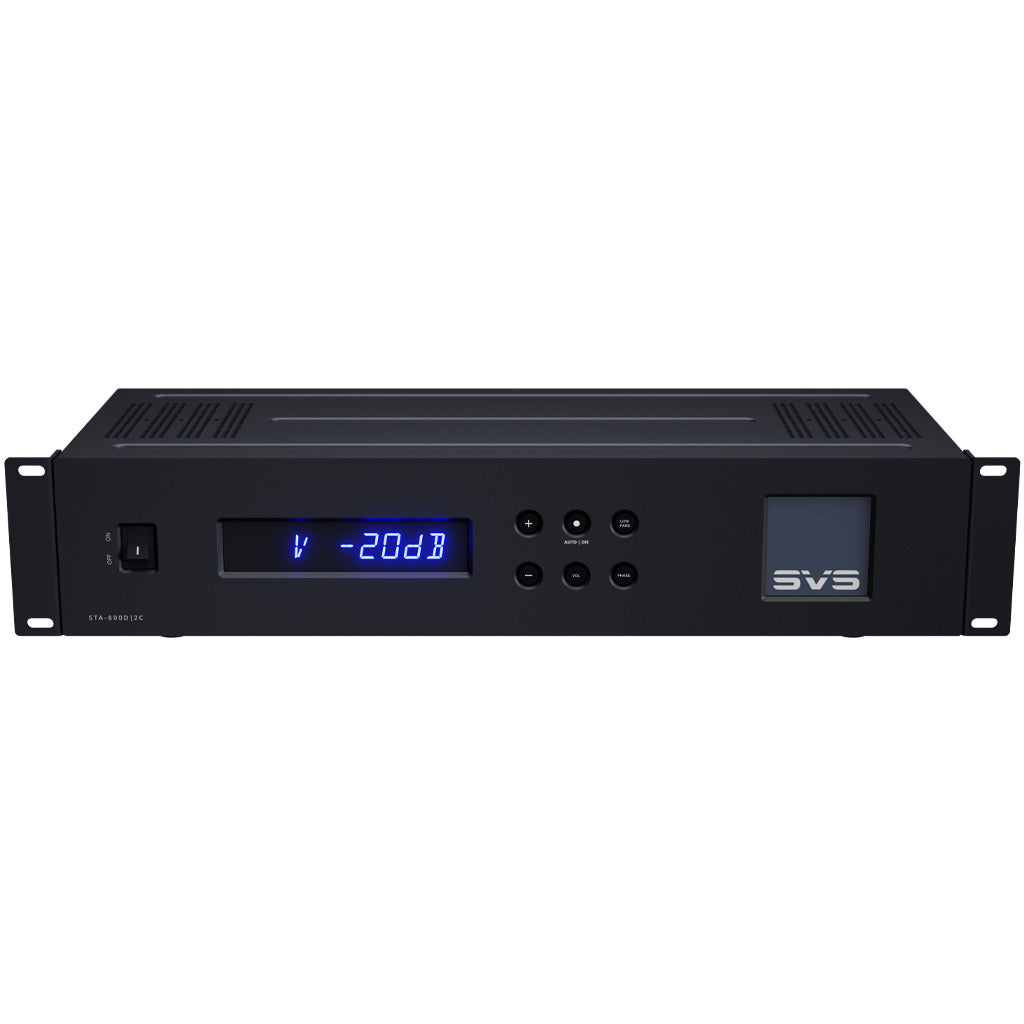

The Sledge STA-800D2C amplifier is 2 rack units high. It includes an Analog Devices DSP running at 50 MHz and is adjusted from the front panel or, over Bluetooth, from the SVS app: low-pass, phase, polarity, room gain, a three-band parametric equalizer and three memories. The module is fixed with clamping tabs or with screws directly into the studs, at the standard spacing of 406 mm (16 inches).
Technical features
- Drivers: two active 9-inch units, front-firing, in a sealed enclosure
- External amplifier: 800 W RMS, more than 2500 W peak, Class D, 2U format
- Frequency response: 22-250 Hz +/-3 dB; in-room extension: 19 Hz

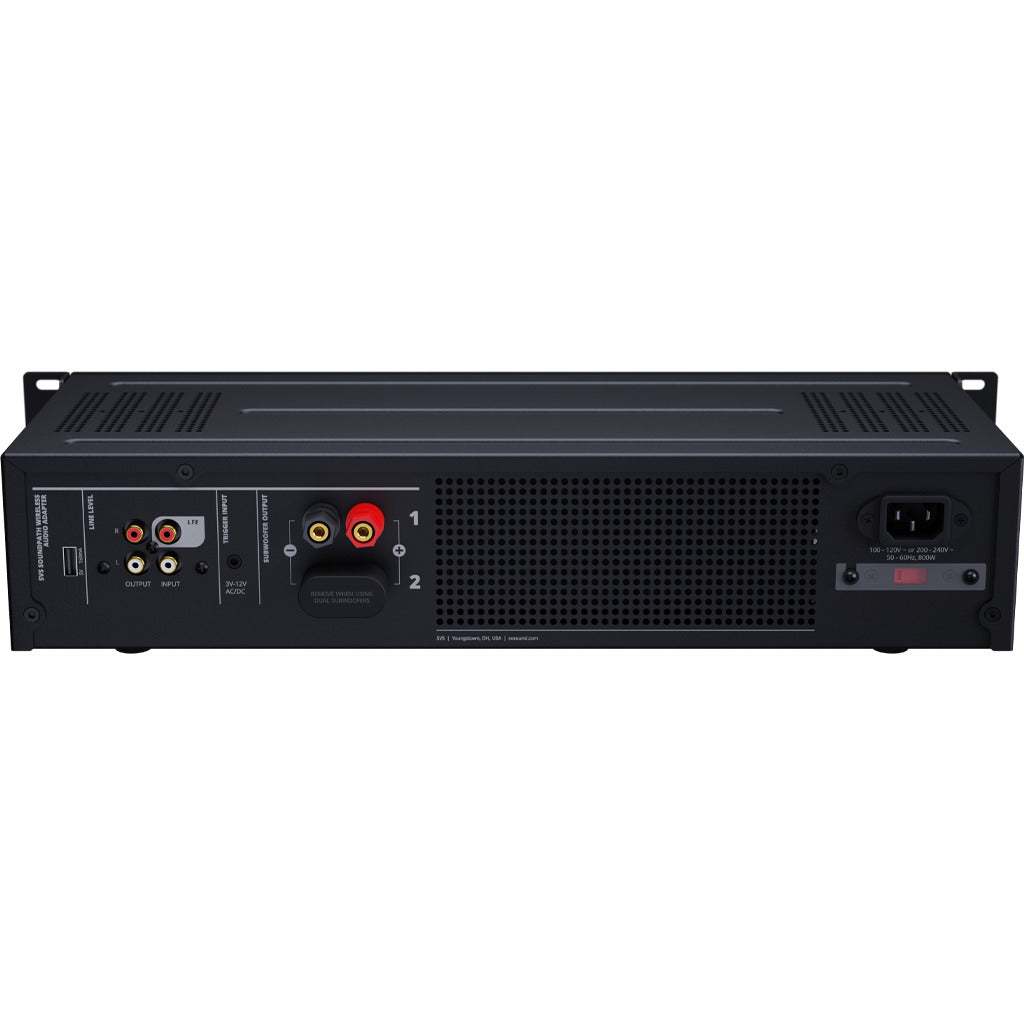

- Amplifier: stereo RCA input and output, input impedance 16 kOhm, 3-12 V trigger
- In-wall cabinet: height 635 mm, width 305 mm, depth 95 mm (25 x 12 x 3.74 inches)
- Module weight: 11.6 kg with grille (25.5 lb), 10.4 kg without (23 lb)
Available versions
Sold as a single unit. Supplied with: magnetic grille, banana plugs, kit for rack-mounting the amplifier and power cord.
