SVS PB-5000 R|Evolution: the 15-inch ported subwoofer with a 2000 W amplifier
The PB-5000 R|Evolution is a powered subwoofer in a ported enclosure from the SVS 5000 R|Evolution series, for home theater and music. It uses a 15-inch high-excursion driver, front-firing, with a glass fiber composite cone and a dual voice coil wound in flat aluminum wire. It is driven by the STA-2000D Class D amplifier in a dual-monoblock layout: each monoblock feeds one of the two coils.

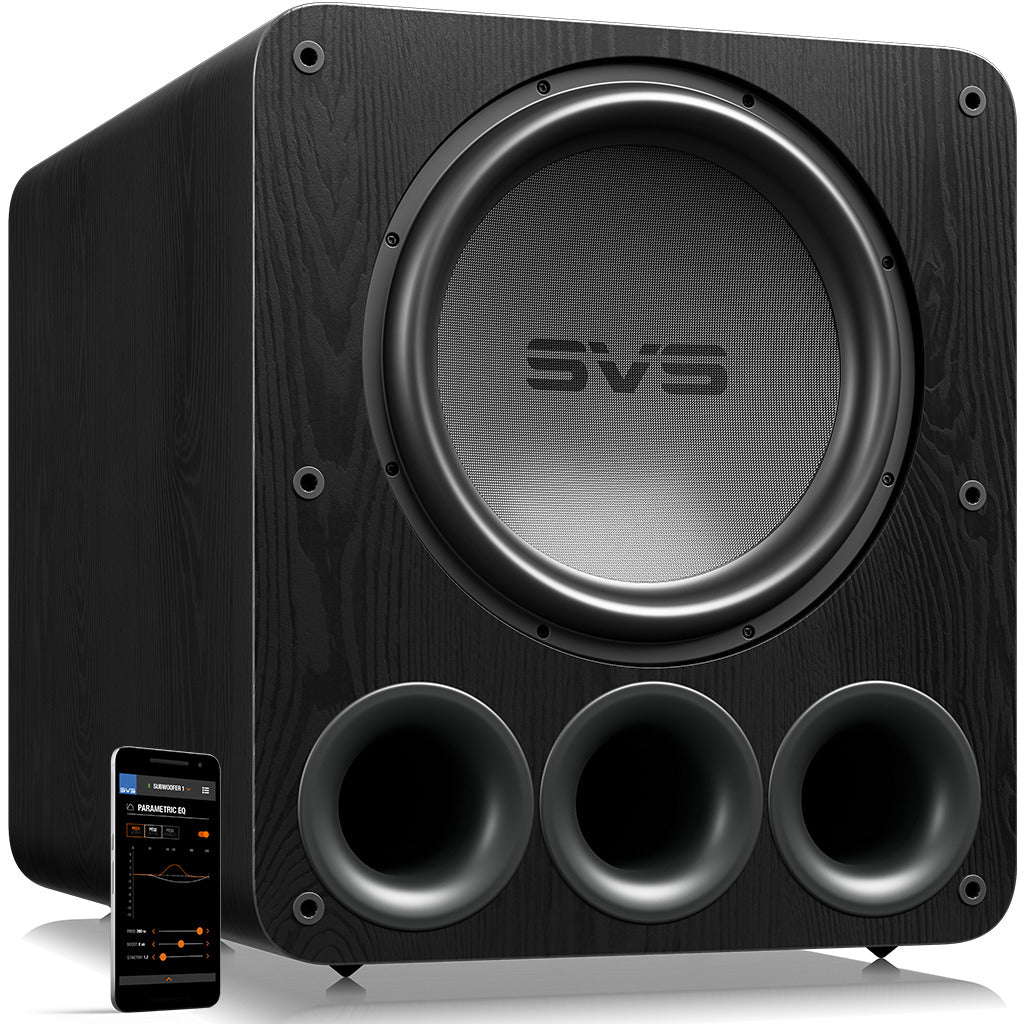

The MDF cabinet, with a double-thickness front baffle, has three ports. The three foam plugs supplied give a choice of three tunings: standard with every port open, extended with two ports open, sealed with every port plugged. A 295 MHz Analog Devices DSP manages the whole system; adjustments, including the SVS Auto EQ room correction, are made from the SVS app over Bluetooth or from the rear panel with its OLED display.
Technical features
- Driver: 15-inch, front-firing, dual 3-inch voice coil
- Amplifier: 2000 W RMS, more than 5000 W peak, Class D
- Frequency response (+/-3 dB): 15-180 Hz in standard mode, 13-180 Hz in extended mode, 16-270 Hz in sealed mode
- Loading: three ports of 89 mm (3.5 inches)
- Inputs: unbalanced RCA at 10 kOhm, balanced XLR at 14 kOhm, 3-12 V trigger and IR on 3.5 mm sockets
- Dimensions with grille: 595 x 520 x 727 mm, height x width x depth (23.4 x 20.5 x 28.7 inches)
- Weight with grille, unboxed: 69.8 kg (153.9 lb)
Available versions
Sold as a single unit, in Black Ash finish.
