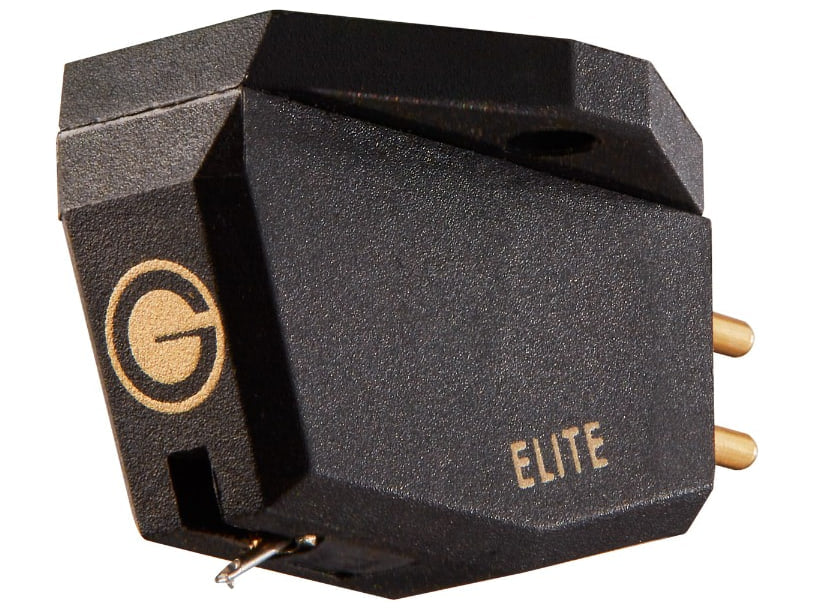

Goldring Elite
The Elite is a very high performance moving coil cartridge incorporating all of Goldring's oldest design features. These include advanced magnetic circuits with a neodymium magnet and an ultra-rigid Pocan® body.
The Elite incorporates a Gyger S nude line-contact diamond stylus, which ensures maximum readout of groove information and an extraordinarily smooth and extended frequency response. The Swedish Iron Armature is hand wound with pure silver wire which provides much higher definition than found in standard record head construction.
OVERVIEW:
Frequency response |
20Hz - 30kHz ±2dB |
Sensitivity
|
0.5mV ±1dB, 1kHz |
Static compliance |
18mm/No |
Equivalent mass of the tip |
0.35 mg |
Vertical tracking angle |
20th |
Stylus radius |
Gyger S |
Load resistance |
100 ohms
|
Load capacity |
100 - 500pF |
Internal inductance |
2uH |
Internal resistance |
8Ω |
Cartridge mass |
5.7g |
Head mass (including fixings) |
6.6g |
Fixing center |
0.5" (12.7mm) |
Recommended weight |
1.5 - 2.0 g (1.7 g nom) |
