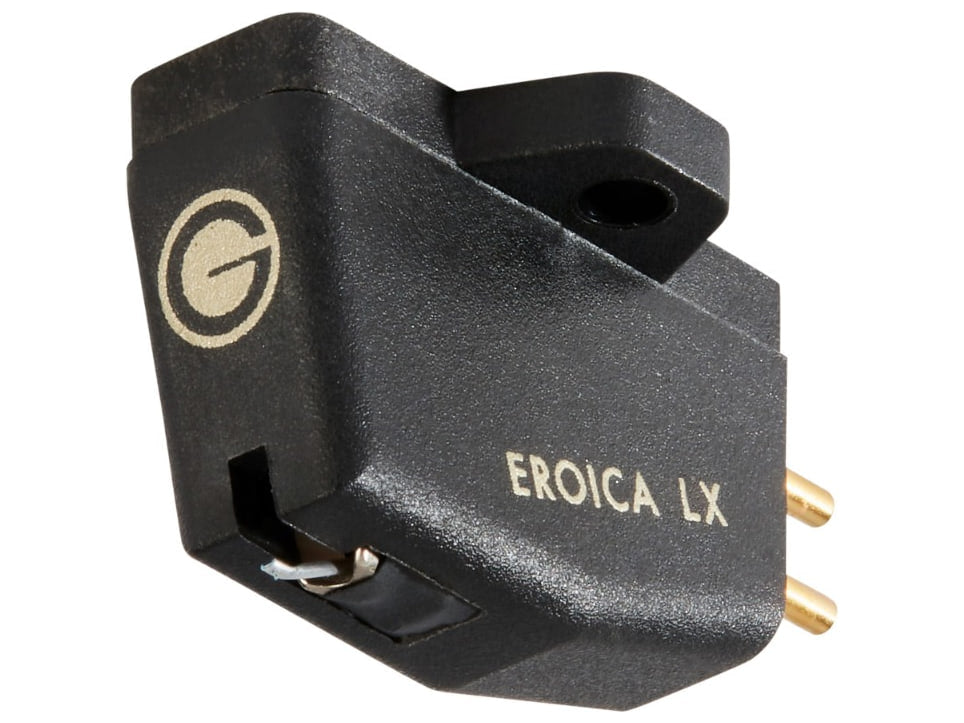

Goldring Eroica LX
The Eroica LX is a true Hi-End moving coil cartridge designed for use with a moving magnet phono input. It features the famous Gyger II diamond stylus profile, a thin elliptical type with a lower radius of 6 μm, which offers smooth and extended highs, low distortion and reproduces a highly detailed and dynamic sound.
To make the most of this, the pickup coils are hand wound onto a pure iron armature and suspended in an advanced magnetic circuit design , featuring magnets. The high output Eroica LX offers an exceptional standard of performance and reliability and can be used with any amplifier equipped with a standard 47k phono input .
OVERVIEW:
Frequency response |
20Hz - 30kHz ±2dB
|
Sensitivity |
0.5mV ±1dB, 1kHz 5mm/s |
Static compliance |
25mm/No |
Equivalent mass of the tip |
0.35 mg |
Vertical tracking angle |
24th |
Stylus radius |
Gyger II |
Load resistance |
100 ohms
|
Load capacity |
100 - 1000pF |
Internal inductance |
12uH |
Internal resistance |
8Ω |
Cartridge mass |
5.5g |
Head mass (including fixings) |
6.6g |
Fixing center |
0.5" (12.7mm) |
Recommended weight |
1.5 - 2.0 g (1.7 g nom) |
