Torus Power TOT Mini CE: power conditioner with a toroidal isolation transformer
The TOT Mini CE is a compact model in Torus Power's TOT series for continental Europe: a power conditioner that feeds the connected equipment through a toroidal isolation transformer, separating it from the mains line and filtering mains noise. It runs on 220-240 V and provides 3 Schuko outlets, with an output current of 3 A and a power rating of 680 VA.
The manufacturer recommends it for audio and video setups, projectors, flat-panel displays, active loudspeakers, media players and sources, processors and networking equipment. The chassis is 2 rack units high and this is the shelf version. A courtesy USB outlet for charging is also fitted. Circuit protection relies on a varistor that can be replaced. The options provided include an aluminium front panel, in black or silver, and an adapter kit for 19-inch racks.
Technical features
- Input and output voltage: 220-240 V AC, 50-60 Hz
- Output current: 3 A; power rating: 680 VA
- Input protection: 1 fuse rated 3 A

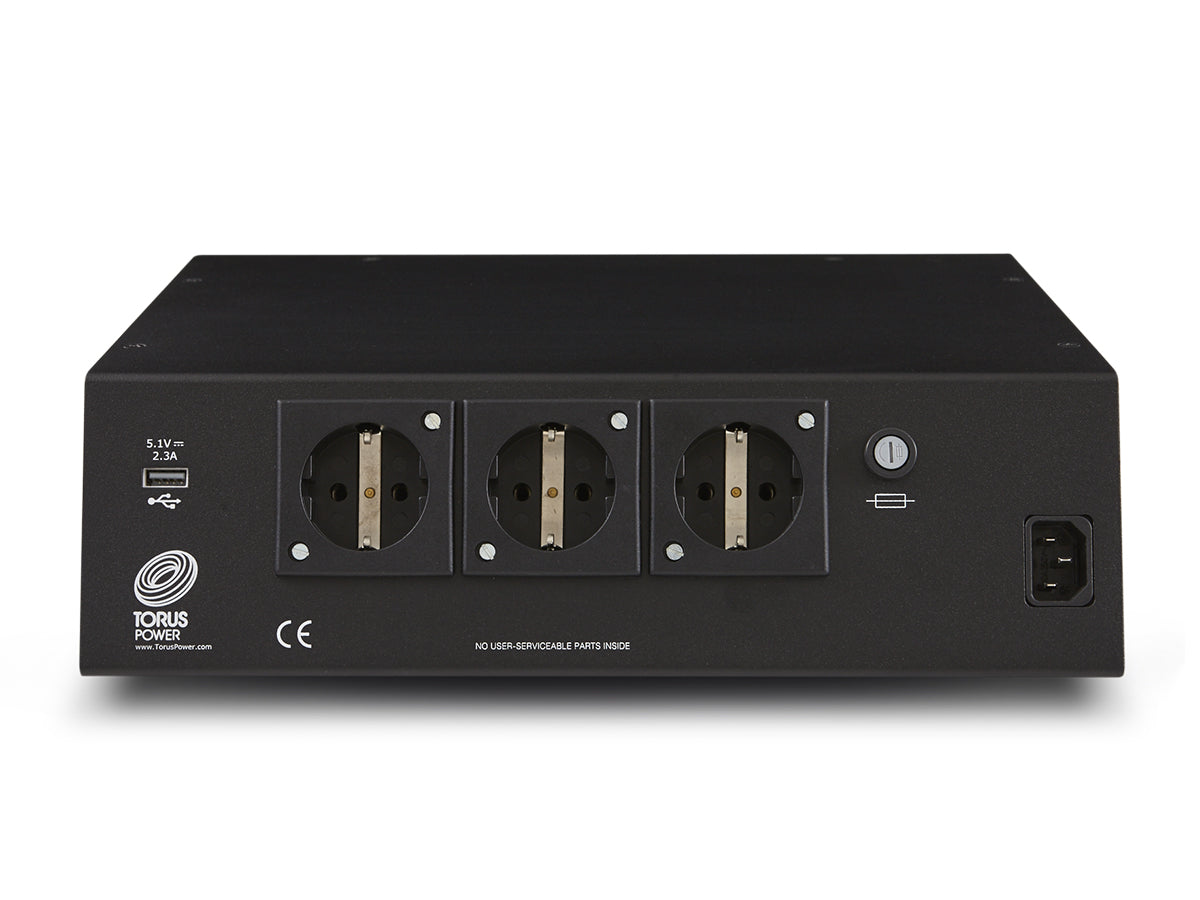

- Outputs: 3 Schuko outlets (CEE 7/7) rated 16 A / 250 V
- Mains input: IEC connector rated 15 A
- USB charging output: 5.1 V DC nominal, up to 2300 mA
- 2U chassis, shelf version: width 318 mm, height 101 mm, depth 268 mm
- Weight of the shelf version: 11.64 kg
Available versions
Sold as a single unit. This is the standard version, with circuit protection by replaceable varistor, without the SMSS protection fitted at the factory.
