Velodyne Deep Blue 15

Deep Blue 15: 15-inch sealed active subwoofer

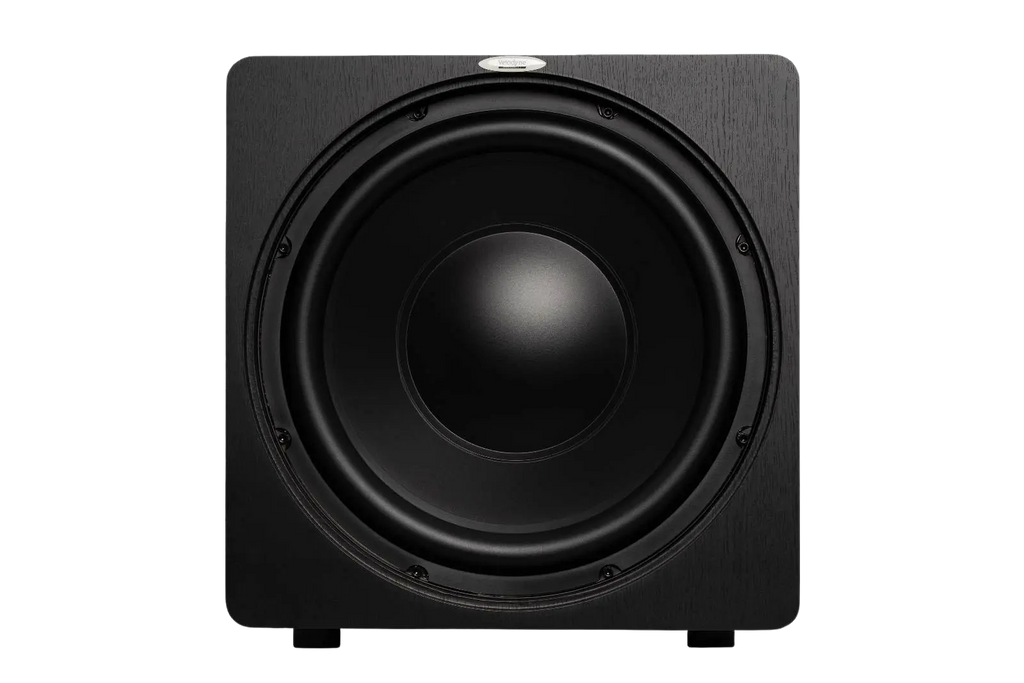

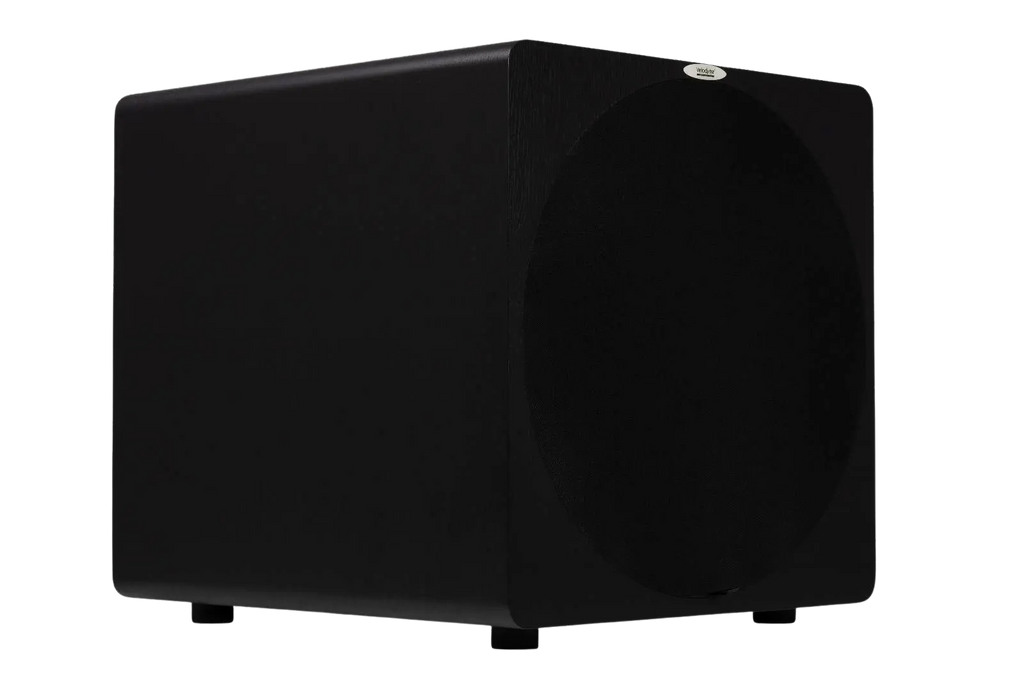

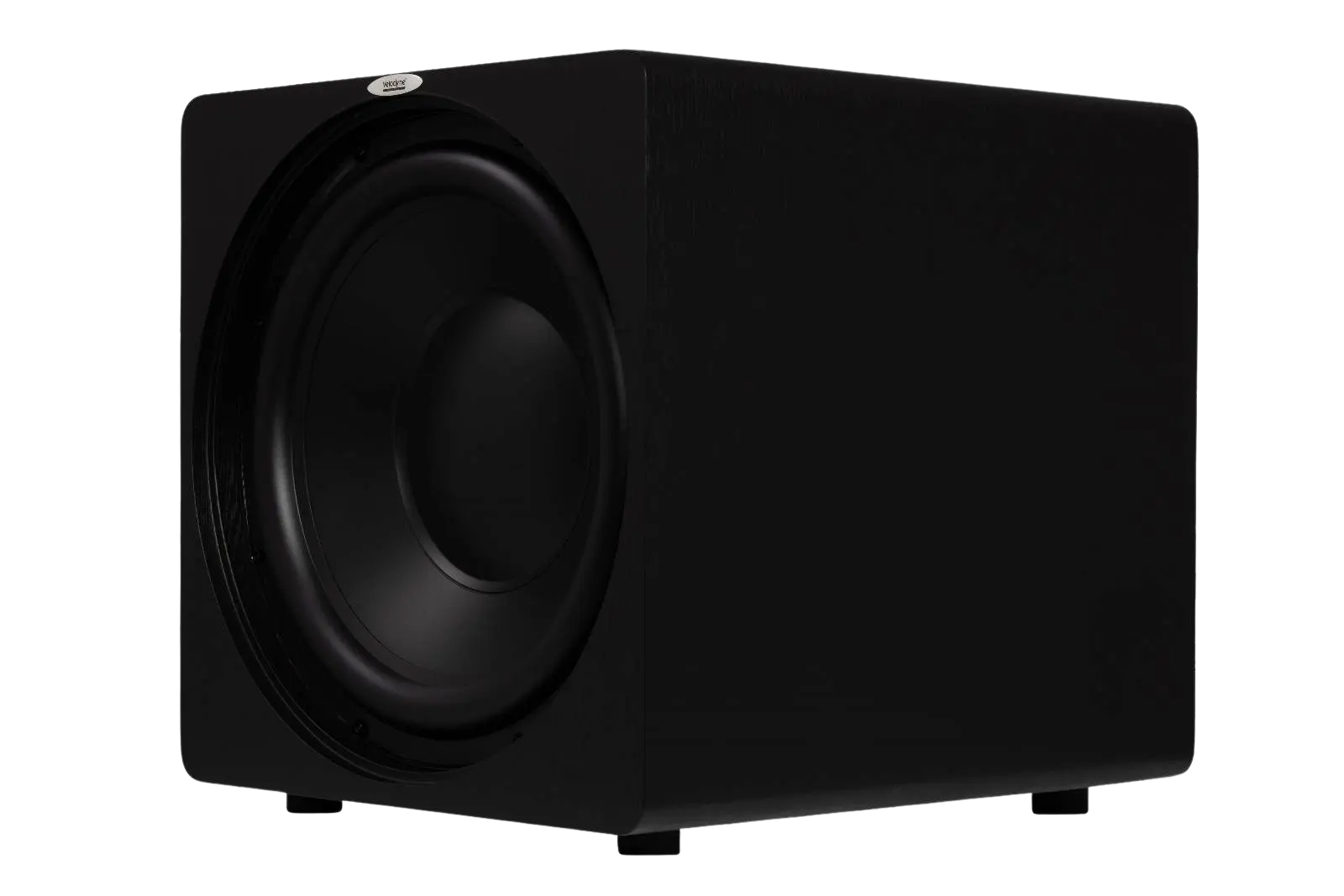

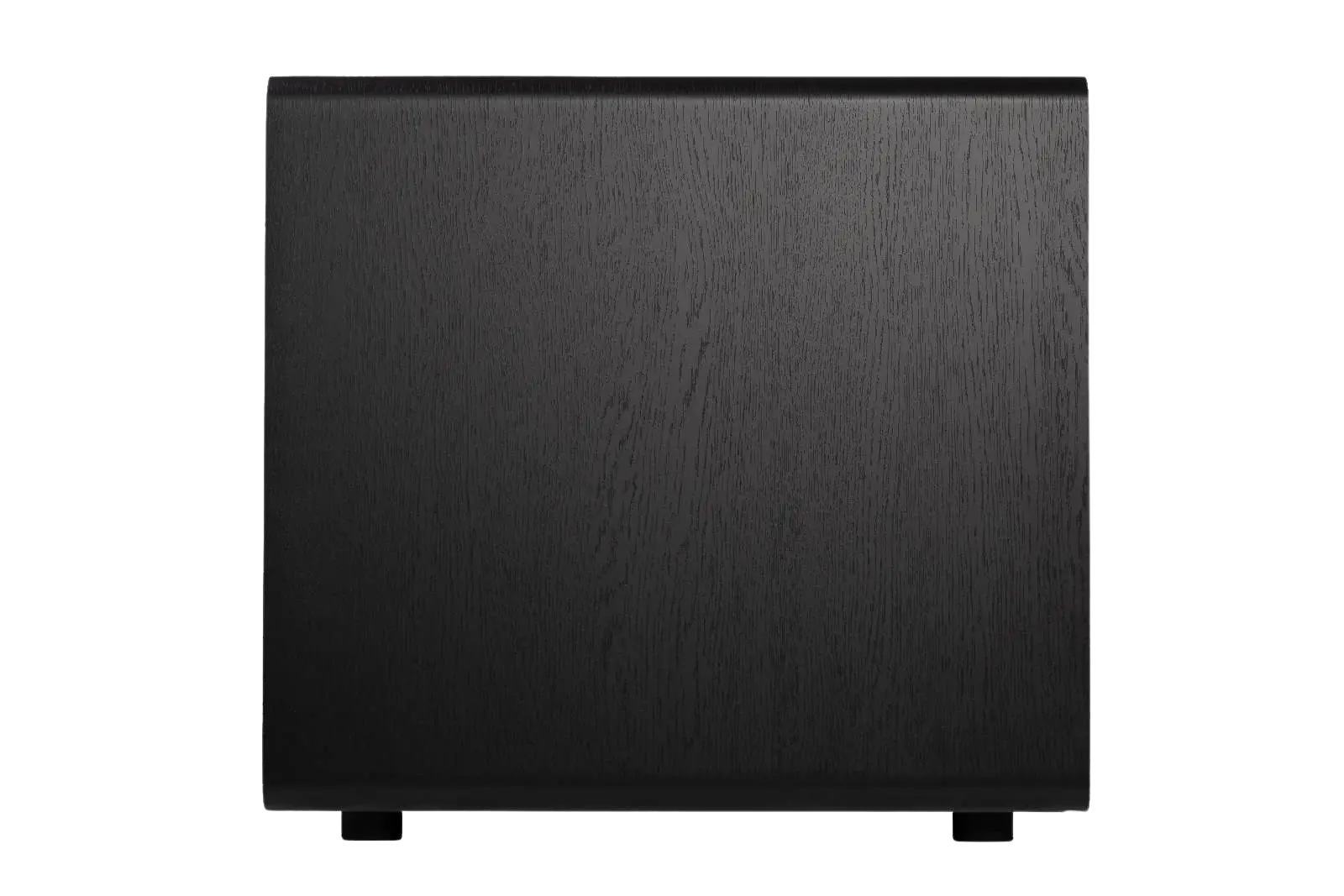

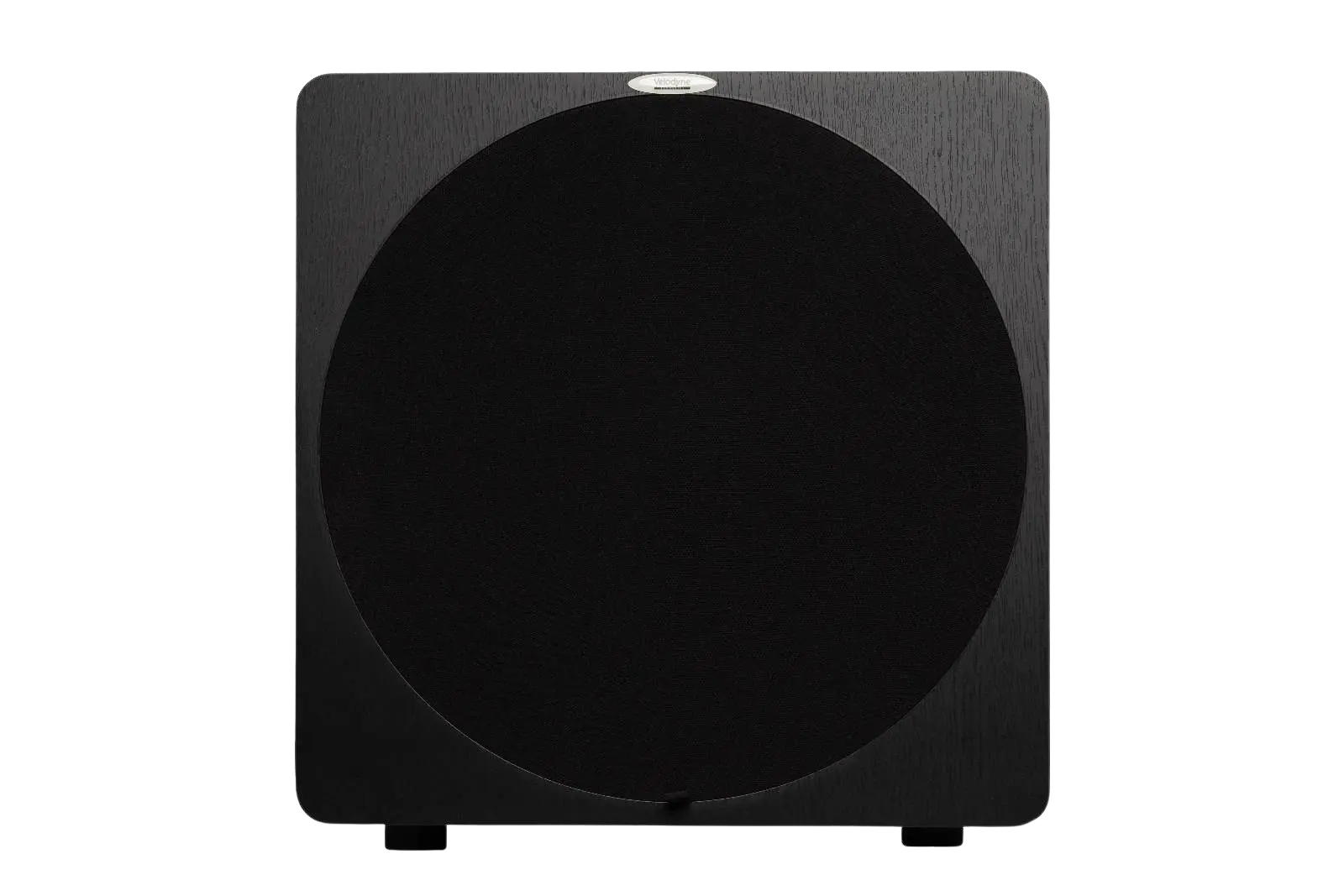

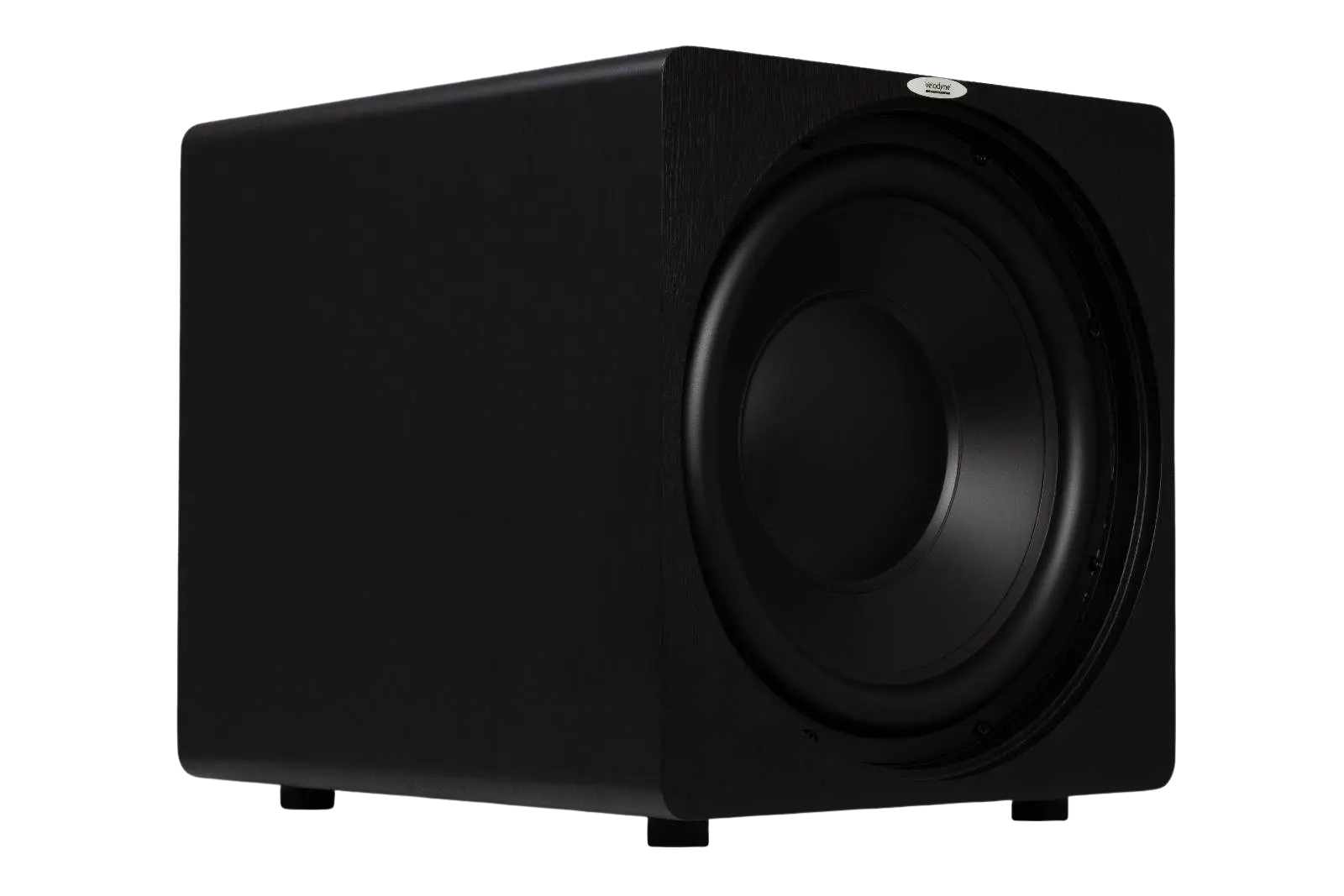

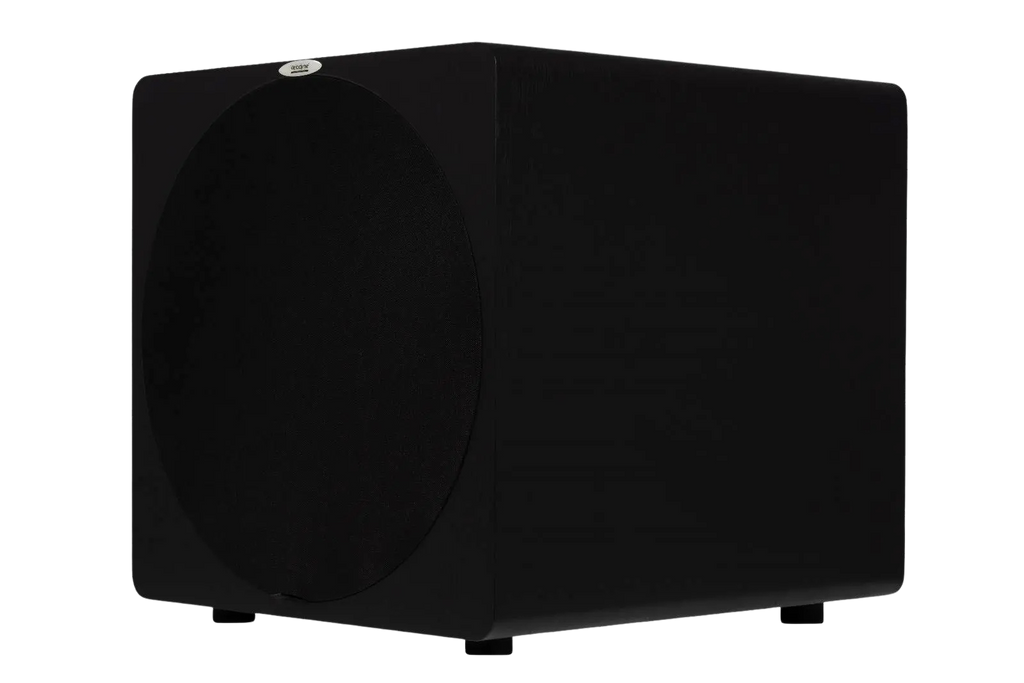

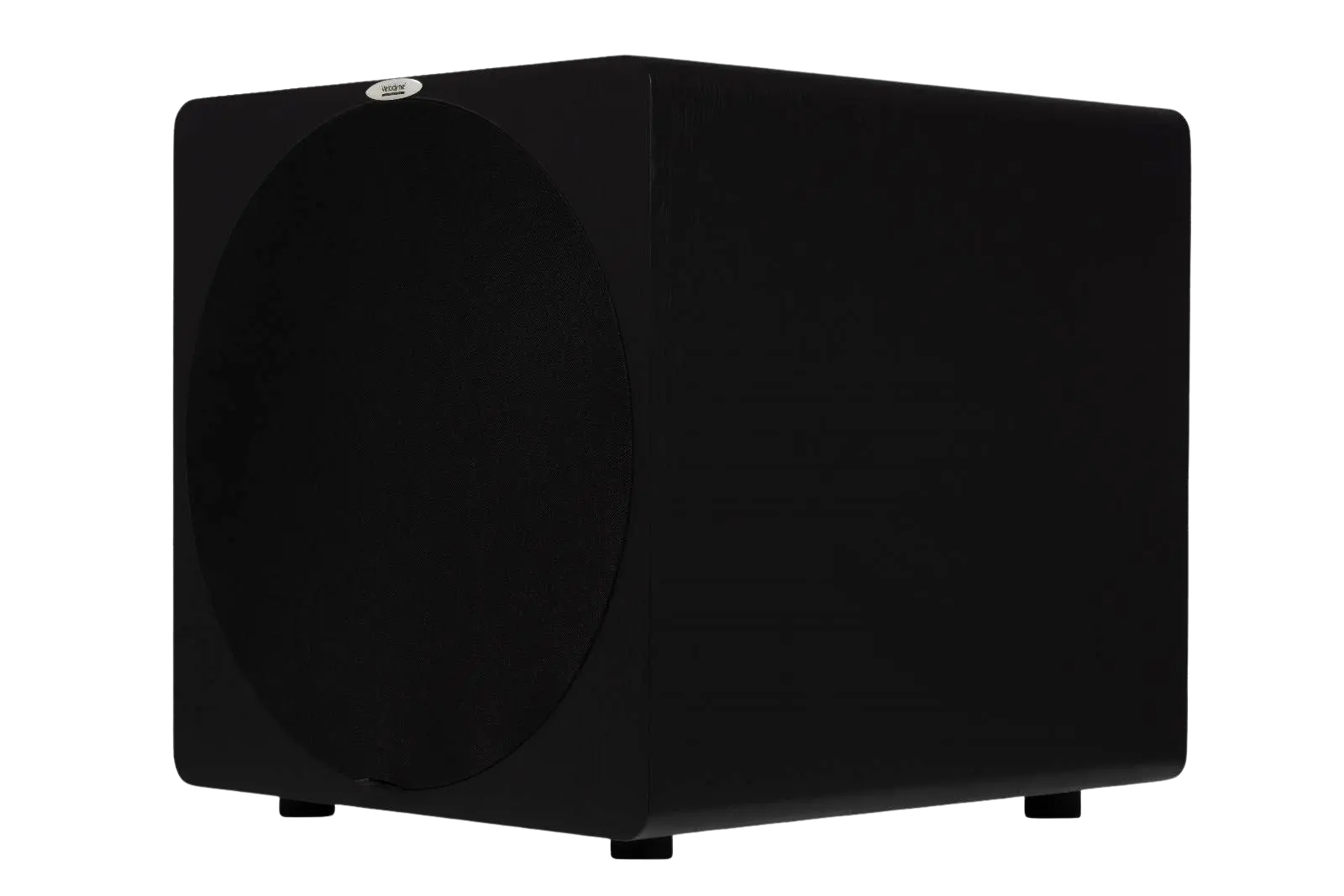

A sealed active subwoofer from the Deep Blue series, with a 15" long-excursion front-firing driver and a reinforced polypropylene cone. The cabinet is MDF, with a 52 mm thick front baffle to keep vibration and distortion down.

Amplification and connections

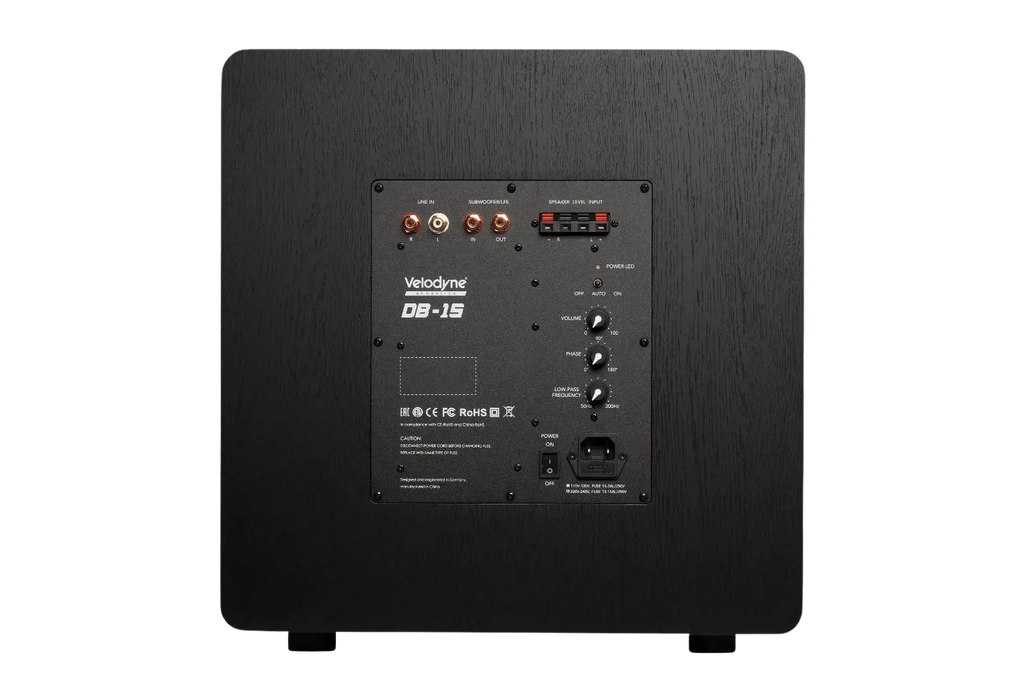

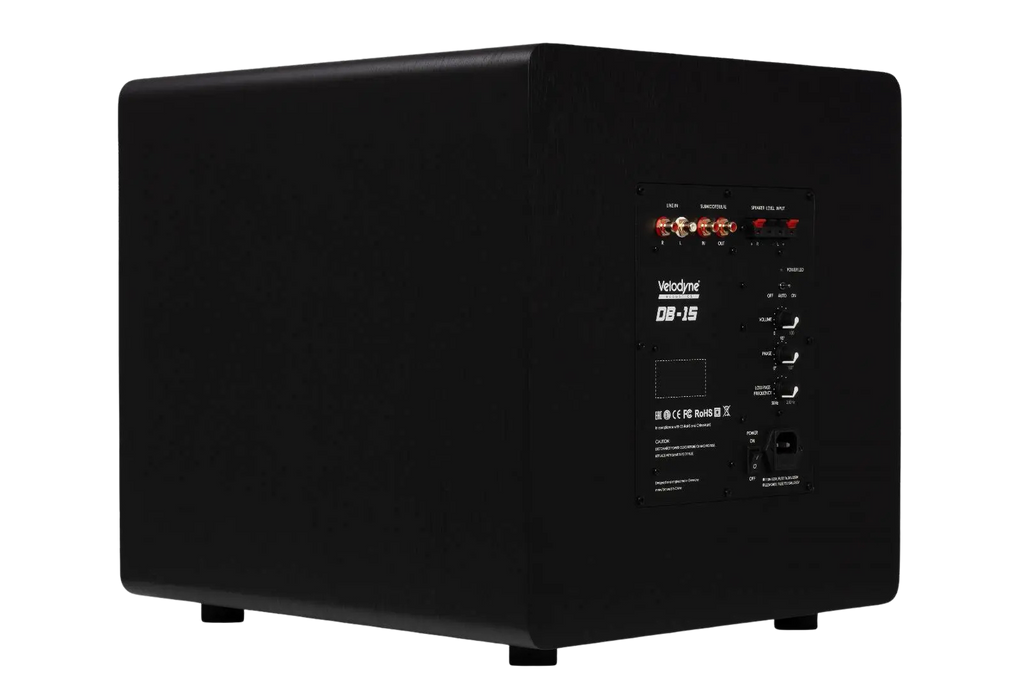

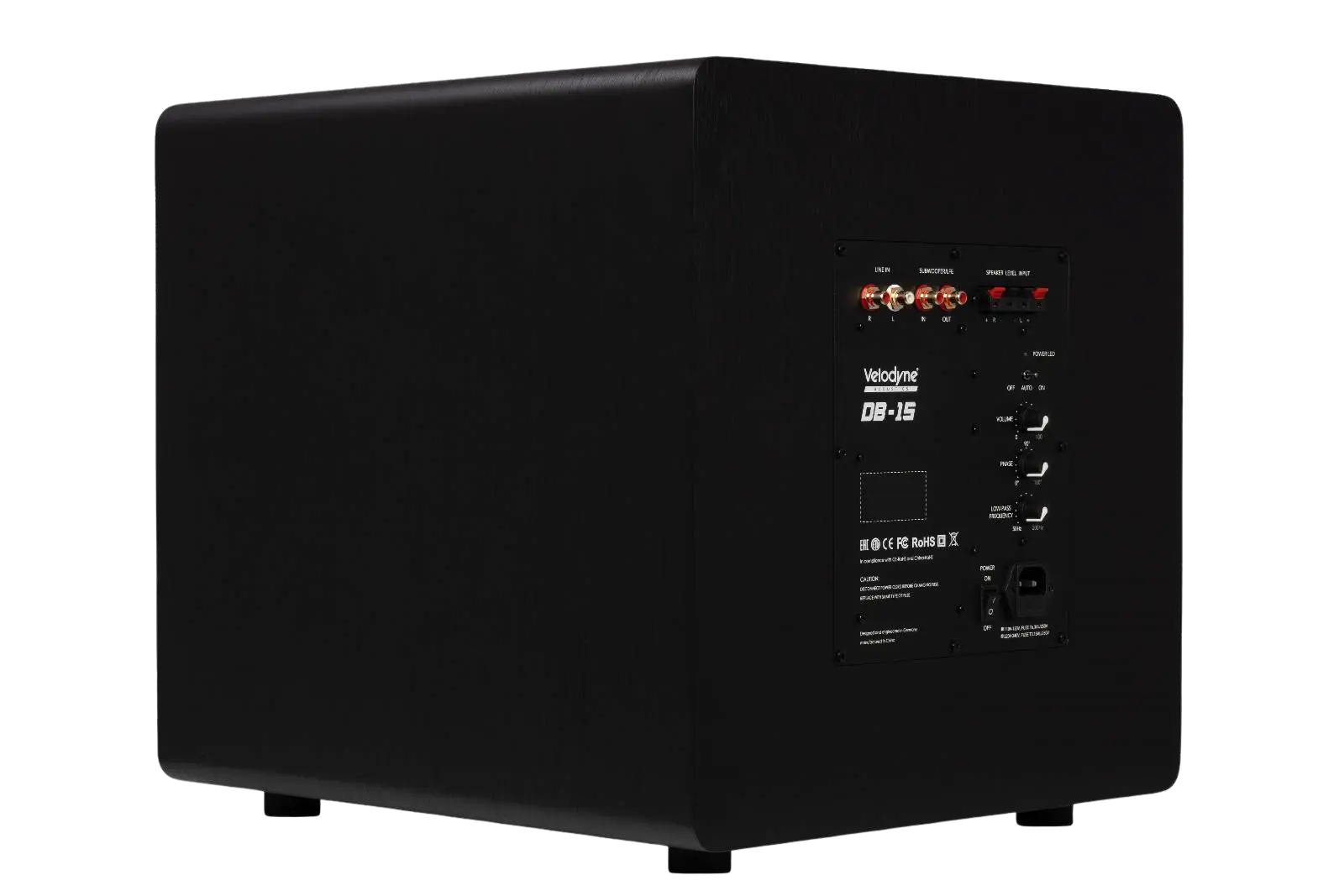

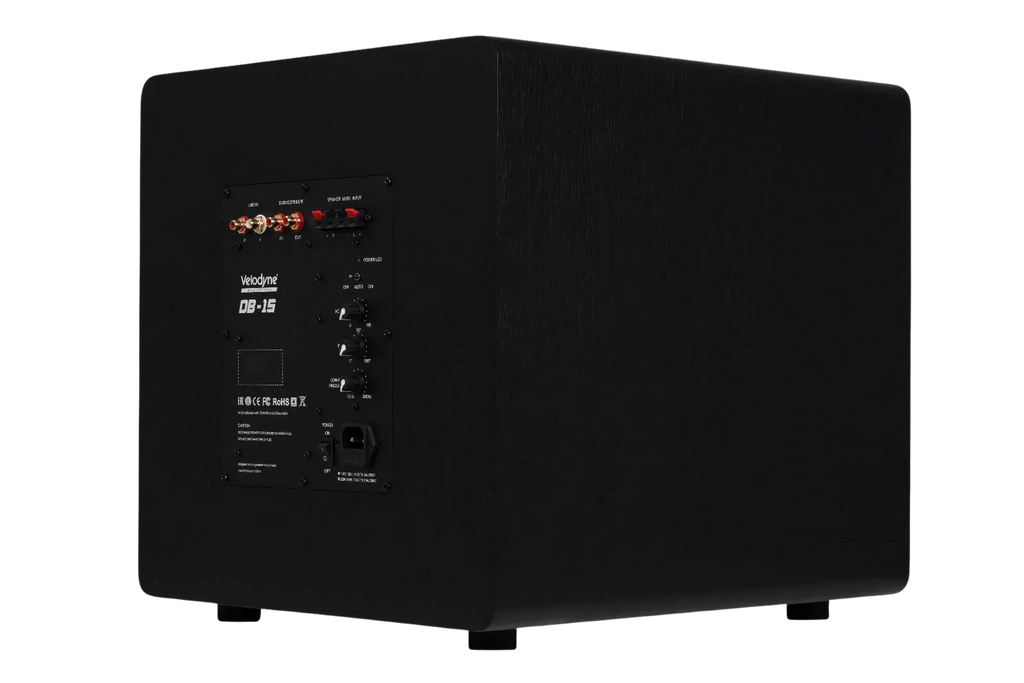

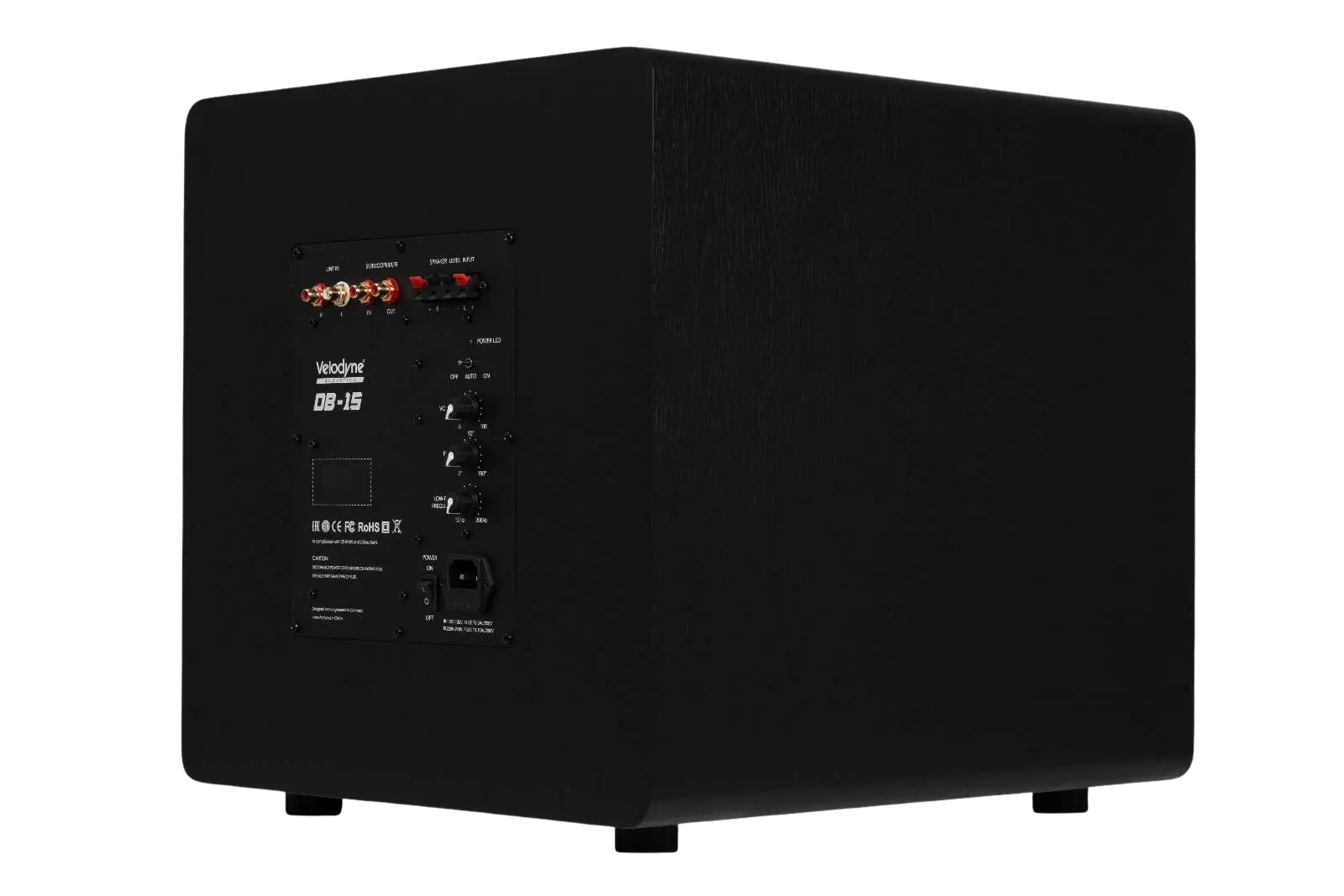

The amplifier is class AB; the four-layer voice coil works with a dual ferrite magnet. Level, crossover frequency (50 to 180 Hz) and phase (0 to 180°) can be adjusted to suit the room and the speakers. Stereo RCA, LFE and high-level inputs; LFE/RCA output for connecting a second subwoofer.

Connecting it to the system

It connects to the subwoofer (LFE) output of a home cinema receiver or, in a stereo system, to the line outputs of the preamplifier or to the speaker terminals through the high-level input. With automatic power-on it wakes up by itself when a signal arrives and goes back to standby when the music stops.

• 15" woofer, 450 W RMS amplifier (1000 W dynamic)
• Frequency response: 23–120 Hz at ±3 dB, 13–200 Hz overall
• Dimensions: 42.5 × 44.5 × 48.8 cm (W × H × D), weight 23 kg

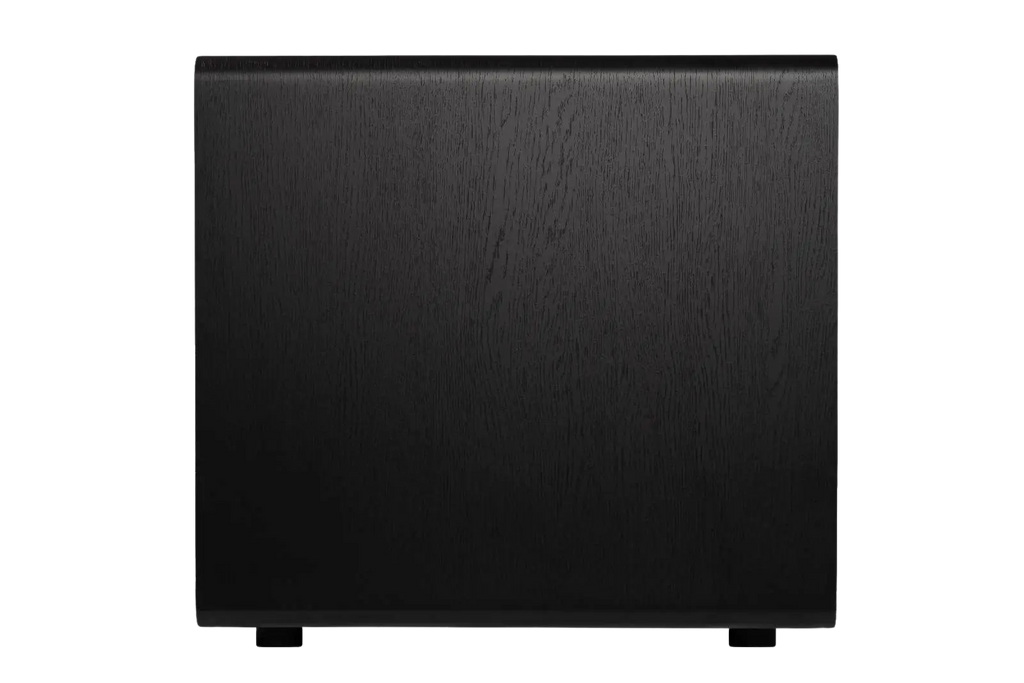

• Finish: black vinyl
