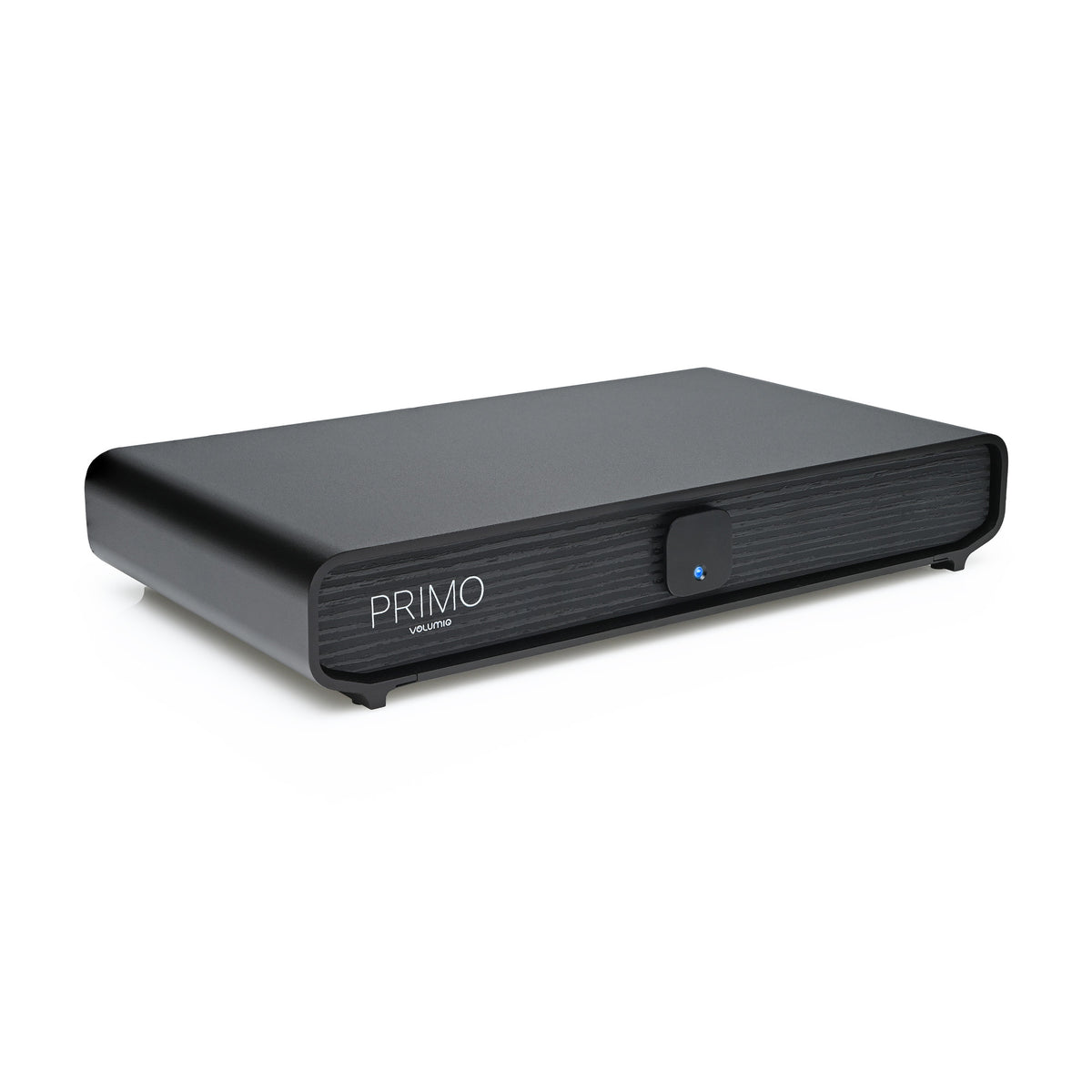

Volumio Primo V3: network streamer with ESS D/A converter and XLR and RCA outputs
Volumio Primo V3 is a network player with a built-in D/A converter: it connects straight to an amplifier or to a pair of active speakers and gathers in a single interface, thanks to Volumio Premium, services such as TIDAL, Qobuz and Spotify, internet radio and music stored locally or on the network. It supports TIDAL Connect and Qobuz Connect and is Roon Ready.
It is the new generation of the Primo, redesigned around the ESS Sabre ES9039Q2M chip with Hyperstream IV architecture, a linear supply stage inside the chassis and a precision clock that keeps jitter down. The analogue outputs have eight selectable voltage levels, to match the signal to the amplifier; conversion offers eight digital filters and NOS Mode, which bypasses oversampling.
Technical features
- Converter: ESS Sabre ES9039Q2M, 8 digital filters, switchable NOS Mode
- Resolution: PCM at 32 bit / 384 kHz at most; from the USB output towards an external DAC, 32 bit / 1536 kHz and DSD1024

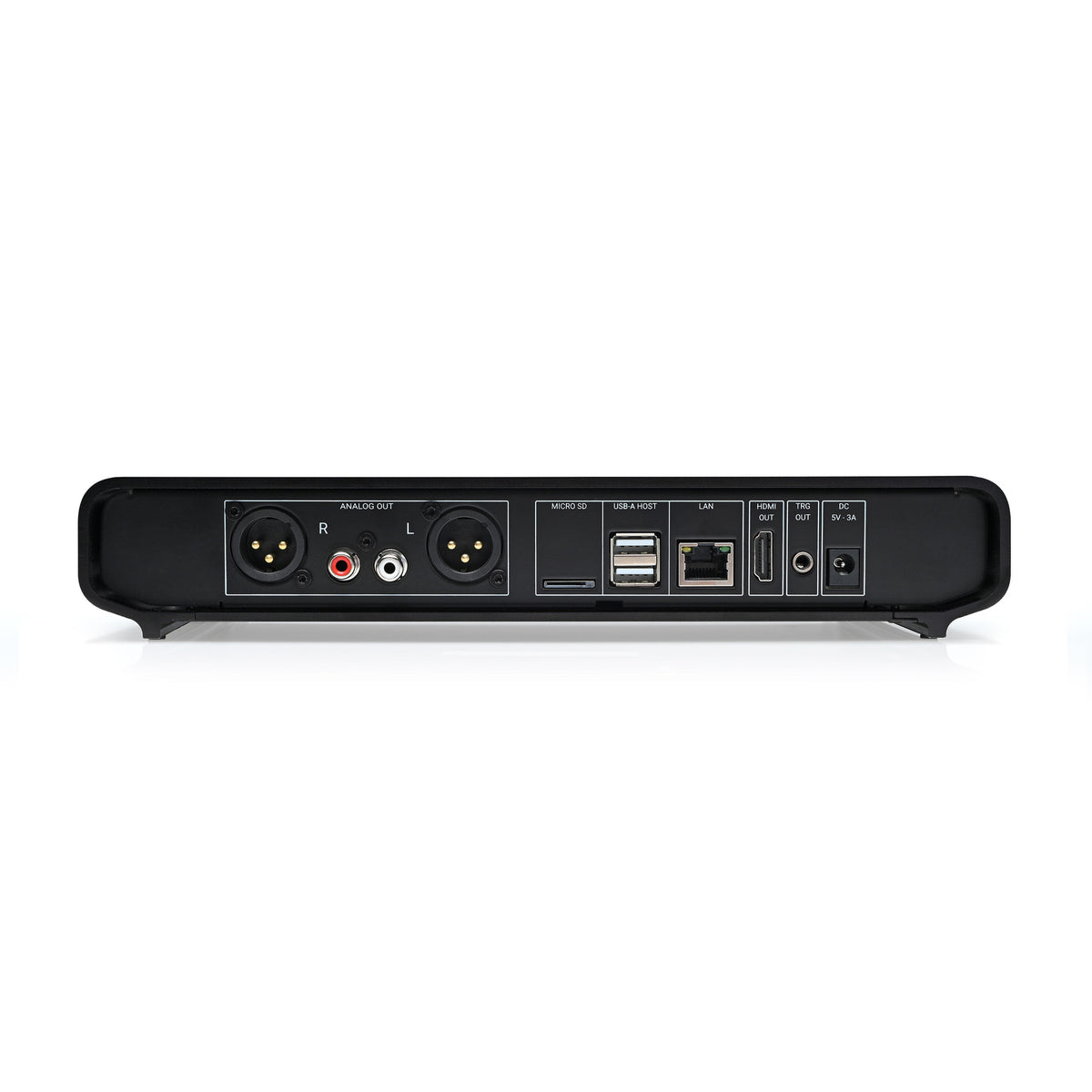

- Analogue outputs: balanced XLR adjustable from 1.00 to 6.30 Vrms, unbalanced RCA adjustable from 0.50 to 3.15 Vrms; output impedance about 140 Ohm
- Formats: FLAC, WAV, DSD, MP3, AAC, ALAC, Vorbis, Cue and others
- Ports: 2 USB-A 2.0; HDMI video output showing the Volumio interface, 4K / 60 fps at most
- Network: Gigabit Ethernet, dual-band Wi-Fi (2.4 and 5 GHz), Bluetooth 5.0
- Power: external 5 V / 3 A power supply included
- Size and weight: 27 x 15 x 5 cm, 2.5 kg
