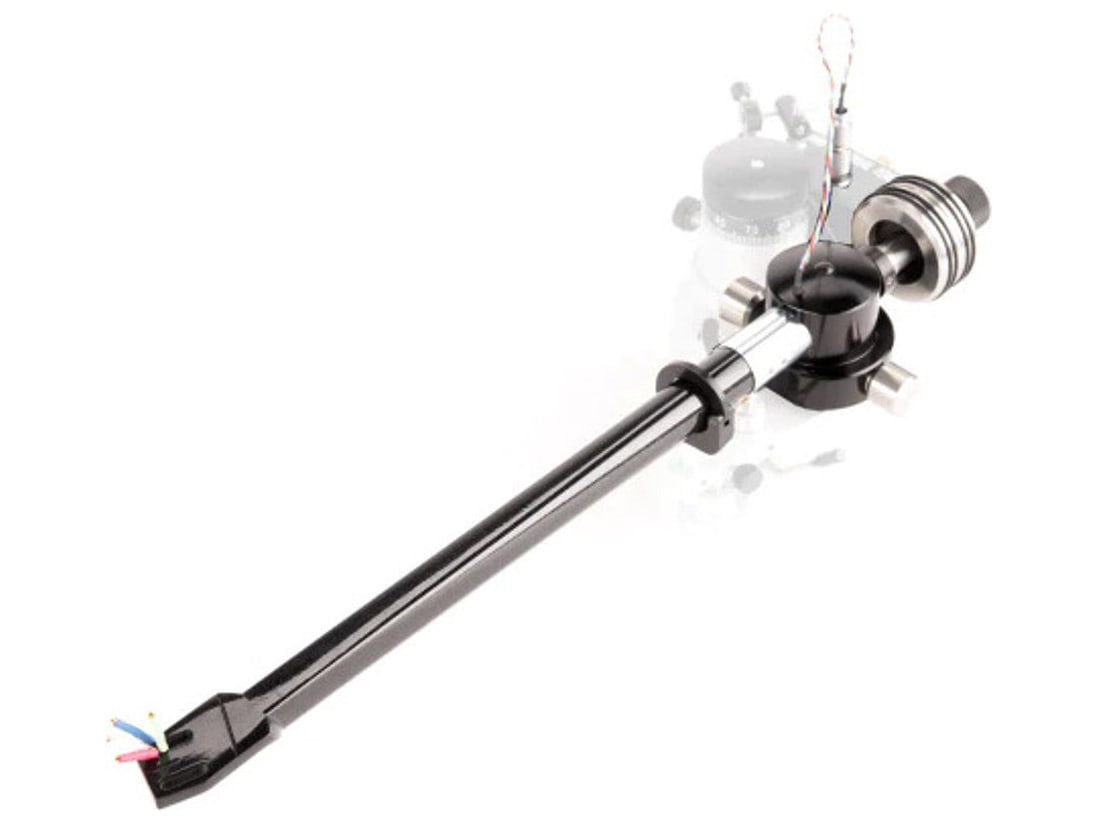

10-inch unipivot tonearm with a 3D-printed wand and Nordost Reference cable
The Fatboy 10 3D is the middle size among the unipivot Fatboy arms. It has a straight 10-inch wand, an integrated headshell, Nordost Reference internal wiring and an adjustable 180 g counterweight.
The wand material is a plastic and resin compound described as ultralight and indestructible, laid down in a 3D print lasting 24 hours per unit. The arm comes as a wand only and installs on the JMW-B base. Azimuth, by means of side weights, and VTA can be set as well.
- Bearing: unipivot
- Internal wiring: Nordost Reference
- Pivot-to-spindle distance: 258 mm
- Effective length of the arm: 273.4 mm
- Effective mass: 10.7 g
- Overhang: 15.4 mm
- Offset angle: 19.98°
- Materials: 3D-processed Delrin and epoxy resin, plus aluminum, copper and steel
